ADC数字电压表

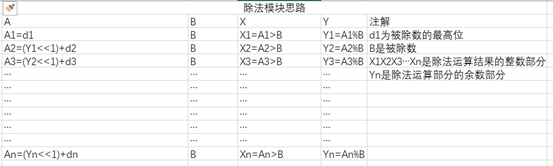

摘要:基于adc做了一个数字电压表.实现了OLED. ADC7868的驱动和除法器模块.
设计目标:
利用ADC制作一个数字电压表
- 旋转电位计可以产生0-3.3V的电压
- 利用板上的串行ADC对电压进行转换

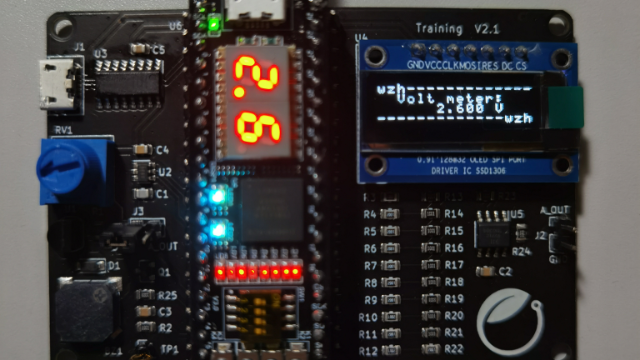

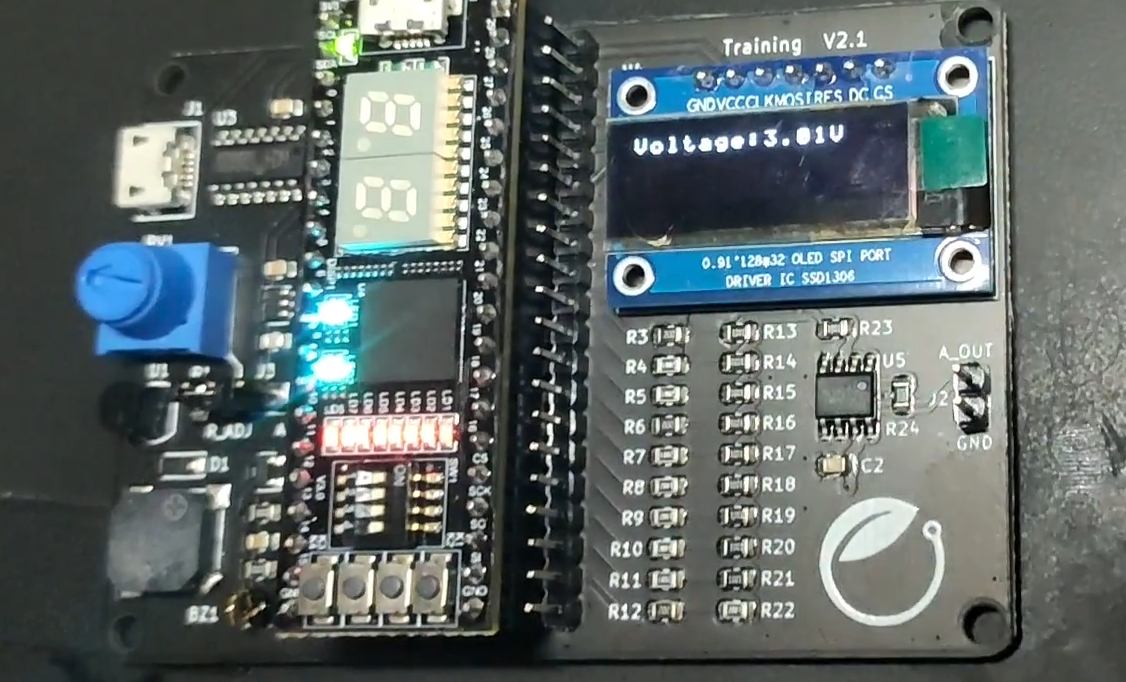

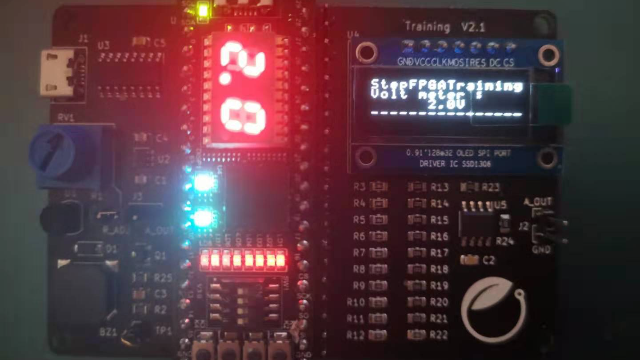

- 将电压值在板上的OLED屏幕上显示出来
项目思路:FPGA从ADC7868处得到二进制值.FPGA将得到的二进制值转换为对应的的电压值.由于小数不好计算.所以得到的电压值是三位的十进制数.再将得到的十进制数通过除法器模块得到个位.十位和百位.接着将得到的个位.十位和百位数显示在OLED上.
实施方案:

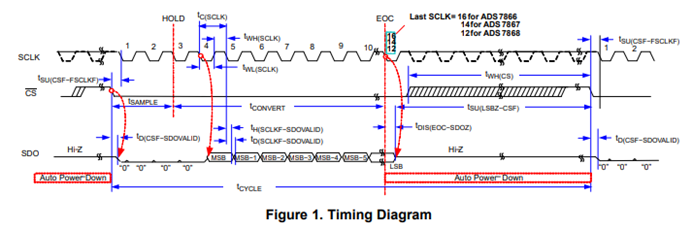

1.将ADC7868的数据手册和电子森林中的串行ADC电压计项目综合起来看,完成adc7868的驱动代码.
module ADS7868 (
input clk, //系统时钟
input rst, //系统复位信号
output reg adc_cs, //adc片选信号
output reg adc_clk,//adc芯片同步时钟
input adc_dat, //adc芯片输出引脚
output reg [8:0] adc_data //电压对应的二进制值
);
localparam HIGH = 1'd1;
localparam LOW = 1'd0;
reg [7:0] data; //用于在传输数据时,缓存数据
reg [2:0] cnt_t = 0; //用于分频器时钟计数
localparam [2:0] cnt_025ms = 3;
reg [4:0] cnt_c = 0; //数据传输计数
reg clk_div = 1; //分频器输出
always @(posedge clk or negedge rst) begin
if(!rst) cnt_t <= 0;
else begin
cnt_t <= cnt_t + 1'd1;
if(cnt_t >= cnt_025ms) begin //clk_div周期为0.5ms,频率为2MHz
clk_div <= ~clk_div;
cnt_t <= 1'd0;
end
end
end
always @(posedge clk_div or negedge rst) begin
if (!rst) begin
adc_cs <= HIGH;
adc_clk <= HIGH;
cnt_c <= 1'd0;
end
else begin //adc_clk周期为1ms,频率为1MHz
if(cnt_c >= 5'd24) begin cnt_c <= 1'd0; adc_data <= (331 * data) >> 8;end //将从adc芯片得到的二进制数据转换为十进制数据
else cnt_c <= cnt_c + 1'd1;
case (cnt_c)
5'd0: begin adc_clk <= HIGH; adc_cs <= HIGH;end
5'd1: begin adc_cs <= LOW; adc_clk <= HIGH;end
5'd2,5'd4,5'd6,5'd8,5'd10,5'd12,5'd14,5'd16,5'd18,5'd20,5'd22:
begin adc_cs <= LOW;adc_clk <= LOW;end
5'd3:begin adc_cs <= LOW; adc_clk <= HIGH;end//0
5'd5:begin adc_cs <= LOW; adc_clk <= HIGH;end//1
5'd7:begin adc_cs <= LOW; adc_clk <= HIGH;end//2
5'd9:begin adc_cs <= LOW; adc_clk <= HIGH; data[7] <= adc_dat;end//3
5'd11:begin adc_cs <= LOW; adc_clk <= HIGH; data[6] <= adc_dat;end//4
5'd13:begin adc_cs <= LOW; adc_clk <= HIGH; data[5] <= adc_dat;end//5
5'd15:begin adc_cs <= LOW; adc_clk <= HIGH; data[4] <= adc_dat;end//6
5'd17:begin adc_cs <= LOW; adc_clk <= HIGH; data[3] <= adc_dat;end//7
5'd19:begin adc_cs <= LOW; adc_clk <= HIGH; data[2] <= adc_dat;end//8
5'd21:begin adc_cs <= LOW; adc_clk <= HIGH; data[1] <= adc_dat;end//9
5'd23:begin adc_cs <= LOW; adc_clk <= HIGH; data[0] <= adc_dat;end//10
5'd24:begin adc_cs <= HIGH; adc_clk <= HIGH;end
default: begin adc_cs <= HIGH; adc_clk <= HIGH;end
endcase
end
end

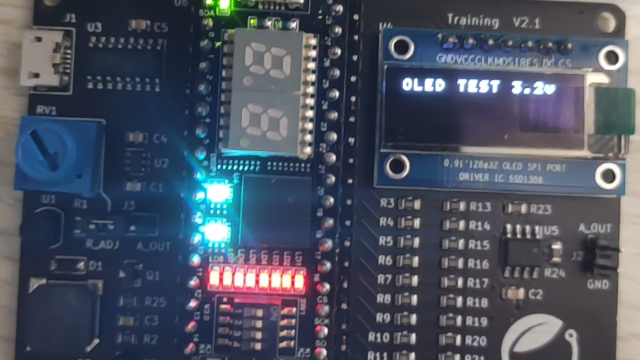

endmodule2.因为板子上的OLED的驱动芯片是SSD1306和电子森林中的OLED案例项目的相同,所以可以直接搬过来使用.我们只需要将main状态中的代码修改一下就可以了
// --------------------------------------------------------------------
// >>>>>>>>>>>>>>>>>>>>>>>>> COPYRIGHT NOTICE <<<<<<<<<<<<<<<<<<<<<<<<<
// --------------------------------------------------------------------
// Module: OLED12832
//
// Author: Step
//
// Description: OLED12832_Driver，使用8*8点阵字库，每行显示128/8=16个字符
//
// Web: www.stepfpga.com
//
// --------------------------------------------------------------------
// Code Revision History :
// --------------------------------------------------------------------
// Version: |Mod. Date: |Changes Made:
// V1.0 |2015/11/11 |Initial ver
// --------------------------------------------------------------------
module OLED12832
(
input clk, ////12MHz系统时钟
input rst_n, //系统复位，低有效
input [3:0] ones,
input [3:0] ten,
input [1:0] hund,
output reg oled_csn, ////OLCD液晶屏使能
output reg oled_rst, //OLCD液晶屏复位
output reg oled_dcn, //OLCD数据指令控制
output reg oled_clk, //OLCD时钟信号
output reg oled_dat //OLCD数据信号
);
localparam INIT_DEPTH = 16'd25; //LCD初始化的命令的数量
localparam IDLE = 6'h1, MAIN = 6'h2, INIT = 6'h4, SCAN = 6'h8, WRITE = 6'h10, DELAY = 6'h20;
localparam HIGH = 1'b1, LOW = 1'b0;
localparam DATA = 1'b1, CMD = 1'b0;
reg [7:0] cmd [24:0];
reg [39:0] mem [122:0];
reg [7:0] y_p, x_ph, x_pl;
reg [(8*21-1):0] char;
reg [7:0] num, char_reg; //
reg [4:0] cnt_main, cnt_init, cnt_scan, cnt_write;
reg [15:0] num_delay, cnt_delay, cnt;
reg [5:0] state, state_back;
always@(posedge clk or negedge rst_n) begin
if(!rst_n) begin
cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;
y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;
oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
state <= IDLE; state_back <= IDLE;
end else begin
case(state)
IDLE:begin
cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;
y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;
oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
state <= MAIN; state_back <= MAIN;
end
MAIN:begin
if(cnt_main >= 5'd8) cnt_main <= 5'd5;
else cnt_main <= cnt_main + 1'b1;
case(cnt_main) //MAIN状态
5'd0: begin state <= INIT; end
5'd1: begin y_p <= 8'hb0; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "Voltage: V ";state <= SCAN; end
5'd2: begin y_p <= 8'hb1; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end//消除GRAM中我们不想要的部分
5'd3: begin y_p <= 8'hb2; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd4: begin y_p <= 8'hb3; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd5: begin y_p <= 8'hb0; x_ph <= 8'h14; x_pl <= 8'h00; num <= 5'd 1; char <= hund; state <= SCAN; end
5'd6: begin y_p <= 8'hb0; x_ph <= 8'h14; x_pl <= 8'h08; num <= 5'd 1; char <= "."; state <= SCAN; end
5'd7: begin y_p <= 8'hb0; x_ph <= 8'h15; x_pl <= 8'h00; num <= 5'd 1; char <= ten; state <= SCAN; end
5'd8: begin y_p <= 8'hb0; x_ph <= 8'h15; x_pl <= 8'h08; num <= 5'd 1; char <= ones; state <= SCAN; end
default: state <= IDLE;
endcase
end
INIT:begin //初始化状态
case(cnt_init)
5'd0: begin oled_rst <= LOW; cnt_init <= cnt_init + 1'b1; end //复位有效
5'd1: begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end //延时大于3us
5'd2: begin oled_rst <= HIGH; cnt_init <= cnt_init + 1'b1; end //复位恢复
5'd3: begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end //延时大于220us
5'd4: begin
if(cnt>=INIT_DEPTH) begin //当25条指令及数据发出后，配置完成
cnt <= 1'b0;
cnt_init <= cnt_init + 1'b1;
end else begin
cnt <= cnt + 1'b1; num_delay <= 16'd5;
oled_dcn <= CMD; char_reg <= cmd[cnt]; state <= WRITE; state_back <= INIT;
end
end
5'd5: begin cnt_init <= 1'b0; state <= MAIN; end //初始化完成，返回MAIN状态
default: state <= IDLE;
endcase
end
SCAN:begin //刷屏状态，从RAM中读取数据刷屏
if(cnt_scan == 5'd11) begin
if(num) cnt_scan <= 5'd3;
else cnt_scan <= cnt_scan + 1'b1;
end else if(cnt_scan == 5'd12) cnt_scan <= 1'b0;
else cnt_scan <= cnt_scan + 1'b1;
case(cnt_scan)
5'd 0: begin oled_dcn <= CMD; char_reg <= y_p; state <= WRITE; state_back <= SCAN; end //定位列页地址
5'd 1: begin oled_dcn <= CMD; char_reg <= x_pl; state <= WRITE; state_back <= SCAN; end //定位行地址低位
5'd 2: begin oled_dcn <= CMD; char_reg <= x_ph; state <= WRITE; state_back <= SCAN; end //定位行地址高位
5'd 3: begin num <= num - 1'b1;end
5'd 4: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 5: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 6: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 7: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][39:32]; state <= WRITE; state_back <= SCAN; end
5'd 8: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][31:24]; state <= WRITE; state_back <= SCAN; end
5'd 9: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][23:16]; state <= WRITE; state_back <= SCAN; end
5'd10: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][15: 8]; state <= WRITE; state_back <= SCAN; end
5'd11: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][ 7: 0]; state <= WRITE; state_back <= SCAN; end
5'd12: begin state <= MAIN; end
default: state <= IDLE;
endcase
end
WRITE:begin //WRITE状态，将数据按照SPI时序发送给屏幕
if(cnt_write >= 5'd17) cnt_write <= 1'b0;
else cnt_write <= cnt_write + 1'b1;
case(cnt_write)
5'd 0: begin oled_csn <= LOW; end //9位数据最高位为命令数据控制位
5'd 1: begin oled_clk <= LOW; oled_dat <= char_reg[7]; end //先发高位数据
5'd 2: begin oled_clk <= HIGH; end
5'd 3: begin oled_clk <= LOW; oled_dat <= char_reg[6]; end
5'd 4: begin oled_clk <= HIGH; end
5'd 5: begin oled_clk <= LOW; oled_dat <= char_reg[5]; end
5'd 6: begin oled_clk <= HIGH; end
5'd 7: begin oled_clk <= LOW; oled_dat <= char_reg[4]; end
5'd 8: begin oled_clk <= HIGH; end
5'd 9: begin oled_clk <= LOW; oled_dat <= char_reg[3]; end
5'd10: begin oled_clk <= HIGH; end
5'd11: begin oled_clk <= LOW; oled_dat <= char_reg[2]; end
5'd12: begin oled_clk <= HIGH; end
5'd13: begin oled_clk <= LOW; oled_dat <= char_reg[1]; end
5'd14: begin oled_clk <= HIGH; end
5'd15: begin oled_clk <= LOW; oled_dat <= char_reg[0]; end //后发低位数据
5'd16: begin oled_clk <= HIGH; end
5'd17: begin oled_csn <= HIGH; state <= DELAY; end //
default: state <= IDLE;
endcase
end
DELAY:begin //延时状态
if(cnt_delay >= num_delay) begin
cnt_delay <= 16'd0; state <= state_back;
end else cnt_delay <= cnt_delay + 1'b1;
end
default:state <= IDLE;
endcase
end
end
//OLED配置指令数据
always@(posedge rst_n)
begin
cmd[ 0] = {8'hae};
cmd[ 1] = {8'h00};
cmd[ 2] = {8'h10};
cmd[ 3] = {8'h00};
cmd[ 4] = {8'hb0};
cmd[ 5] = {8'h81};
cmd[ 6] = {8'hff};
cmd[ 7] = {8'ha1};
cmd[ 8] = {8'ha6};
cmd[ 9] = {8'ha8};
cmd[10] = {8'h1f};
cmd[11] = {8'hc8};
cmd[12] = {8'hd3};
cmd[13] = {8'h00};
cmd[14] = {8'hd5};
cmd[15] = {8'h80};
cmd[16] = {8'hd9};
cmd[17] = {8'h1f};
cmd[18] = {8'hda};
cmd[19] = {8'h00};
cmd[20] = {8'hdb};
cmd[21] = {8'h40};
cmd[22] = {8'h8d};
cmd[23] = {8'h14};
cmd[24] = {8'haf};
end
//5*8点阵字库数据
always@(posedge rst_n)
begin
mem[ 0] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E}; // 48 0
mem[ 1] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00}; // 49 1
mem[ 2] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46}; // 50 2
mem[ 3] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31}; // 51 3
mem[ 4] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10}; // 52 4
mem[ 5] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39}; // 53 5
mem[ 6] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30}; // 54 6
mem[ 7] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03}; // 55 7
mem[ 8] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36}; // 56 8
mem[ 9] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E}; // 57 9
mem[ 10] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C}; // 65 A
mem[ 11] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36}; // 66 B
mem[ 12] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22}; // 67 C
mem[ 13] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C}; // 68 D
mem[ 14] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41}; // 69 E
mem[ 15] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01}; // 70 F
mem[ 32] = {8'h00, 8'h00, 8'h00, 8'h00, 8'h00}; // 32 sp
mem[ 33] = {8'h00, 8'h00, 8'h2f, 8'h00, 8'h00}; // 33 !
mem[ 34] = {8'h00, 8'h07, 8'h00, 8'h07, 8'h00}; // 34
mem[ 35] = {8'h14, 8'h7f, 8'h14, 8'h7f, 8'h14}; // 35 #
mem[ 36] = {8'h24, 8'h2a, 8'h7f, 8'h2a, 8'h12}; // 36 $
mem[ 37] = {8'h62, 8'h64, 8'h08, 8'h13, 8'h23}; // 37 %
mem[ 38] = {8'h36, 8'h49, 8'h55, 8'h22, 8'h50}; // 38 &
mem[ 39] = {8'h00, 8'h05, 8'h03, 8'h00, 8'h00}; // 39 '
mem[ 40] = {8'h00, 8'h1c, 8'h22, 8'h41, 8'h00}; // 40 (
mem[ 41] = {8'h00, 8'h41, 8'h22, 8'h1c, 8'h00}; // 41 )
mem[ 42] = {8'h14, 8'h08, 8'h3E, 8'h08, 8'h14}; // 42 *
mem[ 43] = {8'h08, 8'h08, 8'h3E, 8'h08, 8'h08}; // 43 +
mem[ 44] = {8'h00, 8'h00, 8'hA0, 8'h60, 8'h00}; // 44 ,
mem[ 45] = {8'h08, 8'h08, 8'h08, 8'h08, 8'h08}; // 45 -
mem[ 46] = {8'h00, 8'h60, 8'h60, 8'h00, 8'h00}; // 46 .
mem[ 47] = {8'h20, 8'h10, 8'h08, 8'h04, 8'h02}; // 47 /
mem[ 48] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E}; // 48 0
mem[ 49] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00}; // 49 1
mem[ 50] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46}; // 50 2
mem[ 51] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31}; // 51 3
mem[ 52] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10}; // 52 4
mem[ 53] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39}; // 53 5
mem[ 54] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30}; // 54 6
mem[ 55] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03}; // 55 7
mem[ 56] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36}; // 56 8
mem[ 57] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E}; // 57 9
mem[ 58] = {8'h00, 8'h36, 8'h36, 8'h00, 8'h00}; // 58 :
mem[ 59] = {8'h00, 8'h56, 8'h36, 8'h00, 8'h00}; // 59 ;
mem[ 60] = {8'h08, 8'h14, 8'h22, 8'h41, 8'h00}; // 60 <
mem[ 61] = {8'h14, 8'h14, 8'h14, 8'h14, 8'h14}; // 61 =
mem[ 62] = {8'h00, 8'h41, 8'h22, 8'h14, 8'h08}; // 62 >
mem[ 63] = {8'h02, 8'h01, 8'h51, 8'h09, 8'h06}; // 63 ?
mem[ 64] = {8'h32, 8'h49, 8'h59, 8'h51, 8'h3E}; // 64 @
mem[ 65] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C}; // 65 A
mem[ 66] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36}; // 66 B
mem[ 67] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22}; // 67 C
mem[ 68] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C}; // 68 D
mem[ 69] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41}; // 69 E
mem[ 70] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01}; // 70 F
mem[ 71] = {8'h3E, 8'h41, 8'h49, 8'h49, 8'h7A}; // 71 G
mem[ 72] = {8'h7F, 8'h08, 8'h08, 8'h08, 8'h7F}; // 72 H
mem[ 73] = {8'h00, 8'h41, 8'h7F, 8'h41, 8'h00}; // 73 I
mem[ 74] = {8'h20, 8'h40, 8'h41, 8'h3F, 8'h01}; // 74 J
mem[ 75] = {8'h7F, 8'h08, 8'h14, 8'h22, 8'h41}; // 75 K
mem[ 76] = {8'h7F, 8'h40, 8'h40, 8'h40, 8'h40}; // 76 L
mem[ 77] = {8'h7F, 8'h02, 8'h0C, 8'h02, 8'h7F}; // 77 M
mem[ 78] = {8'h7F, 8'h04, 8'h08, 8'h10, 8'h7F}; // 78 N
mem[ 79] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h3E}; // 79 O
mem[ 80] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h06}; // 80 P
mem[ 81] = {8'h3E, 8'h41, 8'h51, 8'h21, 8'h5E}; // 81 Q
mem[ 82] = {8'h7F, 8'h09, 8'h19, 8'h29, 8'h46}; // 82 R
mem[ 83] = {8'h46, 8'h49, 8'h49, 8'h49, 8'h31}; // 83 S
mem[ 84] = {8'h01, 8'h01, 8'h7F, 8'h01, 8'h01}; // 84 T
mem[ 85] = {8'h3F, 8'h40, 8'h40, 8'h40, 8'h3F}; // 85 U
mem[ 86] = {8'h1F, 8'h20, 8'h40, 8'h20, 8'h1F}; // 86 V
mem[ 87] = {8'h3F, 8'h40, 8'h38, 8'h40, 8'h3F}; // 87 W
mem[ 88] = {8'h63, 8'h14, 8'h08, 8'h14, 8'h63}; // 88 X
mem[ 89] = {8'h07, 8'h08, 8'h70, 8'h08, 8'h07}; // 89 Y
mem[ 90] = {8'h61, 8'h51, 8'h49, 8'h45, 8'h43}; // 90 Z
mem[ 91] = {8'h00, 8'h7F, 8'h41, 8'h41, 8'h00}; // 91 [
mem[ 92] = {8'h55, 8'h2A, 8'h55, 8'h2A, 8'h55}; // 92 .
mem[ 93] = {8'h00, 8'h41, 8'h41, 8'h7F, 8'h00}; // 93 ]
mem[ 94] = {8'h04, 8'h02, 8'h01, 8'h02, 8'h04}; // 94 ^
mem[ 95] = {8'h40, 8'h40, 8'h40, 8'h40, 8'h40}; // 95 _
mem[ 96] = {8'h00, 8'h01, 8'h02, 8'h04, 8'h00}; // 96 '
mem[ 97] = {8'h20, 8'h54, 8'h54, 8'h54, 8'h78}; // 97 a
mem[ 98] = {8'h7F, 8'h48, 8'h44, 8'h44, 8'h38}; // 98 b
mem[ 99] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h20}; // 99 c
mem[100] = {8'h38, 8'h44, 8'h44, 8'h48, 8'h7F}; // 100 d
mem[101] = {8'h38, 8'h54, 8'h54, 8'h54, 8'h18}; // 101 e
mem[102] = {8'h08, 8'h7E, 8'h09, 8'h01, 8'h02}; // 102 f
mem[103] = {8'h18, 8'hA4, 8'hA4, 8'hA4, 8'h7C}; // 103 g
mem[104] = {8'h7F, 8'h08, 8'h04, 8'h04, 8'h78}; // 104 h
mem[105] = {8'h00, 8'h44, 8'h7D, 8'h40, 8'h00}; // 105 i
mem[106] = {8'h40, 8'h80, 8'h84, 8'h7D, 8'h00}; // 106 j
mem[107] = {8'h7F, 8'h10, 8'h28, 8'h44, 8'h00}; // 107 k
mem[108] = {8'h00, 8'h41, 8'h7F, 8'h40, 8'h00}; // 108 l
mem[109] = {8'h7C, 8'h04, 8'h18, 8'h04, 8'h78}; // 109 m
mem[110] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h78}; // 110 n
mem[111] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h38}; // 111 o
mem[112] = {8'hFC, 8'h24, 8'h24, 8'h24, 8'h18}; // 112 p
mem[113] = {8'h18, 8'h24, 8'h24, 8'h18, 8'hFC}; // 113 q
mem[114] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h08}; // 114 r
mem[115] = {8'h48, 8'h54, 8'h54, 8'h54, 8'h20}; // 115 s
mem[116] = {8'h04, 8'h3F, 8'h44, 8'h40, 8'h20}; // 116 t
mem[117] = {8'h3C, 8'h40, 8'h40, 8'h20, 8'h7C}; // 117 u
mem[118] = {8'h1C, 8'h20, 8'h40, 8'h20, 8'h1C}; // 118 v
mem[119] = {8'h3C, 8'h40, 8'h30, 8'h40, 8'h3C}; // 119 w
mem[120] = {8'h44, 8'h28, 8'h10, 8'h28, 8'h44}; // 120 x
mem[121] = {8'h1C, 8'hA0, 8'hA0, 8'hA0, 8'h7C}; // 121 y
mem[122] = {8'h44, 8'h64, 8'h54, 8'h4C, 8'h44}; // 122 z
end
endmodule3.除法器模块思路和代码
module divi (
input [8:0] dived,//被除数9位,最大为512 大于 331
input [3:0] div,//除数最大为15,大于10
output reg [5:0] res,//除法结果整数部分
output reg [3:0] rem//除法结果余数部分
);
//由于此次除数已定为10,所以我就没有从最高位一位一位的算,而是最高四位开始算,如果想要更好的适应性,应从最高位开始算.
//此代码缺点,如果除数小于等于为7,那么计算结果可能是错的.这就是没有从最高位开始一位一位计算导致的.
//如果你的被除数大于512可以将被除数的位数增大来使用.
reg [5:0] res_reg = 1'd0;//最大为64,大于33
reg [4:0] buffer = 0;
always @(dived) begin
buffer = 5'b0;//初始化
rem = dived % div;
res_reg = (dived[8:5] >= div)?1:0;
buffer = dived[8:5] % div;
buffer = {buffer[3:0],dived[4]};
// buffer = (buffer << 1) + dived[4];
res_reg = res_reg << 1;
res_reg = res_reg | ((buffer >= div)?1:0);
buffer = buffer % div;
buffer = {buffer[3:0],dived[3]};
res_reg = res_reg << 1;
res_reg = res_reg | ((buffer >= div)?1:0);
buffer = buffer % div;
buffer = {buffer[3:0],dived[2]};
res_reg = res_reg << 1;
res_reg = res_reg | ((buffer >= div)?1:0);
buffer = buffer % div;
buffer = {buffer[3:0],dived[1]};
res_reg = res_reg << 1;
res_reg = res_reg | ((buffer >= div)?1:0);
buffer = buffer % div;
buffer = {buffer[3:0],dived[0]};
res_reg = res_reg << 1;
res_reg = res_reg | ((buffer >= div)?1:0);
res = res_reg;
end

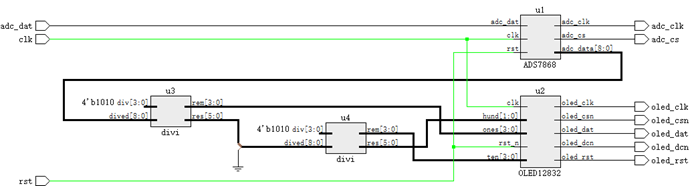

endmodule顶层模块代码:
module vol_measure(
input clk, //系统时钟
input rst, //系统复位信号
output adc_cs, //adc片选信号
output adc_clk,//adc芯片同步时钟
input adc_dat, //adc芯片输出引脚
output oled_csn, //OLED片选信号
output oled_rst, //OLCD复位信号
output oled_dcn, //OLCD命令/数据控制信号
output oled_clk, //OLCD同步时钟信号
output oled_dat //OLCD数据传输信号
);
//ADC
wire [8:0] adc_data;
//OLED
wire [3:0] ones;
wire [3:0] ten;
wire [1:0] hund;
//divide
wire [5:0] buf1;
ADS7868 u1( //从ADS7868得到三位数的十进制电压值
.clk (clk),
.rst (rst),
.adc_cs (adc_cs),
.adc_clk (adc_clk),
.adc_dat (adc_dat),
.adc_data (adc_data)//三位十进制电压值
);
OLED12832 u2( //调用OLED显示电压值
.clk (clk),
.rst_n (rst),
.ones (ones),
.ten (ten),
.hund (hund),
.oled_csn (oled_csn),
.oled_rst (oled_rst),
.oled_dcn (oled_dcn),
.oled_clk (oled_clk),
.oled_dat (oled_dat)
);
divi u3(
.dived (adc_data),
.div (4'd10),
.res (buf1),//buf1为adc_data除10后的整数值
.rem (ones)//ones 为adc_data的个位值
);
divi u4(//hund
.dived ({3'b0,buf1}),
.div (4'd10),
.res (hund),//adc_data的百位值
.rem (ten)//adc_data的十位值
);

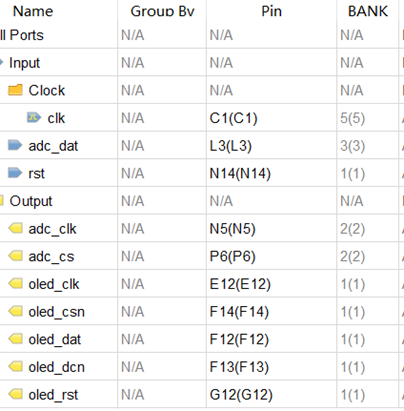

endmodule信号引脚对应图:
操作说明:
- 将R_ADJ和J3的中间引脚通过跳线帽短接起来.通过旋转RV1旋钮来改变,电阻上的分压,从OLED上观察R_ADJ的电压值.
- 将外部小于3V的电压接在J3的中间引脚(注意共地),从OLED上观察外部电压值.
- 将A_out与J3的中间引脚通过跳线帽短接起来.可以测出DAC输出的电压.
实物图:
笔记:
1.Verilog的always中不能对wire类型的变量进行赋值,可以对reg类型变量赋值.在进程语句中对reg变量赋值后,在进程外使用assign关键字对wire变量更新.
2.Always进程在满足条件时,会一直运行.模块调用.always属于并行关系.
在testbench中,模块的输入如果是要在进程中自动赋值,那么使用reg类型,而模块的输出就使用wire类型.
3.Verilog中区分大小写.
4.Verilog模块例化端口规则:
输入端口(input):对模块内部而言,必须是wire类型,对模块外部而言,可以是wire也可以是reg.
输出端口(output):对模块内部而言,可以是wire和reg类型,对模块外部必须是wire类型.
输入/输出端口(inout):对模块内外而言都必须是wire类型.
注释:模块外部是指调用模块的模块,模块内部是指被调模块.
5.模块例化是用线将网络连接起来,是实时反应(如果一定要用函数来类比的话,就是一直运行的函数.不过我并不觉得这对理解有太大帮助).
6.报错误时,如果发现逻辑没问题,那么看一下关键字是否写对了.
7.一个寄存器变量,只能在一个always中赋值,不能交叉赋值
8.在没有除法器的FPGA芯片的编程中,Verilog中不能使用除法,否则会出现问题.但可以使用%指令
9.最好不要用一个宽变量来接收窄变量的值,因为二进制高位的值不确定.若没有办法,就用拼接操作符,来将二进制0和窄变量拼接为宽位值再赋给宽变量.
注:这里的窄和宽指的值和变量的二进制位数.
注意数值的表达形式,b.d.h,这三个.当发现计算结果出错时,最先检查数值的表达形式出错没.
参考文献:
- 基于FPGA的除法器设计(2019-07-15)
https://blog.csdn.net/weixin_42507186/article/details/95960089
软硬件
附件下载
vol_measure_impl1.jed
vol_measure.zip
source.zip
团队介绍
一名成都信息工程大学电子工程学院的学生
团队成员
57SSG
评论
0 / 100
查看更多
