基于小脚丫FPGA的数字电压表
一、项目要求：
1.旋转电位计可以产生0-3.3V的电压；
2.利用板上的串行ADC对电压进行转换；

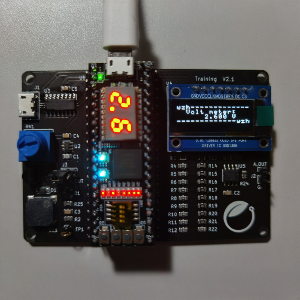

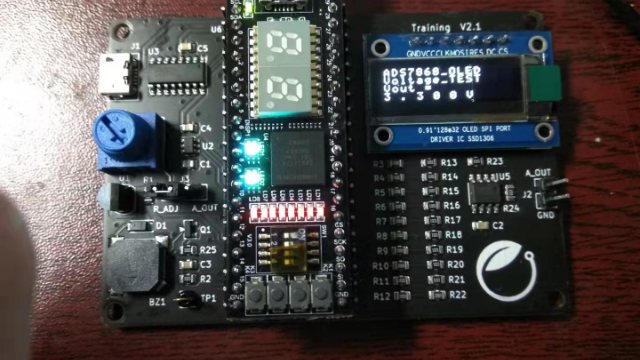

3.将电压值在板上的OLED屏幕上显示出来。
二、设计思路：
本次使用的硬件为基于Lattice XO2-4000HC FPGA的综合技能训练版，开发环境为Diamond 3.12，编程语言为Verilog。
因为是第一次接触FPGA和Verilog编程
我们可以手动操控旋转电位计，然后由ADC电路将产生的模拟电压采集并数字化，再通过ADS7868和bin_to_bcd模块将电压值又二进制码转化为BCD码，再将BCD码输入至OLED和LED模块从而显示电压值，最后完成顶层模块。
以下为该项目的思路图和逻辑电路图。
思路图：
逻辑电路图：
三、模块代码
在硬禾学堂和电子森林上我找到很多模块的案例，这些案例的代码可以用来借鉴，再通过自己的学习理解，结合项目要求进行修改调整，最终实现了数字电压表的功能。
ADC数据采集模块：
该模块是用的我在电子森林里找到的案例代码，将模拟电压采集并进行数字化，以传输给下面的模块进行后面的操作。
module ADS7868
(
input clk, //系统时钟
input rst_n, //系统复位，低有效
output reg adc_cs, //SPI总线CS
output reg adc_clk, //SPI总线SCK
input adc_dat, //SPI总线SDA
output reg adc_done, //ADC采样完成标志
output reg [7:0] adc_data //ADC采样数据
);
localparam HIGH = 1'b1;
localparam LOW = 1'b0;
reg [7:0] cnt; //计数器
always @(posedge clk or negedge rst_n)
if(!rst_n) cnt <= 1'b0;
else if(cnt >= 8'd34) cnt <= 1'b0;
else cnt <= cnt + 1'b1;
reg [7:0] data;
always @(posedge clk or negedge rst_n)
if(!rst_n) begin
adc_cs <= HIGH; adc_clk <= HIGH;
data <= 1'b0; adc_data <= 1'b0; adc_done <= LOW;
end else case(cnt)
8'd0 : begin adc_cs <= HIGH; adc_clk <= HIGH; end
8'd1 : begin adc_cs <= LOW; adc_clk <= HIGH; end
8'd2,8'd4,8'd6,8'd8,8'd10,8'd12,8'd14,8'd16,
8'd18,8'd20,8'd22,8'd24,8'd26,8'd28,8'd30,8'd32:
begin adc_cs <= LOW; adc_clk <= LOW; end
8'd3 : begin adc_cs <= LOW; adc_clk <= HIGH; end //0
8'd5 : begin adc_cs <= LOW; adc_clk <= HIGH; end //1
8'd7 : begin adc_cs <= LOW; adc_clk <= HIGH; end //2
8'd9 : begin adc_cs <= LOW; adc_clk <= HIGH; data[7] <= adc_dat; end //3
8'd11 : begin adc_cs <= LOW; adc_clk <= HIGH; data[6] <= adc_dat; end //4
8'd13 : begin adc_cs <= LOW; adc_clk <= HIGH; data[5] <= adc_dat; end //5
8'd15 : begin adc_cs <= LOW; adc_clk <= HIGH; data[4] <= adc_dat; end //6
8'd17 : begin adc_cs <= LOW; adc_clk <= HIGH; data[3] <= adc_dat; end //7
8'd19 : begin adc_cs <= LOW; adc_clk <= HIGH; data[2] <= adc_dat; end //8
8'd21 : begin adc_cs <= LOW; adc_clk <= HIGH; data[1] <= adc_dat; end //9
8'd23 : begin adc_cs <= LOW; adc_clk <= HIGH; data[0] <= adc_dat; end //10
8'd25 : begin adc_cs <= LOW; adc_clk <= HIGH; adc_data <= data; end //11
8'd27 : begin adc_cs <= LOW; adc_clk <= HIGH; adc_done <= HIGH; end //12
8'd29 : begin adc_cs <= LOW; adc_clk <= HIGH; adc_done <= LOW; end //13
8'd31 : begin adc_cs <= LOW; adc_clk <= HIGH; end //14
8'd33 : begin adc_cs <= LOW; adc_clk <= HIGH; end //15
8'd34 : begin adc_cs <= HIGH; adc_clk <= HIGH; end
default : begin adc_cs <= HIGH; adc_clk <= HIGH; end
endcase
endmodule
二进制码转BCD码模块：
该模块是将上面ADC数据采集模块的数据由二进制码转化为BCD码。
module bin_to_bcd
(
input rst_n, //系统复位，低有效
input [15:0] bin_code, //需要进行BCD转码的二进制数据
output reg [19:0] bcd_code //转码后的BCD码型数据输出
);
reg [35:0] shift_reg;
always@(bin_code or rst_n)begin
shift_reg = {20'h0,bin_code};
if(!rst_n) bcd_code = 0;
else begin
repeat(16) begin //循环16次
//BCD码各位数据作满5加3操作，
if (shift_reg[19:16] >= 5) shift_reg[19:16] = shift_reg[19:16] + 2'b11;
if (shift_reg[23:20] >= 5) shift_reg[23:20] = shift_reg[23:20] + 2'b11;
if (shift_reg[27:24] >= 5) shift_reg[27:24] = shift_reg[27:24] + 2'b11;
if (shift_reg[31:28] >= 5) shift_reg[31:28] = shift_reg[31:28] + 2'b11;
if (shift_reg[35:32] >= 5) shift_reg[35:32] = shift_reg[35:32] + 2'b11;
shift_reg = shift_reg << 1;
end
bcd_code = shift_reg[35:16];
end
end
endmodule
LED显示模块：
本模块是将上面转来的BCD码又转化为两个数码管上的数字显示，即带小数点后一位的电压值。
module Seg_led
(
input [3:0] seg_data, //seg_data input
input seg_dot, //segment dot control
output seg_sel, //segment com port
output reg [7:0] seg_led //MSB~LSB = DP,G,F,E,D,C,B,A
);
always@(seg_data)
case(seg_data)
4'h0: seg_led = {seg_dot,7'h3f}; // 0
4'h1: seg_led = {seg_dot,7'h06}; // 1
4'h2: seg_led = {seg_dot,7'h5b}; // 2
4'h3: seg_led = {seg_dot,7'h4f}; // 3
4'h4: seg_led = {seg_dot,7'h66}; // 4
4'h5: seg_led = {seg_dot,7'h6d}; // 5
4'h6: seg_led = {seg_dot,7'h7d}; // 6
4'h7: seg_led = {seg_dot,7'h07}; // 7
4'h8: seg_led = {seg_dot,7'h7f}; // 8
4'h9: seg_led = {seg_dot,7'h6f}; // 9
4'ha: seg_led = {seg_dot,7'h77}; // A
4'hb: seg_led = {seg_dot,7'h7C}; // b
4'hc: seg_led = {seg_dot,7'h39}; // C
4'hd: seg_led = {seg_dot,7'h5e}; // d
4'he: seg_led = {seg_dot,7'h79}; // E
4'hf: seg_led = {seg_dot,7'h71}; // F
default: seg_led = {seg_dot,7'h00};
endcase
assign seg_sel = 1'b0; //共阴极，使能
endmodule
OLED显示模块：
该模块主要参考了电子森林：OLED驱动说明及Verilog代码实例其中的OLED驱动模块，并结合本项目的项目要求作出调整，使做出来的数字电压表能读出小数点后三位的电压值。
module OLED12832
(
input clk, //12MHz系统时钟
input rst_n, //系统复位，低有效
input [15:0] data, //
output reg oled_csn, //OLCD液晶屏使能
output reg oled_rst, //OLCD液晶屏复位
output reg oled_dcn, //OLCD数据指令控制
output reg oled_clk, //OLCD时钟信号
output reg oled_dat //OLCD数据信号
);
localparam INIT_DEPTH = 16'd25; //LCD初始化的命令的数量
localparam IDLE = 6'h1, MAIN = 6'h2, INIT = 6'h4, SCAN = 6'h8, WRITE = 6'h10, DELAY = 6'h20;
localparam HIGH = 1'b1, LOW = 1'b0;
localparam DATA = 1'b1, CMD = 1'b0;
reg [7:0] cmd [24:0];
reg [39:0] mem [122:0];
reg [7:0] y_p, x_ph, x_pl;
reg [(8*21-1):0] char;
reg [7:0] num, char_reg; //
reg [4:0] cnt_main, cnt_init, cnt_scan, cnt_write;
reg [15:0] num_delay, cnt_delay, cnt;
reg [5:0] state, state_back;
always@(posedge clk or negedge rst_n) begin
if(!rst_n) begin
cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;
y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;
oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
state <= IDLE; state_back <= IDLE;
end else begin
case(state)
IDLE:begin
cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;
y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;
oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
state <= MAIN; state_back <= MAIN;
end
MAIN:begin
if(cnt_main >= 5'd8) cnt_main <= 5'd5;
else cnt_main <= cnt_main + 1'b1;
case(cnt_main) //MAIN状态
5'd0: begin state <= INIT; end
5'd1: begin y_p <= 8'hb0; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "wzh-------------";state <= SCAN; end
5'd2: begin y_p <= 8'hb1; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " Volt meter: ";state <= SCAN; end
5'd3: begin y_p <= 8'hb2; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " . V ";state <= SCAN; end
5'd4: begin y_p <= 8'hb3; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "-------------wzh";state <= SCAN; end
5'd5: begin y_p <= 8'hb2; x_ph <= 8'h13; x_pl <= 8'h00; num <= 5'd 1; char <=data[15:12]; state <= SCAN; end
5'd6: begin y_p <= 8'hb2; x_ph <= 8'h14; x_pl <= 8'h00; num <= 5'd 1; char <=data[11:8]; state <= SCAN; end
5'd7: begin y_p <= 8'hb2; x_ph <= 8'h14; x_pl <= 8'h10; num <= 5'd 1; char <=data[7:4]; state <= SCAN; end
5'd8: begin y_p <= 8'hb2; x_ph <= 8'h15; x_pl <= 8'h00; num <= 5'd 1; char <=data[3:0]; state <= SCAN; end
default: state <= IDLE;
endcase
end
INIT:begin //初始化状态
case(cnt_init)
5'd0: begin oled_rst <= LOW; cnt_init <= cnt_init + 1'b1; end //复位有效
5'd1: begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end //延时大于3us
5'd2: begin oled_rst <= HIGH; cnt_init <= cnt_init + 1'b1; end //复位恢复
5'd3: begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end //延时大于220us
5'd4: begin
if(cnt>=INIT_DEPTH) begin //当25条指令及数据发出后，配置完成
cnt <= 1'b0;
cnt_init <= cnt_init + 1'b1;
end else begin
cnt <= cnt + 1'b1; num_delay <= 16'd5;
oled_dcn <= CMD; char_reg <= cmd[cnt]; state <= WRITE; state_back <= INIT;
end
end
5'd5: begin cnt_init <= 1'b0; state <= MAIN; end //初始化完成，返回MAIN状态
default: state <= IDLE;
endcase
end
SCAN:begin //刷屏状态，从RAM中读取数据刷屏
if(cnt_scan == 5'd11) begin
if(num) cnt_scan <= 5'd3;
else cnt_scan <= cnt_scan + 1'b1;
end else if(cnt_scan == 5'd12) cnt_scan <= 1'b0;
else cnt_scan <= cnt_scan + 1'b1;
case(cnt_scan)
5'd 0: begin oled_dcn <= CMD; char_reg <= y_p; state <= WRITE; state_back <= SCAN; end //定位列页地址
5'd 1: begin oled_dcn <= CMD; char_reg <= x_pl; state <= WRITE; state_back <= SCAN; end //定位行地址低位
5'd 2: begin oled_dcn <= CMD; char_reg <= x_ph; state <= WRITE; state_back <= SCAN; end //定位行地址高位
5'd 3: begin num <= num - 1'b1;end
5'd 4: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 5: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 6: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 7: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][39:32]; state <= WRITE; state_back <= SCAN; end
5'd 8: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][31:24]; state <= WRITE; state_back <= SCAN; end
5'd 9: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][23:16]; state <= WRITE; state_back <= SCAN; end
5'd10: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][15: 8]; state <= WRITE; state_back <= SCAN; end
5'd11: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][ 7: 0]; state <= WRITE; state_back <= SCAN; end
5'd12: begin state <= MAIN; end
default: state <= IDLE;
endcase
end
WRITE:begin //WRITE状态，将数据按照SPI时序发送给屏幕
if(cnt_write >= 5'd17) cnt_write <= 1'b0;
else cnt_write <= cnt_write + 1'b1;
case(cnt_write)
5'd 0: begin oled_csn <= LOW; end //9位数据最高位为命令数据控制位
5'd 1: begin oled_clk <= LOW; oled_dat <= char_reg[7]; end //先发高位数据
5'd 2: begin oled_clk <= HIGH; end
5'd 3: begin oled_clk <= LOW; oled_dat <= char_reg[6]; end
5'd 4: begin oled_clk <= HIGH; end
5'd 5: begin oled_clk <= LOW; oled_dat <= char_reg[5]; end
5'd 6: begin oled_clk <= HIGH; end
5'd 7: begin oled_clk <= LOW; oled_dat <= char_reg[4]; end
5'd 8: begin oled_clk <= HIGH; end
5'd 9: begin oled_clk <= LOW; oled_dat <= char_reg[3]; end
5'd10: begin oled_clk <= HIGH; end
5'd11: begin oled_clk <= LOW; oled_dat <= char_reg[2]; end
5'd12: begin oled_clk <= HIGH; end
5'd13: begin oled_clk <= LOW; oled_dat <= char_reg[1]; end
5'd14: begin oled_clk <= HIGH; end
5'd15: begin oled_clk <= LOW; oled_dat <= char_reg[0]; end //后发低位数据
5'd16: begin oled_clk <= HIGH; end
5'd17: begin oled_csn <= HIGH; state <= DELAY; end //
default: state <= IDLE;
endcase
end
DELAY:begin //延时状态
if(cnt_delay >= num_delay) begin
cnt_delay <= 16'd0; state <= state_back;
end else cnt_delay <= cnt_delay + 1'b1;
end
default:state <= IDLE;
endcase
end
end
//OLED配置指令数据
always@(posedge rst_n)
begin
cmd[ 0] = {8'hae};
cmd[ 1] = {8'h00};
cmd[ 2] = {8'h10};
cmd[ 3] = {8'h00};
cmd[ 4] = {8'hb0};
cmd[ 5] = {8'h81};
cmd[ 6] = {8'hff};
cmd[ 7] = {8'ha1};
cmd[ 8] = {8'ha6};
cmd[ 9] = {8'ha8};
cmd[10] = {8'h1f};
cmd[11] = {8'hc8};
cmd[12] = {8'hd3};
cmd[13] = {8'h00};
cmd[14] = {8'hd5};
cmd[15] = {8'h80};
cmd[16] = {8'hd9};
cmd[17] = {8'h1f};
cmd[18] = {8'hda};
cmd[19] = {8'h00};
cmd[20] = {8'hdb};
cmd[21] = {8'h40};
cmd[22] = {8'h8d};
cmd[23] = {8'h14};
cmd[24] = {8'haf};
end
//5*8点阵字库数据
always@(posedge rst_n)
begin
mem[ 0] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E}; // 48 0
mem[ 1] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00}; // 49 1
mem[ 2] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46}; // 50 2
mem[ 3] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31}; // 51 3
mem[ 4] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10}; // 52 4
mem[ 5] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39}; // 53 5
mem[ 6] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30}; // 54 6
mem[ 7] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03}; // 55 7
mem[ 8] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36}; // 56 8
mem[ 9] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E}; // 57 9
mem[ 10] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C}; // 65 A
mem[ 11] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36}; // 66 B
mem[ 12] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22}; // 67 C
mem[ 13] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C}; // 68 D
mem[ 14] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41}; // 69 E
mem[ 15] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01}; // 70 F
mem[ 32] = {8'h00, 8'h00, 8'h00, 8'h00, 8'h00}; // 32 sp
mem[ 33] = {8'h00, 8'h00, 8'h2f, 8'h00, 8'h00}; // 33 !
mem[ 34] = {8'h00, 8'h07, 8'h00, 8'h07, 8'h00}; // 34
mem[ 35] = {8'h14, 8'h7f, 8'h14, 8'h7f, 8'h14}; // 35 #
mem[ 36] = {8'h24, 8'h2a, 8'h7f, 8'h2a, 8'h12}; // 36 $
mem[ 37] = {8'h62, 8'h64, 8'h08, 8'h13, 8'h23}; // 37 %
mem[ 38] = {8'h36, 8'h49, 8'h55, 8'h22, 8'h50}; // 38 &
mem[ 39] = {8'h00, 8'h05, 8'h03, 8'h00, 8'h00}; // 39 '
mem[ 40] = {8'h00, 8'h1c, 8'h22, 8'h41, 8'h00}; // 40 (
mem[ 41] = {8'h00, 8'h41, 8'h22, 8'h1c, 8'h00}; // 41 )
mem[ 42] = {8'h14, 8'h08, 8'h3E, 8'h08, 8'h14}; // 42 *
mem[ 43] = {8'h08, 8'h08, 8'h3E, 8'h08, 8'h08}; // 43 +
mem[ 44] = {8'h00, 8'h00, 8'hA0, 8'h60, 8'h00}; // 44 ,
mem[ 45] = {8'h08, 8'h08, 8'h08, 8'h08, 8'h08}; // 45 -
mem[ 46] = {8'h00, 8'h60, 8'h60, 8'h00, 8'h00}; // 46 .
mem[ 47] = {8'h20, 8'h10, 8'h08, 8'h04, 8'h02}; // 47 /
mem[ 48] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E}; // 48 0
mem[ 49] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00}; // 49 1
mem[ 50] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46}; // 50 2
mem[ 51] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31}; // 51 3
mem[ 52] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10}; // 52 4
mem[ 53] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39}; // 53 5
mem[ 54] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30}; // 54 6
mem[ 55] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03}; // 55 7
mem[ 56] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36}; // 56 8
mem[ 57] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E}; // 57 9
mem[ 58] = {8'h00, 8'h36, 8'h36, 8'h00, 8'h00}; // 58 :
mem[ 59] = {8'h00, 8'h56, 8'h36, 8'h00, 8'h00}; // 59 ;
mem[ 60] = {8'h08, 8'h14, 8'h22, 8'h41, 8'h00}; // 60 <
mem[ 61] = {8'h14, 8'h14, 8'h14, 8'h14, 8'h14}; // 61 =
mem[ 62] = {8'h00, 8'h41, 8'h22, 8'h14, 8'h08}; // 62 >
mem[ 63] = {8'h02, 8'h01, 8'h51, 8'h09, 8'h06}; // 63 ?
mem[ 64] = {8'h32, 8'h49, 8'h59, 8'h51, 8'h3E}; // 64 @
mem[ 65] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C}; // 65 A
mem[ 66] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36}; // 66 B
mem[ 67] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22}; // 67 C
mem[ 68] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C}; // 68 D
mem[ 69] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41}; // 69 E
mem[ 70] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01}; // 70 F
mem[ 71] = {8'h3E, 8'h41, 8'h49, 8'h49, 8'h7A}; // 71 G
mem[ 72] = {8'h7F, 8'h08, 8'h08, 8'h08, 8'h7F}; // 72 H
mem[ 73] = {8'h00, 8'h41, 8'h7F, 8'h41, 8'h00}; // 73 I
mem[ 74] = {8'h20, 8'h40, 8'h41, 8'h3F, 8'h01}; // 74 J
mem[ 75] = {8'h7F, 8'h08, 8'h14, 8'h22, 8'h41}; // 75 K
mem[ 76] = {8'h7F, 8'h40, 8'h40, 8'h40, 8'h40}; // 76 L
mem[ 77] = {8'h7F, 8'h02, 8'h0C, 8'h02, 8'h7F}; // 77 M
mem[ 78] = {8'h7F, 8'h04, 8'h08, 8'h10, 8'h7F}; // 78 N
mem[ 79] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h3E}; // 79 O
mem[ 80] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h06}; // 80 P
mem[ 81] = {8'h3E, 8'h41, 8'h51, 8'h21, 8'h5E}; // 81 Q
mem[ 82] = {8'h7F, 8'h09, 8'h19, 8'h29, 8'h46}; // 82 R
mem[ 83] = {8'h46, 8'h49, 8'h49, 8'h49, 8'h31}; // 83 S
mem[ 84] = {8'h01, 8'h01, 8'h7F, 8'h01, 8'h01}; // 84 T
mem[ 85] = {8'h3F, 8'h40, 8'h40, 8'h40, 8'h3F}; // 85 U
mem[ 86] = {8'h1F, 8'h20, 8'h40, 8'h20, 8'h1F}; // 86 V
mem[ 87] = {8'h3F, 8'h40, 8'h38, 8'h40, 8'h3F}; // 87 W
mem[ 88] = {8'h63, 8'h14, 8'h08, 8'h14, 8'h63}; // 88 X
mem[ 89] = {8'h07, 8'h08, 8'h70, 8'h08, 8'h07}; // 89 Y
mem[ 90] = {8'h61, 8'h51, 8'h49, 8'h45, 8'h43}; // 90 Z
mem[ 91] = {8'h00, 8'h7F, 8'h41, 8'h41, 8'h00}; // 91 [
mem[ 92] = {8'h55, 8'h2A, 8'h55, 8'h2A, 8'h55}; // 92 .
mem[ 93] = {8'h00, 8'h41, 8'h41, 8'h7F, 8'h00}; // 93 ]
mem[ 94] = {8'h04, 8'h02, 8'h01, 8'h02, 8'h04}; // 94 ^
mem[ 95] = {8'h40, 8'h40, 8'h40, 8'h40, 8'h40}; // 95 _
mem[ 96] = {8'h00, 8'h01, 8'h02, 8'h04, 8'h00}; // 96 '
mem[ 97] = {8'h20, 8'h54, 8'h54, 8'h54, 8'h78}; // 97 a
mem[ 98] = {8'h7F, 8'h48, 8'h44, 8'h44, 8'h38}; // 98 b
mem[ 99] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h20}; // 99 c
mem[100] = {8'h38, 8'h44, 8'h44, 8'h48, 8'h7F}; // 100 d
mem[101] = {8'h38, 8'h54, 8'h54, 8'h54, 8'h18}; // 101 e
mem[102] = {8'h08, 8'h7E, 8'h09, 8'h01, 8'h02}; // 102 f
mem[103] = {8'h18, 8'hA4, 8'hA4, 8'hA4, 8'h7C}; // 103 g
mem[104] = {8'h7F, 8'h08, 8'h04, 8'h04, 8'h78}; // 104 h
mem[105] = {8'h00, 8'h44, 8'h7D, 8'h40, 8'h00}; // 105 i
mem[106] = {8'h40, 8'h80, 8'h84, 8'h7D, 8'h00}; // 106 j
mem[107] = {8'h7F, 8'h10, 8'h28, 8'h44, 8'h00}; // 107 k
mem[108] = {8'h00, 8'h41, 8'h7F, 8'h40, 8'h00}; // 108 l
mem[109] = {8'h7C, 8'h04, 8'h18, 8'h04, 8'h78}; // 109 m
mem[110] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h78}; // 110 n
mem[111] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h38}; // 111 o
mem[112] = {8'hFC, 8'h24, 8'h24, 8'h24, 8'h18}; // 112 p
mem[113] = {8'h18, 8'h24, 8'h24, 8'h18, 8'hFC}; // 113 q
mem[114] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h08}; // 114 r
mem[115] = {8'h48, 8'h54, 8'h54, 8'h54, 8'h20}; // 115 s
mem[116] = {8'h04, 8'h3F, 8'h44, 8'h40, 8'h20}; // 116 t
mem[117] = {8'h3C, 8'h40, 8'h40, 8'h20, 8'h7C}; // 117 u
mem[118] = {8'h1C, 8'h20, 8'h40, 8'h20, 8'h1C}; // 118 v
mem[119] = {8'h3C, 8'h40, 8'h30, 8'h40, 8'h3C}; // 119 w
mem[120] = {8'h44, 8'h28, 8'h10, 8'h28, 8'h44}; // 120 x
mem[121] = {8'h1C, 8'hA0, 8'hA0, 8'hA0, 8'h7C}; // 121 y
mem[122] = {8'h44, 8'h64, 8'h54, 8'h4C, 8'h44}; // 122 z
end
endmodule
顶层模块：
顶层模块通过实例化各个模块，综合了各个模块相对独立的功能，也就是所有底层模块输入的总和，最终完成了数字电压表的运作。
module voltmeter
(
input clk, //系统时钟
input rst_n, //系统复位，低有效
output adc_cs, //SPI总线CS
output adc_clk, //SPI总线SCK
input adc_dat, //SPI总线SDA
output seg1_sel, //数码管位选
output [7:0] seg1_led, //数码管段选
output seg2_sel, //数码管位选
output [7:0] seg2_led, //数码管段选
output oled_csn, //OLCD液晶屏使能
output oled_rst, //OLCD液晶屏复位
output oled_dcn, //OLCD数据指令控制
output oled_clk, //OLCD时钟信号
output oled_dat //OLCD数据信号
);
wire adc_done;
wire [7:0] adc_data;
//ADC功能，例化
ADS7868 u2
(
.clk (clk ), //系统时钟
.rst_n (rst_n ), //系统复位，低有效
.adc_cs (adc_cs ), //SPI总线CS
.adc_clk (adc_clk ), //SPI总线SCK
.adc_dat (adc_dat ), //SPI总线SDA
.adc_done (adc_done ), //ADC采样完成标志
.adc_data (adc_data ) //ADC采样数据
);
wire [15:0] bin_code = adc_data * 16'd130;
wire [19:0] bcd_code;
//将处理后的ADC数据进行BCD转码，例化
bin_to_bcd u3
(
.rst_n (rst_n ), //系统复位，低有效
.bin_code (bin_code ), //需要进行BCD转码的二进制数据
.bcd_code (bcd_code ) //转码后的BCD码型数据输出
);
//Segment led display module
Seg_led seg[1:0]
(
.seg_data (bcd_code[19:12] ), //seg_data input
.seg_dot ({1'b1,1'b0} ), //segment dot control
.seg_sel ({seg1_sel,seg2_sel}), //segment com port
.seg_led ({seg1_led,seg2_led}) //MSB~LSB = DP,G,F,E,D,C,B,A
);
OLED12832 u4
(
.clk (clk ), //12MHz系统时钟
.rst_n (rst_n ), //系统复位，低有效
.data (bcd_code[19:4]),
.oled_clk (oled_clk ),
.oled_csn (oled_csn ),
.oled_dat (oled_dat ),
.oled_dcn (oled_dcn ),
.oled_rst (oled_rst )
);
endmodule
四、结果展示
五、心得体会
这是我第一次接触FPGA，自己其实还是有很多不明白的地方，但FPGA本身就有很好的学习平台，硬禾学堂和电子森林为我的学习提供了很多很好的讲解和案例，我在学习了之后，再在自己的理解基础上，借助其代码和思路进行封装以及符合项目要求的修改，最后完成了本次项目。同时，这也是我第一次接触Verilog编程语言以及运用Lattice Diamond编程软件，通过自己查找学习和别人的指点，我又了解掌握了很多知识，并且Verilog对于我算是一种新的编程语言，要学会转变自己思考的方式，这也是很重要的一点，很感谢硬禾学堂和电子森林这样的平台提供了很好的资源，我自己也是通过这次的项目锻炼了自己，丰富了自己！
附件下载
wzh_fpga.zip
这是整个工程文件
volt_1_impl1.jed
这是jed文件
代码.zip
这是代码
团队介绍
北京理工大学
团队成员
王子豪
学校：北京理工大学
专业：电子信息工程
评论
0 / 100
查看更多
猜你喜欢
2021暑假一起练-用小脚丫FPGA设计数字电压表项目1 - 利用ADC制作一个数字电压表,旋转电位计可以产生0-3.3V的电压,利用板上的串行ADC对电压进行转换,,将电压值在板上的OLED屏幕上显示出来.
ZHANGcj1260
2021年暑假一起练-用adc做了数字电压表基于adc做了一个数字电压表.实现了OLED. ADS7868的驱动和除法器模块.
57SSG1168
2021暑假一起练项目-用小脚丫FPGA平台完成一个数字电压表本次实验使用小脚丫FPGA综合实验平台完成了一个数字电压表的设计。使用到的器件包括板上的ADS7868和OLED显示屏。结果是通过FPGA控制AD采样板上滑动变阻器分得的电压，电压值在液晶屏上显示。
桂林小张1233
