UART通信模块
Do you know how a UART works? If not, first brush up on the basics of UARTs before continuing on. Have you considered how you might sample data with an FPGA? Think about data coming into your FPGA. Data can arrive by itself or it can arrive with a clock. When it arrives with a clock, it is call synchronous. When it arrives without a clock, it is called asynchronous. A UART is an asynchronous interface.
In any asynchronous interface, the first thing you need to know is when in time you should sample (look at) the data. If you do not sample the data at the right time, you might see the wrong data. In order to receive your data correctly, the transmitter and receiver must agree on the baud rate. The baud rate is the rate at which the data is transmitted. For example, 9600 baud means 9600 bits per second. The code below uses a generic in VHDL or a parameter in Verilog to determine how many clock cycles there are in each bit. This is how the baud rate gets determined.

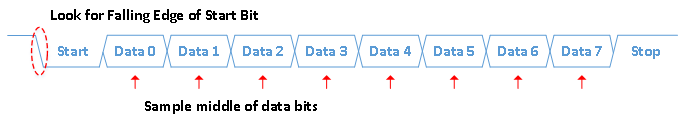

The FPGA is continuously sampling the line. Once it sees the line transition from high to low, it knows that a UART data word is coming. This first transition indicates the start bit. Once the beginning of the start bit is found, the FPGA waits for one half of a bit period. This ensures that the middle of the data bit gets sampled. From then on, the FPGA just needs to wait one bit period (as specified by the baud rate) and sample the rest of the data. The figure below shows how the UART receiver works inside of the FPGA. First a falling edge is detected on the serial data line. This represents the start bit. The FPGA then waits until the middle of the first data bit and samples the data. It does this for all eight data bits.
UART Serial Data Stream The above data stream shows how the code below is structured. The code below uses one Start Bit, one Stop Bit, eight Data Bits, and no parity. Note that the transmitter modules below both have a signal otxactive. This is used to infer a tri-state buffer for half-duplex communication. It is up your specific project requirements if you want to create a half-duplex UART or a full-duplex UART. The code below will work for both!
Uart接收模块(uart_rx.v):
////////////////////////////////////////////////////////////////////// // File Downloaded from http://www.nandland.com ////////////////////////////////////////////////////////////////////// // This file contains the UART Receiver. This receiver is able to // receive 8 bits of serial data, one start bit, one stop bit, // and no parity bit. When receive is complete o_rx_dv will be // driven high for one clock cycle. // // Set Parameter CLKS_PER_BIT as follows: // CLKS_PER_BIT = (Frequency of i_Clock)/(Frequency of UART) // Example: 10 MHz Clock, 115200 baud UART // (10000000)/(115200) = 87 module uart_rx #(parameter CLKS_PER_BIT) ( input i_Clock, input i_Rx_Serial, output o_Rx_DV, output [7:0] o_Rx_Byte ); parameter s_IDLE = 3'b000; parameter s_RX_START_BIT = 3'b001; parameter s_RX_DATA_BITS = 3'b010; parameter s_RX_STOP_BIT = 3'b011; parameter s_CLEANUP = 3'b100; reg r_Rx_Data_R = 1'b1; reg r_Rx_Data = 1'b1; reg [7:0] r_Clock_Count = 0; reg [2:0] r_Bit_Index = 0; //8 bits total reg [7:0] r_Rx_Byte = 0; reg r_Rx_DV = 0; reg [2:0] r_SM_Main = 0; // Purpose: Double-register the incoming data. // This allows it to be used in the UART RX Clock Domain. // (It removes problems caused by metastability) always @(posedge i_Clock) begin r_Rx_Data_R <= i_Rx_Serial; r_Rx_Data <= r_Rx_Data_R; end // Purpose: Control RX state machine always @(posedge i_Clock) begin case (r_SM_Main) s_IDLE : begin r_Rx_DV <= 1'b0; r_Clock_Count <= 0; r_Bit_Index <= 0; if (r_Rx_Data == 1'b0) // Start bit detected r_SM_Main <= s_RX_START_BIT; else r_SM_Main <= s_IDLE; end // Check middle of start bit to make sure it's still low s_RX_START_BIT : begin if (r_Clock_Count == (CLKS_PER_BIT-1)/2) begin if (r_Rx_Data == 1'b0) begin r_Clock_Count <= 0; // reset counter, found the middle r_SM_Main <= s_RX_DATA_BITS; end else r_SM_Main <= s_IDLE; end else begin r_Clock_Count <= r_Clock_Count + 1; r_SM_Main <= s_RX_START_BIT; end end // case: s_RX_START_BIT // Wait CLKS_PER_BIT-1 clock cycles to sample serial data s_RX_DATA_BITS : begin if (r_Clock_Count < CLKS_PER_BIT-1) begin r_Clock_Count <= r_Clock_Count + 1; r_SM_Main <= s_RX_DATA_BITS; end else begin r_Clock_Count <= 0; r_Rx_Byte[r_Bit_Index] <= r_Rx_Data; // Check if we have received all bits if (r_Bit_Index < 7) begin r_Bit_Index <= r_Bit_Index + 1; r_SM_Main <= s_RX_DATA_BITS; end else begin r_Bit_Index <= 0; r_SM_Main <= s_RX_STOP_BIT; end end end // case: s_RX_DATA_BITS // Receive Stop bit. Stop bit = 1 s_RX_STOP_BIT : begin // Wait CLKS_PER_BIT-1 clock cycles for Stop bit to finish if (r_Clock_Count < CLKS_PER_BIT-1) begin r_Clock_Count <= r_Clock_Count + 1; r_SM_Main <= s_RX_STOP_BIT; end else begin r_Rx_DV <= 1'b1; r_Clock_Count <= 0; r_SM_Main <= s_CLEANUP; end end // case: s_RX_STOP_BIT // Stay here 1 clock s_CLEANUP : begin r_SM_Main <= s_IDLE; r_Rx_DV <= 1'b0; end default : r_SM_Main <= s_IDLE; endcase end assign o_Rx_DV = r_Rx_DV; assign o_Rx_Byte = r_Rx_Byte; endmodule // uart_rx
Uart发送模块(uart_tx.v):
////////////////////////////////////////////////////////////////////// // File Downloaded from http://www.nandland.com ////////////////////////////////////////////////////////////////////// // This file contains the UART Transmitter. This transmitter is able // to transmit 8 bits of serial data, one start bit, one stop bit, // and no parity bit. When transmit is complete o_Tx_done will be // driven high for one clock cycle. // // Set Parameter CLKS_PER_BIT as follows: // CLKS_PER_BIT = (Frequency of i_Clock)/(Frequency of UART) // Example: 10 MHz Clock, 115200 baud UART // (10000000)/(115200) = 87 module uart_tx #(parameter CLKS_PER_BIT) ( input i_Clock, input i_Tx_DV, input [7:0] i_Tx_Byte, output o_Tx_Active, output reg o_Tx_Serial, output o_Tx_Done ); parameter s_IDLE = 3'b000; parameter s_TX_START_BIT = 3'b001; parameter s_TX_DATA_BITS = 3'b010; parameter s_TX_STOP_BIT = 3'b011; parameter s_CLEANUP = 3'b100; reg [2:0] r_SM_Main = 0; reg [7:0] r_Clock_Count = 0; reg [2:0] r_Bit_Index = 0; reg [7:0] r_Tx_Data = 0; reg r_Tx_Done = 0; reg r_Tx_Active = 0; always @(posedge i_Clock) begin case (r_SM_Main) s_IDLE : begin o_Tx_Serial <= 1'b1; // Drive Line High for Idle r_Tx_Done <= 1'b0; r_Clock_Count <= 0; r_Bit_Index <= 0; if (i_Tx_DV == 1'b1) begin r_Tx_Active <= 1'b1; r_Tx_Data <= i_Tx_Byte; r_SM_Main <= s_TX_START_BIT; end else r_SM_Main <= s_IDLE; end // case: s_IDLE // Send out Start Bit. Start bit = 0 s_TX_START_BIT : begin o_Tx_Serial <= 1'b0; // Wait CLKS_PER_BIT-1 clock cycles for start bit to finish if (r_Clock_Count < CLKS_PER_BIT-1) begin r_Clock_Count <= r_Clock_Count + 1; r_SM_Main <= s_TX_START_BIT; end else begin r_Clock_Count <= 0; r_SM_Main <= s_TX_DATA_BITS; end end // case: s_TX_START_BIT // Wait CLKS_PER_BIT-1 clock cycles for data bits to finish s_TX_DATA_BITS : begin o_Tx_Serial <= r_Tx_Data[r_Bit_Index]; if (r_Clock_Count < CLKS_PER_BIT-1) begin r_Clock_Count <= r_Clock_Count + 1; r_SM_Main <= s_TX_DATA_BITS; end else begin r_Clock_Count <= 0; // Check if we have sent out all bits if (r_Bit_Index < 7) begin r_Bit_Index <= r_Bit_Index + 1; r_SM_Main <= s_TX_DATA_BITS; end else begin r_Bit_Index <= 0; r_SM_Main <= s_TX_STOP_BIT; end end end // case: s_TX_DATA_BITS // Send out Stop bit. Stop bit = 1 s_TX_STOP_BIT : begin o_Tx_Serial <= 1'b1; // Wait CLKS_PER_BIT-1 clock cycles for Stop bit to finish if (r_Clock_Count < CLKS_PER_BIT-1) begin r_Clock_Count <= r_Clock_Count + 1; r_SM_Main <= s_TX_STOP_BIT; end else begin r_Tx_Done <= 1'b1; r_Clock_Count <= 0; r_SM_Main <= s_CLEANUP; r_Tx_Active <= 1'b0; end end // case: s_Tx_STOP_BIT // Stay here 1 clock s_CLEANUP : begin r_Tx_Done <= 1'b1; r_SM_Main <= s_IDLE; end default : r_SM_Main <= s_IDLE; endcase end assign o_Tx_Active = r_Tx_Active; assign o_Tx_Done = r_Tx_Done; endmodule
测试平台：
////////////////////////////////////////////////////////////////////// // File Downloaded from http://www.nandland.com ////////////////////////////////////////////////////////////////////// // This testbench will exercise both the UART Tx and Rx. // It sends out byte 0xAB over the transmitter // It then exercises the receive by receiving byte 0x3F `timescale 1ns/10ps `include "uart_tx.v" `include "uart_rx.v" module uart_tb (); // Testbench uses a 10 MHz clock // Want to interface to 115200 baud UART // 10000000 / 115200 = 87 Clocks Per Bit. parameter c_CLOCK_PERIOD_NS = 100; parameter c_CLKS_PER_BIT = 87; parameter c_BIT_PERIOD = 8600; reg r_Clock = 0; reg r_Tx_DV = 0; wire w_Tx_Done; reg [7:0] r_Tx_Byte = 0; reg r_Rx_Serial = 1; wire [7:0] w_Rx_Byte; // Takes in input byte and serializes it task UART_WRITE_BYTE; input [7:0] i_Data; integer ii; begin // Send Start Bit r_Rx_Serial <= 1'b0; #(c_BIT_PERIOD); #1000; // Send Data Byte for (ii=0; ii<8; ii=ii+1) begin r_Rx_Serial <= i_Data[ii]; #(c_BIT_PERIOD); end // Send Stop Bit r_Rx_Serial <= 1'b1; #(c_BIT_PERIOD); end endtask // UART_WRITE_BYTE uart_rx #(.CLKS_PER_BIT(c_CLKS_PER_BIT)) UART_RX_INST (.i_Clock(r_Clock), .i_Rx_Serial(r_Rx_Serial), .o_Rx_DV(), .o_Rx_Byte(w_Rx_Byte) ); uart_tx #(.CLKS_PER_BIT(c_CLKS_PER_BIT)) UART_TX_INST (.i_Clock(r_Clock), .i_Tx_DV(r_Tx_DV), .i_Tx_Byte(r_Tx_Byte), .o_Tx_Active(), .o_Tx_Serial(), .o_Tx_Done(w_Tx_Done) ); always #(c_CLOCK_PERIOD_NS/2) r_Clock <= !r_Clock; // Main Testing: initial begin // Tell UART to send a command (exercise Tx) @(posedge r_Clock); @(posedge r_Clock); r_Tx_DV <= 1'b1; r_Tx_Byte <= 8'hAB; @(posedge r_Clock); r_Tx_DV <= 1'b0; @(posedge w_Tx_Done); // Send a command to the UART (exercise Rx) @(posedge r_Clock); UART_WRITE_BYTE(8'h3F); @(posedge r_Clock); // Check that the correct command was received if (w_Rx_Byte == 8'h3F) $display("Test Passed - Correct Byte Received"); else $display("Test Failed - Incorrect Byte Received"); end endmodule
