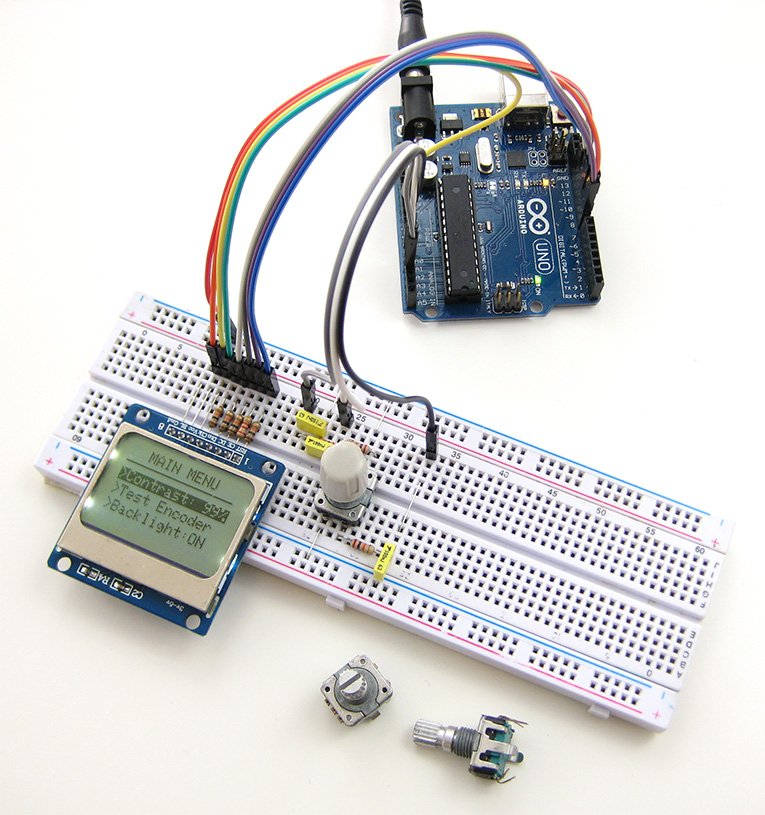

初始化管脚以及中断服务程序

#include
#include
#include

volatile byte seqA = 0;
volatile byte seqB = 0;
volatile byte cnt1 = 0;
volatile byte cnt2 = 0;
volatile boolean right = false;
volatile boolean left = false;
volatile boolean button = false;
boolean backlight = true;
byte menuitem = 1;
byte page = 1;

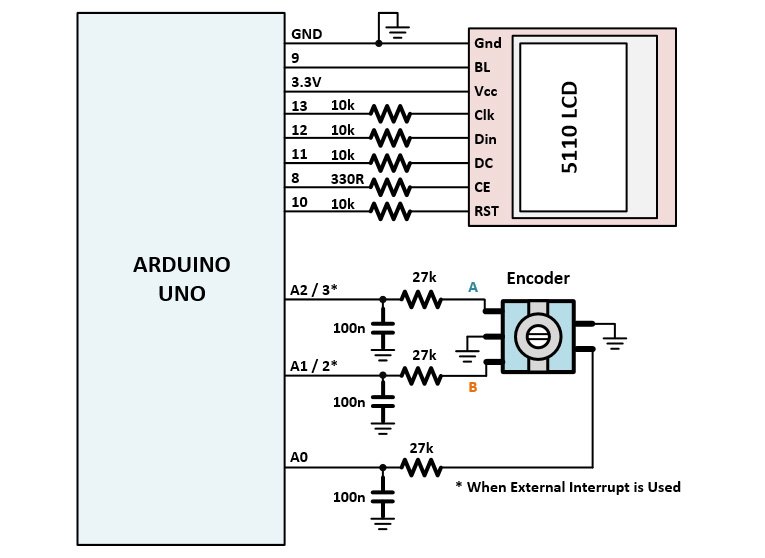

Adafruit_PCD8544 display = Adafruit_PCD8544(13, 12,11, 8, 10);

void setup() {

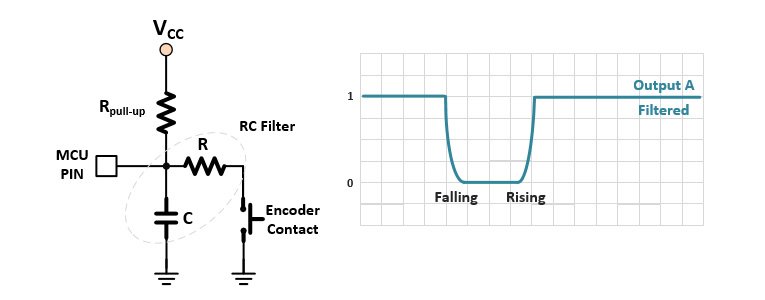

  pinMode(A0, INPUT);
  pinMode(A1, INPUT);
  pinMode(A2, INPUT);

  // Enable internal pull-up resistors
  digitalWrite(A0, HIGH);
  digitalWrite(A1, HIGH);
  digitalWrite(A2, HIGH);

  // Turn on LCD backlight
  pinMode(9, OUTPUT);
  digitalWrite(9, HIGH);

  PCICR =  0b00000010; // 1. PCIE1: Pin Change Interrupt Enable 1
  PCMSK1 = 0b00000111; // Enable Pin Change Interrupt for A0, A1, A2

  // Initialize LCD
  display.setRotation(2); // Set LDC orientation
  display.begin(60);      // Set LCD contrast
  display.clearDisplay(); // Clear display
  display.display();      // Apply changes

  sei();
}

void loop() {

  // Create Menu Pages
  if (page==1) {

    display.setTextSize(1);
    display.clearDisplay();
    display.setTextColor(BLACK, WHITE);
    display.setCursor(15, 0);
    display.print("MAIN MENU");
    display.drawFastHLine(0,10,83,BLACK);
    display.setCursor(0, 15);
    if (menuitem==1) { display.setTextColor(WHITE, BLACK);}
    else {display.setTextColor(BLACK, WHITE);}
    display.print(">Contrast: 99%");
    display.setCursor(0, 25);
    if (menuitem==2) { display.setTextColor(WHITE, BLACK);}
    else {display.setTextColor(BLACK, WHITE);}
    display.print(">Test Encoder");
    if (menuitem==3) { display.setTextColor(WHITE, BLACK);}
    else {display.setTextColor(BLACK, WHITE);}
    display.setCursor(0, 35);
    display.print(">Backlight:");
    if (backlight) {display.print("ON");}
    else {display.print("OFF");}
    display.display();}

  else if (page==2) {
    display.setTextSize(1);
    display.clearDisplay();
    display.setTextColor(BLACK, WHITE);
    display.setCursor(15, 0);
    display.print("ENC. TEST");
    display.drawFastHLine(0,10,83,BLACK);
    display.setCursor(5, 15);
    display.print("LEFT    RIGHT");
    display.setTextSize(2);
    display.setCursor(5, 25);
    display.print(cnt1);
    display.setCursor(55, 25);
    display.print(cnt2);
    display.setTextSize(2);
    display.display();
  }

  // Take action if a new command received from the encoder
  if (left) {
    left = false;
    menuitem--;
    if (menuitem==0) {menuitem=3;}
  }

  if (right) {
    right = false;
    menuitem++;
    if (menuitem==4) {menuitem=1;}
  }

  if (button) {
    button = false;

    if (page == 1 && menuitem==3) {
      digitalWrite(9, LOW);
      if (backlight) {backlight = false; digitalWrite(9, LOW);}
      else {backlight = true; digitalWrite(9, HIGH);}
      }

    else if (page == 1 && menuitem==2) {
      page=2;
      cnt1=0;
      cnt2=0;
     }

    else if (page == 2) {
      page=1;
     }
   }

  }


ISR (PCINT1_vect) {

// If interrupt is triggered by the button
  if (!digitalRead(A0)) {

    button = true;}

// Else if interrupt is triggered by encoder signals
  else {

    // Read A and B signals
    boolean A_val = digitalRead(A1);
    boolean B_val = digitalRead(A2);

    // Record the A and B signals in seperate sequences
    seqA <<= 1;
    seqA |= A_val;

    seqB <<= 1;
    seqB |= B_val;

    // Mask the MSB four bits
    seqA &= 0b00001111;
    seqB &= 0b00001111;

    // Compare the recorded sequence with the expected sequence
    if (seqA == 0b00001001 && seqB == 0b00000011) {
      cnt1++;
      left = true;
      }

    if (seqA == 0b00000011 && seqB == 0b00001001) {
      cnt2++;
      right = true;
      }
  }

}
