2025寒假在家一起练-基于ice40up5K与acs712的电流表
该项目使用了iCE40UP5K FPGA与ACS712电流传感器，实现了能够实时测量电路中的电流的电流表的设计，它的主要功能为：本项目旨在设计并实现一个基于iCE40UP5K FPGA与ACS712电流传感器的SPI接口OLED电流表。该电流表能够实时测量电路中的电流，并通过OLED显示屏显示电流值。项目的主要目标是利用FPGA的高速处理能力和ACS712的高精度电流检测特性，实现一个低成本、高精度的电流测量设备。该设备适用于电子实验室、嵌入式系统开发以及电力监控等场景。
标签
嵌入式系统
FPGA
数字逻辑
显示
电流表
bigjiong
更新2025-03-17
99

1. 项目介绍

本项目旨在设计并实现一个基于iCE40UP5K FPGA与ACS712电流传感器的SPI接口OLED电流表。该电流表能够实时测量电路中的电流，并通过OLED显示屏显示电流值。项目的主要目标是利用FPGA的高速处理能力和ACS712的高精度电流检测特性，实现一个低成本、高精度的电流测量设备。该设备适用于电子实验室、嵌入式系统开发以及电力监控等场景。

2. 硬件介绍

  • iCE40UP5K FPGA：iCE40UP5K是Lattice公司推出的一款低功耗、高性能的FPGA芯片。它具有5280个逻辑单元、1MB的嵌入式RAM以及多个PLL（锁相环），适合用于需要高速数据处理和灵活逻辑设计的应用场景。在本项目中，iCE40UP5K负责处理ACS712传感器的模拟信号，并通过SPI接口与OLED显示屏通信。
  • ACS712电流传感器：ACS712是基于霍尔效应的电流传感器，能够测量交流和直流电流。它具有低噪声、高灵敏度的特点，测量范围可达±5A、±20A或±30A（根据型号不同）。在本项目中，ACS712用于检测电路中的电流，并输出与电流大小成正比的模拟电压信号。
  • OLED显示屏：本项目使用的OLED显示屏为0.96英寸、128x64分辨率的SPI接口显示屏。它具有高对比度、低功耗的特点，适合用于显示实时电流值和其他相关信息。
  • 其他硬件：项目还使用了杜邦线，用于连接传感器模块。

3. 方案框图和项目设计思路

方案框图
+-------------------+       +-------------------+       +-------------------+
|                   |       |                   |       |                   |
|  ACS712电流传感器  | ----> |  iCE40UP5K FPGA   | ----> |  OLED显示屏       |
|                   |       |                   |       |                   |
+-------------------+       +-------------------+       +-------------------+
项目设计思路
  1. 电流检测：ACS712传感器通过霍尔效应检测电路中的电流，并输出一个与电流大小成正比的模拟电压信号。该信号经过ADC（模数转换器）转换为数字信号，供FPGA处理。
  2. 信号处理：iCE40UP5K FPGA负责对ADC输出的数字信号进行处理。首先，FPGA对信号进行滤波，以消除噪声和误差。然后，FPGA根据ACS712的灵敏度参数计算出实际的电流值。
  3. 数据显示：FPGA通过SPI接口将计算出的电流值发送到OLED显示屏。OLED显示屏实时显示电流值，并根据需要显示其他信息，如单位（A/mA）。

4. 软件流程图和关键代码介绍

软件流程图
+-------------------+
|   初始化FPGA和外设  |
+-------------------+
          |
          v
+-------------------+
|  读取ACS712传感器数据 |
+-------------------+
          |
          v
+-------------------+
|  信号滤波和校准     |
+-------------------+
          |
          v
+-------------------+
|  计算电流值        |
+-------------------+
          |
          v
+-------------------+
|  通过SPI发送数据到OLED|
+-------------------+
          |
          v
+-------------------+
|  显示电流值        |
+-------------------+
          |
          v
+-------------------+
|  等待下一次采样     |
+-------------------+
关键代码介绍
  1. ADC读取代码：
    verilog
    module ADC_top (
    		    i_clk_in, //comment out to use internal clock
    		    i_rst_in,
    		    i_analog_cmp,
    		    o_digital_out,
    		    o_analog_out,
    		    o_sample_rdy
    		    );



        parameter
         ADC_WIDTH = 8,              // ADC Convertor Bit Precision
         ACCUM_BITS = 10,            // 2^ACCUM_BITS is decimation rate of accumulator
         LPF_DEPTH_BITS = 3,         // 2^LPF_DEPTH_BITS is decimation rate of averager
         INPUT_TOPOLOGY = 0;         // 0: DIRECT: Analog input directly connected to + input of comparator
       // 1: NETWORK:Analog input connected through R divider to - input of comp.

       //input ports
       input	i_clk_in; // 3.33Mhz on Control Demo board
       input 	i_rst_in;
    				   input	i_analog_cmp;			// from LVDS buffer or external comparitor

       //output ports
       output	o_analog_out;         // feedback to RC network
       output 	o_sample_rdy;
       output [ADC_WIDTH-1:0] o_digital_out;   // connected to I2C register.

       //**********************************************************************
       //
       //	Internal Wire & Reg Signals
       //
       //**********************************************************************
       wire 		  clk;
       wire 		  analog_out_i;
       wire 		  sample_rdy_i;
       wire [ADC_WIDTH-1:0]   digital_out_i;
       wire [ADC_WIDTH-1:0]   digital_out_abs;

       assign rst_i = i_rst_in;
       assign clk = i_clk_in;


       //***********************************************************************
       //
       //  SSD ADC using onboard LVDS buffer or external comparator
       //
       //***********************************************************************
       sigmadelta_adc #(
    		    .ADC_WIDTH(ADC_WIDTH),
    		    .ACCUM_BITS(ACCUM_BITS),
    		    .LPF_DEPTH_BITS(LPF_DEPTH_BITS)
    		    )
       SSD_ADC(
    	   .clk(clk),
    	   .rstn(rst_i),
    	   .analog_cmp(i_analog_cmp),
    	   .digital_out(digital_out_i),
    	   .analog_out(analog_out_i),
    	   .sample_rdy(sample_rdy_i)
    	   );

       assign digital_out_abs = INPUT_TOPOLOGY ? ~digital_out_i : digital_out_i;

       //***********************************************************************
       //
       //  output assignments
       //
       //***********************************************************************


       assign o_digital_out   =  digital_out_abs;
       assign o_analog_out    =  analog_out_i;
       assign o_sample_rdy    =  sample_rdy_i;

    endmodule
  2. 电流计算代码：
    verilog
    assign calc_adc_out = sd_adc_out*4'b1101;

    // 计算 diff_mv
    assign diff_mv = {12'b0, calc_adc_out} - 12'd2496; // 扩展为 24-bit 以避免溢出

    // 乘以 1000
    assign scaled_value = diff_mv * 24'd1000;

    // 除以 66
    assign divided_value = scaled_value / 24'd66;

    // 将结果截断为 12-bit
    assign final_ma = divided_value[11:0];
  3. SPI通信代码：
    verilog
    module OLED12864
    (
    	input				clk,		//12MHz系统时钟
    	input				rst_n,		//系统复位，低有效
    	input   [15:0]        volNum,   //输入电压

    		output	reg			oled_csn,	//OLCD液晶屏使能
    	output	reg			oled_rst,	//OLCD液晶屏复位
    	output	reg			oled_dcn,	//OLCD数据指令控制
    	output	reg			oled_clk,	//OLCD时钟信号
    	output	reg			oled_dat	//OLCD数据信号
    );

    		localparam INIT_DEPTH = 16'd23; //LCD初始化的命令的数量
    	localparam IDLE = 7'h1, MAIN = 7'h2, INIT = 7'h4, SCAN = 7'h8, WRITE = 7'h10, DELAY = 7'h20,CHINESE=7'h40;
    	localparam HIGH	= 1'b1, LOW = 1'b0;
    	localparam DATA	= 1'b1, CMD = 1'b0;

    		reg 	[7:0] 			cmd [22:0];
    	reg 	[39:0] 			mem [122:0];
    	reg		[127:0]			mem_hanzi[16:0];

    		reg		[7:0]			mem_hanzi_num;
    	reg	[7:0]				y_p, x_ph, x_pl;
    	reg	[(8*21-1):0]   char;
    	reg	[7:0]				num, char_reg;
    					reg	[4:0]				cnt_main, cnt_init, cnt_scan, cnt_write;
    	reg	[5:0]			cnt_chinese;
    	reg	[15:0]			num_delay, cnt_delay, cnt;
    	reg	[6:0] 			state, state_back;

    		reg[7:0]          temp_data;






    						always @ (posedge clk or negedge rst_n) begin
    		if(!rst_n) begin
    			cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;cnt_chinese <= 1'b0;
    			y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
    			num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
    			num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;
    			oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
    			state <= IDLE; state_back <= IDLE;

    						temp_data<= 0;
    		end else begin
    			case(state)
    				IDLE:begin
    						cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;
    						y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
    						num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
    						num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;mem_hanzi_num<=8'd0;
    						oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
    						state <= MAIN; state_back <= MAIN;
    					end
    				MAIN:begin
    						//if(cnt_main >= 5'd14) cnt_main <= 5'd15;//接下来执行空操作，实现数据只刷新一次
    						if(cnt_main >= 5'd13) cnt_main <= 5'd9;//接下来执行空操作，实现数据只刷新一次
    						else cnt_main <= cnt_main + 1'b1;
    						temp_data <= temp_data +1'b1;
    						case(cnt_main)	//MAIN状态
    														5'd0 :	begin state <= INIT; end

    																																					5'd1 :	begin y_p <= 8'hb0; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16;  char <= "                ";state <= SCAN; end
    							5'd2 :	begin y_p <= 8'hb1; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16;  char <= "                ";state <= SCAN; end
    																			5'd3 :	begin y_p <= 8'hb2; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "                ";state <= SCAN; end
    							5'd4 :	begin y_p <= 8'hb3; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "                ";state <= SCAN; end
    							5'd5 :	begin y_p <= 8'hb4; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "                ";state <= SCAN; end
    							5'd6 :	begin y_p <= 8'hb5; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "                ";state <= SCAN; end
    							5'd7 :	begin y_p <= 8'hb6; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "                ";state <= SCAN; end

    															5'd8 :	begin y_p <= 8'hb3; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "current         ";state <= SCAN; end

    																//5'd9 :	begin y_p <= 8'hb0; x_ph <= 8'h12; x_pl <= 8'h00; mem_hanzi_num <= 8'd8; state <= CHINESE; end
    							//5'd10:	begin y_p <= 8'hb0; x_ph <= 8'h13; x_pl <= 8'h00; mem_hanzi_num <= 8'd10; state <= CHINESE; end
    							//5'd11 :	begin y_p <= 8'hb0; x_ph <= 8'h14; x_pl <= 8'h00; mem_hanzi_num <= 8'd12; state <= CHINESE; end
    							//5'd12:	begin y_p <= 8'hb0; x_ph <= 8'h15; x_pl <= 8'h00; mem_hanzi_num <= 8'd14; state <= CHINESE; end

    														5'd9 :	begin y_p <= 8'hb5; x_ph <= 8'h12; x_pl <= 8'h00; num <= 5'd1;  char <= volNum[15:12];state <= SCAN; end
    						    5'd10 :	begin y_p <= 8'hb5; x_ph <= 8'h13; x_pl <= 8'h00; num <= 5'd1;  char <= ".";         state <= SCAN; end
    						    5'd11 :	begin y_p <= 8'hb5; x_ph <= 8'h14; x_pl <= 8'h00; num <= 5'd1;  char <= volNum[11:8];state <= SCAN; end
    							5'd12 :	begin y_p <= 8'hb5; x_ph <= 8'h15; x_pl <= 8'h00; num <= 5'd1;  char <= volNum[7:4];state <= SCAN; end
    							5'd13:	begin y_p <= 8'hb5; x_ph <= 8'h16; x_pl <= 8'h00; num <= 5'd1;  char <= volNum[3:0]  ;state <= SCAN; end

    																//default: state <= IDLE;   //如果你需要动态刷新一些信息，此行应该取消注释
    						endcase
    					end
    				INIT:begin	//初始化状态
    						case(cnt_init)
    							5'd0:	begin oled_rst <= LOW; cnt_init <= cnt_init + 1'b1; end	//复位有效
    							5'd1:	begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end	//延时大于3us
    							5'd2:	begin oled_rst <= HIGH; cnt_init <= cnt_init + 1'b1; end	//复位恢复
    							5'd3:	begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end	//延时大于220us
    							5'd4:	begin
    										if(cnt>=INIT_DEPTH) begin	//当25条指令及数据发出后，配置完成
    											cnt <= 1'b0;
    											cnt_init <= cnt_init + 1'b1;
    										end else begin
    												cnt <= cnt + 1'b1; num_delay <= 16'd5;
    											oled_dcn <= CMD; char_reg <= cmd[cnt]; state <= WRITE; state_back <= INIT;
    										end
    									end
    							5'd5:	begin cnt_init <= 1'b0; state <= MAIN; end	//初始化完成，返回MAIN状态
    							default: state <= IDLE;
    						endcase
    					end
    				SCAN:begin	//刷屏状态，从RAM中读取数据刷屏
    						if(cnt_scan == 5'd11) begin
    							if(num) cnt_scan <= 5'd3;
    							else cnt_scan <= cnt_scan + 1'b1;
    						end
    						else if(cnt_scan == 5'd12) cnt_scan <= 1'b0;
    						else cnt_scan <= cnt_scan + 1'b1;
    						case(cnt_scan)
    							5'd 0:	begin oled_dcn <= CMD; char_reg <= y_p; state <= WRITE; state_back <= SCAN; end		//定位列页地址
    							5'd 1:	begin oled_dcn <= CMD; char_reg <= x_pl; state <= WRITE; state_back <= SCAN; end	//定位行地址低位
    							5'd 2:	begin oled_dcn <= CMD; char_reg <= x_ph; state <= WRITE; state_back <= SCAN; end	//定位行地址高位

    														5'd 3:	begin num <= num - 1'b1;end
    							5'd 4:	begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end	//将5*8点阵编程8*8
    							5'd 5:	begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end	//将5*8点阵编程8*8
    							5'd 6:	begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end	//将5*8点阵编程8*8
    							5'd 7:	begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][39:32]; state <= WRITE; state_back <= SCAN; end
    							5'd 8:	begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][31:24]; state <= WRITE; state_back <= SCAN; end
    							5'd 9:	begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][23:16]; state <= WRITE; state_back <= SCAN; end
    							5'd10:	begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][15: 8]; state <= WRITE; state_back <= SCAN; end
    							5'd11:	begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][ 7: 0]; state <= WRITE; state_back <= SCAN; end
    							5'd12:	begin state <= MAIN; end
    							default: state <= IDLE;
    						endcase
    					end




    																						CHINESE:begin	//显示汉字

    												if(cnt_chinese == 6'd38) cnt_chinese <= 1'b0;
    						else cnt_chinese <= cnt_chinese+1'b1;
    						case(cnt_chinese)
    							6'd 0:	begin oled_dcn <= CMD; char_reg <= y_p; state <= WRITE; state_back <= CHINESE; end		//定位列页地址
    							6'd 1:	begin oled_dcn <= CMD; char_reg <= x_pl; state <= WRITE; state_back <= CHINESE; end	//定位行地址低位
    							6'd 2:	begin oled_dcn <= CMD; char_reg <= x_ph; state <= WRITE; state_back <= CHINESE; end	//定位行地址高位

    														6'd3 :	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][127:120]; state <= WRITE; state_back <= CHINESE; end
    							6'd4 :	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][119:112]; state <= WRITE; state_back <= CHINESE; end
    							6'd5 :	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][111:104]; state <= WRITE; state_back <= CHINESE; end
    							6'd6 :	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][103:96] ; state <= WRITE; state_back <= CHINESE; end
    							6'd7 :	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][95:88]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd8 :	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][87:80]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd9 :	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][79:72]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd10:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][71:64]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd11:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][63:56];   state <= WRITE; state_back <= CHINESE; end
    							6'd12:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][55:48];   state <= WRITE; state_back <= CHINESE; end
    							6'd13:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][47:40];   state <= WRITE; state_back <= CHINESE; end
    							6'd14:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][39:32];   state <= WRITE; state_back <= CHINESE; end
    							6'd15:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][31:24];   state <= WRITE; state_back <= CHINESE; end
    							6'd16:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][23:16];   state <= WRITE; state_back <= CHINESE; end
    							6'd17:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][15: 8];   state <= WRITE; state_back <= CHINESE; end
    							6'd18:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num][ 7: 0];   state <= WRITE; state_back <= CHINESE; end

    														6'd19:	begin oled_dcn <= CMD; char_reg <= y_p+1; state <= WRITE; state_back <= CHINESE; end		//定位列页地址
    							6'd20:	begin oled_dcn <= CMD; char_reg <= x_pl; state <= WRITE; state_back <= CHINESE; end	//定位行地址低位
    							6'd21:	begin oled_dcn <= CMD; char_reg <= x_ph; state <= WRITE; state_back <= CHINESE; end	//定位行地址高位
    							6'd22:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][127:120]; state <= WRITE; state_back <= CHINESE; end
    							6'd23:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][119:112]; state <= WRITE; state_back <= CHINESE; end
    							6'd24:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][111:104]; state <= WRITE; state_back <= CHINESE; end
    							6'd25:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][103:96] ; state <= WRITE; state_back <= CHINESE; end
    							6'd26:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][95:88]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd27:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][87:80]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd28:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][79:72]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd29:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][71:64]  ; state <= WRITE; state_back <= CHINESE; end
    							6'd30:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][63:56];   state <= WRITE; state_back <= CHINESE; end
    							6'd31:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][55:48];   state <= WRITE; state_back <= CHINESE; end
    							6'd32:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][47:40];   state <= WRITE; state_back <= CHINESE; end
    							6'd33:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][39:32];   state <= WRITE; state_back <= CHINESE; end
    							6'd34:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][31:24];   state <= WRITE; state_back <= CHINESE; end
    							6'd35:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][23:16];   state <= WRITE; state_back <= CHINESE; end
    							6'd36:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][15: 8];   state <= WRITE; state_back <= CHINESE; end
    							6'd37:	begin oled_dcn <= DATA; char_reg <= mem_hanzi[mem_hanzi_num+1][ 7: 0];   state <= WRITE; state_back <= CHINESE; end

    							6'd38:	begin state <= MAIN; end
    							default: state <= IDLE;
    						endcase
    					end



    																			WRITE:begin	//WRITE状态，将数据按照SPI时序发送给屏幕
    						if(cnt_write >= 5'd17) cnt_write <= 1'b0;
    						else cnt_write <= cnt_write + 1'b1;
    						case(cnt_write)
    							5'd 0:	begin oled_csn <= LOW; end	//9位数据最高位为命令数据控制位
    							5'd 1:	begin oled_clk <= LOW; oled_dat <= char_reg[7]; end	//先发高位数据
    							5'd 2:	begin oled_clk <= HIGH; end
    							5'd 3:	begin oled_clk <= LOW; oled_dat <= char_reg[6]; end
    							5'd 4:	begin oled_clk <= HIGH; end
    							5'd 5:	begin oled_clk <= LOW; oled_dat <= char_reg[5]; end
    							5'd 6:	begin oled_clk <= HIGH; end
    							5'd 7:	begin oled_clk <= LOW; oled_dat <= char_reg[4]; end
    							5'd 8:	begin oled_clk <= HIGH; end
    							5'd 9:	begin oled_clk <= LOW; oled_dat <= char_reg[3]; end
    							5'd10:	begin oled_clk <= HIGH; end
    							5'd11:	begin oled_clk <= LOW; oled_dat <= char_reg[2]; end
    							5'd12:	begin oled_clk <= HIGH; end
    							5'd13:	begin oled_clk <= LOW; oled_dat <= char_reg[1]; end
    							5'd14:	begin oled_clk <= HIGH; end
    							5'd15:	begin oled_clk <= LOW; oled_dat <= char_reg[0]; end	//后发低位数据
    							5'd16:	begin oled_clk <= HIGH; end
    							5'd17:	begin oled_csn <= HIGH; state <= DELAY; end	//
    							default: state <= IDLE;
    						endcase
    					end
    				DELAY:begin	//延时状态
    						if(cnt_delay >= num_delay) begin
    							cnt_delay <= 16'd0; state <= state_back;
    						end else cnt_delay <= cnt_delay + 1'b1;
    					end
    				default:state <= IDLE;
    			endcase
    		end
    	end

    		//OLED配置指令数据
    	always@(posedge rst_n)
    		begin
    			cmd[0 ] = {8'hae};
    			cmd[1 ] = {8'hd5};
    			cmd[2 ] = {8'h80};
    			cmd[3 ] = {8'ha8};
    			cmd[4 ] = {8'h3f};
    			cmd[5 ] = {8'hd3};
    			cmd[6 ] = {8'h00};
    			cmd[7 ] = {8'h40};
    			cmd[8 ] = {8'h8d};
    			cmd[9 ] = {8'h14};
    			cmd[10] = {8'h20};
    			cmd[11] = {8'h02};
    			cmd[12] = {8'hc8};
    			cmd[13] = {8'ha1};
    			cmd[14] = {8'hda};
    			cmd[15] = {8'h12};
    			cmd[16] = {8'h81};
    			cmd[17] = {8'hcf};
    			cmd[18] = {8'hd9};
    			cmd[19] = {8'hf1};
    			cmd[20] = {8'hdb};
    			cmd[21] = {8'h40};
    			cmd[22] = {8'haf};

    					end

    			//5*8点阵字库数据
    	always@(posedge rst_n)
    		begin
    			mem[  0] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E};   // 48  0
    			mem[  1] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00};   // 49  1
    			mem[  2] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46};   // 50  2
    			mem[  3] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31};   // 51  3
    			mem[  4] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10};   // 52  4
    			mem[  5] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39};   // 53  5
    			mem[  6] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30};   // 54  6
    			mem[  7] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03};   // 55  7
    			mem[  8] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36};   // 56  8
    			mem[  9] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E};   // 57  9
    			mem[ 10] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C};   // 65  A
    			mem[ 11] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36};   // 66  B
    			mem[ 12] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22};   // 67  C
    			mem[ 13] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C};   // 68  D
    			mem[ 14] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41};   // 69  E
    			mem[ 15] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01};   // 70  F

    			mem[ 32] = {8'h00, 8'h00, 8'h00, 8'h00, 8'h00};   // 32  sp
    			mem[ 33] = {8'h00, 8'h00, 8'h2f, 8'h00, 8'h00};   // 33  !
    			mem[ 34] = {8'h00, 8'h07, 8'h00, 8'h07, 8'h00};   // 34
    			mem[ 35] = {8'h14, 8'h7f, 8'h14, 8'h7f, 8'h14};   // 35  #
    			mem[ 36] = {8'h24, 8'h2a, 8'h7f, 8'h2a, 8'h12};   // 36  $
    			mem[ 37] = {8'h62, 8'h64, 8'h08, 8'h13, 8'h23};   // 37  %
    			mem[ 38] = {8'h36, 8'h49, 8'h55, 8'h22, 8'h50};   // 38  &
    			mem[ 39] = {8'h00, 8'h05, 8'h03, 8'h00, 8'h00};   // 39  '
    			mem[ 40] = {8'h00, 8'h1c, 8'h22, 8'h41, 8'h00};   // 40  (
    			mem[ 41] = {8'h00, 8'h41, 8'h22, 8'h1c, 8'h00};   // 41  )
    			mem[ 42] = {8'h14, 8'h08, 8'h3E, 8'h08, 8'h14};   // 42  *
    			mem[ 43] = {8'h08, 8'h08, 8'h3E, 8'h08, 8'h08};   // 43  +
    			mem[ 44] = {8'h00, 8'h00, 8'hA0, 8'h60, 8'h00};   // 44  ,
    			mem[ 45] = {8'h08, 8'h08, 8'h08, 8'h08, 8'h08};   // 45  -
    			mem[ 46] = {8'h00, 8'h60, 8'h60, 8'h00, 8'h00};   // 46  .
    			mem[ 47] = {8'h20, 8'h10, 8'h08, 8'h04, 8'h02};   // 47  /
    			mem[ 48] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E};   // 48  0
    			mem[ 49] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00};   // 49  1
    			mem[ 50] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46};   // 50  2
    			mem[ 51] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31};   // 51  3
    			mem[ 52] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10};   // 52  4
    			mem[ 53] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39};   // 53  5
    			mem[ 54] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30};   // 54  6
    			mem[ 55] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03};   // 55  7
    			mem[ 56] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36};   // 56  8
    			mem[ 57] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E};   // 57  9
    			mem[ 58] = {8'h00, 8'h36, 8'h36, 8'h00, 8'h00};   // 58  :
    			mem[ 59] = {8'h00, 8'h56, 8'h36, 8'h00, 8'h00};   // 59  ;
    			mem[ 60] = {8'h08, 8'h14, 8'h22, 8'h41, 8'h00};   // 60  <
    			mem[ 61] = {8'h14, 8'h14, 8'h14, 8'h14, 8'h14};   // 61  =
    			mem[ 62] = {8'h00, 8'h41, 8'h22, 8'h14, 8'h08};   // 62  >
    			mem[ 63] = {8'h02, 8'h01, 8'h51, 8'h09, 8'h06};   // 63  ?
    			mem[ 64] = {8'h32, 8'h49, 8'h59, 8'h51, 8'h3E};   // 64  @
    			mem[ 65] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C};   // 65  A
    			mem[ 66] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36};   // 66  B
    			mem[ 67] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22};   // 67  C
    			mem[ 68] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C};   // 68  D
    			mem[ 69] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41};   // 69  E
    			mem[ 70] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01};   // 70  F
    			mem[ 71] = {8'h3E, 8'h41, 8'h49, 8'h49, 8'h7A};   // 71  G
    			mem[ 72] = {8'h7F, 8'h08, 8'h08, 8'h08, 8'h7F};   // 72  H
    			mem[ 73] = {8'h00, 8'h41, 8'h7F, 8'h41, 8'h00};   // 73  I
    			mem[ 74] = {8'h20, 8'h40, 8'h41, 8'h3F, 8'h01};   // 74  J
    			mem[ 75] = {8'h7F, 8'h08, 8'h14, 8'h22, 8'h41};   // 75  K
    			mem[ 76] = {8'h7F, 8'h40, 8'h40, 8'h40, 8'h40};   // 76  L
    			mem[ 77] = {8'h7F, 8'h02, 8'h0C, 8'h02, 8'h7F};   // 77  M
    			mem[ 78] = {8'h7F, 8'h04, 8'h08, 8'h10, 8'h7F};   // 78  N
    			mem[ 79] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h3E};   // 79  O
    			mem[ 80] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h06};   // 80  P
    			mem[ 81] = {8'h3E, 8'h41, 8'h51, 8'h21, 8'h5E};   // 81  Q
    			mem[ 82] = {8'h7F, 8'h09, 8'h19, 8'h29, 8'h46};   // 82  R
    			mem[ 83] = {8'h46, 8'h49, 8'h49, 8'h49, 8'h31};   // 83  S
    			mem[ 84] = {8'h01, 8'h01, 8'h7F, 8'h01, 8'h01};   // 84  T
    			mem[ 85] = {8'h3F, 8'h40, 8'h40, 8'h40, 8'h3F};   // 85  U
    			mem[ 86] = {8'h1F, 8'h20, 8'h40, 8'h20, 8'h1F};   // 86  V
    			mem[ 87] = {8'h3F, 8'h40, 8'h38, 8'h40, 8'h3F};   // 87  W
    			mem[ 88] = {8'h63, 8'h14, 8'h08, 8'h14, 8'h63};   // 88  X
    			mem[ 89] = {8'h07, 8'h08, 8'h70, 8'h08, 8'h07};   // 89  Y
    			mem[ 90] = {8'h61, 8'h51, 8'h49, 8'h45, 8'h43};   // 90  Z
    			mem[ 91] = {8'h00, 8'h7F, 8'h41, 8'h41, 8'h00};   // 91  [
    			mem[ 92] = {8'h55, 8'h2A, 8'h55, 8'h2A, 8'h55};   // 92  .
    			mem[ 93] = {8'h00, 8'h41, 8'h41, 8'h7F, 8'h00};   // 93  ]
    			mem[ 94] = {8'h04, 8'h02, 8'h01, 8'h02, 8'h04};   // 94  ^
    			mem[ 95] = {8'h40, 8'h40, 8'h40, 8'h40, 8'h40};   // 95  _
    			mem[ 96] = {8'h00, 8'h01, 8'h02, 8'h04, 8'h00};   // 96  '
    			mem[ 97] = {8'h20, 8'h54, 8'h54, 8'h54, 8'h78};   // 97  a
    			mem[ 98] = {8'h7F, 8'h48, 8'h44, 8'h44, 8'h38};   // 98  b
    			mem[ 99] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h20};   // 99  c
    			mem[100] = {8'h38, 8'h44, 8'h44, 8'h48, 8'h7F};   // 100 d
    			mem[101] = {8'h38, 8'h54, 8'h54, 8'h54, 8'h18};   // 101 e
    			mem[102] = {8'h08, 8'h7E, 8'h09, 8'h01, 8'h02};   // 102 f
    			mem[103] = {8'h18, 8'hA4, 8'hA4, 8'hA4, 8'h7C};   // 103 g
    			mem[104] = {8'h7F, 8'h08, 8'h04, 8'h04, 8'h78};   // 104 h
    			mem[105] = {8'h00, 8'h44, 8'h7D, 8'h40, 8'h00};   // 105 i
    			mem[106] = {8'h40, 8'h80, 8'h84, 8'h7D, 8'h00};   // 106 j
    			mem[107] = {8'h7F, 8'h10, 8'h28, 8'h44, 8'h00};   // 107 k
    			mem[108] = {8'h00, 8'h41, 8'h7F, 8'h40, 8'h00};   // 108 l
    			mem[109] = {8'h7C, 8'h04, 8'h18, 8'h04, 8'h78};   // 109 m
    			mem[110] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h78};   // 110 n
    			mem[111] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h38};   // 111 o
    			mem[112] = {8'hFC, 8'h24, 8'h24, 8'h24, 8'h18};   // 112 p
    			mem[113] = {8'h18, 8'h24, 8'h24, 8'h18, 8'hFC};   // 113 q
    			mem[114] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h08};   // 114 r
    			mem[115] = {8'h48, 8'h54, 8'h54, 8'h54, 8'h20};   // 115 s
    			mem[116] = {8'h04, 8'h3F, 8'h44, 8'h40, 8'h20};   // 116 t
    			mem[117] = {8'h3C, 8'h40, 8'h40, 8'h20, 8'h7C};   // 117 u
    			mem[118] = {8'h1C, 8'h20, 8'h40, 8'h20, 8'h1C};   // 118 v
    			mem[119] = {8'h3C, 8'h40, 8'h30, 8'h40, 8'h3C};   // 119 w
    			mem[120] = {8'h44, 8'h28, 8'h10, 8'h28, 8'h44};   // 120 x
    			mem[121] = {8'h1C, 8'hA0, 8'hA0, 8'hA0, 8'h7C};   // 121 y
    			mem[122] = {8'h44, 8'h64, 8'h54, 8'h4C, 8'h44};   // 122 z
    		end
    endmodule

5. 功能展示图及说明

  • 功能展示图：测量电流值
  • 3bba51a5-486b-4dbe-b990-fa1fba695a9d.jpg
  • 万用表测量值
  • 36e9d97e-55f8-4a61-9ea3-d2d4a422afb3.jpg
  • 说明：
    1. 电流测量：OLED显示屏实时显示电路中的电流值，单位为A。
    2. 此方案实现的ADC为8bit，精度可能相对不足，故与万用表测量数值存在一定程度不同。
  • 资源占用截图
  • 企业微信截图_17416121564769.png

6. 项目中遇到的难题和解决方法

  1. 难题1：SPI通信时序问题
    • 问题描述：FPGA与OLED显示屏的SPI通信时序不稳定，导致显示数据错误。
    • 解决方法：通过调整FPGA的时钟分频和SPI通信的延时参数，解决了时序问题。

7. 对本次活动的心得体会

通过本次项目，我深刻体会到了FPGA在嵌入式系统中的强大能力。iCE40UP5K FPGA不仅能够高效处理复杂的数字信号，还能灵活地与其他外设进行通信。同时，ACS712电流传感器的高精度和低噪声特性也为项目的成功奠定了基础。

在项目实施过程中，我遇到了许多挑战，如信号噪声、通信时序等问题，但通过不断调试和优化，最终解决了这些问题。这让我认识到，硬件设计和软件开发是一个需要耐心和细致的过程，任何细节的疏忽都可能导致项目失败。

此外，本次项目也让我对SPI通信协议有了更深入的理解。SPI作为一种高速、全双工的通信协议，在嵌入式系统中应用广泛，掌握其原理和实现方法对未来的项目开发具有重要意义。

对于未来的改进，我计划在项目中加入更多的功能，如数据存储、无线传输等，以进一步提升设备的实用性和智能化水平。

8. 意见或建议

  • 建议1：在项目初期，应更加注重硬件选型和电路设计，避免因硬件不匹配导致的后期调试困难。
  • 建议2：在FPGA开发中，建议使用成熟的IP核和开发工具，以提高开发效率和代码可靠性。
  • 建议3：对于类似的项目，可以考虑加入更多的用户交互功能，如触摸屏、语音提示等，以提升用户体验。

总之，本次项目不仅让我掌握了FPGA和电流传感器的应用，还让我积累了宝贵的项目开发经验。希望未来能有更多类似的机会，进一步提升自己的技术能力。

软硬件
元器件
ICE40UP5K-SG48ITR50
iCE40 UltraPlus™ FPGA， QFN-48封装
ACS71240KEXBLT-010B3
全集成式基于霍尔效应的线性电流传感器IC，具有2.1 kVRMS电压隔离及低阻电流导体
EA OLEDL128-6GGA
液晶模块 图形点阵 128X64 黄底黑字
软件
Verilog
Verilog HDL是一种硬件描述语言，用于设计和归档电子系统。
工具
Radiant
Lattice的FPGA开发环境，支持Windows/Linux操作系统，支持ICE40系列器件的开发。
烙铁
电路图
附件下载
ssd_adc_impl_1.rbt
可执行固件
eetree-adc-current-meter-final.7z
整体工程源码压缩包
团队介绍
个人开发者
评论
0 / 100
查看更多
猜你喜欢
2022年寒假在家一起练活动平台汇总- 完成任务即返款！精选5个平台，为充分利用寒暑假时间，做更有意义的事，将所学理论知识用到实践中，提升个人技能，并为参加电赛的同学做训练。
Lucia
20315
2023年寒假在家一起练活动平台汇总-完成任务返还金额精选5个平台，为充分利用寒假时间，做更有意义的事，将所学理论知识用到实践中，提升个人技能。
硬禾发布
11420

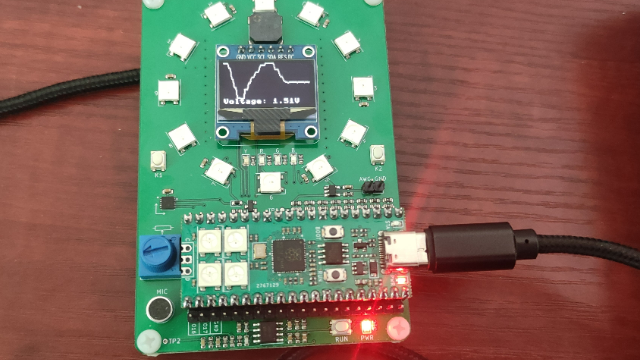

2023寒假在家一起练（1）- 基于STEP Pico的电压表基于STEP Pico的电压表，oled实时显示了电压波形和电压数值。实现方式：调节电位计产生0-3.3V之间变化的电压，树莓派Pico内部的ADC对该电压进行采集。
lhy
684
相关活动
相关平台
目录
硬禾服务号
关注最新动态
0512-67862536
info@eetree.cn
江苏省苏州市苏州工业园区新平街388号腾飞创新园A2幢815室
苏州硬禾信息科技有限公司
友情链接
STEP小脚丫纳芯微电子
Copyright © 2024 苏州硬禾信息科技有限公司 All Rights Reserved 苏ICP备19040198号
