1 项目需求:利用ADC制作一个数字电压表
- 旋转电位计可以产生0-3.3V的电压
- 利用板上的串行ADC对电压进行转换
- 将电压值在板上的OLED屏幕上显示出来
2 完成的功能及达到的性能

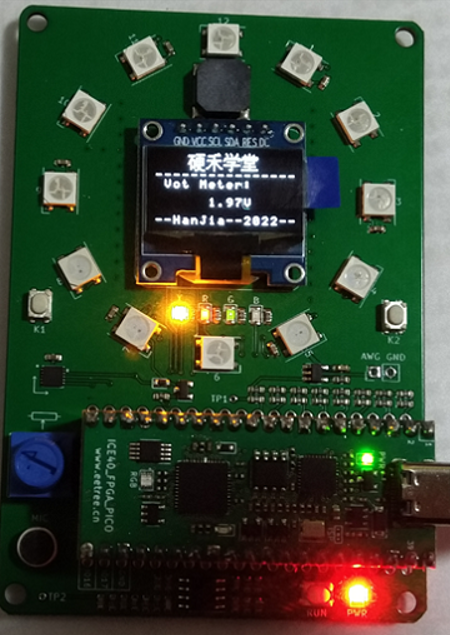

- 可以通过OLED屏幕显示固定的信息:硬禾学堂,Vot Meter, Hanjia 2022字样。用FPGA12864的电路接口功能,学会了刷新和显示文字的控制方法。
- 能把电压值实时显示在屏幕上。旋转电位计,模拟电压发生变化,FPGA和高速比较器搭建的ADC对模拟量采样转化成8位的数字量。
- 对数字量使用FPGA综合的电路BIN2BCD,将2进制数值转化成BCD码。每4位BCD码对应一位十进制数值。通过内部综合的电路连接的方式将BCD码数据传进FPGA12864模块并进行实时显示。学习了二进制转十进制的方法。
3 实现思路

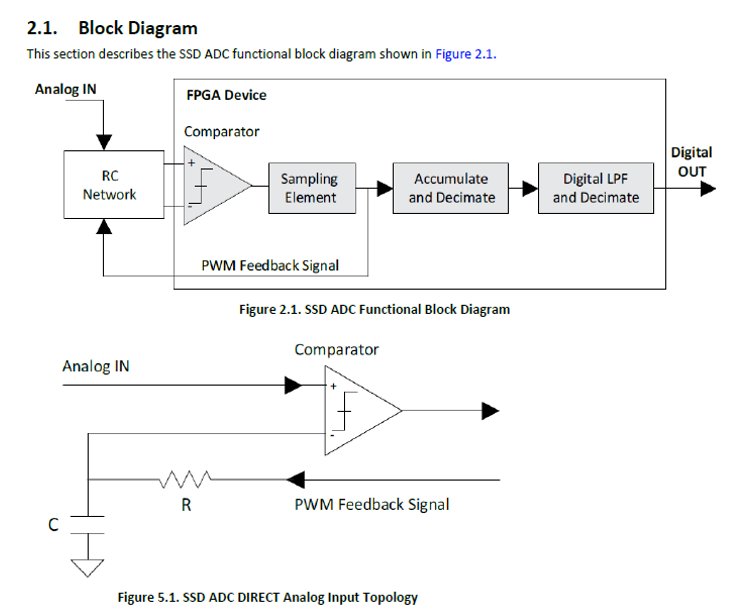

- 板载高速比较器,通过FPGA综合的电路功能可以实现ADC。

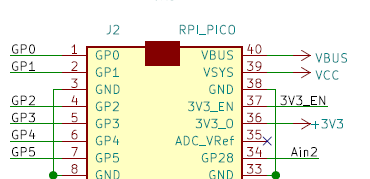

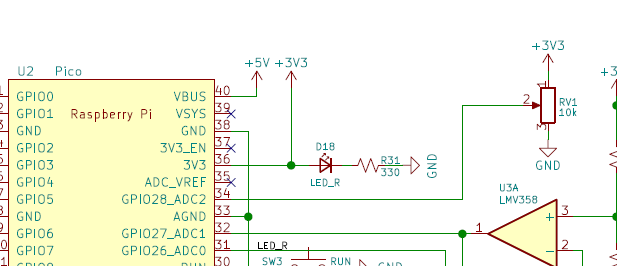

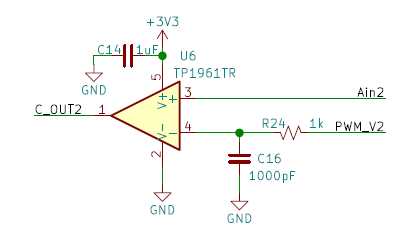

- 查看电路原理图可知,旋转电位计连接GPIO28.可知接入高速比较器AIN2,连到FPGA的12管脚。正好构成了ADC的电路连接。
- ADC转化的数字量为8位,通过bin2bcd转化成BCD码,再通过12864综合电路输出到OLED.
4 实现过程
- 在Lattice网站下载对应的ADC例程。主要有三个文件:adc_top,box_ave,sigmadelta_adc.对三个verlog程序进行综合就可以实现电路。
- 对adc_top.v文件进行修改。例化bin2bcd和oled12864电路。进行转化和数值输出。
wire [15:0] bin_code = digital_out * 16'd129;
wire [19:0] bcd_code;
bin_to_bcd u_bin_to_bcd
(
.rst_n (rstn ),
.bin_code (bin_code ),
.bcd_code (bcd_code )
);
OLED12864 u_OLED12864
(.clk (clk ),
.rst_n (rstn ),
.data (bcd_code[19:4]),
.oled_clk (oled_clk ),
//.oled_csn (oled_csn ),
.oled_dat (oled_dat ),
.oled_dcn (oled_dcn ),
.oled_rst (oled_rst )
);
bin2bcd不用修改,直接使用电子森林的版本。
// Web: www.stepfpga.com
//
// --------------------------------------------------------------------
// Code Revision History :
// --------------------------------------------------------------------
// Version: |Mod. Date: |Changes Made:
// V1.0 |2016/04/20 |Initial ver
// --------------------------------------------------------------------
module bin_to_bcd
(
input rst_n, //系统复位,低有效
input [15:0] bin_code, //需要进行BCD转码的二进制数据
output reg [19:0] bcd_code //转码后的BCD码型数据输出
);
oled12864,需要修改。主要是显示的内容和位置。
MAIN:begin
if(cnt_main >= 5'd19) cnt_main <= 5'd17;//接下来执行空操作,实现数据只刷新一次
else cnt_main <= cnt_main + 1'b1;
case(cnt_main) //MAIN状态
5'd0 : begin state <= INIT; end
5'd1 : begin y_p <= 8'hb0; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd2 : begin y_p <= 8'hb1; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd3 : begin y_p <= 8'hb2; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd4 : begin y_p <= 8'hb3; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd5 : begin y_p <= 8'hb4; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd6 : begin y_p <= 8'hb5; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd7 : begin y_p <= 8'hb6; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd8 : begin y_p <= 8'hb7; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd9 : begin y_p <= 8'hb0; x_ph <= 8'h12; x_pl <= 8'h00; mem_hanzi_num <= 8'd0; state <= CHINESE; end
5'd10: begin y_p <= 8'hb0; x_ph <= 8'h13; x_pl <= 8'h00; mem_hanzi_num <= 8'd2; state <= CHINESE; end
5'd11 : begin y_p <= 8'hb0; x_ph <= 8'h14; x_pl <= 8'h00; mem_hanzi_num <= 8'd4; state <= CHINESE; end
5'd12: begin y_p <= 8'hb0; x_ph <= 8'h15; x_pl <= 8'h00; mem_hanzi_num <= 8'd6; state <= CHINESE; end
5'd13: begin y_p <= 8'hb2; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "----------------";state <= SCAN; end
5'd14: begin y_p <= 8'hb3; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " Vot Meter: ";state <= SCAN; end
5'd15: begin y_p <= 8'hb5; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " . V ";state <= SCAN; end
5'd16: begin y_p <= 8'hb7; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= "---HanJia--2022--";state <= SCAN; end
5'd17: begin y_p <= 8'hb5; x_ph <= 8'h13; x_pl <= 8'h00; num <= 5'd 1; char <= data[15:12]; state <= SCAN; end
5'd18: begin y_p <= 8'hb5; x_ph <= 8'h14; x_pl <= 8'h00; num <= 5'd 1; char <= data[11:8]; state <= SCAN; end
5'd19: begin y_p <= 8'hb5; x_ph <= 8'h14; x_pl <= 8'h10; num <= 5'd 1; char <= data[7:4]; state <= SCAN; end

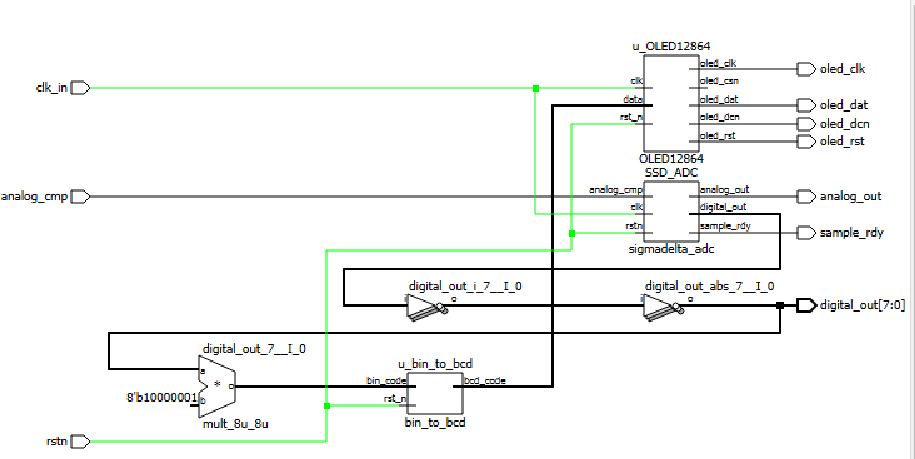

最后综合的电路
使用的资源情况
Design Summary
Number of slice registers: 316 out of 5280 (6%)
Number of I/O registers: 1 out of 117 (1%)
Number of LUT4s: 1143 out of 5280 (22%)
Number of logic LUT4s: 987
Number of inserted feedthru LUT4s: 38
Number of replicated LUT4s: 28
Number of ripple logic: 45 (90 LUT4s)
Number of IO sites used: 17 out of 39 (44%)
Number of IO sites used for general PIO: 17
Number of IO sites used for I3C: 0 out of 2 (0%)
(note: If I3C is not used, its site can be used as general PIO)
Number of IO sites used for PIO+I3C: 17 out of 36 (47%)
Number of IO sites used for OD+RGB IO buffers: 0 out of 3 (0%)
(note: If RGB LED drivers are not used, sites can be used as OD outputs,
see TN1288 iCE40 LED Driver Usage Guide)
Number of IO sites used for PIO+I3C+OD+RGB: 17 out of 39 (44%)
Number of DSPs: 1 out of 8 (12%)
Number of I2Cs: 0 out of 2 (0%)
Number of High Speed OSCs: 0 out of 1 (0%)
Number of Low Speed OSCs: 0 out of 1 (0%)
Number of RGB PWM: 0 out of 1 (0%)
Number of RGB Drivers: 0 out of 1 (0%)
Number of SCL FILTERs: 0 out of 2 (0%)
Number of SRAMs: 0 out of 4 (0%)
Number of WARMBOOTs: 0 out of 1 (0%)
Number of SPIs: 0 out of 2 (0%)
Number of EBRs: 6 out of 30 (20%)
Number of PLLs: 0 out of 1 (0%)
Number of Clocks: 1
Net clk_c: 314 loads, 314 rising, 0 falling (Driver: Port clk_in)
Number of Clock Enables: 28
Net VCC_net: 18 loads, 0 SLICEs
Net n15732: 14 loads, 14 SLICEs
Net n15548: 1 loads, 1 SLICEs
Net u_OLED12864.cnt_main_4__N_708: 6 loads, 6 SLICEs
Net u_OLED12864.n15320: 5 loads, 5 SLICEs
Net u_OLED12864.n15319: 7 loads, 7 SLICEs
Net u_OLED12864.n15321: 5 loads, 5 SLICEs
Net u_OLED12864.n15813: 2 loads, 2 SLICEs
Net u_OLED12864.n15798: 2 loads, 2 SLICEs
Net u_OLED12864.n15335: 16 loads, 16 SLICEs
Net u_OLED12864.n15322: 5 loads, 5 SLICEs
Net u_OLED12864.n14852: 1 loads, 1 SLICEs
Net u_OLED12864.n15351: 8 loads, 8 SLICEs
Net u_OLED12864.n15_c: 1 loads, 1 SLICEs
Net u_OLED12864.n15350: 1 loads, 1 SLICEs
Net u_OLED12864.n15352: 16 loads, 16 SLICEs
Net u_OLED12864.n25: 1 loads, 1 SLICEs
Net u_OLED12864.n15353: 7 loads, 7 SLICEs
Net u_OLED12864.n15354: 5 loads, 5 SLICEs
Net u_OLED12864.n15822: 2 loads, 2 SLICEs
Net u_OLED12864.n30575: 1 loads, 1 SLICEs
Net u_OLED12864.n15810: 2 loads, 2 SLICEs
Net u_OLED12864.n30491: 2 loads, 2 SLICEs
Net u_OLED12864.n15828: 6 loads, 6 SLICEs
Net SSD_ADC.rollover: 8 loads, 8 SLICEs
Net SSD_ADC.n16710: 10 loads, 10 SLICEs
Net SSD_ADC.box_ave.latch_result: 8 loads, 8 SLICEs
Net SSD_ADC.box_ave.accumulate: 6 loads, 6 SLICEs
Number of LSRs: 2
Net rst_n_N_415: 305 loads, 305 SLICEs
Net u_OLED12864.n16723: 2 loads, 2 SLICEs
Top 10 highest fanout non-clock nets:
Net rst_n_N_415: 305 loads
Net u_OLED12864.cnt_chinese[0]: 76 loads
Net u_OLED12864.cnt_chinese[1]: 70 loads
Net n15732: 68 loads
Net u_OLED12864.mem_hanzi_num[2]: 57 loads
Net u_OLED12864.mem_hanzi_num[1]: 56 loads
Net u_OLED12864.cnt_main_4__N_705: 53 loads
Net u_OLED12864.cnt_main[0]: 45 loads
Net u_OLED12864.cnt_main[4]: 44 loads
Net u_OLED12864.state[1]: 44 loads
Number of warnings: 0
Number of errors: 0
5 遇到的主要难题
初学FPGA, 软件使用并不熟悉。在电子森林里丰富的例程帮助下逐渐掌握。
看电路图分配管脚是个学习的过程。包括阅读Lattice sigmadelta ADC的历程说明以及怎样用在这块电路板上。都是学习提高的过程。回头再看觉得不难,但不知道的内容更多了。继续学习。
附件下载
Verilog代码.zip
工程代码
项目打包.zip
工程文件
