用lattice machXO2做ADC电压计和PWM音乐播放器
前言
感谢硬禾学堂提供的硬件支持，本次项目花费十天左右的时间，本来想完成更多的项目，但介于之后会有一个三周左右的实习时间，因此只完成了第一二条要求。
对于这次项目，可谓是感慨颇多。之前我并没有接触过FPGA以及Verilog，因此在做的时候遇到了很多困难，期间我也通过大量的查资料，自己解决了很多。但有些问题网上也查不到，不过有幸的是，在与周围人的交流下，这些困难也大都得到了解决。
模块介绍
本次项目分为三个模块：
ADC采样模块：利用串口ADC进行电压采样，将采集到的电压值转换为数字信号，并通过数学转换，将电压输出信号最大值由256转换为3.3，之后通过左移加三的算法，将原码转换为BCD码，最后通过发送到oled显示模块。
PWM音乐播放模块：该模块将乐谱存在ROM中，通过开关进行乐谱的切换来实现音乐的切换。该模块设置了一个时间计数器，输出信号由时间计数器由分频系数控制，每当时间计数器达到一定值时输出信号翻转，并由端口发送到蜂鸣器。分频系数取决于乐谱中对应的数字。同时，该模块还设置了一个计数器来控制节拍。
oled显示模块：该模块由状态机控制，分为以下几个状态：
1.起始状态
2.主体程序部分
3.刷屏状态
4.写入状态
5.延时状态
6.初始化状态
首先状态机由起始状态开始，为相关参数做初始化赋值；之后进入到主题部分，在该状态下，程序给需要送到oled显示模块的数据赋值，并进入到刷屏模块；在刷屏模块中，程序将送到oled的数据以八个字节为单位分组，形成8*8字块，并插入三个8维零向量，这样就形成了5*8字块，并进入到写入状态；在写入状态中，程序将扫描状态生成的8比特信号依次发送到oled显示屏当中，进入到延时状态；经过延时状态延时，状态机回到起始状态，这样，状态机就完成了一次循环。
1.ADC采样模块：

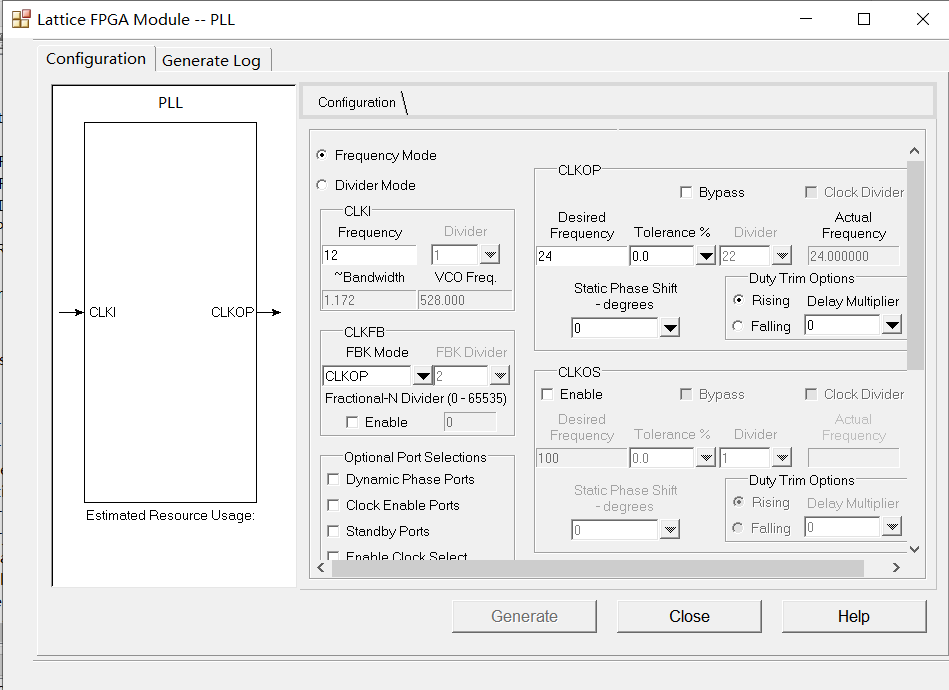

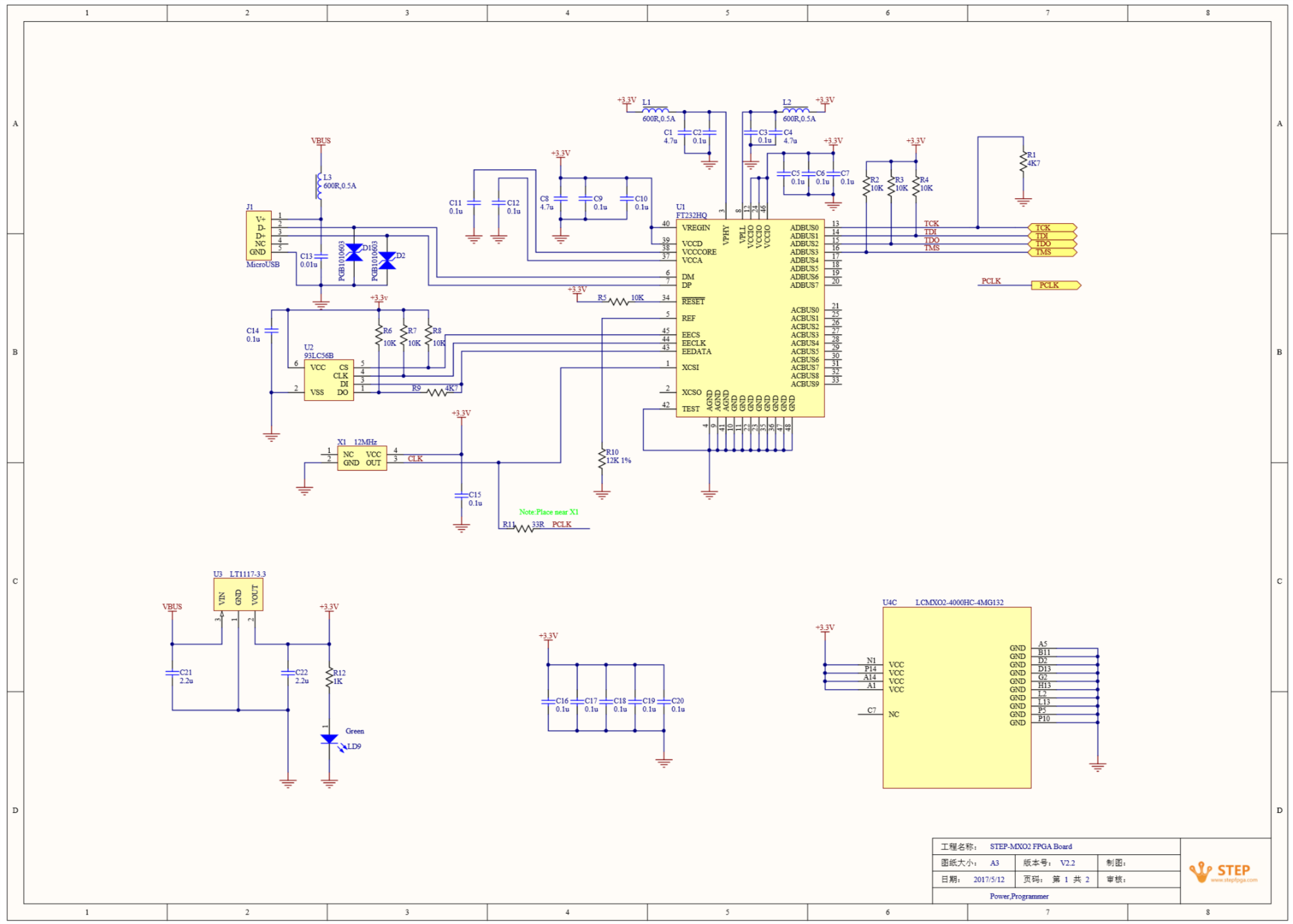

本次ADC采样使用的芯片是ADC7868，板子的晶振最大只能提供12MHz的频率，因此本程序还使用了PLL核进行调频。PLL核输出的频率为24MHz。
该ADC电压表模块精确到小数点后两位，程序输出35位数，该程序取前十二位。同时由于本程序只取前12位数，因此原本在电压上限改变一步中，原本应乘以系数0.0129，此处可直接乘以129。
代码如下：
// --------------------------------------------------------------------
// >>>>>>>>>>>>>>>>>>>>>>>>> COPYRIGHT NOTICE <<<<<<<<<<<<<<<<<<<<<<<<<
// --------------------------------------------------------------------
// Module: ADC
//
// Author: CHC
//
// Description: ADC
//
// Web: www.stepfapga.com
//
// --------------------------------------------------------------------
// Code Revision History :
// --------------------------------------------------------------------
// Version: |Mod. Date: |Changes Made:
// V1.0 |2016/04/20 |Initial ver
// --------------------------------------------------------------------
module ADC
(
input clk, //系统时钟
input rst_n, //系统复位，低有效
output reg adc_cs, //SPI总线CS
output reg adc_clk, //SPI总线SCK
input adc_dat, //SPI总线SDA
output reg [11:0] bcd_code //输出的BCD码
);
reg adc_done; //ADC采样完成标志
reg [7:0] adc_data; //ADC采样数据
reg [7:0] cnt; //计数器
reg [7:0] data;
reg [35:0] shift_reg;
localparam HIGH = 1'b1, LOW = 1'b0;
always @(posedge clk or negedge rst_n)
if(!rst_n) cnt <= 1'b0;
else if(cnt >= 8'd34) cnt <= 1'b0;
else cnt <= cnt + 1'b1;
always @(posedge clk or negedge rst_n)
if(!rst_n) begin
adc_cs <= HIGH; adc_clk <= HIGH;
end else case(cnt)
8'd0 : begin adc_cs <= HIGH; adc_clk <= HIGH; end
8'd1 : begin adc_cs <= LOW; adc_clk <= HIGH; end
8'd2,8'd4,8'd6,8'd8,8'd10,8'd12,8'd14,8'd16,
8'd18,8'd20,8'd22,8'd24,8'd26,8'd28,8'd30,8'd32:
begin adc_cs <= LOW; adc_clk <= LOW; end
8'd3 : begin adc_cs <= LOW; adc_clk <= HIGH; end //0
8'd5 : begin adc_cs <= LOW; adc_clk <= HIGH; end //1
8'd7 : begin adc_cs <= LOW; adc_clk <= HIGH; end //2
8'd9 : begin adc_cs <= LOW; adc_clk <= HIGH; data[7] <= adc_dat; end //3
8'd11 : begin adc_cs <= LOW; adc_clk <= HIGH; data[6] <= adc_dat; end //4
8'd13 : begin adc_cs <= LOW; adc_clk <= HIGH; data[5] <= adc_dat; end //5
8'd15 : begin adc_cs <= LOW; adc_clk <= HIGH; data[4] <= adc_dat; end //6
8'd17 : begin adc_cs <= LOW; adc_clk <= HIGH; data[3] <= adc_dat; end //7
8'd19 : begin adc_cs <= LOW; adc_clk <= HIGH; data[2] <= adc_dat; end //8
8'd21 : begin adc_cs <= LOW; adc_clk <= HIGH; data[1] <= adc_dat; end //9
8'd23 : begin adc_cs <= LOW; adc_clk <= HIGH; data[0] <= adc_dat; end //10
8'd25 : begin adc_cs <= LOW; adc_clk <= HIGH; adc_data <= data; end //11
8'd27 : begin adc_cs <= LOW; adc_clk <= HIGH; adc_done <= HIGH; end //12
8'd29 : begin adc_cs <= LOW; adc_clk <= HIGH; adc_done <= LOW; end //13
8'd31 : begin adc_cs <= LOW; adc_clk <= HIGH; end //14
8'd33 : begin adc_cs <= LOW; adc_clk <= HIGH; end //15
8'd34 : begin adc_cs <= HIGH; adc_clk <= HIGH; end
default : begin adc_cs <= HIGH; adc_clk <= HIGH; end
endcase
wire [15:0] bin_code = adc_data * 16'd129;
always@(bin_code or rst_n)begin
shift_reg = {20'h0,bin_code};
if(!rst_n) bcd_code = 0;
else begin
repeat(16) begin //循环16次
//BCD码各位数据作满5加3操作，
if (shift_reg[19:16] >= 5) shift_reg[19:16] = shift_reg[19:16] + 2'b11;
if (shift_reg[23:20] >= 5) shift_reg[23:20] = shift_reg[23:20] + 2'b11;
if (shift_reg[27:24] >= 5) shift_reg[27:24] = shift_reg[27:24] + 2'b11;
if (shift_reg[31:28] >= 5) shift_reg[31:28] = shift_reg[31:28] + 2'b11;
if (shift_reg[35:32] >= 5) shift_reg[35:32] = shift_reg[35:32] + 2'b11;
shift_reg = shift_reg << 1;
end
bcd_code = {shift_reg[35:24]};
end
end
endmodule2.PWM模块
PWM模块个人认为还有优化的空间，在编写本模块时，由于三个曲子需要的音阶较多，而16进制能表示的音阶数量有限，因此在编写本模块的时候使用了大量的管脚来保存乐谱。个人认为这一部分还有优化的空间。
该模块通过使用两个时间计数器来输出变化的音调。当时钟沿来临时，程序先判断音乐选择参数来选择对应的乐谱，之后判断乐谱中的数字选择对应的计数终值，当计数器达到计数终值时，输出信号发生翻转，由此达到分频的效果。而另一个计数器用来控制节拍，使得音调发生转换。
代码如下：
// --------------------------------------------------------------------
// >>>>>>>>>>>>>>>>>>>>>>>>> COPYRIGHT NOTICE <<<<<<<<<<<<<<<<<<<<<<<<<
// --------------------------------------------------------------------
// Module: Beeper
//
// Author: CHC
//
// Description: Beeper
//
// Web: www.stepfapga.com
//
// --------------------------------------------------------------------
// Code Revision History :
// --------------------------------------------------------------------
// Version: |Mod. Date: |Changes Made:
// V1.0 |2016/04/20 |Initial ver
// --------------------------------------------------------------------
module Beeper
(
input clk_in, //系统时钟
input rst_n_in, //系统复位，低有效
input tone_en, //蜂鸣器使能信号
output reg piano_out, //蜂鸣器控制输出
input wire [2:0] music_sel, //音乐选择
output reg [1:0] sel_num //供OLED显示
);
/*
无源蜂鸣器可以发出不同的音节，与蜂鸣器震动的频率（等于蜂鸣器控制信号的频率）相关，
为了让蜂鸣器控制信号产生不同的频率，我们使用计数器计数（分频）实现，不同的音节控制对应不同的计数终值（分频系数）
计数器根据计数终值计数并分频，产生蜂鸣器控制信号
*/
reg [15:0] time_end;
reg [17:0] time_cnt;
reg [4:0] tone; //蜂鸣器音节控制
reg [22:0] music_cnt; //节拍控制
reg off;
reg [2:0] music=0; //谱子
reg [480:0] music_rst; //原谱保存
reg [2:0] music_lmh=0; //中高低调
reg [480:0] music_lmh_rst; //中高低调保存
//根据不同的音节控制，选择对应的计数终值（分频系数）
//低音1的频率为261.6Hz，蜂鸣器控制信号周期应为12MHz/261.6Hz = 45871.5，
//因为本设计中蜂鸣器控制信号是按计数器周期翻转的，所以几种终值 = 45871.5/2 = 22936
//需要计数22936个，计数范围为0 ~ (22936-1)，所以time_end = 22935
always@(tone) begin
case(tone)
5'd1: begin time_end = 16'd22935; off=1; end//L1,
5'd2: begin time_end = 16'd20428; off=1; end//L2,
5'd3: begin time_end = 16'd18203; off=1; end//L3,
5'd4: begin time_end = 16'd17181; off=1; end//L4,
5'd5: begin time_end = 16'd15305; off=1; end//L5,
5'd6: begin time_end = 16'd13635; off=1; end//L6,
5'd7: begin time_end = 16'd12147; off=1; end//L7,
5'd8: begin time_end = 16'd11464; off=1; end//M1,
5'd9: begin time_end = 16'd10215; off=1; end//M2,
5'd10: begin time_end = 16'd9100; off=1; end//M3,
5'd11: begin time_end = 16'd8589; off=1; end//M4,
5'd12: begin time_end = 16'd7652; off=1; end//M5,
5'd13: begin time_end = 16'd6817; off=1; end//M6,
5'd14: begin time_end = 16'd6073; off=1; end//M7,
5'd15: begin time_end = 16'd5740; off=1; end//H1,
5'd16: begin time_end = 16'd5107; off=1; end//H2,
5'd17: begin time_end = 16'd4549; off=1; end//H3,
5'd18: begin time_end = 16'd4294; off=1; end//H4,
5'd19: begin time_end = 16'd3825; off=1; end//H5,
5'd20: begin time_end = 16'd3408; off=1; end//H6,
5'd21: begin time_end = 16'd3036; off=1; end//H7,
5'd22: begin time_end = 16'd21646; off=1; end//c1#,
5'd23: begin time_end = 16'd19284; off=1; end//d1#,
5'd24: begin time_end = 16'd16216; off=1; end//f1#,
5'd25: begin time_end = 16'd14447; off=1; end//g1#,
5'd26: begin time_end = 16'd12871; off=1; end//a1#,
5'd27: begin time_end = 16'd10823; off=1; end//c2#,
5'd28: begin time_end = 16'd9642; off=1; end//d2#,
5'd29: begin time_end = 16'd8108; off=1; end//f2#,
5'd31: begin time_end = 16'd7224; off=1; end//g2#,
5'd0: begin time_end = 16'd25742; off=1; end//A1#,
default:off=0;
endcase
end
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in)begin
music_rst = 0;
music_lmh_rst = 0;
sel_num <= 0;
end else if(!tone_en) begin
music_rst = 0;
music_lmh_rst = 0;
sel_num <= 0;
end else begin
case(music_sel)
3'd3: begin
music_rst = 480'o444447755455543001111772211230335404332236650777773311711155022222553323332102222027722223300055033656665507777733117111550222225533233321; //保存原谱
music_lmh_rst = 480'o111111111111111001111001111110111101111110000000001111011100011111111111111101111010011111100000011000000000000011110111000111111111111111; //保存中高低调
sel_num <= 2'd1;
end
3'd5: begin
music_rst = 480'o221222110221220302211211032532333022331103252122205562122202223212222123022133122125553233330221221221225553233300221331221225553233302212212212255532333;
music_lmh_rst = 480'o114441440114440404444144042444444044444404444411103331411104444441111444011444411444444444440444444114444444444400114444114444444444404444441144444444444;
sel_num <= 2'd2;
end
3'd6: begin
music_rst = 480'o777776646703330707466643034666430333336376337607770003776644306663337766443667700037766443000333336376337677442767476737630777476737677744276747673763;
music_lmh_rst = 480'o000000030041114000300030003000300000004000000000004441000033004440000000330000044410000330000000004000000033114000100010010333100010003311400010001001;
sel_num <= 2'd3;
end
endcase
end
end
//节拍控制
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in) begin
music_cnt <= 1'b0;
end else if(!tone_en) begin
music_cnt <= 1'b0;
end else if(music_cnt>=23'h600000) begin
music_cnt <= 1'b0;
end else begin
music_cnt <= music_cnt + 1'b1;
end
end
reg [7:0] length;
//将乐谱的数字对应的曲调转换成相应的计数终值
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in) begin
music<=music_rst[2:0];
music_lmh <= music_lmh_rst[2:0];
length <= 0;
end else if(!tone_en) begin
music<=music_rst[2:0];
music_lmh <= music_lmh_rst[2:0];
length <= 0;
end else if(!sel_num) begin
music<=music_rst[2:0];
music_lmh <= music_lmh_rst[2:0];
length <= 0;
end else if(music_cnt==23'h600000) begin
if(length>=160) begin
music<=music_rst[2:0];
music_lmh <= music_lmh_rst[2:0];
length <= 0;
end
else begin
music <= music_rst[3*length+:3]; //变调
music_lmh <= music_lmh_rst[3*length+:3];
length <= length+1;
end
end else begin
tone <= tone;
end
tone <= music[2:0]+music_lmh[2:0]*7-2;
end
//当蜂鸣器使能时，计数器按照计数终值（分频系数）计数
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in) begin
time_cnt <= 1'b0;
end else if(!tone_en) begin
time_cnt <= 1'b0;
end else if(!off) begin
time_cnt <= 1'b0;
end else if(time_cnt>=time_end) begin
time_cnt <= 1'b0;
end else begin
time_cnt <= time_cnt + 1'b1;
end
end
//根据计数器的周期，翻转蜂鸣器控制信号
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in) begin
piano_out <= 1'b0;
end else if(!off) begin
piano_out <= 1'b0;
end else if(time_cnt==time_end) begin
piano_out <= ~piano_out; //蜂鸣器控制输出翻转，两次翻转为1Hz
end else begin
piano_out <= piano_out;
end
end
endmodule3.oled显示模块
本模块个人认为是最难的模块，代码是案例上代码加以修改，不过在看代码上花费了很长时间，遇到的问题也是最多的。最后在案例的基础上，修改了部分代码作为板子oled的驱动。
本次使用的是128*32的oled显示屏，而参考案例给的显示屏分辨率并不是128*32，这个问题当时难住了我好久，最后通过反复的对比，才发现是屏幕的分辨率不合适。本程序代码已对其进行修改。
该模块中还有一个问题困扰了我很久，就是Verilog语言的赋值，赋值之后的值位数问题。位数问题在oled显示中显得尤为重要。我在该模块使用了x<=0这种语言，但是这种语言赋的值默认是32位的，而我想要的位数为1，因此在oled屏幕上显示的效果是一串数字全是0，这个问题我也是查了很久才查出来。
该模块主要思想是使用状态机来进行驱动，通过初始化-赋值-屏幕扫描-发送数据-延时循环，来起到实时刷屏的效果。
代码如下：
// --------------------------------------------------------------------
// >>>>>>>>>>>>>>>>>>>>>>>>> COPYRIGHT NOTICE <<<<<<<<<<<<<<<<<<<<<<<<<
// --------------------------------------------------------------------
// Module: oled
//
// Author: CHC
//
// Description: oled
//
// Web: www.stepfapga.com
//
// --------------------------------------------------------------------
// Code Revision History :
// --------------------------------------------------------------------
// Version: |Mod. Date: |Changes Made:
// V1.0 |2016/04/20 |Initial ver
// --------------------------------------------------------------------
module oled
(
input clk_in, //系统时钟
input rst_n_in, //系统复位，低有效
input [1:0] sel_num, //音乐选择
input [11:0] bcd_code, //bcd码输入
input tone_en, //蜂鸣器使能
input ADC_en, //ADC使能
output reg oled_csn, //OLCD液晶屏使能
output reg oled_rst, //OLCD液晶屏复位
output reg oled_dcn, //OLCD数据指令控制
output reg oled_clk, //OLCD时钟信号
output reg oled_dat //OLCD数据信号
);
reg [7:0] cmd [24:0];
reg [39:0] mem [122:0];
reg [7:0] y_p, x_ph, x_pl;
reg [(8*16-1):0] char;
reg [7:0] num, char_reg; //
reg [4:0] cnt_main, cnt_init, cnt_scan, cnt_write;
reg [15:0] num_delay, cnt_delay, cnt;
reg [5:0] state, state_back;
//*******************
//DEFINE PARAMETER
//*******************
localparam INIT_DEPTH = 16'd25; //LCD初始化的命令的数量
localparam IDLE = 6'h1, MAIN = 6'h2, INIT = 6'h4, SCAN = 6'h8, WRITE = 6'h10, DELAY = 6'h20;
localparam HIGH = 1'b1, LOW = 1'b0;
localparam DATA = 1'b1, CMD = 1'b0;
//显示屏显示曲目名
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in) begin
cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;
y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;
oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
state <= IDLE; state_back <= IDLE;
end else begin
case(state)
IDLE:begin
cnt_main <= 1'b0; cnt_init <= 1'b0; cnt_scan <= 1'b0; cnt_write <= 1'b0;
y_p <= 1'b0; x_ph <= 1'b0; x_pl <= 1'b0;
num <= 1'b0; char <= 1'b0; char_reg <= 1'b0;
num_delay <= 16'd5; cnt_delay <= 1'b0; cnt <= 1'b0;
oled_csn <= HIGH; oled_rst <= HIGH; oled_dcn <= CMD; oled_clk <= HIGH; oled_dat <= LOW;
state <= MAIN; state_back <= MAIN;
end
MAIN:begin
if(cnt_main >= 5'd4) cnt_main <= 5'd1;
else cnt_main <= cnt_main + 1'b1;
case(cnt_main) //MAIN状态
5'd0: begin state <= INIT; end
5'd1: begin y_p <= 8'hb0; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
5'd2: begin y_p <= 8'hb1; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16;
case(sel_num)
2'd1: char <= "TianKongZhiCheng";
2'd2: char <= "ChengDu ";
2'd3: char <= "DaYuHaiTang ";
default: char <= " ";
endcase
state <= SCAN; end
5'd3: begin y_p <= 8'hb2; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16;
if(ADC_en)char <= {{12{8'h20}},4'h0,bcd_code[11:8],8'd92,4'h0,bcd_code[7:4],4'h0,bcd_code[3:0]};
else char <= " ";
state <= SCAN; end
5'd4: begin y_p <= 8'hb3; x_ph <= 8'h10; x_pl <= 8'h00; num <= 5'd16; char <= " ";state <= SCAN; end
default: state <= IDLE;
endcase
end
INIT:begin //初始化状态
case(cnt_init)
5'd0: begin oled_rst <= LOW; cnt_init <= cnt_init + 1'b1; end //复位有效
5'd1: begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end //延时大于3us
5'd2: begin oled_rst <= HIGH; cnt_init <= cnt_init + 1'b1; end //复位恢复
5'd3: begin num_delay <= 16'd25000; state <= DELAY; state_back <= INIT; cnt_init <= cnt_init + 1'b1; end //延时大于220us
5'd4: begin
if(cnt>=INIT_DEPTH) begin //当25条指令及数据发出后，配置完成
cnt <= 1'b0;
cnt_init <= cnt_init + 1'b1;
end else begin
cnt <= cnt + 1'b1; num_delay <= 16'd5;
oled_dcn <= CMD; char_reg <= cmd[cnt]; state <= WRITE; state_back <= INIT;
end
end
5'd5: begin cnt_init <= 1'b0; state <= MAIN; end //初始化完成，返回MAIN状态
default: state <= IDLE;
endcase
end
SCAN:begin //刷屏状态，从RAM中读取数据刷屏
if(cnt_scan == 5'd11) begin
if(num) cnt_scan <= 5'd3;
else cnt_scan <= cnt_scan + 1'b1;
end else if(cnt_scan == 5'd12) cnt_scan <= 1'b0;
else cnt_scan <= cnt_scan + 1'b1;
case(cnt_scan)
5'd 0: begin oled_dcn <= CMD; char_reg <= y_p; state <= WRITE; state_back <= SCAN; end //定位列页地址
5'd 1: begin oled_dcn <= CMD; char_reg <= x_pl; state <= WRITE; state_back <= SCAN; end //定位行地址低位
5'd 2: begin oled_dcn <= CMD; char_reg <= x_ph; state <= WRITE; state_back <= SCAN; end //定位行地址高位
5'd 3: begin num <= num - 1'b1;end
5'd 4: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 5: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 6: begin oled_dcn <= DATA; char_reg <= 8'h00; state <= WRITE; state_back <= SCAN; end //将5*8点阵编程8*8
5'd 7: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][39:32]; state <= WRITE; state_back <= SCAN; end
5'd 8: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][31:24]; state <= WRITE; state_back <= SCAN; end
5'd 9: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][23:16]; state <= WRITE; state_back <= SCAN; end
5'd10: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][15: 8]; state <= WRITE; state_back <= SCAN; end
5'd11: begin oled_dcn <= DATA; char_reg <= mem[char[(num*8)+:8]][ 7: 0]; state <= WRITE; state_back <= SCAN; end
5'd12: begin state <= MAIN; end
default: state <= IDLE;
endcase
end
WRITE:begin //WRITE状态，将数据按照SPI时序发送给屏幕
if(cnt_write >= 5'd17) cnt_write <= 1'b0;
else cnt_write <= cnt_write + 1'b1;
case(cnt_write)
5'd 0: begin oled_csn <= LOW; end //9位数据最高位为命令数据控制位
5'd 1: begin oled_clk <= LOW; oled_dat <= char_reg[7]; end //先发高位数据
5'd 2: begin oled_clk <= HIGH; end
5'd 3: begin oled_clk <= LOW; oled_dat <= char_reg[6]; end
5'd 4: begin oled_clk <= HIGH; end
5'd 5: begin oled_clk <= LOW; oled_dat <= char_reg[5]; end
5'd 6: begin oled_clk <= HIGH; end
5'd 7: begin oled_clk <= LOW; oled_dat <= char_reg[4]; end
5'd 8: begin oled_clk <= HIGH; end
5'd 9: begin oled_clk <= LOW; oled_dat <= char_reg[3]; end
5'd10: begin oled_clk <= HIGH; end
5'd11: begin oled_clk <= LOW; oled_dat <= char_reg[2]; end
5'd12: begin oled_clk <= HIGH; end
5'd13: begin oled_clk <= LOW; oled_dat <= char_reg[1]; end
5'd14: begin oled_clk <= HIGH; end
5'd15: begin oled_clk <= LOW; oled_dat <= char_reg[0]; end //后发低位数据
5'd16: begin oled_clk <= HIGH; end
5'd17: begin oled_csn <= HIGH; state <= DELAY; end //
default: state <= IDLE;
endcase
end
DELAY:begin //延时状态
if(cnt_delay >= num_delay) begin
cnt_delay <= 16'd0; state <= state_back;
end else cnt_delay <= cnt_delay + 1'b1;
end
default:state <= IDLE;
endcase
end
end
//OLED配置指令数据
always@(posedge rst_n_in)
begin
cmd[ 0] = {8'hae};
cmd[ 1] = {8'h00};
cmd[ 2] = {8'h10};
cmd[ 3] = {8'h00};
cmd[ 4] = {8'hb0};
cmd[ 5] = {8'h81};
cmd[ 6] = {8'hff};
cmd[ 7] = {8'ha1};
cmd[ 8] = {8'ha6};
cmd[ 9] = {8'ha8};
cmd[10] = {8'h1f};
cmd[11] = {8'hc8};
cmd[12] = {8'hd3};
cmd[13] = {8'h00};
cmd[14] = {8'hd5};
cmd[15] = {8'h80};
cmd[16] = {8'hd9};
cmd[17] = {8'h1f};
cmd[18] = {8'hda};
cmd[19] = {8'h00};
cmd[20] = {8'hdb};
cmd[21] = {8'h40};
cmd[22] = {8'h8d};
cmd[23] = {8'h14};
cmd[24] = {8'haf};
end
//5*8点阵字库数据
always@(posedge rst_n_in)
begin
mem[ 0] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E}; // 48 0
mem[ 1] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00}; // 49 1
mem[ 2] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46}; // 50 2
mem[ 3] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31}; // 51 3
mem[ 4] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10}; // 52 4
mem[ 5] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39}; // 53 5
mem[ 6] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30}; // 54 6
mem[ 7] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03}; // 55 7
mem[ 8] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36}; // 56 8
mem[ 9] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E}; // 57 9
mem[ 10] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C}; // 65 A
mem[ 11] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36}; // 66 B
mem[ 12] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22}; // 67 C
mem[ 13] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C}; // 68 D
mem[ 14] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41}; // 69 E
mem[ 15] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01}; // 70 F
mem[ 32] = {8'h00, 8'h00, 8'h00, 8'h00, 8'h00}; // 32 sp
mem[ 33] = {8'h00, 8'h00, 8'h2f, 8'h00, 8'h00}; // 33 !
mem[ 34] = {8'h00, 8'h07, 8'h00, 8'h07, 8'h00}; // 34
mem[ 35] = {8'h14, 8'h7f, 8'h14, 8'h7f, 8'h14}; // 35 #
mem[ 36] = {8'h24, 8'h2a, 8'h7f, 8'h2a, 8'h12}; // 36 $
mem[ 37] = {8'h62, 8'h64, 8'h08, 8'h13, 8'h23}; // 37 %
mem[ 38] = {8'h36, 8'h49, 8'h55, 8'h22, 8'h50}; // 38 &
mem[ 39] = {8'h00, 8'h05, 8'h03, 8'h00, 8'h00}; // 39 '
mem[ 40] = {8'h00, 8'h1c, 8'h22, 8'h41, 8'h00}; // 40 (
mem[ 41] = {8'h00, 8'h41, 8'h22, 8'h1c, 8'h00}; // 41 )
mem[ 42] = {8'h14, 8'h08, 8'h3E, 8'h08, 8'h14}; // 42 *
mem[ 43] = {8'h08, 8'h08, 8'h3E, 8'h08, 8'h08}; // 43 +
mem[ 44] = {8'h00, 8'h00, 8'hA0, 8'h60, 8'h00}; // 44 ,
mem[ 45] = {8'h08, 8'h08, 8'h08, 8'h08, 8'h08}; // 45 -
mem[ 46] = {8'h00, 8'h60, 8'h60, 8'h00, 8'h00}; // 46 .
mem[ 47] = {8'h20, 8'h10, 8'h08, 8'h04, 8'h02}; // 47 /
mem[ 48] = {8'h3E, 8'h51, 8'h49, 8'h45, 8'h3E}; // 48 0
mem[ 49] = {8'h00, 8'h42, 8'h7F, 8'h40, 8'h00}; // 49 1
mem[ 50] = {8'h42, 8'h61, 8'h51, 8'h49, 8'h46}; // 50 2
mem[ 51] = {8'h21, 8'h41, 8'h45, 8'h4B, 8'h31}; // 51 3
mem[ 52] = {8'h18, 8'h14, 8'h12, 8'h7F, 8'h10}; // 52 4
mem[ 53] = {8'h27, 8'h45, 8'h45, 8'h45, 8'h39}; // 53 5
mem[ 54] = {8'h3C, 8'h4A, 8'h49, 8'h49, 8'h30}; // 54 6
mem[ 55] = {8'h01, 8'h71, 8'h09, 8'h05, 8'h03}; // 55 7
mem[ 56] = {8'h36, 8'h49, 8'h49, 8'h49, 8'h36}; // 56 8
mem[ 57] = {8'h06, 8'h49, 8'h49, 8'h29, 8'h1E}; // 57 9
mem[ 58] = {8'h00, 8'h36, 8'h36, 8'h00, 8'h00}; // 58 :
mem[ 59] = {8'h00, 8'h56, 8'h36, 8'h00, 8'h00}; // 59 ;
mem[ 60] = {8'h08, 8'h14, 8'h22, 8'h41, 8'h00}; // 60 <
mem[ 61] = {8'h14, 8'h14, 8'h14, 8'h14, 8'h14}; // 61 =
mem[ 62] = {8'h00, 8'h41, 8'h22, 8'h14, 8'h08}; // 62 >
mem[ 63] = {8'h02, 8'h01, 8'h51, 8'h09, 8'h06}; // 63 ?
mem[ 64] = {8'h32, 8'h49, 8'h59, 8'h51, 8'h3E}; // 64 @
mem[ 65] = {8'h7C, 8'h12, 8'h11, 8'h12, 8'h7C}; // 65 A
mem[ 66] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h36}; // 66 B
mem[ 67] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h22}; // 67 C
mem[ 68] = {8'h7F, 8'h41, 8'h41, 8'h22, 8'h1C}; // 68 D
mem[ 69] = {8'h7F, 8'h49, 8'h49, 8'h49, 8'h41}; // 69 E
mem[ 70] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h01}; // 70 F
mem[ 71] = {8'h3E, 8'h41, 8'h49, 8'h49, 8'h7A}; // 71 G
mem[ 72] = {8'h7F, 8'h08, 8'h08, 8'h08, 8'h7F}; // 72 H
mem[ 73] = {8'h00, 8'h41, 8'h7F, 8'h41, 8'h00}; // 73 I
mem[ 74] = {8'h20, 8'h40, 8'h41, 8'h3F, 8'h01}; // 74 J
mem[ 75] = {8'h7F, 8'h08, 8'h14, 8'h22, 8'h41}; // 75 K
mem[ 76] = {8'h7F, 8'h40, 8'h40, 8'h40, 8'h40}; // 76 L
mem[ 77] = {8'h7F, 8'h02, 8'h0C, 8'h02, 8'h7F}; // 77 M
mem[ 78] = {8'h7F, 8'h04, 8'h08, 8'h10, 8'h7F}; // 78 N
mem[ 79] = {8'h3E, 8'h41, 8'h41, 8'h41, 8'h3E}; // 79 O
mem[ 80] = {8'h7F, 8'h09, 8'h09, 8'h09, 8'h06}; // 80 P
mem[ 81] = {8'h3E, 8'h41, 8'h51, 8'h21, 8'h5E}; // 81 Q
mem[ 82] = {8'h7F, 8'h09, 8'h19, 8'h29, 8'h46}; // 82 R
mem[ 83] = {8'h46, 8'h49, 8'h49, 8'h49, 8'h31}; // 83 S
mem[ 84] = {8'h01, 8'h01, 8'h7F, 8'h01, 8'h01}; // 84 T
mem[ 85] = {8'h3F, 8'h40, 8'h40, 8'h40, 8'h3F}; // 85 U
mem[ 86] = {8'h1F, 8'h20, 8'h40, 8'h20, 8'h1F}; // 86 V
mem[ 87] = {8'h3F, 8'h40, 8'h38, 8'h40, 8'h3F}; // 87 W
mem[ 88] = {8'h63, 8'h14, 8'h08, 8'h14, 8'h63}; // 88 X
mem[ 89] = {8'h07, 8'h08, 8'h70, 8'h08, 8'h07}; // 89 Y
mem[ 90] = {8'h61, 8'h51, 8'h49, 8'h45, 8'h43}; // 90 Z
mem[ 91] = {8'h00, 8'h7F, 8'h41, 8'h41, 8'h00}; // 91 [
mem[ 92] = {8'h00, 8'h00, 8'hC0, 8'hC0, 8'h00}; // 92 .
mem[ 93] = {8'h00, 8'h41, 8'h41, 8'h7F, 8'h00}; // 93 ]
mem[ 94] = {8'h04, 8'h02, 8'h01, 8'h02, 8'h04}; // 94 ^
mem[ 95] = {8'h40, 8'h40, 8'h40, 8'h40, 8'h40}; // 95 _
mem[ 96] = {8'h00, 8'h01, 8'h02, 8'h04, 8'h00}; // 96 '
mem[ 97] = {8'h20, 8'h54, 8'h54, 8'h54, 8'h78}; // 97 a
mem[ 98] = {8'h7F, 8'h48, 8'h44, 8'h44, 8'h38}; // 98 b
mem[ 99] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h20}; // 99 c
mem[100] = {8'h38, 8'h44, 8'h44, 8'h48, 8'h7F}; // 100 d
mem[101] = {8'h38, 8'h54, 8'h54, 8'h54, 8'h18}; // 101 e
mem[102] = {8'h08, 8'h7E, 8'h09, 8'h01, 8'h02}; // 102 f
mem[103] = {8'h18, 8'hA4, 8'hA4, 8'hA4, 8'h7C}; // 103 g
mem[104] = {8'h7F, 8'h08, 8'h04, 8'h04, 8'h78}; // 104 h
mem[105] = {8'h00, 8'h44, 8'h7D, 8'h40, 8'h00}; // 105 i
mem[106] = {8'h40, 8'h80, 8'h84, 8'h7D, 8'h00}; // 106 j
mem[107] = {8'h7F, 8'h10, 8'h28, 8'h44, 8'h00}; // 107 k
mem[108] = {8'h00, 8'h41, 8'h7F, 8'h40, 8'h00}; // 108 l
mem[109] = {8'h7C, 8'h04, 8'h18, 8'h04, 8'h78}; // 109 m
mem[110] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h78}; // 110 n
mem[111] = {8'h38, 8'h44, 8'h44, 8'h44, 8'h38}; // 111 o
mem[112] = {8'hFC, 8'h24, 8'h24, 8'h24, 8'h18}; // 112 p
mem[113] = {8'h18, 8'h24, 8'h24, 8'h18, 8'hFC}; // 113 q
mem[114] = {8'h7C, 8'h08, 8'h04, 8'h04, 8'h08}; // 114 r
mem[115] = {8'h48, 8'h54, 8'h54, 8'h54, 8'h20}; // 115 s
mem[116] = {8'h04, 8'h3F, 8'h44, 8'h40, 8'h20}; // 116 t
mem[117] = {8'h3C, 8'h40, 8'h40, 8'h20, 8'h7C}; // 117 u
mem[118] = {8'h1C, 8'h20, 8'h40, 8'h20, 8'h1C}; // 118 v
mem[119] = {8'h3C, 8'h40, 8'h30, 8'h40, 8'h3C}; // 119 w
mem[120] = {8'h44, 8'h28, 8'h10, 8'h28, 8'h44}; // 120 x
mem[121] = {8'h1C, 8'hA0, 8'hA0, 8'hA0, 8'h7C}; // 121 y
mem[122] = {8'h44, 8'h64, 8'h54, 8'h4C, 8'h44}; // 122 z
end
endmodule
4.其他设置

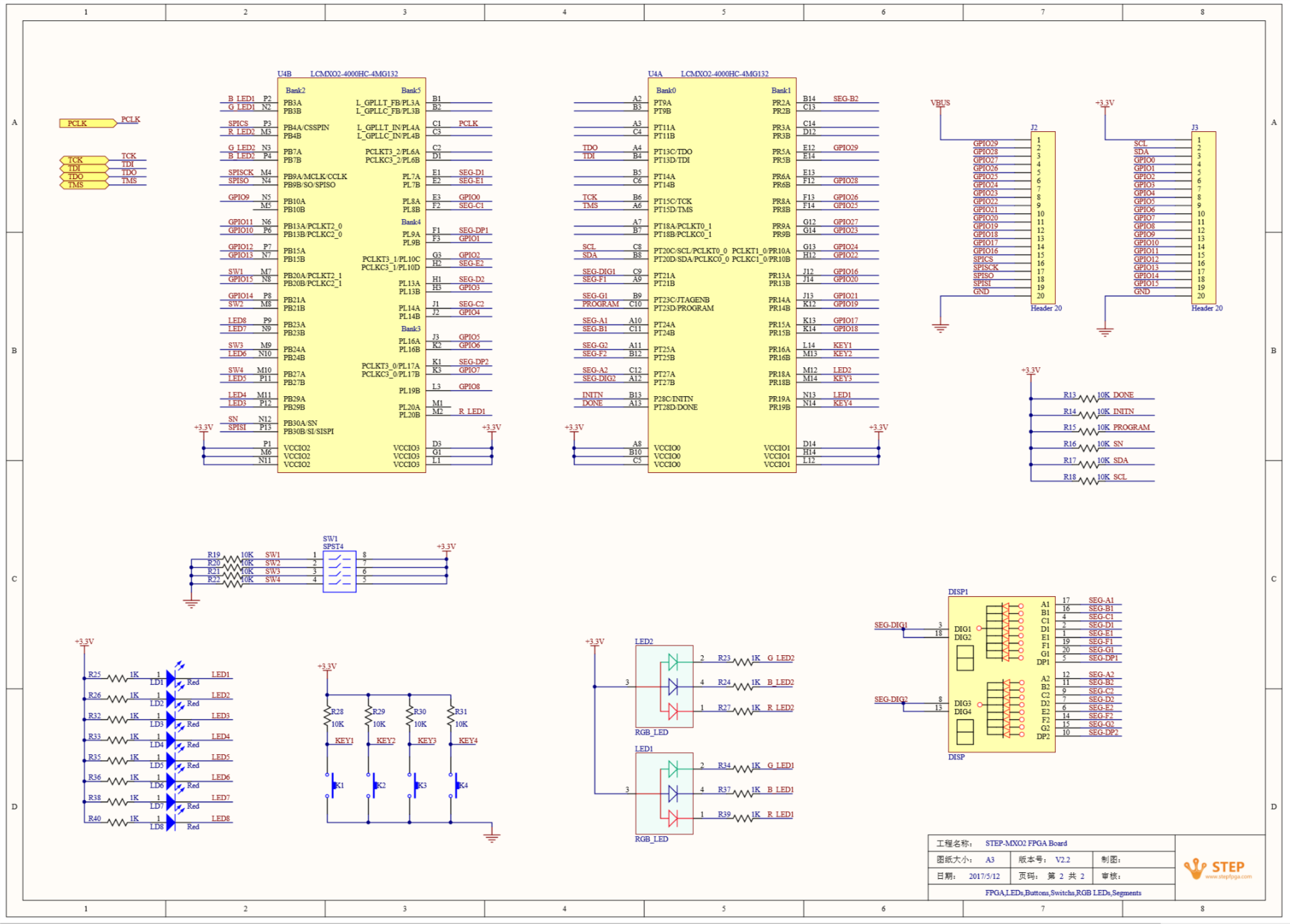

顶层模块：

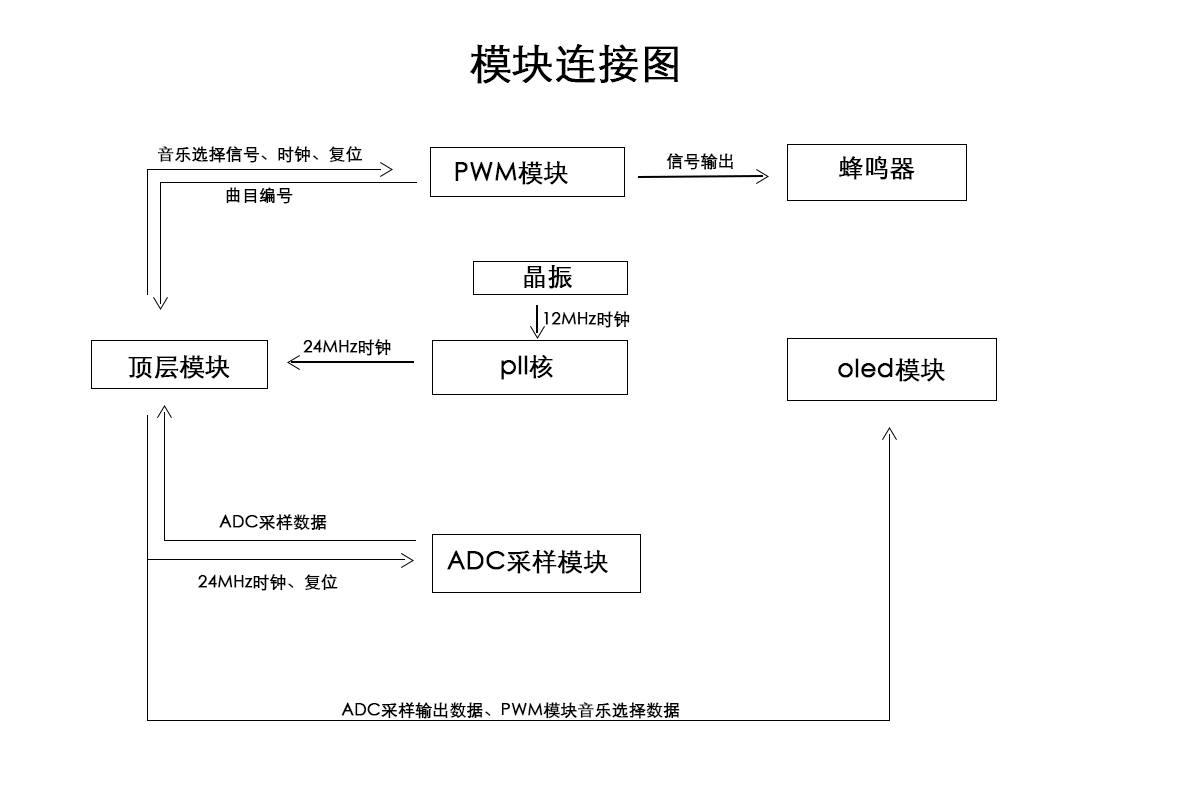

顶层模块是程序逻辑的核心，本次项目中顶层模块例化了PWM模块、oled模块、ADC模块以及防抖动模块。
// --------------------------------------------------------------------
// >>>>>>>>>>>>>>>>>>>>>>>>> COPYRIGHT NOTICE <<<<<<<<<<<<<<<<<<<<<<<<<
// --------------------------------------------------------------------
// Module: top
//
// Author: CHC
//
// Description: top
//
// Web: www.stepfapga.com
//
// --------------------------------------------------------------------
// Code Revision History :
// --------------------------------------------------------------------
// Version: |Mod. Date: |Changes Made:
// V1.0 |2016/04/20 |Initial ver
// --------------------------------------------------------------------
module top
(
input clk_in, //系统时钟
input rst_n_in, //系统复位，低有效
input tone_en, //蜂鸣器使能信号
input ADC_en, //ADC使能信号
output wire piano_out, //蜂鸣器控制输出
input wire [2:0] music_sel, //音乐选择
output wire oled_csn, //OLCD液晶屏使能
output wire oled_rst, //OLCD液晶屏复位
output wire oled_dcn, //OLCD数据指令控制
output wire oled_clk, //OLCD时钟信号
output wire oled_dat, //OLCD数据信号
output wire adc_cs, //adcSPI总线CS
output wire adc_clk, //adcSPI总线SCK
input wire adc_dat, //adcSPI总线SDA
output wire [9:0] dac_data //dac输出波形信号
);
/*
无源蜂鸣器可以发出不同的音节，与蜂鸣器震动的频率（等于蜂鸣器控制信号的频率）相关，
为了让蜂鸣器控制信号产生不同的频率，我们使用计数器计数（分频）实现，不同的音节控制对应不同的计数终值（分频系数）
计数器根据计数终值计数并分频，产生蜂鸣器控制信号
*/
wire [1:0] sel_num;
wire clk_24mhz;
wire adc_done;
wire [11:0] bcd_code;
wire [2:0] music_sel_shake;
wire rst_n_in_shake;
Beeper u1(
.clk_in (clk_in),
.rst_n_in (rst_n_in_shake),
.tone_en (tone_en),
.piano_out (piano_out),
.music_sel (music_sel_shake),
.sel_num (sel_num)
);
oled u2(
.clk_in (clk_in),
.rst_n_in (rst_n_in),
.tone_en (tone_en),
.ADC_en (ADC_en),
.oled_csn (oled_csn),
.oled_rst (oled_rst),
.oled_dcn (oled_dcn),
.oled_clk (oled_clk),
.oled_dat (oled_dat),
.sel_num (sel_num),
.bcd_code (bcd_code)
);
pll u3
(
.CLKI (clk_in ), //12MHz系统时钟输入
.CLKOP (clk_24mhz ) //24MHz时钟输出
);
//使用I2C总线驱动PCF8591的ADC功能，例化
ADC u4
(
.clk (clk_24mhz ), //系统时钟
.rst_n (rst_n_in ), //系统复位，低有效
.adc_cs (adc_cs ), //SPI总线CS
.adc_clk (adc_clk ), //SPI总线SCK
.adc_dat (adc_dat ), //SPI总线SDA
.bcd_code (bcd_code ) //ADC采样数据
);
shake u5
(
.clk_in (clk_in ),
.rst_n_in (rst_n_in ),//系统复位，低有效
.music_sel (music_sel ),//音乐选择
.rst_n_in_shake (rst_n_in_shake ),//防抖动音乐选择输出
.music_sel_shake (music_sel_shake) //防抖动复位输出
);
endmodule防抖动模块：
项目要求防抖动功能需要延时20ms，晶振频率为12Mhz，因此设置一个计数器，当计数器值等于240000时将信号传递给PWM模块。
// --------------------------------------------------------------------
// >>>>>>>>>>>>>>>>>>>>>>>>> COPYRIGHT NOTICE <<<<<<<<<<<<<<<<<<<<<<<<<
// --------------------------------------------------------------------
// Module: shake
//
// Author: CHC
//
// Description: top
//
// Web: www.stepfapga.com
//
// --------------------------------------------------------------------
// Code Revision History :
// --------------------------------------------------------------------
// Version: |Mod. Date: |Changes Made:
// V1.0 |2016/04/20 |Initial ver
// --------------------------------------------------------------------
module shake
(
input clk_in, //系统时钟
input rst_n_in, //系统复位，低有效
input wire [2:0] music_sel, //音乐选择
output reg rst_n_in_shake,//防抖动音乐选择输出
output reg [2:0] music_sel_shake//防抖动复位输出
);
reg [17:0] cnt;//延时计数器
//延时部分
always@(posedge clk_in) begin
if(rst_n_in==1&music_sel==7) begin
cnt<=0;
rst_n_in_shake<=1;
music_sel_shake<=1;
end
else if(!rst_n_in) begin
cnt<=cnt+1;
if(cnt>18'd240000)rst_n_in_shake<=0;//延时20ms
end
else if(music_sel==3'd6)begin
cnt<=cnt+1;
if(cnt>18'd240000)music_sel_shake<=3'd6;
end
else if(music_sel==3'd5)begin
cnt<=cnt+1;
if(cnt>18'd240000)music_sel_shake<=3'd5;
end
else if(music_sel==3'd3)begin
cnt<=cnt+1;
if(cnt>18'd240000)music_sel_shake<=3'd3;
end
else begin
cnt<=0;
rst_n_in_shake<=1;
music_sel_shake<=1;
end
end
endmodulePLL参数设置如下：

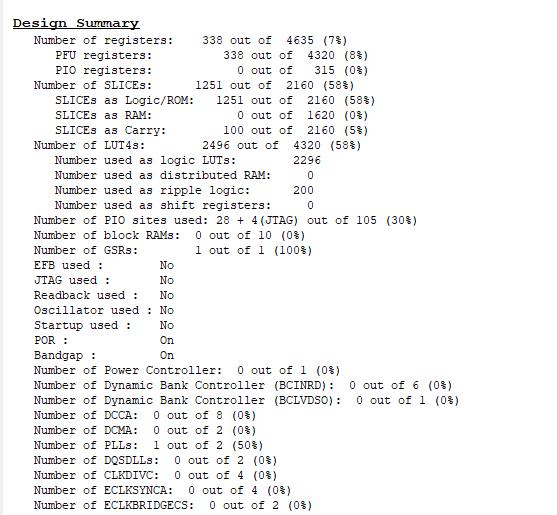

资源占用如下：
结果展示：

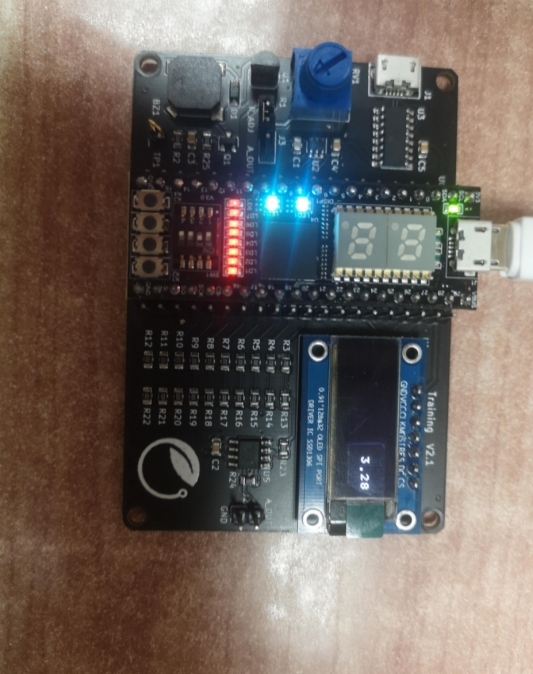

ADC电压表部分：

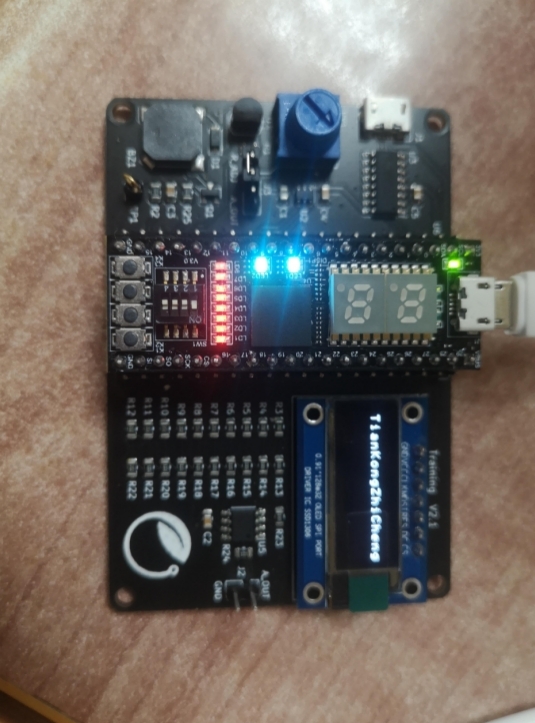

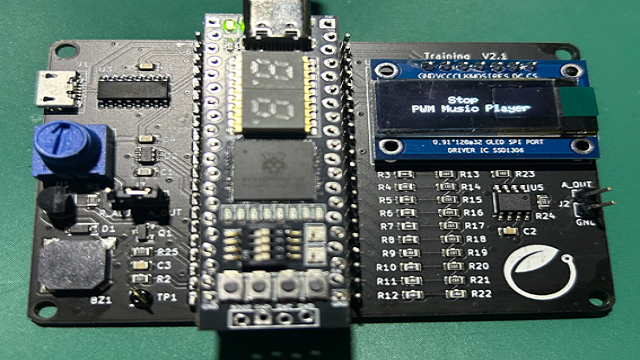

音乐播放部分：
总结：
本次项目中我学到了很多，通过大量的查资料学习，使我掌握了SPI、PWM、OLED驱动原理等相关知识。最主要的，本次项目提高了我自主学习的能力，因为这次很多问题都是在没有相关人员指导下完成的，Verilog语言格式，diamond的操作方法都是在网上找的教程自学，遇到的大部分问题也是通过查阅芯片手册，查阅电路原理，自己摸索解决的，这让我发自内心地觉得，只要想做，办法总比困难多。
软硬件
附件下载
wing_impl1.jed
wing.rar
团队介绍
陈宏畅，北京理工大学信息与电子学院本科生
团队成员
陈宏畅
北京理工大学
评论
0 / 100
查看更多
