一、项目背景
为了让高校电子/电气/电力等专业的同学们对FPGA的了解和熟练使用，将学习到的理论知识在实际的动手中深刻体会，也配合明年的全国大学生电子设计大赛，硬禾课堂和相关电子研究会联合开展了“2021寒假在家练活动”，并且设定了一些简单的规则，完成项目就能免费获得板卡，这让更多的同学们参与进来，让同学们学有成效。
二、项目要求
1.通过PWM产生不同的音调，并驱动板上蜂鸣器将音调输出
2.能够播放三首不同的曲子，每个曲子的时间长度为1分钟，可以切换播放
3.曲子的切换使用小脚丫核心板上的按键，需要有按键消抖的功能
4.播放的曲子的名字在OLED屏幕上显示出来(汉字显示)

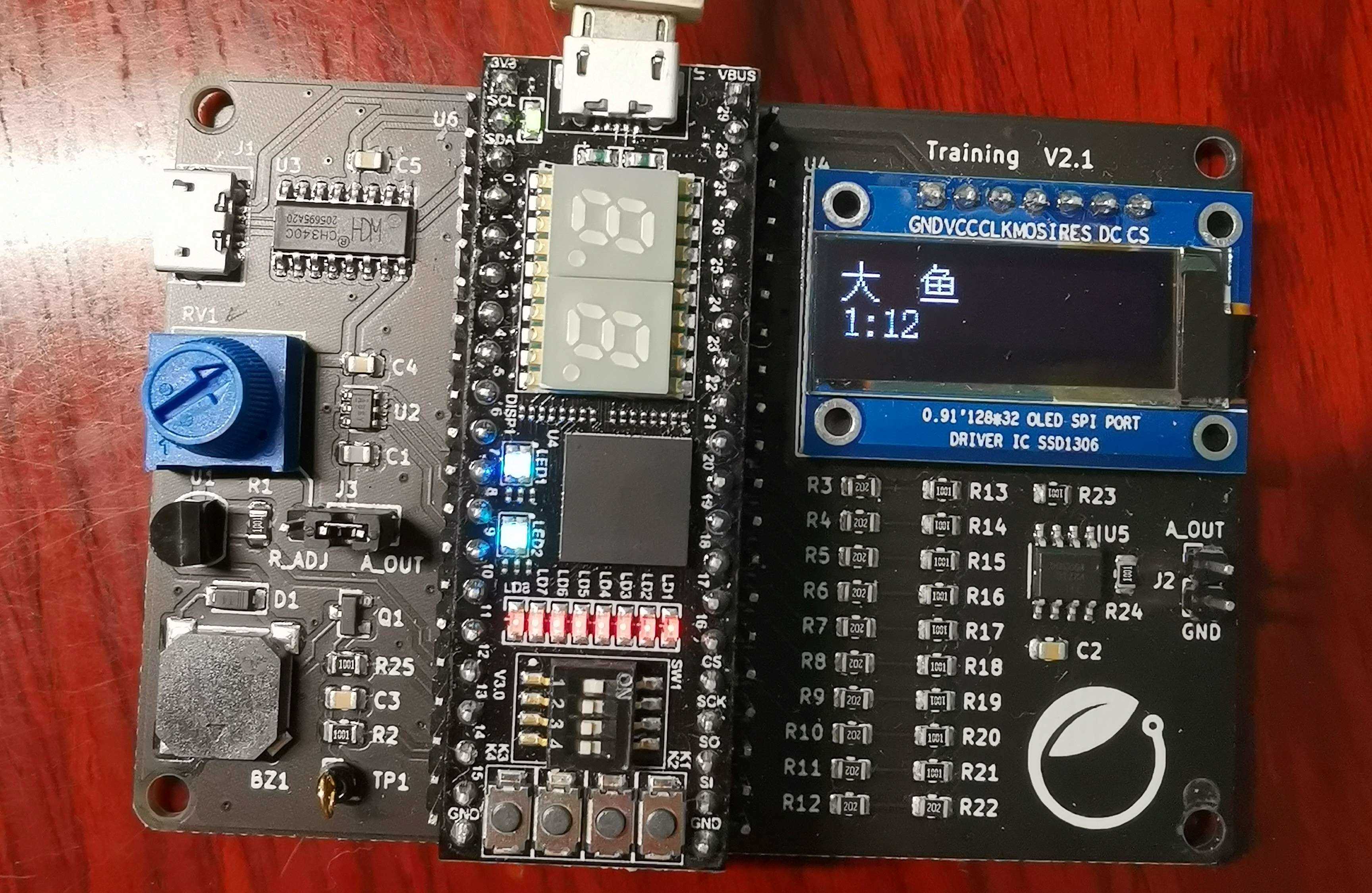

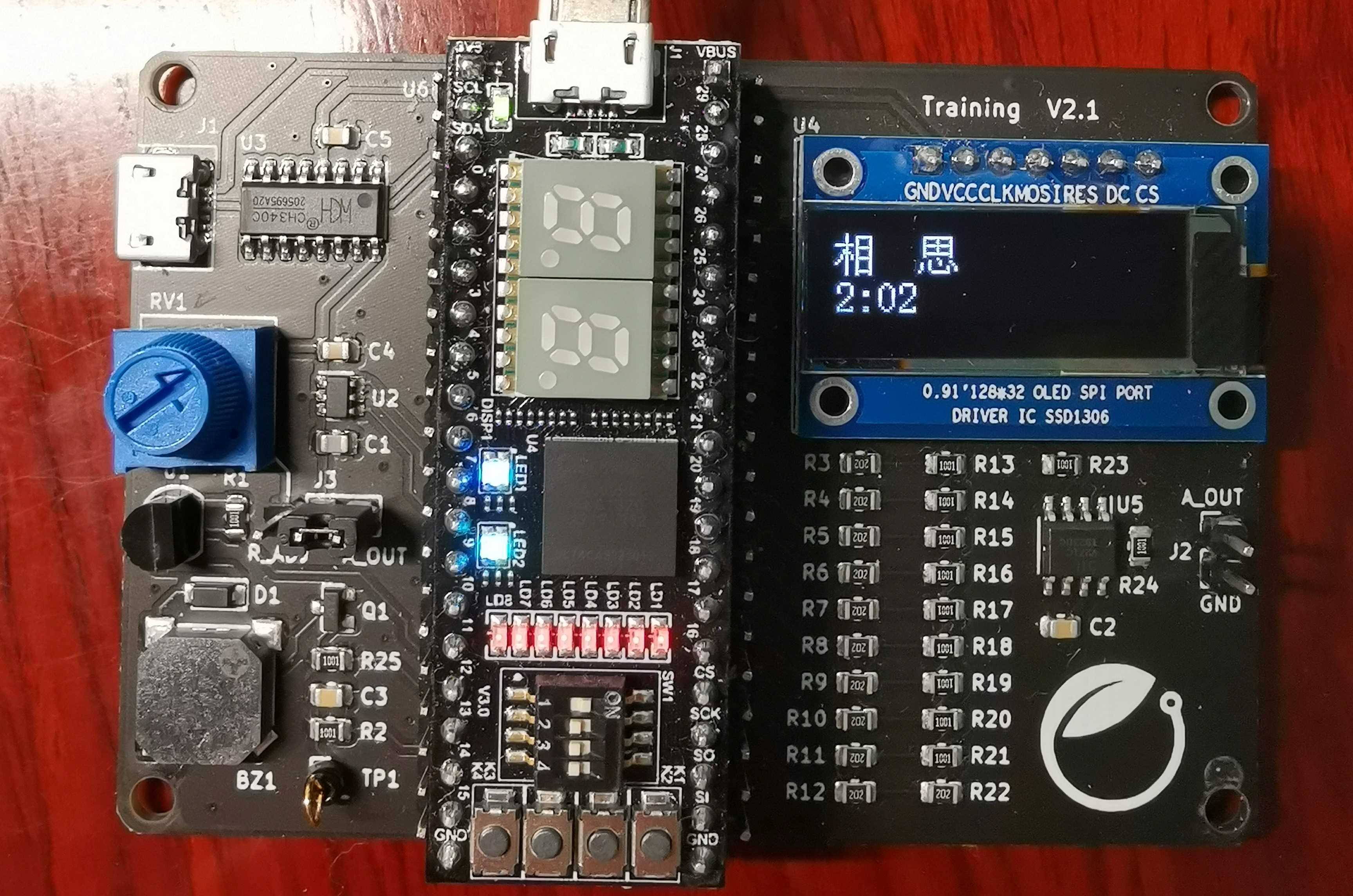

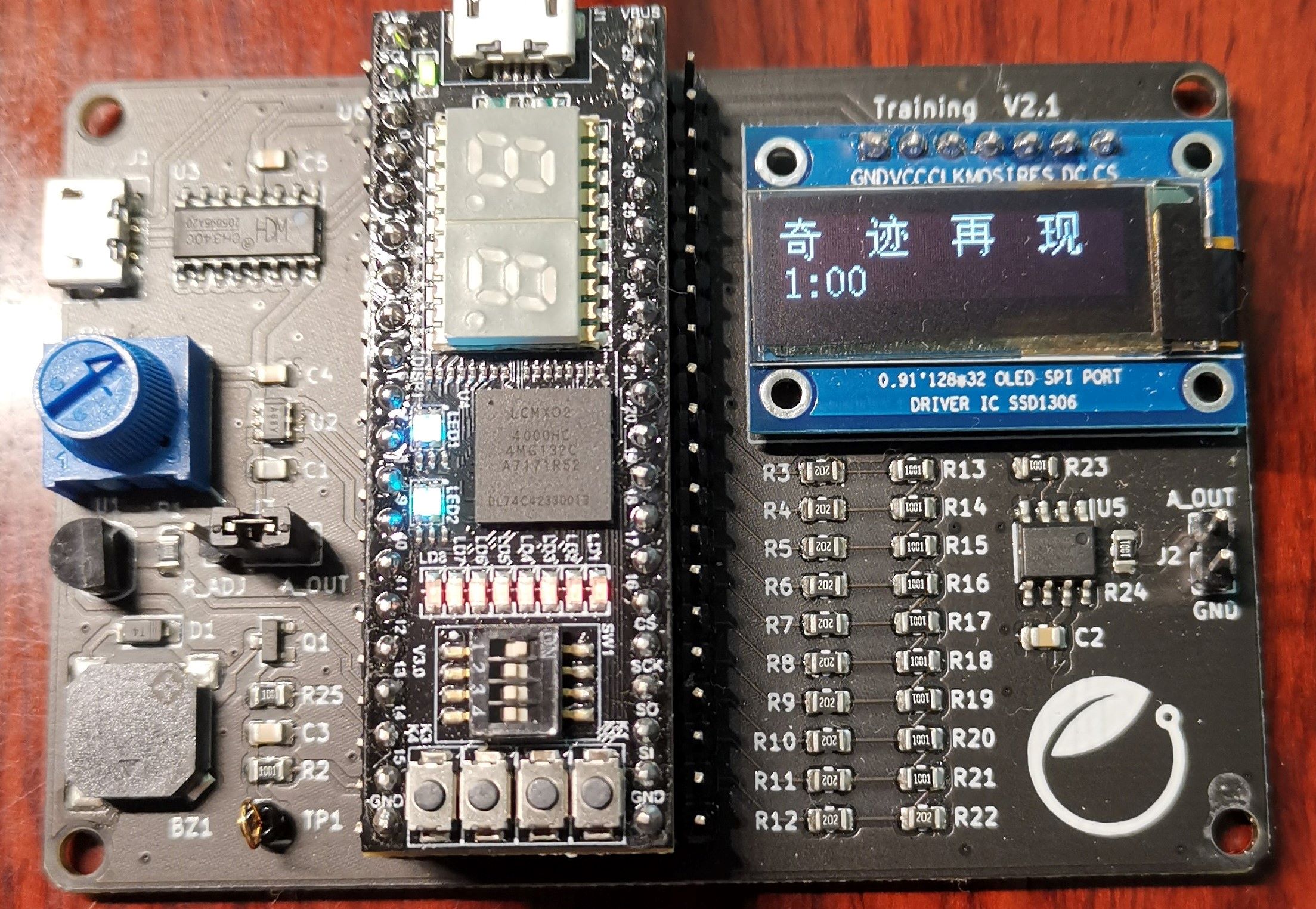

三、项目实现

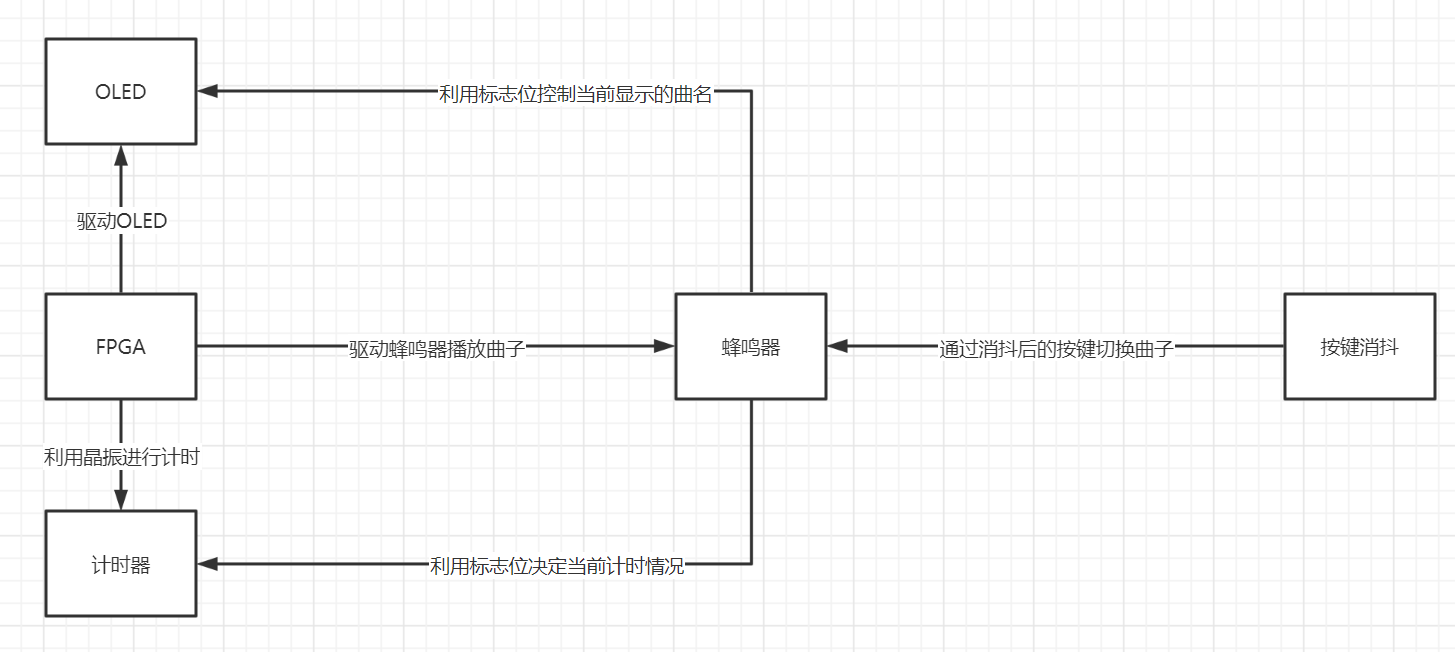

1.总体设计框图
2.模块详述
本项目包括顶层模块，蜂鸣器模块，OLED显示模块，计时模块。
a.顶层模块
顶层模块用于连接各个子模块。
module top( input clk_in, //系统时钟
input rst_n_in, //系统复位，低有效
input tone_en, //开关
input chose_up, //上一首
input chose_down, //下一首
input start_stop, //暂停和开始
output oled_csn, //OLCD液晶屏使能
output oled_rst, //OLCD液晶屏复位
output oled_dcn, //OLCD数据指令控制
output oled_clk, //OLCD时钟信号
output oled_dat, //OLCD数据信号
output piano_out //蜂鸣器控制输出
);
wire up,down;
wire[2:0] flag;
wire ss;
wire [127:0] time_1;
wire [127:0] time_2;
debounce U1 (.clk(clk_in),
.rst(rst_n_in),
.key(chose_up),
.key_pulse(up));
debounce U2(.clk(clk_in),
.rst(rst_n_in),
.key(start_stop),
.key_pulse(ss));
debounce U3(.clk(clk_in),
.rst(rst_n_in),
.key(chose_down),
.key_pulse(down));
timer U4(
.clk(clk_in),
.flag(flag),
.rst(rst_n_in),
.tone_en(tone_en),
.start_stop(ss),
.out_1(time_1),
.out_2(time_2));
Beeper U5(.clk_in(clk_in),
.rst_n_in(rst_n_in),
.tone_en(tone_en),
.chose_up(up),
.chose_down(down),
.start_stop(ss),
.flag(flag),
.piano_out(piano_out)
);
OLED12832 U6(.clk(clk_in),
.rst_n(rst_n_in),
.flag(flag),
.tone_en(tone_en),
.time_1(time_1),
.time_2(time_2),
.oled_csn(oled_csn),
.oled_rst(oled_rst),
.oled_dcn(oled_dcn),
.oled_clk(oled_clk),
.oled_dat(oled_dat)
);
endmoduleb.蜂鸣器模块
该模块用于驱动蜂鸣器播放乐曲，并使用标志位flag控制OLED模块的汉字显示，和计时模块的计时情况，本模块代码是基于电子森林的案例进行修改的
module Beeper
(
input clk_in, //系统时钟
input rst_n_in, //系统复位，低有效
input tone_en, //蜂鸣器使能信号
input chose_up, //上一首
input chose_down, //下一首
input start_stop, //暂停和开始
output reg [2:0] flag, //确定当前播放歌曲
output reg piano_out //蜂鸣器控制输出
);
reg [4:0] note [553:0];//音符表
reg [4:0] beat [553:0];//节拍表，音符表和节拍表一一对应
reg [4:0] tone; //蜂鸣器音节控制
reg [4:0] tcon; //蜂鸣器节拍控制
reg [9:0] num; //用于控制节拍和音频
reg s_s; //暂停开始标志位
/*
无源蜂鸣器可以发出不同的音节，与蜂鸣器震动的频率（等于蜂鸣器控制信号的频率）相关，
为了让蜂鸣器控制信号产生不同的频率，我们使用计数器计数（分频）实现，不同的音节控制对应不同的计数终值（分频系数）
计数器根据计数终值计数并分频，产生蜂鸣器控制信号
*/
reg [15:0] time_end;//用于控制频率
reg [27:0] time_delay;//用于控制时间
reg [25:0] cnt_delay;
reg [17:0] time_cnt;
//根据不同的音节控制，选择对应的计数终值（分频系数）
//低音1的频率为261.6Hz，蜂鸣器控制信号周期应为12MHz/261.6Hz = 45871.5，
//因为本设计中蜂鸣器控制信号是按计数器周期翻转的，所以几种终值 = 45871.5/2 = 22936
//需要计数22936个，计数范围为0 ~ (22936-1)，所以time_end = 22935
always@(tone) begin
case(tone)
5'd1: time_end = 16'd22935; //L1,
5'd2: time_end = 16'd20428; //L2,
5'd3: time_end = 16'd18203; //L3,
5'd4: time_end = 16'd17181; //L4,
5'd5: time_end = 16'd15305; //L5,
5'd6: time_end = 16'd13635; //L6,
5'd7: time_end = 16'd12147; //L7,
5'd8: time_end = 16'd11464; //M1,
5'd9: time_end = 16'd10215; //M2,
5'd10: time_end = 16'd9100; //M3,
5'd11: time_end = 16'd8589; //M4,
5'd12: time_end = 16'd7652; //M5,
5'd13: time_end = 16'd6817; //M6,
5'd14: time_end = 16'd6073; //M7,
5'd15: time_end = 16'd5740; //H1,
5'd16: time_end = 16'd5107; //H2,
5'd17: time_end = 16'd4549; //H3,
5'd18: time_end = 16'd4294; //H4,
5'd19: time_end = 16'd3825; //H5,
5'd20: time_end = 16'd3408; //H6,
5'd21: time_end = 16'd3036; //H7,
default:time_end = 16'd65535;
endcase
end
always@(tcon or flag) begin
if(flag == 3'd1) begin
case(tcon)//奇迹再现，一小节四排，拍速为160拍/分钟
5'd 1: time_delay = 28'd1125000;//四分之一拍
5'd 2: time_delay = 28'd2250000;//半拍
5'd 3: time_delay = 28'd3375000;//四分之三拍
5'd 4: time_delay = 28'd4500000;//一拍
5'd 6: time_delay = 28'd6750000;//一拍半
5'd 8: time_delay = 28'd9000000;//两拍
5'd12: time_delay = 28'd1200000;//三拍
5'd16: time_delay = 28'd18000000;//四拍
5'd24: time_delay = 28'd24000000;//八拍
default:time_delay = 28'd0;
endcase
end
else if(flag == 3'd2) begin
case(tcon)//相思，一小节三拍，拍速为100拍/分钟
5'd 1: time_delay = 28'd1800000;//四分之一拍
5'd 2: time_delay = 28'd3600000;//半拍
5'd 3: time_delay = 28'd5400000;//四分之三拍
5'd 4: time_delay = 28'd7200000;//一拍
5'd 6: time_delay = 28'd10800000;//一拍半
5'd 8: time_delay = 28'd14400000;//两拍
5'd12: time_delay = 28'd21600000;//三拍
5'd16: time_delay = 28'd28800000;//四拍
5'd24: time_delay = 28'd57600000;//八拍
default:time_delay = 28'd0;
endcase
end
else if(flag == 3'd3) begin
case(tcon)//大鱼，一小节四拍，拍速为80拍/分钟
5'd 1: time_delay = 28'd2250000;//四分之一拍
5'd 2: time_delay = 28'd4500000;//半拍
5'd 3: time_delay = 28'd6750000;//四分之三拍
5'd 4: time_delay = 28'd9000000;//一拍
5'd 6: time_delay = 28'd13500000;//一拍半
5'd 8: time_delay = 28'd18000000;//两拍
5'd12: time_delay = 28'd27000000;//三拍
5'd16: time_delay = 28'd36000000;//四拍
5'd24: time_delay = 28'd72000000;//八拍
default:time_delay = 28'd0;
endcase
end
end
//当蜂鸣器使能时，计数器按照计数终值（分频系数）计数
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in) begin
time_cnt <= 1'b0;
end else if(!tone_en) begin
time_cnt <= 1'b0;
end else if(!s_s) begin
time_cnt <= 1'b0;
end else if(time_cnt>=time_end) begin
time_cnt <= 1'b0;
end else begin
time_cnt <= time_cnt + 1'b1;
end
end
//根据计数器的周期，翻转蜂鸣器控制信号
always@(posedge clk_in or negedge rst_n_in) begin
if(!rst_n_in) begin
piano_out <= 1'b0;
end else if(tone==5'd0) begin
piano_out <= 1'b0;
end else if(time_cnt==time_end) begin
piano_out <= ~piano_out; //蜂鸣器控制输出翻转，两次翻转为1Hz
end else begin
piano_out <= piano_out;
end
end
always@(posedge clk_in or negedge rst_n_in) begin//音符和节拍控制
if(!rst_n_in) begin
tone <= 1'b0;
tcon <= 1'b0;
end else if(!tone_en) begin
tone <= tone;
tcon <= tcon;
end else begin
tone <= note[num];
tcon <= beat[num];
end
end
always@(posedge clk_in or negedge rst_n_in) begin//用标志位控制暂停和开始
if(!rst_n_in) begin
s_s <= 1'b0; end
else if(start_stop) begin
s_s <= ~s_s;end
else
begin s_s <= s_s; end
end
always@(posedge clk_in or negedge rst_n_in) begin //时间控制,上一首或者下一首切换歌曲(手动或者自动)
if(!rst_n_in) begin
cnt_delay <= 1'b0; num <= 1'b0; flag <= 3'd1; end
else if(!tone_en) begin
cnt_delay <= cnt_delay; end
else if(chose_up) begin
case(flag)
3'd1: begin flag <= 3'd3;num <= 10'd435; end
3'd2: begin flag <= 3'd1;num <= 1'b0; end
3'd3: begin flag <= 3'd2;num <= 10'd215; end
default:begin flag <= 3'd1;num <= 1'b0; end
endcase
end
else if(chose_down) begin//按键消抖后会输出一个相反的脉冲，不用!chose_up，下面chose_down同理
case(flag)
3'd1: begin flag <= 3'd2;num <= 10'd215; end
3'd2: begin flag <= 3'd3;num <= 10'd435; end
3'd3: begin flag <= 3'd1;num <= 1'b0; end
default:begin flag <= 3'd1;num <= 1'b0; end
endcase
end
else if(!s_s) begin
cnt_delay <= cnt_delay; end
else if(cnt_delay >= time_delay) begin
cnt_delay <= 1'b0;
case(num)
10'd 0: begin flag <= 3'd1;num <= num+1'b1; end
10'd215: begin flag <= 3'd2;num <= num+1'b1; end
10'd435: begin flag <= 3'd3;num <= num+1'b1; end
10'd553: begin flag <= 3'd1;num <= 1'b0; end
default: begin num <= num+1'b1; end
endcase
end
else begin cnt_delay <= cnt_delay + 1'b1; end
end
always@(posedge rst_n_in) begin//音符表
