项目介绍

本项目参与 Funpack 系列活动第 3 季第 3 期，在 G0B1RE 上 使用 X-NUCLEO-IKS4A1 扩展板，来实现一个利用 QVAR 触摸电极交互的数据展示系统.

组件介绍

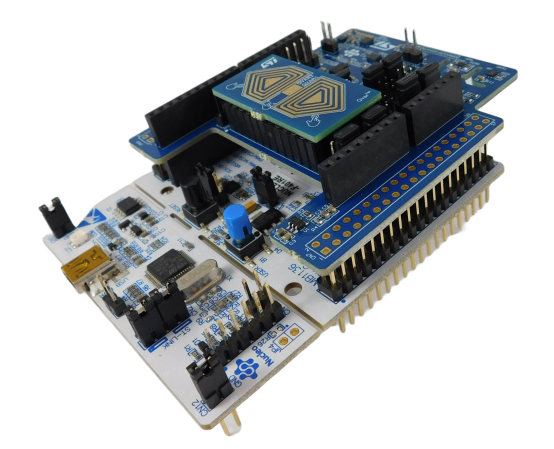

X-NUCLEO-IKS4A1

X-NUCLEO-IKS4A1 是集成了许多 MEMS 传感器的板卡，其中包含

• LSM6DSO16IS：MEMS 3轴加速度计、陀螺仪
• LIS2MDL：MEMS 3轴磁感应强度计
• LIS2DUXS12：超低功耗 MEMS 3轴加速度计
• LPS22DF：低功耗高精度 MEMS 压强传感器
• SHT40AD1B：高精度超低功耗相对湿度和温度传感器
• STTS22H：低压超低功耗温度传感器
• LSM6DSV16X：MEMS 3轴加速度计、陀螺仪，可实现数据融合
• MKE001A：触摸电极副板

同时板卡上提供多种跳线选项，可为开发者评估不同方案提供便利.

设计与实现思路

架构

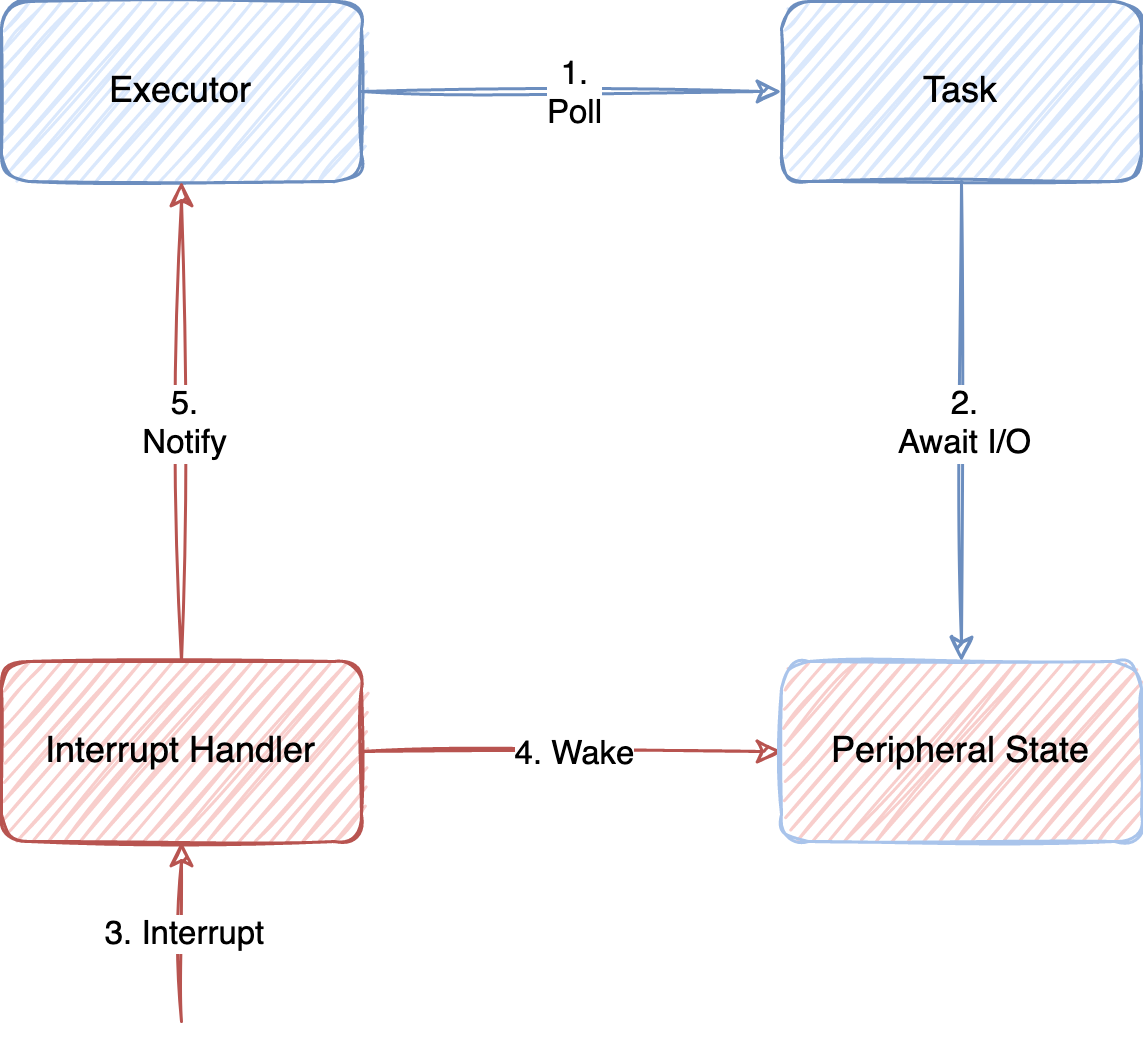

我们采用 Rust 来设计程序，利用 embassy 生态可以构造安全高效的嵌入式程序，但是这也意味着在裸机环境下，很多传感器库需要自己实现.

QVAR 状态机

连入 QVAR 传感器后，MCU 可以读到一个 i16 范围内的数值，我们需要跟踪数值的状态来判断用户的滑动方向. 代码如下所示，我们构造了一个 Swiper 状态机，其需要一个阈值和时间间隔作为状态跟踪的依据，通过与区间起点的值对比，就可以知道是向左滑动还是向右滑动

#[derive(Debug, Format)]
pub struct Swiper {
    last: Option<(Instant, i16)>,
    threshold: u16,
    interval: Duration,
}

#[derive(Debug, Format)]
pub enum SwiperAction {
    ClickLeft,
    ClickRight,
    SwipeLeft,
    SwipeRight,
}

impl Swiper {
    pub fn new(threshold: u16, interval: Duration) -> Self {
        Self {
            last: None,
            threshold,
            interval,
        }
    }
    pub fn put(&mut self, value: i16) -> Option<SwiperAction> {
        let now = Instant::now();
        if value.checked_abs().map(|v| v as u16 >= self.threshold).unwrap_or(true) {
            if let Some((last, last_value)) = self.last {
                if now.duration_since(last) < self.interval {
                    if value.is_positive() == last_value.is_positive() {
                        return None
                    } else {
                        self.last = Some((now, value));
                        if value.is_positive() {
                            Some(SwiperAction::SwipeRight)
                        } else {
                            Some(SwiperAction::SwipeLeft)
                        }
                    }
                } else {
                    self.last = Some((now, value));
                    None
                }
            } else {
                self.last = Some((now, value));
                None
            }
        } else {
            None
        }
    }
}

传感器驱动

为了实现传感器的驱动，我们需要准备好所有相关设备的手册，然后阅读我们关心的部分.

一般来说 ST 的传感器最少的初始化标配，就是将相关功能的 CTRL 寄存器中有关 FS、ODR 字段进行设置，然后就是数值转换的因子以及 bias，整理了下列表格供参考.

我们利用 bitfield 以及 embassy-stm32 库可以将 I2C 传感器手册中比较琐碎的寄存器映射给抽象成比较方便的视角，例如下面是一个 LSM6DSO16IS 的驱动库，完整的驱动库可以见附件中 src/sensors 目录下的模块.

use bitfield::bitfield;
use embassy_stm32::i2c::{I2c, Instance, Error as I2cError};
use embassy_stm32::mode::{Mode, Async};

use super::EndianRead;

pub struct Device<'a, 't, T: Instance>  {
    i2c: &'a mut I2c<'t, T, Async>,
    address: u8,
}

#[derive(Debug)]
pub enum Error {
    IdMismatch,
    I2c(I2cError)
}

impl core::fmt::Display for Error {
    fn fmt(&self, f: &mut core::fmt::Formatter<'_>) -> core::fmt::Result {
        match self {
            Error::IdMismatch => write!(f, "id mismatch"),
            Error::I2c(e) => write!(f, "i2c error: {:?}", e),
        }
    }
}

impl From<I2cError> for Error {
    fn from(error: I2cError) -> Self {
        Self::I2c(error)
    }
}

type Result<T> = core::result::Result<T, Error>;

bitfield! {
    /// e
    #[derive(Default)]
    pub struct Ctrl1(u8);
    impl Debug;
    odr, set_odr: 7, 4;
    fs, set_fs: 3, 2;
}

bitfield! {
    #[derive(Default)]
    pub struct Ctrl2(u8);
    impl Debug;
    odr, set_odr: 7, 4;
    fs, set_fs: 3, 2;
    fs_125, set_fs_125: 1;
}

impl<'a, 't, T: Instance> Device<'a, 't, T> {
    pub const ID: u8 = 0x22;

    pub const REGISTER_WHO_AM_I: u8 = 0x0f;

    pub const REGISTER_CTRL1: u8 = 0x10;
    pub const REGISTER_CTRL2: u8 = 0x11;

    pub const REGISTER_OUT_TEMP_L: u8 = 0x20;
    pub const REGISTER_OUT_TEMP_H: u8 = 0x21;

    pub const REGISTER_OUTX_L_G: u8 = 0x22;
    pub const REGISTER_OUTX_H_G: u8 = 0x23;
    pub const REGISTER_OUTY_L_G: u8 = 0x24;
    pub const REGISTER_OUTY_H_G: u8 = 0x25;
    pub const REGISTER_OUTZ_L_G: u8 = 0x26;
    pub const REGISTER_OUTZ_H_G: u8 = 0x27;

    pub const REGISTER_OUTX_L_A: u8 = 0x28;
    pub const REGISTER_OUTX_H_A: u8 = 0x29;
    pub const REGISTER_OUTY_L_A: u8 = 0x2a;
    pub const REGISTER_OUTY_H_A: u8 = 0x2b;
    pub const REGISTER_OUTZ_L_A: u8 = 0x2c;
    pub const REGISTER_OUTZ_H_A: u8 = 0x2d;

    pub const TEMPERATURE_MIN: i32 = -40;
    pub const TEMPERATURE_MAX: i32 = 85;
    pub const TEMPERATURE_ZERO: i32 = 25;
    pub const TEMPERATURE_FACTOR: i32 = 256;

    pub async fn new(i2c: &'a mut I2c<'t, T, Async>, address: u8) -> Result<Self> {
        let mut instance = Self {
            i2c,
            address,
        };
        if instance.whoami().await? != Self::ID {
            Err(Error::IdMismatch)
        } else {
            Ok(instance)
        }
    }

    pub fn new_unchecked(i2c: &'a mut I2c<'t, T, Async>, address: u8) -> Self {
        Self {
            i2c,
            address,
        }
    }

    async fn read_le<R: EndianRead>(&mut self, addresses: &[u8]) -> Result<R> {
        let mut buf = R::Array::default();
        for (i, address) in addresses.iter().enumerate() {
            self.i2c.write(self.address, &[*address]).await?;
            self.i2c.read(self.address, &mut buf.as_mut()[i..i+1]).await?;
        }
        Ok(R::from_le_bytes(buf))
    }

    pub async fn whoami(&mut self) -> Result<u8> {
        let mut buf = [0; 1];
        self.i2c.write(self.address, &[Self::REGISTER_WHO_AM_I]).await?;
        self.i2c.read(self.address, &mut buf).await?;
        Ok(buf[0])
    }

    pub async fn write_ctrl1(&mut self) -> Result<()> {
        let mut ctrl = Ctrl1::default();
        ctrl.set_odr(0b1010);
        ctrl.set_fs(0b00);
        self.i2c.write(self.address, &[Self::REGISTER_CTRL1, ctrl.0]).await?;
        Ok(())
    }

    pub async fn write_ctrl2(&mut self) -> Result<()> {
        let mut ctrl = Ctrl2::default();
        ctrl.set_odr(0b1010);
        ctrl.set_fs_125(true);
        self.i2c.write(self.address, &[Self::REGISTER_CTRL2, ctrl.0]).await?;
        Ok(())
    }

    pub async fn read_accelerometer(&mut self) -> Result<(f64, f64, f64)> {
        let sensitivity: f64 = 0.061;
        let x: i16 = self.read_le(&[Self::REGISTER_OUTX_L_A, Self::REGISTER_OUTX_H_A]).await?;
        let y: i16 = self.read_le(&[Self::REGISTER_OUTY_L_A, Self::REGISTER_OUTY_H_A]).await?;
        let z: i16 = self.read_le(&[Self::REGISTER_OUTZ_L_A, Self::REGISTER_OUTZ_H_A]).await?;
        Ok((x as f64 * sensitivity, y as f64 * sensitivity, z as f64 * sensitivity))
    }

    pub async fn read_gyroscope(&mut self) -> Result<(f64, f64, f64)> {
        let sensitivity: f64 = 4.375;
        let x: i16 = self.read_le(&[Self::REGISTER_OUTX_L_G, Self::REGISTER_OUTX_H_G]).await?;
        let y: i16 = self.read_le(&[Self::REGISTER_OUTY_L_G, Self::REGISTER_OUTY_H_G]).await?;
        let z: i16 = self.read_le(&[Self::REGISTER_OUTZ_L_G, Self::REGISTER_OUTZ_H_G]).await?;
        Ok((x as f64 * sensitivity, y as f64 * sensitivity, z as f64 * sensitivity))
    }

    pub async fn read_temperature(&mut self) -> Result<f64> {
        let value: i16 = self.read_le(&[Self::REGISTER_OUT_TEMP_L, Self::REGISTER_OUT_TEMP_H]).await?;
        Ok(Self::TEMPERATURE_ZERO as f64 + value as f64 / Self::TEMPERATURE_FACTOR as f64)
    }
}

传感器初始化与读取

我们在主程序中这样初始化设备，这样确保对应地址上的设备的 ID 与驱动中的 ID 匹配，并且将有关寄存器进行预配置.

async fn init<'a, 'b, T: Instance>(i2c: &'a mut I2c<'b, T, Async>) {
    let mut device = sensors::lsm6dso16is::Device::new(i2c, 0x6a).await.unwrap();
    device.write_ctrl1().await.unwrap();
    device.write_ctrl2().await.unwrap();
    let mut device = sensors::lis2mdl::Device::new(i2c, 0x1e).await.unwrap();
    device.write_cfg_a().await.unwrap();
    let mut device = sensors::lis2duxs12::Device::new(i2c, 0x19).await.unwrap();
    device.write_ctrl5().await.unwrap();
    let mut device = sensors::lps22df::Device::new(i2c, 0x5d).await.unwrap();
    device.write_ctrl1().await.unwrap();
    let mut device = sensors::sht40ad1b::Device::new(i2c, 0x44).await.unwrap();
    let mut device = sensors::stts22h::Device::new(i2c, 0x38).await.unwrap();
    device.write_ctrl().await.unwrap();
    let mut device = sensors::lsm6dsv16x::Device::new(i2c, 0x6b).await.unwrap();
    device.write_ctrl1().await.unwrap();
    device.write_ctrl2().await.unwrap();
    device.write_ctrl7().await.unwrap();
}

因为在设计驱动时，考虑到每一次都需要重新检查 ID 比较迂腐，因此在后续读取时将直接使用 new_unchecked 来避免不必要的总线数据传输.

fn writeln_3d_tuple_f64<const N: usize>(s: &mut String<N>, t: (f64, f64, f64)) -> fmt::Result {
    writeln!(s, "[{:.3},{:.3},{:.3}]", t.0, t.1, t.2)
}
let mut device = sensors::lsm6dso16is::Device::new_unchecked(i2c, 0x6a);
let accelerometer = device.read_accelerometer().await.unwrap();
let gyroscope = device.read_gyroscope().await.unwrap();
let temperature = device.read_temperature().await.unwrap();
write!(&mut s, "A=");
writeln_3d_tuple_f64(&mut s, accelerometer);
write!(&mut s, "G=");
writeln_3d_tuple_f64(&mut s, gyroscope);
writeln!(&mut s, "T={}", temperature);

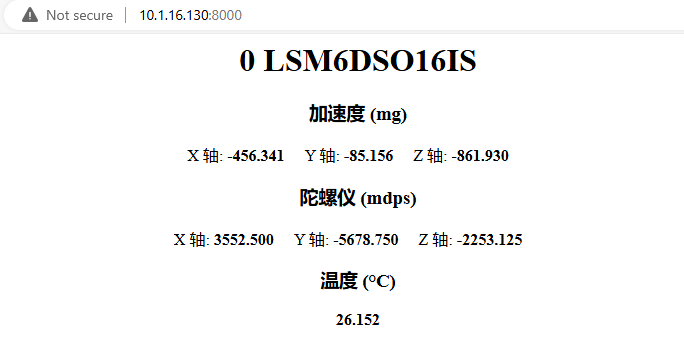

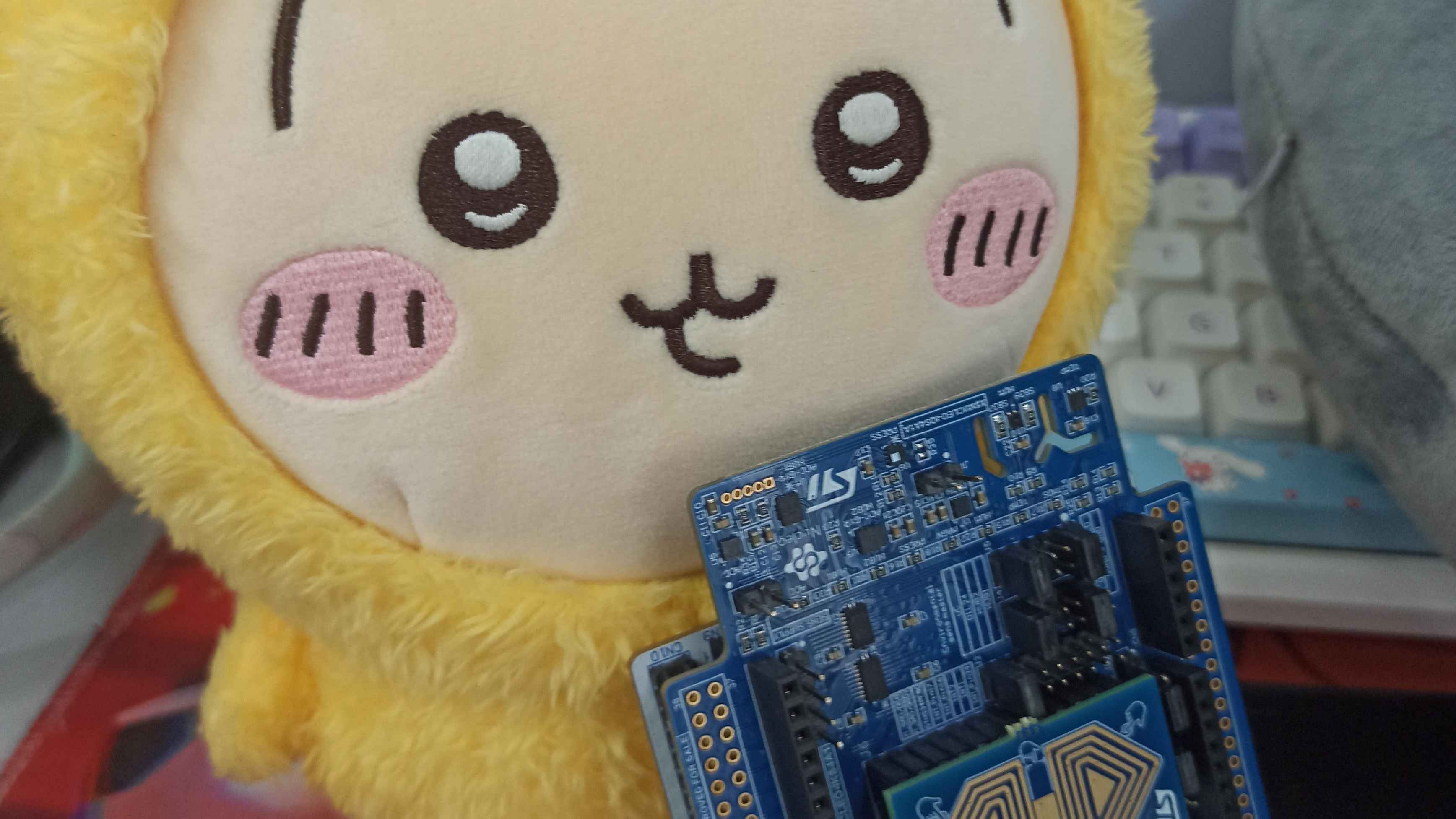

效果演示
