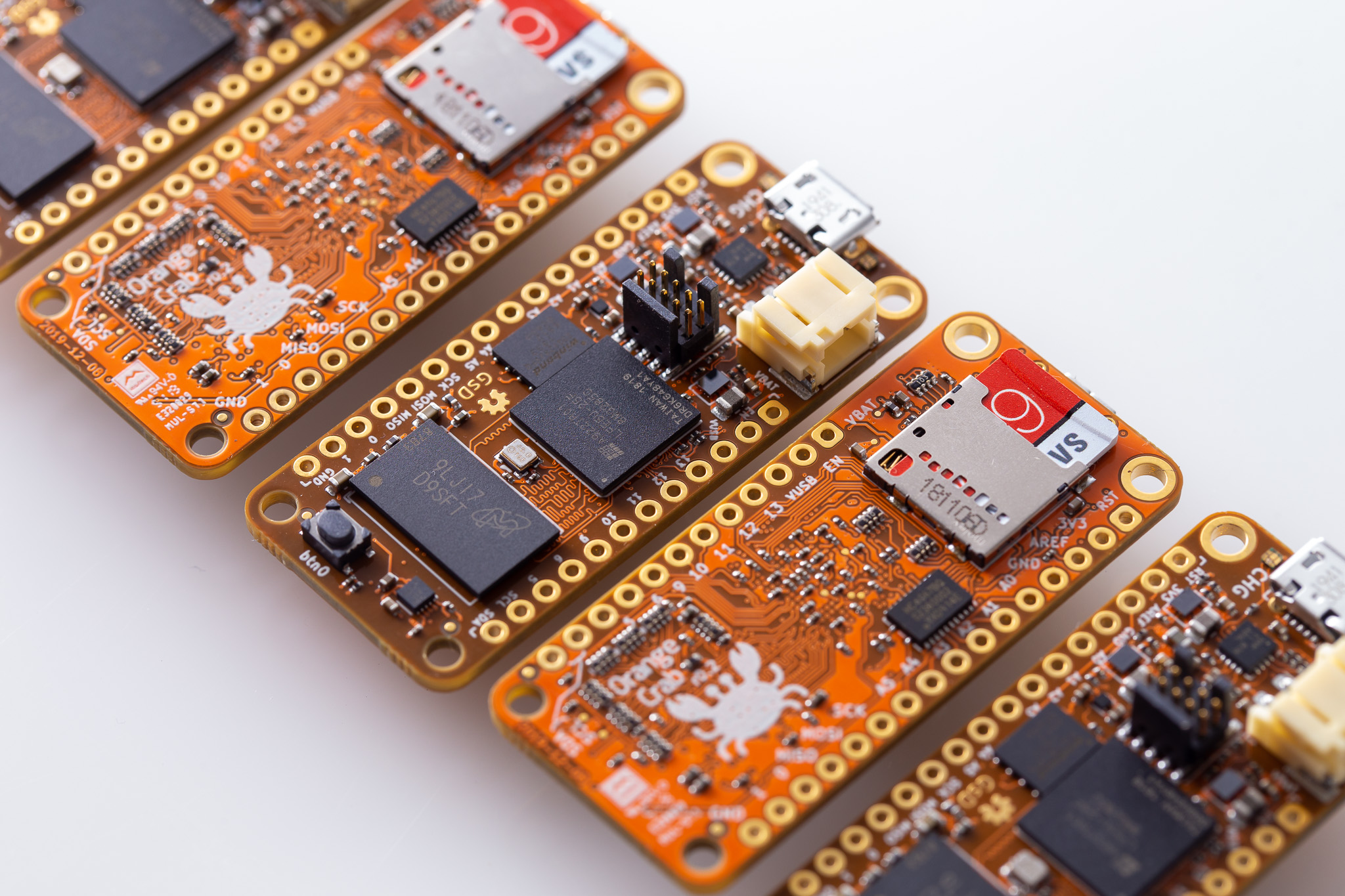

OrangeCrab是一款基于FPGA的轻量级电子开发板，采用了Lattice ECP5 FPGA。该板遵循Adafruit的轻量级板规格。FPGA兼容所有开源工具链，非常适合移植RISC-V内核实验。目前市面上支持ECP5的FPGA板不多，但这款板子有以下几个独特的特点：

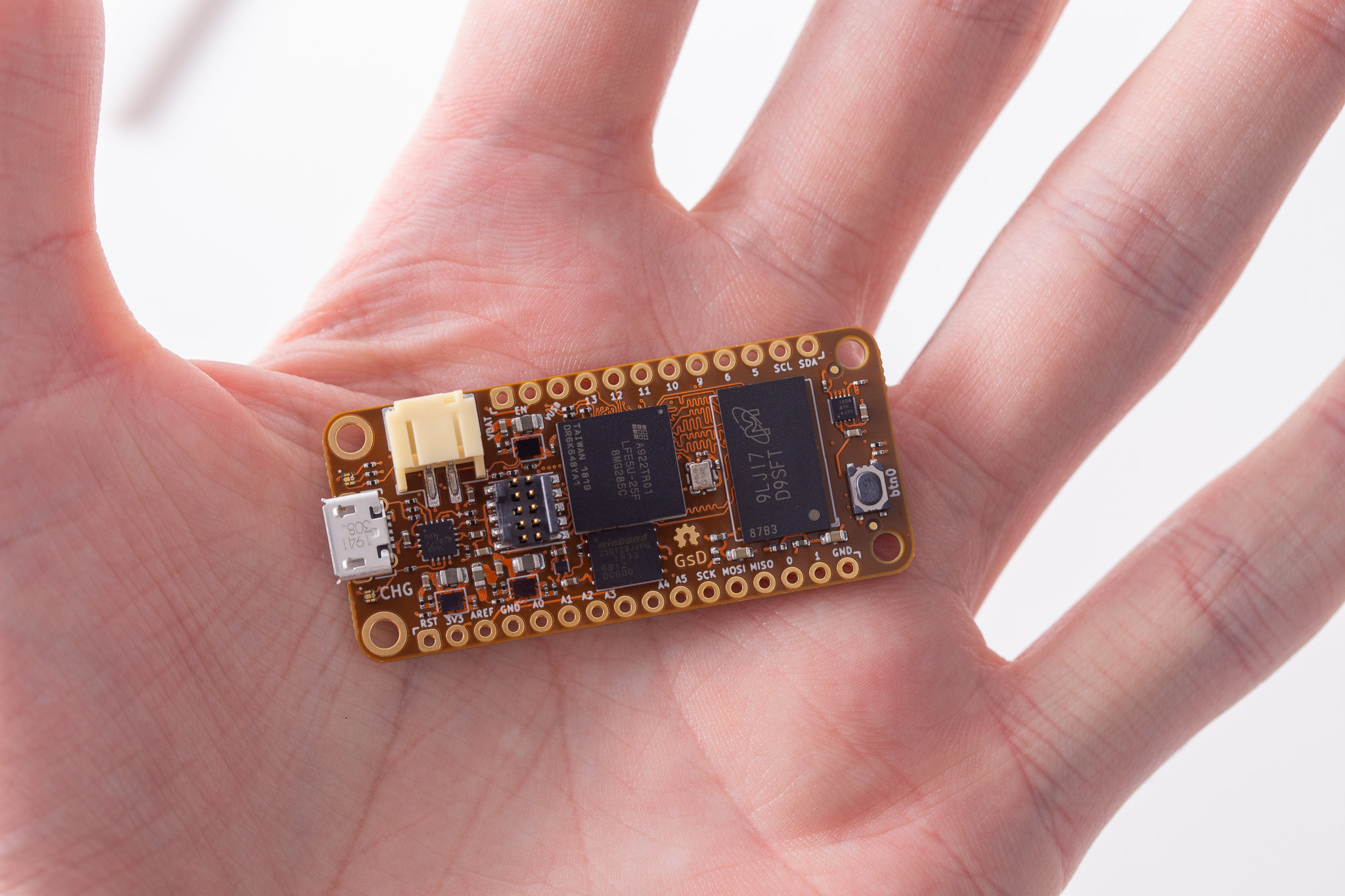

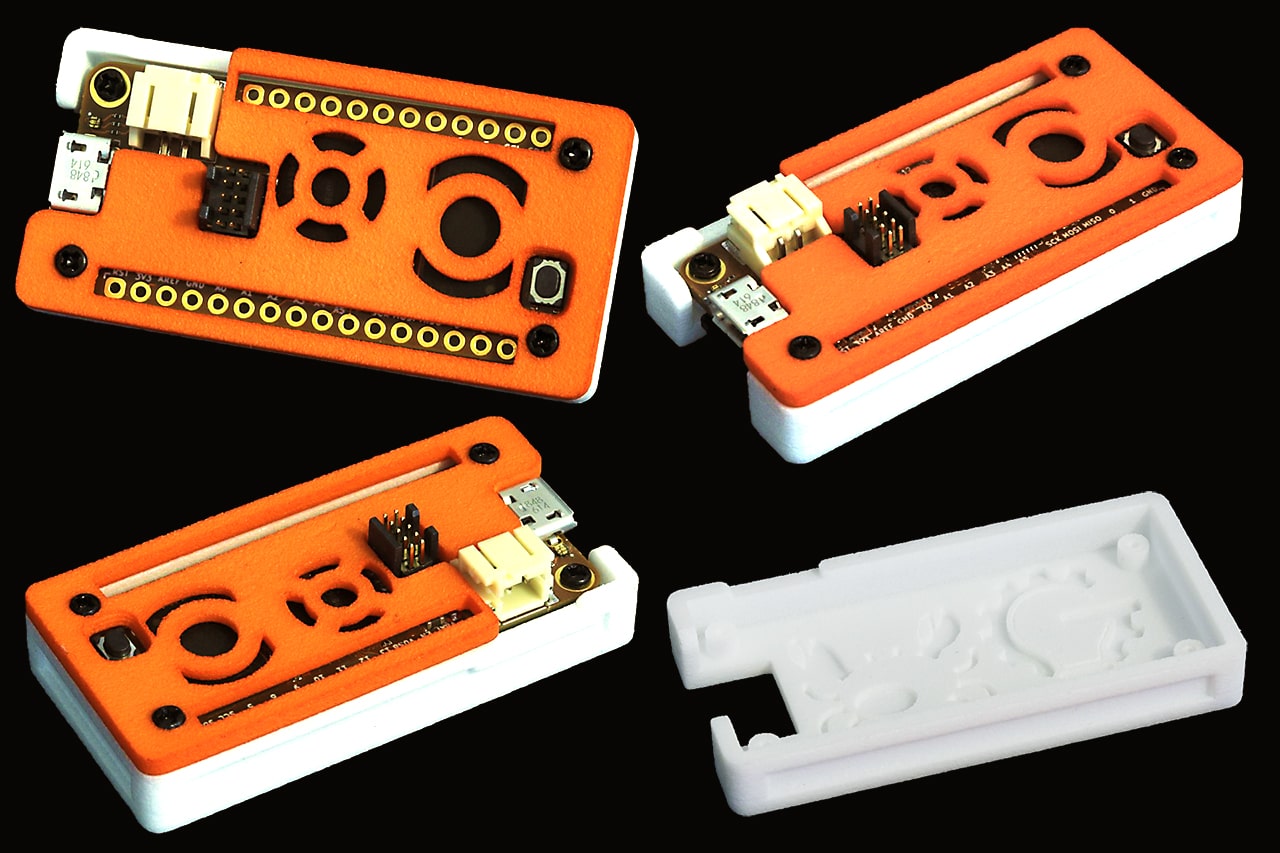

- 小巧紧凑的尺寸（随身携带！）
- 直接连接FPGA的USB接口（作为DFU、MSC、CDC或复合设备运行！）
- 板载DDR3内存（1Gbit！）
- 预装DFU引导加载器（无需外部编程器！）
- 它是橙色的！

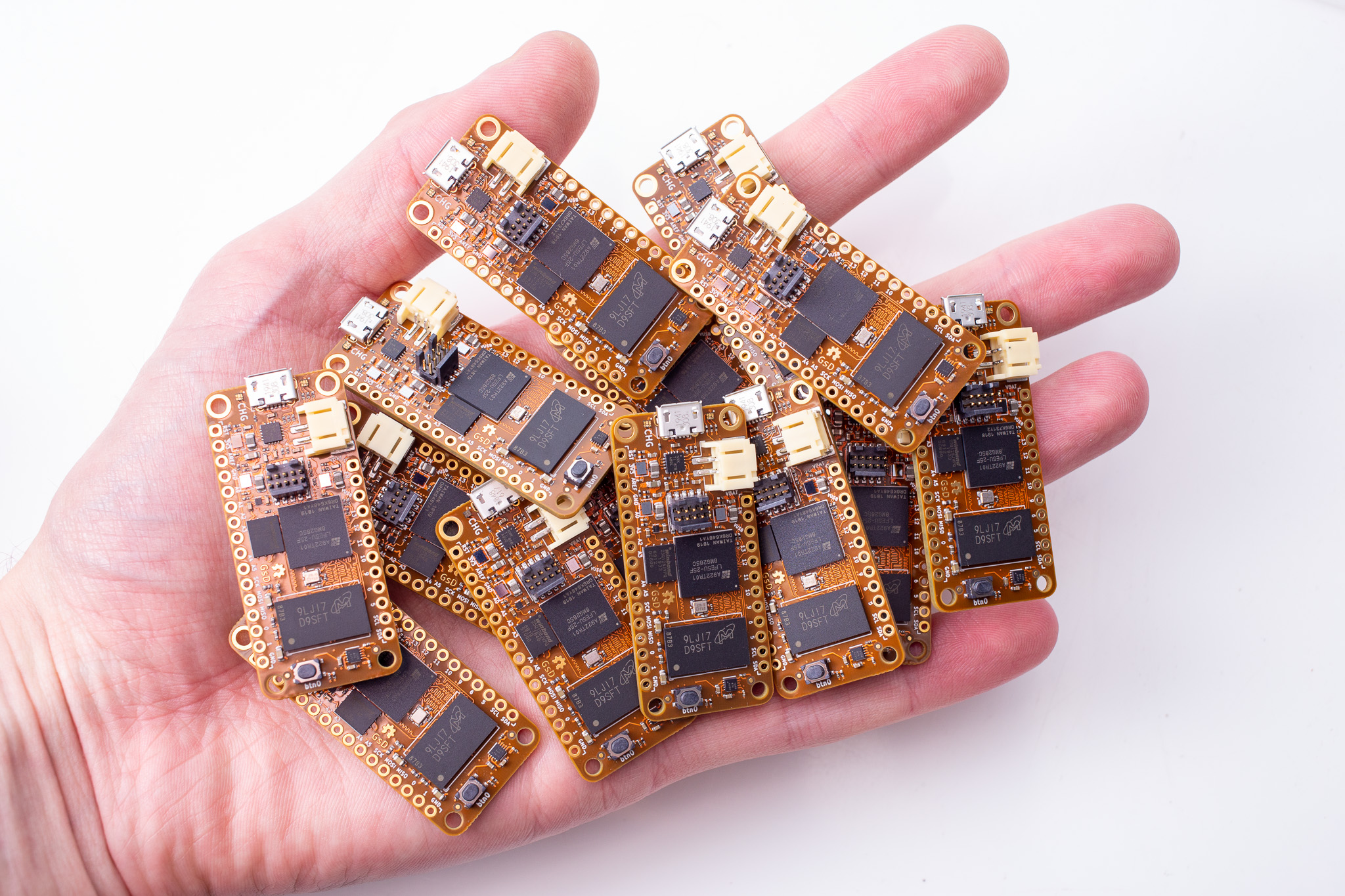

- 我们目前发货的硬件版本是V0.2.1。

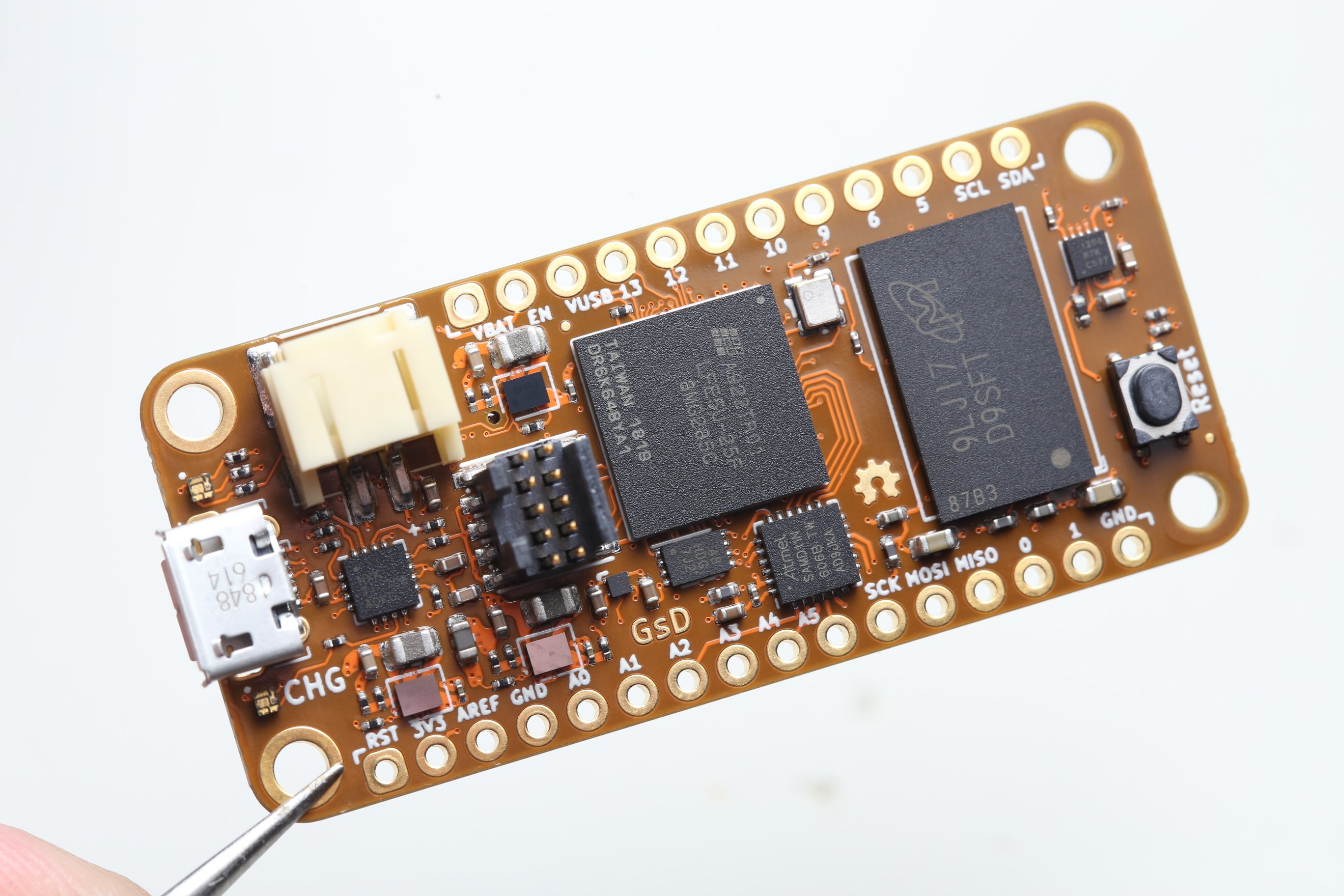

这是一款基于Lattice的ECP5 FPGA设计的开发板，能够移植RISC-V软核，并可以运行Linux。硬件资源：
- Lattice ECP5-25F FPGA in csfBGA285 package (-8 speed grade) (Part # LFE5U-25F-8MG285C)
- 24 K - Look Up Tables
- 1008 Kb - Embedded Block RAM
- 194 Kb - Distributed RAM
- 28 - 18x18 Multipliers
- PLLs: 2
- Internal oscillator
- Flexible I/O for DDR3 Memory Support
- DDR3L Memory
- 128 Mbytes (1Gbit)
- 64M x16
- 1.35V low voltage operation
- Micro USB connection
- Full-speed (12Mbit) USB with a direct connection to the FPGA
- Non-volatile Storage
- 128Mbit QSPI FLASH Memory
- Bootloader (First 4Mbits)
- User Bitstream
- User storage (Firmware/MSC backend/etc)
- QSPI compatible

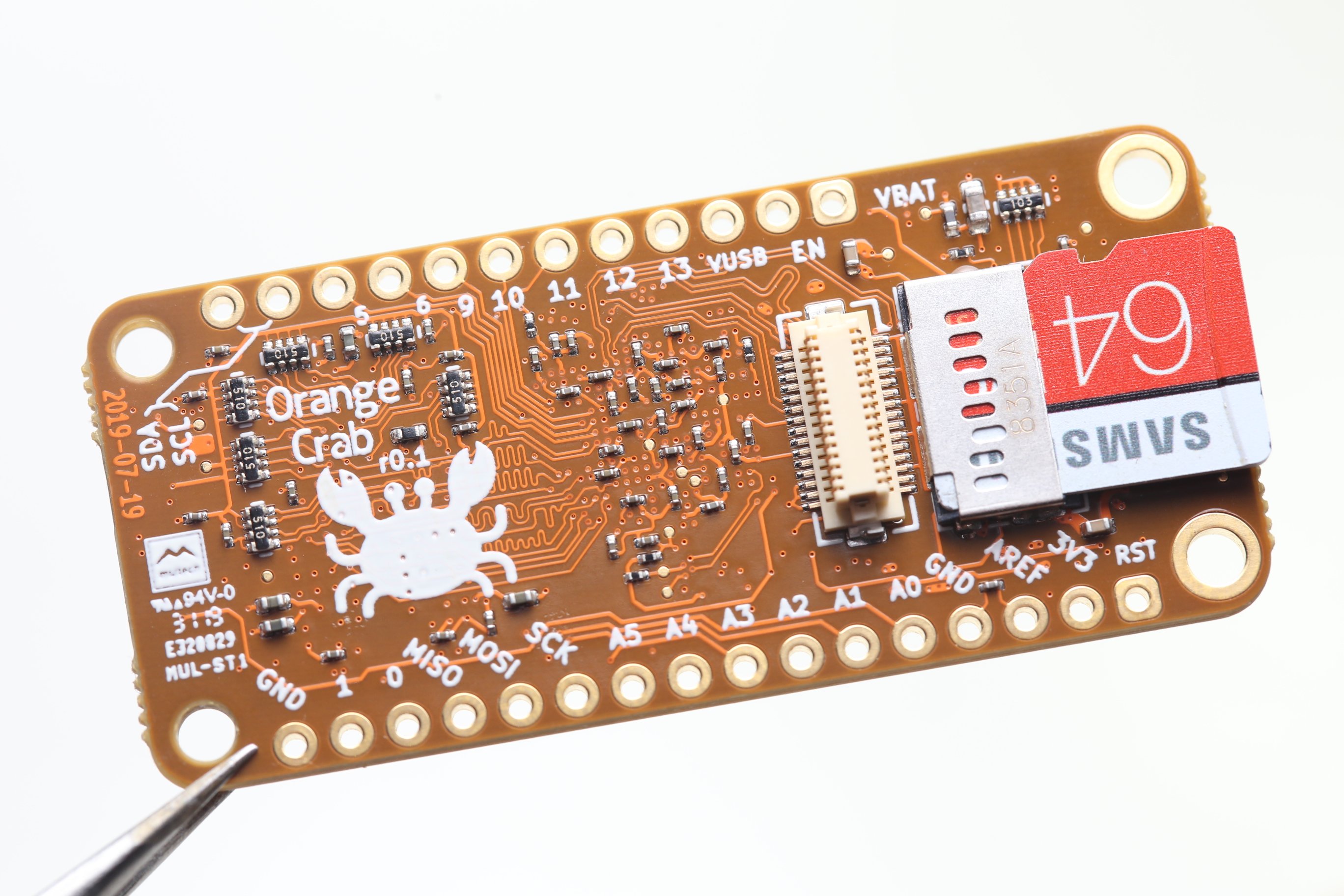

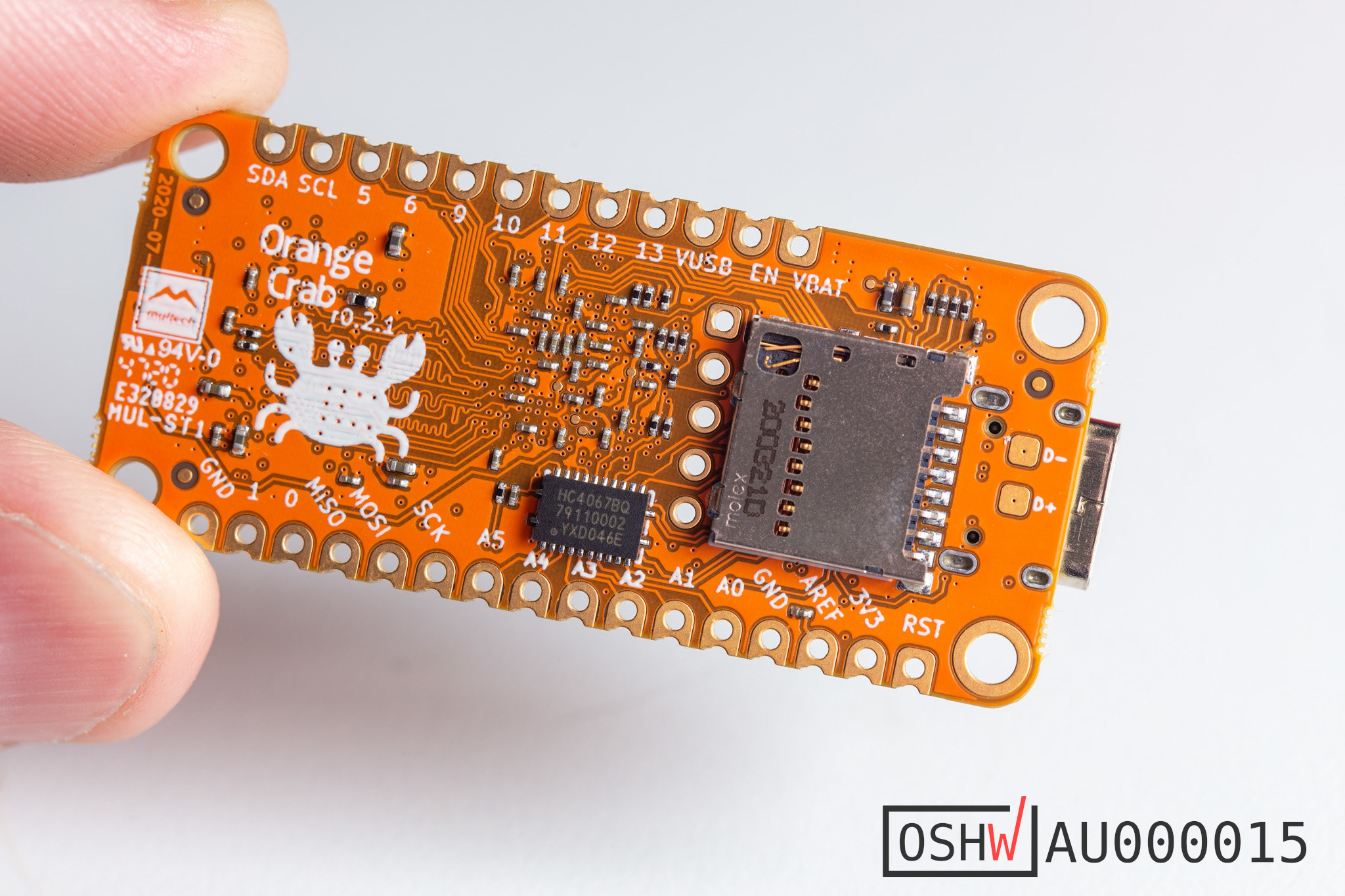

- MicroSD socket
- 4bit SD interface (CK, CMD, DAT0-3)
- Power supply
- High efficiency DCDC for main supplies
- Battery charger (100mA), with a charge indicator LED
- LiPo battery connector (PH type)
- 48MHz onboard oscillator
- Standard 0.05" JTAG connector
- User I/O
- 1x Button
- 1x RGB LED
- 20x I/O on 0.1" headers
- Analog System
- Analog Mux
- SAR ADC, external RC / input comparator of FPGA
- Digital bypass
- Internal channels for supply monitor
- Battery voltage sensing
- Feather Format Board
- Dimensions: 22.86mm x 50.8mm (0.9" x 2.0").
管脚定义：
DDR3 (IOVCC=1.35V) #
Name | Pad |
|---|---|
ADDR[0] | C4 |
ADDR[1] | D2 |
ADDR[2] | D3 |
ADDR[3] | A3 |
ADDR[4] | A4 |
ADDR[5] | D4 |
ADDR[6] | C3 |
ADDR[7] | B2 |
ADDR[8] | B1 |
ADDR[9] | D1 |
ADDR[10] | A7 |
ADDR[11] | C2 |
ADDR[12] | B6 |
ADDR[13] | C1 |
ADDR[14] | A2 |
ADDR[15] | C7 |
ODT | C13 |
RESETn | L18 |
Name | Pad |
|---|---|
BA[0] | D6 |
BA[1] | B7 |
BA[2] | A6 |
RAS | C12 |
CAS | D13 |
WEn | B12 |
CSn | A12 |
DM[0] | D16 |
DM[1] | G16 |
DQ[0] | C17 |
DQ[1] | D15 |
DQ[2] | B17 |
DQ[3] | C16 |
DQ[4] | A15 |
DQ[5] | B13 |
DQ[6] | A17 |
DQ[7] | A13 |
DQ[8] | F17 |
Name | Pad |
|---|---|
DQ[9] | F16 |
DQ[10] | G15 |
DQ[11] | F15 |
DQ[12] | J16 |
DQ[13] | C18 |
DQ[14] | H16 |
DQ[15] | F18 |
DQS_n[0] | B15 |
DQS_p[1] | G18 |
CLK_p | J18 |
CKE | D18 |
*virtual_vccio[0] | K16 |
*virtual_vccio[1] | D17 |
*virtual_vccio[2] | K15 |
*virtual_vccio[3] | K17 |
*virtual_vccio[4] | B18 |
*virtual_vccio[5] | C6 |
*virtual_gnd[0] | L15 |
*virtual_gnd[1] | L16 |
- Virtual VCCIO and GND are connected to VCCIO and GND on the PCB. They should be driven HIGH and LOW respectively to reduce SSO noise on the DDR3 I/O bank.
General (IOVCC=3.3V) #
Name | Pad |
|---|---|
GPIO0 | N17 |
GPIO1 | M18 |
GPIO5 | B10 |
GPIO6 | B9 |
GPIO9 | C8 |
GPIO10 | B8 |
GPIO11 | A8 |
GPIO12 | H2 |
GPIO13 | J2 |
GPIOA0 | L4 |
GPIOA1 | N3 |
GPIOA2 | N4 |
GPIOA3 | H4 |
Name | Pad |
|---|---|
clk48 | A9 |
rgb_led0_r | K4 |
rgb_led0_g | M3 |
rgb_led0_b | J3 |
BTN | J17 |
RSTn | V17 |
USB_p | N1 |
USB_n | M2 |
USB_pu | N2 |
QSPI_CSn | U17 |
QSPI_CLK | U16 |
QSPI_DQ[0] | U18 |
QSPI_DQ[1] | T18 |
QSPI_DQ[2] | R18 |
QSPI_DQ[3] | N18 |
Name | Pad |
|---|---|
SD_DAT[0] | J1 |
SD_DAT[1] | K3 |
SD_DAT[2] | L3 |
SD_DAT[3] | M1 |
SD_CMD | K2 |
SD_CLK | K1 |
SD_CD | L1 |
ANA_MUX[0] | F4 |
ANA_MUX[0] | F3 |
ANA_MUX[0] | F2 |
ANA_MUX[0] | H1 |
ANA_SENSE_L | G3 |
ANA_SENSE_H | H3 |
ANA_CTRL[0] | G1 |
ANA_CTRL[1] | F1 |
参考代码
Example code for Verilog, Litex, And RiscV can be found here:
交流社区
We have an OrangeCrab group on the 1BitSquared Discord
Licence
- Hardware in this repository is licensed under CERN OHL v1.2
- Gateware/Software/Firmware in this repository is licensed under MIT unless otherwise indicated
开源硬件
This board is an OSHWA approved design: AU000006
