基于 MSP-EXP430F5529LP 开发板和扩展板上的外设实现菜单功能

内容介绍

2023寒假一起练 - 基于 MSP-EXP430F5529LP 开发板和扩展板上的外设实现菜单功能

一、项目描述

MSP-EXP430F5529LP 开发板是一款针对 MSP430F5529 USB 微控制器的廉价而简单的开发套件，它为 MSP430 MCU 提供了一种简单的使用方法，具有用于编程和调试的板载仿真器，以及用于简单用户界面的按钮。本次活动，硬禾提供了 MSP-EXP430F5529LP 开发板和 IO 扩展板，其中 IO 扩展板上包含了下列外设：

按键和旋转编码器（模拟信号）
双电位计控制（数字信号）
RGB 三色 LED
1.44 寸 128*128 LCD （SPI 接口，st7735 芯片）
MMA7660 三轴姿态传感器
电阻加热
NST112 温度传感器

在本项目中，我使用了下列硬件：

MSP-EXP430F5529LP 开发板
按键和旋转编码器（模拟信号）
RGB 三色 LED
1.44 寸 128*128 LCD （SPI 接口，st7735 芯片）

备注：

因为我另外一个参与的项目 ESP32-S2 也是做同样的菜单展示功能，所以文章中部分图片和描述是一样的。

二、设计思路

首先使用 MSP-EXP430F5529LP 实现控制使用 st7735 芯片的 LCD (我使用软件控制 GPIO 实现 SPI 功能)，在屏幕的主界面展示主菜单，主菜单包含五个条目，模块上电后主菜单默认选中第一个条目，此时条目的背景色为黑色，条目的字体为白色。通过旋转编码器可以实现条目切换，向左旋转则条目向下切换，向右旋转则条目向上切换。此时单击旋转按钮，进入当前条目并展示该条目下的内容，五个条目的内容如下：

条目一 - Blue LED，进入该条目，在 LCD 上会周期性地展示蓝色圆圈，同时蓝色 LED 也同步闪烁；
条目二 - Green LED，进入该条目，在 LCD 上会周期性地展示绿色正方形，同时绿色 LED 也同步闪烁；
条目三 - RED LED，进入该条目，在 LCD 上会周期性地展示红色圆圈，同时红色 LED 也同步闪烁；
条目四 - Color Test，进入该条目，在 LCD 上会周期性地全屏展示红绿蓝三条竖行色块；
条目五 - Triangle Test，进入该条目，在 LCD 上会显示一个白色的三角形，此时旋转编码器，三角形可以同步地按照顺时针和逆时针方向转动，如果单击旋转编码器，则三角形会连续转动360度之后静止。

在子菜单中单击 S1 按键，会退出当前子界面。

三、硬件连接

旋转编码器和按键共用一个模拟输出 Aout，连接到 MSP-EXP430F5529LP 的 P6.0 (Analog In - A0);
LCD 与 MSP-EXP430F5529LP 的管脚连接如下：

*128128 LCD (ST7735)**	MSP-EXP430F5529LP
LCD_SDA	P3.0
LCD_SCL	P3.2
LCD_CSn	P2.6
LCD_DCx	P2.7
LCD_RESn	P3.7

RGB LED 与 MSP-EXP430F5529LP 的管脚连接如下：

RGB LED	MSP-EXP430F5529LP
BLUE_LED (LED1)	P2.5
GREEN_LED (LED2)	P2.4
RED_LED (LED3)	P1.5

为了避免 IO 板上的电阻烫手，需要把下列管脚输出低电平：

SI2302	MSP-EXP430F5529LP
V_HEAT	P1.4

四、软件流程

五、开发环境的搭建

TI 为 MSP430 主推的是 Code Composer Studio 集成式开发环境 (IDE)，IDE 分别提供了Windows、Linux和macOS平台的安装程序，在本次开发中我使用的是 Windows 开发环境，从https://www.ti.com.cn/tool/cn/CCSTUDIO 下载安装了 CCS12.2.0.00009_win64.zip 安装包。

具体的安装过程和使用方法见：https://software-dl.ti.com/ccs/esd/documents/users_guide_zh/index.html

工程配置方法如下，本次项目我在官方示例程序 adc12_a_ex5_repeatedSingle 基础上进行修改：

选择官方提供的示例项目：

# 在 CCS 中，选择 View->Getting Started，然后选择 Browser and Import Examples

# 在 Select board or device 栏位，输入 MSP-EXP430F5529LP，下方会列出 Examples

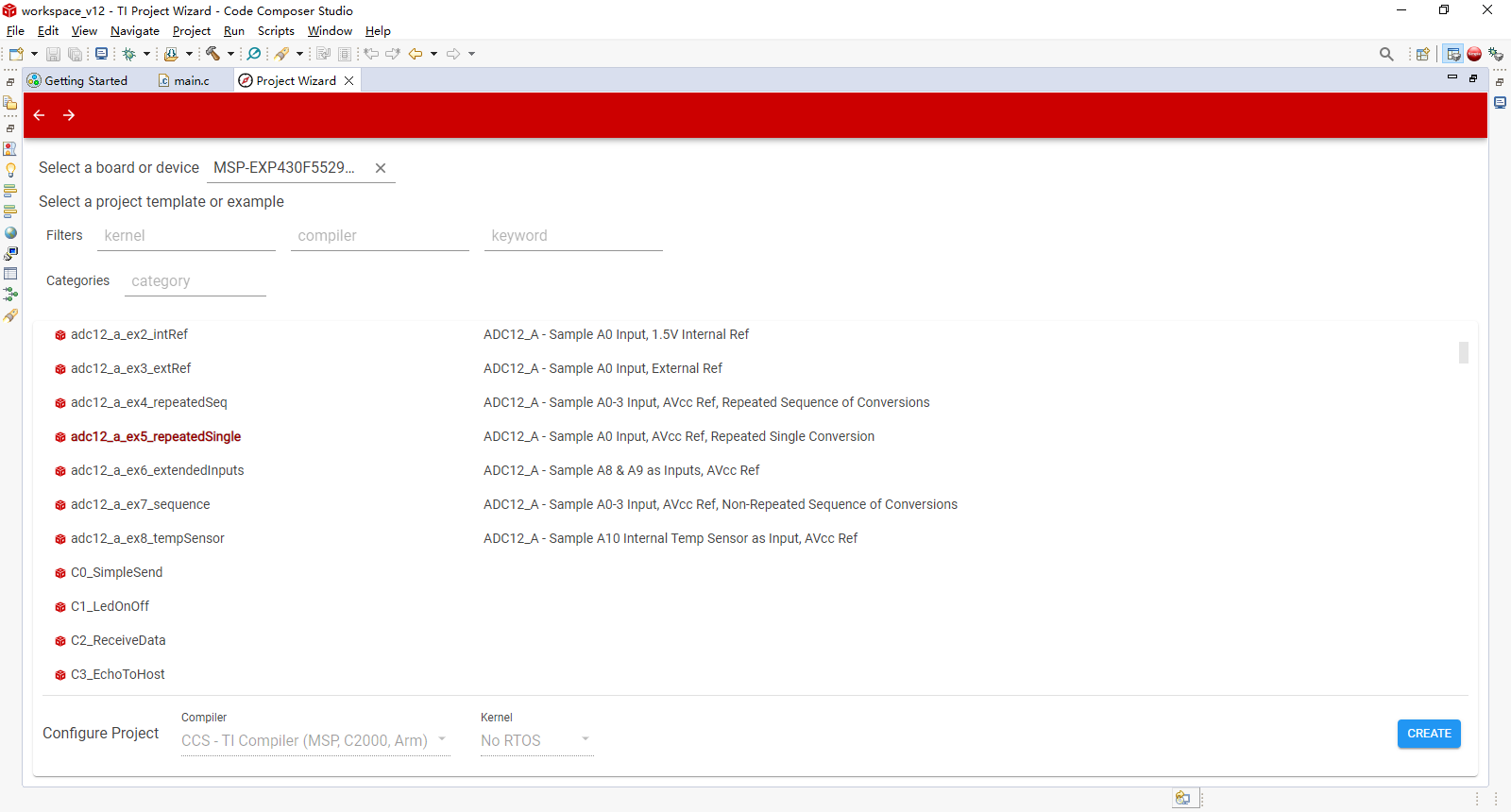

选择 adc12_a_ex5_repeatedSingle 并导入到工作区：

FqCOedhZd1OotjNQ61yUK6fhTrHC

编译工程：

在 CCS 界面，选择 Project->Build Project

工程调试:
```
在 CCS 界面，选择 Run->Debug
```

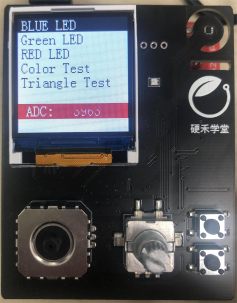

六、代码和功能展示

LCD st7735 驱动代码

代码如下（这个屏幕有蓝边的问题，设置offset可以消除）：

#define CONFIG_WIDTH        128 // Width - 128px
#define CONFIG_HEIGHT       128 // Height - 128px
// 设置offset可以消除屏幕的蓝边
#define CONFIG_OFFSETX      2   // to fix display issue
#define CONFIG_OFFSETY      3   // to fix display issue

#define LCD_SDA         P3DIR |= BIT0
#define LCD_RS          P2DIR |= BIT7
#define LCD_CS          P2DIR |= BIT6
#define LCD_RST         P3DIR |= BIT7
#define LCD_SCL         P3DIR |= BIT2
#define LCD_LED         P6DIR |= BIT5

#define LCD_CS_SET      P2OUT |= BIT6
#define LCD_RS_SET      P2OUT |= BIT7
#define LCD_SDA_SET     P3OUT |= BIT0
#define LCD_SCL_SET     P3OUT |= BIT2
#define LCD_RST_SET     P3OUT |= BIT7
#define LCD_LED_SET     P6OUT |= BIT5

#define LCD_CS_CLR      P2OUT &= ~BIT6
#define LCD_RS_CLR      P2OUT &= ~BIT7
#define LCD_SDA_CLR     P3OUT &= ~BIT0
#define LCD_SCL_CLR     P3OUT &= ~BIT2
#define LCD_RST_CLR     P3OUT &= ~BIT7
#define LCD_LED_CLR     P6OUT &= ~BIT5

void SPI_WriteData(uint8_t Data)
{
    uint8_t i = 0;

    for (i = 8;i > 0; i--) {
        if (Data & 0x80)
            LCD_SDA_SET;
        else
            LCD_SDA_CLR;

        LCD_SCL_CLR;
        LCD_SCL_SET;

        Data <<= 1;
    }
}

void Lcd_WriteIndex(uint8_t Index)
{
    LCD_CS_CLR;
    LCD_RS_CLR;

    SPI_WriteData(Index);

    LCD_CS_SET;
}

void Lcd_WriteData(uint8_t Data)
{
    LCD_CS_CLR;
    LCD_RS_SET;

    SPI_WriteData(Data);

    LCD_CS_SET;
}

void LCD_WriteData_16Bit(uint16_t Data)
{
    LCD_CS_CLR;
    LCD_RS_SET;

    SPI_WriteData(Data >> 8);
    SPI_WriteData(Data);

    LCD_CS_SET;
}

void Lcd_WriteReg(uint8_t Index,uint8_t Data)
{
    Lcd_WriteIndex(Index);
    Lcd_WriteData(Data);
}

void LCD_GPIO_Init(void)
{
    LCD_SDA;
    LCD_RS;
    LCD_CS;
    LCD_RST;
    LCD_SCL;
}

// LCD Init For 1.44Inch LCD Panel with ST7735R.
void Lcd_Init(void)
{
    LCD_GPIO_Init();
    Lcd_Reset(); //Reset before LCD Init.
}

void spi_master_write_byte(const uint8_t *Data, uint16_t DataLength)
{
    if (DataLength > 0)
    {
        LCD_CS_CLR;
        SPI_WriteData(*Data);
        LCD_CS_SET;
    }
}

void spi_master_write_comm_byte(TFT_t *dev, uint8_t cmd)
{
    static uint8_t Byte = 0;
    Byte = cmd;
    LCD_RS_CLR;
    spi_master_write_byte(&Byte, 1);
}

void spi_master_write_comm_word(TFT_t *dev, uint16_t cmd)
{
    static uint8_t Byte[2];
    Byte[0] = (cmd >> 8) & 0xFF;
    Byte[1] = cmd & 0xFF;
    LCD_RS_CLR;
    spi_master_write_byte(&Byte[0], 1);
    spi_master_write_byte(&Byte[1], 1);
}

void spi_master_write_data_byte(TFT_t *dev, uint8_t data)
{
    static uint8_t Byte = 0;
    Byte = data;
    LCD_RS_SET;
    spi_master_write_byte(&Byte, 1);
}

void spi_master_write_data_word(TFT_t *dev, uint16_t data)
{
    static uint8_t Byte[2];
    Byte[0] = (data >> 8) & 0xFF;
    Byte[1] = data & 0xFF;
    LCD_RS_SET;
    spi_master_write_byte(&Byte[0], 1);
    spi_master_write_byte(&Byte[1], 1);
}

void spi_master_write_addr(TFT_t *dev, uint16_t addr1, uint16_t addr2)
{
    static uint8_t Byte[4];
    Byte[0] = (addr1 >> 8) & 0xFF;
    Byte[1] = addr1 & 0xFF;
    Byte[2] = (addr2 >> 8) & 0xFF;
    Byte[3] = addr2 & 0xFF;
    LCD_RS_SET;
    spi_master_write_byte(&Byte[0], 1);
    spi_master_write_byte(&Byte[1], 1);
    spi_master_write_byte(&Byte[2], 1);
    spi_master_write_byte(&Byte[3], 1);
}

oid lcdInit(TFT_t *dev, uint16_t model, int width, int height, int offsetx, int offsety)
{
    dev->_model = model;
    dev->_width = width;
    dev->_height = height;
    dev->_offsetx = offsetx;
    dev->_offsety = offsety;
    dev->_font_direction = DIRECTION0;
    dev->_font_fill = false;
    dev->_font_underline = false;

    // printf("Your TFT is ST7735");
    // printf("Screen width:%d", width);
    // printf("Screen height:%d", height);
    spi_master_write_comm_byte(dev, 0xC0); // Power Control 1
    spi_master_write_data_byte(dev, 0x23);

    spi_master_write_comm_byte(dev, 0xC1); // Power Control 2
    spi_master_write_data_byte(dev, 0x10);

    spi_master_write_comm_byte(dev, 0xC5); // VCOM Control 1
    spi_master_write_data_byte(dev, 0x3E);
    spi_master_write_data_byte(dev, 0x28);

    spi_master_write_comm_byte(dev, 0xC7); // VCOM Control 2
    spi_master_write_data_byte(dev, 0x86);

    spi_master_write_comm_byte(dev, 0x36); // Memory Access Control
    spi_master_write_data_byte(dev, 0xC8); // Right top start, BGR color filter panel  C8/68/A8/08

    spi_master_write_comm_byte(dev, 0x3A); // Pixel Format Set
    spi_master_write_data_byte(dev, 0x55); // 65K color: 16-bit/pixel

    spi_master_write_comm_byte(dev, 0x20); // Display Inversion OFF

    spi_master_write_comm_byte(dev, 0xB1); // Frame Rate Control
    spi_master_write_data_byte(dev, 0x00);
    spi_master_write_data_byte(dev, 0x18);

    spi_master_write_comm_byte(dev, 0xB6); // Display Function Control
    spi_master_write_data_byte(dev, 0x08);
    spi_master_write_data_byte(dev, 0xA2); // REV:1 GS:0 SS:0 SM:0
    spi_master_write_data_byte(dev, 0x27);
    spi_master_write_data_byte(dev, 0x00);

    spi_master_write_comm_byte(dev, 0x26); // Gamma Set
    spi_master_write_data_byte(dev, 0x01);

    spi_master_write_comm_byte(dev, 0xE0); // Positive Gamma Correction
    spi_master_write_data_byte(dev, 0x0F);
    spi_master_write_data_byte(dev, 0x31);
    spi_master_write_data_byte(dev, 0x2B);
    spi_master_write_data_byte(dev, 0x0C);
    spi_master_write_data_byte(dev, 0x0E);
    spi_master_write_data_byte(dev, 0x08);
    spi_master_write_data_byte(dev, 0x4E);
    spi_master_write_data_byte(dev, 0xF1);
    spi_master_write_data_byte(dev, 0x37);
    spi_master_write_data_byte(dev, 0x07);
    spi_master_write_data_byte(dev, 0x10);
    spi_master_write_data_byte(dev, 0x03);
    spi_master_write_data_byte(dev, 0x0E);
    spi_master_write_data_byte(dev, 0x09);
    spi_master_write_data_byte(dev, 0x00);

    spi_master_write_comm_byte(dev, 0xE1); // Negative Gamma Correction
    spi_master_write_data_byte(dev, 0x00);
    spi_master_write_data_byte(dev, 0x0E);
    spi_master_write_data_byte(dev, 0x14);
    spi_master_write_data_byte(dev, 0x03);
    spi_master_write_data_byte(dev, 0x11);
    spi_master_write_data_byte(dev, 0x07);
    spi_master_write_data_byte(dev, 0x31);
    spi_master_write_data_byte(dev, 0xC1);
    spi_master_write_data_byte(dev, 0x48);
    spi_master_write_data_byte(dev, 0x08);
    spi_master_write_data_byte(dev, 0x0F);
    spi_master_write_data_byte(dev, 0x0C);
    spi_master_write_data_byte(dev, 0x31);
    spi_master_write_data_byte(dev, 0x36);
    spi_master_write_data_byte(dev, 0x0F);

    spi_master_write_comm_byte(dev, 0x11); // Sleep Out
    delayMS(120);

    spi_master_write_comm_byte(dev, 0x29); // Display ON

    if (dev->_bl >= 0)
    {
        // back light is always on
    }
}

ADC 采样和按键消抖代码

代码如下：

#define ADC_DATA_LEN        20
volatile uint16_t results[ADC_DATA_LEN];

void adc_init(void)
{
    //Enable A/D channel A0
    GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P6, GPIO_PIN0);

    //Initialize the ADC12_A Module
    /*
     * Base address of ADC12_A Module
     * Use internal ADC12_A bit as sample/hold signal to start conversion
     * USE MODOSC 5MHZ Digital Oscillator as clock source
     * Use default clock divider of 1
     */
    ADC12_A_init(ADC12_A_BASE,
        ADC12_A_SAMPLEHOLDSOURCE_SC,
        ADC12_A_CLOCKSOURCE_ADC12OSC,
        ADC12_A_CLOCKDIVIDER_1);

    ADC12_A_enable(ADC12_A_BASE);

    /*
     * Base address of ADC12_A Module
     * For memory buffers 0-7 sample/hold for 256 clock cycles
     * For memory buffers 8-15 sample/hold for 4 clock cycles (default)
     * Enable Multiple Sampling
     */
    ADC12_A_setupSamplingTimer(ADC12_A_BASE,
        ADC12_A_CYCLEHOLD_256_CYCLES,
        ADC12_A_CYCLEHOLD_4_CYCLES,
        ADC12_A_MULTIPLESAMPLESENABLE);

    //Configure Memory Buffer
    /*
     * Base address of the ADC12_A Module
     * Configure memory buffer 0
     * Map input A0 to memory buffer 0
     * Vref+ = AVcc
     * Vref- = AVss
     * Memory buffer 0 is not the end of a sequence
     */
    ADC12_A_configureMemoryParam param = {0};
    param.memoryBufferControlIndex = ADC12_A_MEMORY_0;
    param.inputSourceSelect = ADC12_A_INPUT_A0;
    param.positiveRefVoltageSourceSelect = ADC12_A_VREFPOS_AVCC;
    param.negativeRefVoltageSourceSelect = ADC12_A_VREFNEG_AVSS;
    param.endOfSequence = ADC12_A_NOTENDOFSEQUENCE;
    ADC12_A_configureMemory(ADC12_A_BASE ,&param);

    //Enable memory buffer 0 interrupt
    ADC12_A_clearInterrupt(ADC12_A_BASE,
        ADC12IFG0);
    ADC12_A_enableInterrupt(ADC12_A_BASE,
        ADC12IE0);

    //Enable/Start first sampling and conversion cycle
    /*
     * Base address of ADC12_A Module
     * Start the conversion into memory buffer 0
     * Use the repeated single-channel
     */
    ADC12_A_startConversion(ADC12_A_BASE,
        ADC12_A_MEMORY_0,
        ADC12_A_REPEATED_SINGLECHANNEL);

    //Enable interrupts
    __bis_SR_register(GIE);
}

#if defined(__TI_COMPILER_VERSION__) || defined(__IAR_SYSTEMS_ICC__)
#pragma vector=ADC12_VECTOR
__interrupt
#elif defined(__GNUC__)
__attribute__((interrupt(ADC12_VECTOR)))
#endif
void ADC12ISR(void)
{
    static uint8_t index = 0;

    switch (__even_in_range(ADC12IV,34)){
        case  0: break;   //Vector  0:  No interrupt
        case  2: break;   //Vector  2:  ADC overflow
        case  4: break;   //Vector  4:  ADC timing overflow
        case  6:          //Vector  6:  ADC12IFG0
            //Move results
            results[index] = ADC12_A_getResults(ADC12_A_BASE, ADC12_A_MEMORY_0);

            //Increment results index, modulo;
            //Set Breakpoint1 here and watch results[]
            index++;

            if (index == ADC_DATA_LEN){
                cur_raw_adc = get_raw_adc();
                index = 0;
            }
        case  8: break;   //Vector  8:  ADC12IFG1
        case 10: break;   //Vector 10:  ADC12IFG2
        case 12: break;   //Vector 12:  ADC12IFG3
        case 14: break;   //Vector 14:  ADC12IFG4
        case 16: break;   //Vector 16:  ADC12IFG5
        case 18: break;   //Vector 18:  ADC12IFG6
        case 20: break;   //Vector 20:  ADC12IFG7
        case 22: break;   //Vector 22:  ADC12IFG8
        case 24: break;   //Vector 24:  ADC12IFG9
        case 26: break;   //Vector 26:  ADC12IFG10
        case 28: break;   //Vector 28:  ADC12IFG11
        case 30: break;   //Vector 30:  ADC12IFG12
        case 32: break;   //Vector 32:  ADC12IFG13
        case 34: break;   //Vector 34:  ADC12IFG14
        default: break;
    }
}

volatile int cur_raw_adc = 0;
int get_raw_adc(void)
{
    int32_t i, j;
    uint16_t tmp;
    for (i = 0; i <= ADC_DATA_LEN / 2; i++) {
        for (j = 0; j < ADC_DATA_LEN - i - 1; j++) {
            if (results[j + 1] < results[j]) {
                tmp = results[j + 1];
                results[j + 1] = results[j];
                results[j] = tmp;
            }
        }
    }

    if (ADC_DATA_LEN % 2 == 0) {
        return (((results[ADC_DATA_LEN / 2 - 1] + results[ADC_DATA_LEN / 2]) / 2));
    } else {
        return  (results[ADC_DATA_LEN / 2]);
    }
}

KEY_STATUS get_key_status(void)
{
    KEY_STATUS key_status;

    if (cur_raw_adc > 1900 && cur_raw_adc < 1930) {
        polling_adc_flag = 1;
        key_status = KEY_1_PRESSED;
    } else if (cur_raw_adc > 2915 && cur_raw_adc < 2945) {
        polling_adc_flag = 0;
        key_status = KEY_2_PRESSED;
    } else if (cur_raw_adc > 3425 && cur_raw_adc < 3455) {
        key_status = KEY_C_PRESSED;
    } else if (cur_raw_adc > 3690 && cur_raw_adc < 3720) {
        key_status = KEY_C_LEFT;
    } else if (cur_raw_adc > 3815 && cur_raw_adc < 3845) {
        key_status = KEY_C_RIGHT;
    } else {
        key_status = KEY_UNKNOWN;
    }

    if (menu_type == 0 && polling_adc_flag == 1) {
        char adc_value[10];
        memset(adc_value, 0, sizeof(adc_value));
        snprintf(adc_value, 10, "%d", cur_raw_adc);
        lcdDrawFillRect(&dev, 64, 96, CONFIG_WIDTH, 96 + 16, RED);
        LCD_ShowString(&dev, 64, 96, (const uint8_t *)adc_value, WHITE, BLACK, 16, 1);
        //lcdDrawFillRect(&dev, 0, 96, CONFIG_WIDTH, 96 + 16, RED);
        //LCD_ShowString(&dev, 10, 96, (const uint8_t *)adc_value, WHITE, BLACK, 16, 1);
    }
#if 0
    if (key_status != KEY_UNKNOWN) {
        if ((xTaskGetTickCount() - startTick) > pdMS_TO_TICKS(300)) {
            startTick = xTaskGetTickCount();

            return key_status;
        }
    }
#endif

    //return KEY_UNKNOWN;
    return key_status;
}

七、功能展示
