1. 项目介绍

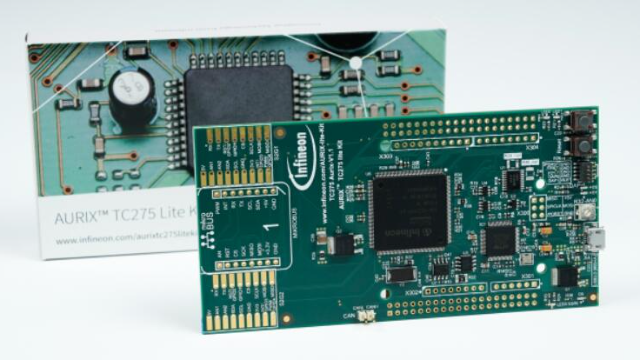

      本项目基于Infineon AURIX  TC275微控制器的开发板TC275 lite硬件平台，软件开发环境采用基于Eclipse的免费IDE AURIX™ Development Studio。通过ADC采集电位器电压的大小来控制PWM占空比，从而实现呼吸灯的闪耀频率，同时将ADC采集到的数据，通过串口发送至PC机。

       TC275TP作为第一代 Aurix TC27xT系列产品，专为满足极高的安全标准，同时大幅提高性能而设计。采用创新多核心架构，三个独立的 32 位 TriCore CPU均可工作在200 MHz。

2. 各功能对应的主要代码片段及说明

      串口部分采用串口0，管脚采用P14_0,P14_1, 通过板载的仿真器串口，与上位机进行通信。

/* This function initializes the ASCLIN UART module */
void init_ASCLIN_UART(void)
{
    /* Initialize an instance of IfxAsclin_Asc_Config with default values */
    IfxAsclin_Asc_Config ascConfig;
    IfxAsclin_Asc_initModuleConfig(&ascConfig, &MODULE_ASCLIN0);

    /* Set the desired baud rate */
    ascConfig.baudrate.baudrate = UART_BAUDRATE;

    /* ISR priorities and interrupt target */
    ascConfig.interrupt.txPriority = INTPRIO_ASCLIN0_TX;
    ascConfig.interrupt.rxPriority = INTPRIO_ASCLIN0_RX;
    ascConfig.interrupt.typeOfService = IfxCpu_Irq_getTos(IfxCpu_getCoreIndex());

    /* FIFO configuration */
    ascConfig.txBuffer = &g_ascTxBuffer;
    ascConfig.txBufferSize = UART_TX_BUFFER_SIZE;
    ascConfig.rxBuffer = &g_ascRxBuffer;
    ascConfig.rxBufferSize = UART_RX_BUFFER_SIZE;

    /* Pin configuration */
    const IfxAsclin_Asc_Pins pins =
    {
        NULL_PTR,       IfxPort_InputMode_pullUp,     /* CTS pin not used */
        &UART_PIN_RX,   IfxPort_InputMode_pullUp,     /* RX pin           */
        NULL_PTR,       IfxPort_OutputMode_pushPull,  /* RTS pin not used */
        &UART_PIN_TX,   IfxPort_OutputMode_pushPull,  /* TX pin           */
        IfxPort_PadDriver_cmosAutomotiveSpeed1
    };
    ascConfig.pins = &pins;

    IfxAsclin_Asc_initModule(&g_ascHandle, &ascConfig); /* Initialize module with above parameters */
}

/* This function sends and receives the string "Hello World!" */
void send_ASCLIN_UART_message(const void *data, Ifx_SizeT *count)
{
    IfxAsclin_Asc_write(&g_ascHandle, data, count, TIME_INFINITE);   /* Transmit data via TX */
}

      ADC部分，通过ADC采集电位器电压，量程范围0-3.3v

/* The VADC module and group are initialized */
void vadcBackgroundScanInit(void)
{
    /* VADC module configuration */
    /* Create VADC configuration */
    IfxVadc_Adc_Config adcConfig;

    /* Initialize the VADC configuration with default values */
    IfxVadc_Adc_initModuleConfig(&adcConfig, &MODULE_VADC);

    /* Initialize the VADC module using the VADC configuration */
    IfxVadc_Adc_initModule(&g_vadcBackgroundScan.vadc, &adcConfig);

    /* VADC group configuration */
    /* Create group configuration */
    IfxVadc_Adc_GroupConfig adcGroupConfig;

    /* Initialize the group configuration with default values */
    IfxVadc_Adc_initGroupConfig(&adcGroupConfig, &g_vadcBackgroundScan.vadc);

    /* Define which ADC group is going to be used */
    adcGroupConfig.groupId = VADC_GROUP;
    adcGroupConfig.master = VADC_GROUP;

    /* Enable background scan source */
    adcGroupConfig.arbiter.requestSlotBackgroundScanEnabled = TRUE;

    /* Enable background auto scan mode */
    adcGroupConfig.backgroundScanRequest.autoBackgroundScanEnabled = TRUE;

    /* Enable the gate in "always" mode (no edge detection) */
    adcGroupConfig.backgroundScanRequest.triggerConfig.gatingMode = IfxVadc_GatingMode_always;

    /* Initialize the group using the group configuration */
    IfxVadc_Adc_initGroup(&g_vadcBackgroundScan.adcGroup, &adcGroupConfig);
}

/* The input channels to be used are setup and the VADC is set into run mode */
void vadcBackgroundScanRun(void)
{
    /* Initialize the channel configuration of application handle g_vadcBackgroundScan with default values */
    IfxVadc_Adc_initChannelConfig(&g_vadcBackgroundScan.adcChannelConfig, &g_vadcBackgroundScan.adcGroup);

    g_vadcBackgroundScan.adcChannelConfig.channelId = (IfxVadc_ChannelId)CHANNEL_ID;
    g_vadcBackgroundScan.adcChannelConfig.resultRegister = (IfxVadc_ChannelResult)CHANNEL_RESULT_REGISTER;
    g_vadcBackgroundScan.adcChannelConfig.backgroundChannel = TRUE;

    /* Initialize the channel of application handle g_VadcBackgroundScan using the channel configuration */
    IfxVadc_Adc_initChannel(&g_vadcBackgroundScan.adcChannel, &g_vadcBackgroundScan.adcChannelConfig);

    /* Enable background scan for the channel */
    IfxVadc_Adc_setBackgroundScan(&g_vadcBackgroundScan.vadc,
                                  &g_vadcBackgroundScan.adcGroup,
                                  (1 << (IfxVadc_ChannelId)CHANNEL_ID),
                                  (1 << (IfxVadc_ChannelId)CHANNEL_ID));

    /* Start background scan conversion */
    IfxVadc_Adc_startBackgroundScan(&g_vadcBackgroundScan.vadc);
}

      GTM部分,通过GTM产生PWM波形，对LED灯进行调光，实现呼吸灯效果

/* This function is creating the fade effect for the LED */
void fadeLED(float Step)
{

    if(g_fadeValue >= PWM_PERIOD)
    {
        g_fadeDir = -1; /* Set the direction of the fade */
    }
    else if(g_fadeValue <= 0)
    {
        g_fadeDir = 1;  /* Set the direction of the fade */
    }
    g_fadeValue += g_fadeDir * (Step*(1000/3.3)); /* Calculation of the new duty cycle */
    setDutyCycle(g_fadeValue); /* Call the function which is setting the duty cycle of the PWM */
}

      主函数，首先通过ADC采集电位器电压，然后将电压值通过串口发送至PC机，然后根据ADC采集的电压值，调整PWM的步进，来改变呼吸灯闪耀频率。

      实际改变呼吸灯的闪耀频率，可通过两种方式，一个是，改变主循环中的延时时间，另外就是改变每次PWM调整的步进。本实验采用改变步进的方式。

    while(1)
    {
        unsigned int len = 0;
        indicateConversionValue();
        len = snprintf(buf, PRINTBUFF_LEN, "ADC VALUE: %.2f FADE STEP:%d\r\n", Value, (int)(Value*(1000/3.3)));
        send_ASCLIN_UART_message(buf, (Ifx_SizeT *)&len);
        waitTime(ticksFor10ms);
        fadeLED(Value);      /* Change the intensity of the LED  */
//        printf("hard word \r\n");
    }

3. 功能展示及说明

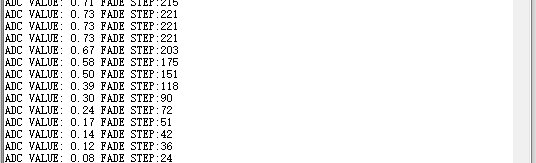

      通过串口将ADC数据发送至PC机

      通过电位器控制呼吸灯闪耀频率

4. 对本活动的心得体会

      第一次接触infineon的芯片，虽然之前有过arm 系芯片的使用经验，但是首次上手还是遇到了些问题，从环境的搭建，到芯片的仿真，调试，再到完成项目，整体还是比较顺利的，不得不说infineon的芯片支持做的还是非常到位的，有非常完善的例程，稳定的开发环境，极大的方便了广大开发及学习者。

      另外非常感谢此次活动举办方，非常喜欢这个活动，希望能够一直举办下去！
