【Funpack2-2】-TC275的快速上手之使用电位器控制板载led

内容介绍

涉及内容

环境搭建：AURIX Development Studio英飞凌 AURIX Development Studio 安装和使用，助力 Funpack2-2 - 哔哩哔哩 (bilibili.com)
TC275 的VADC、GPT、Atom、ASCLIN模块的使用

项目描述

使用板载的LED表示出电位器上电压的大小，并把数值通过串口打印到PC。

1.电位器接口：AN0 大小：10 kOhm

Fq9f5ULde4fWgfKCHUontjc3PVR1

2.LED：LED1 - P00.5 LED2 - P00.6

FtpZcYQvxJvDD4oSRZ5Iv-EJH1G8

3.VADC - AN0

TC275 共有 8 路 48 个 AD 通道，36 路专用通道与 12 路复用通道,它们每个都可以进行高达12位分辨率的转换

Analog/Digital可以由多个请求源进行请求:

– Queued scan 请求源，特定于单个组的。

– Channel scan 请求源, 包括:

– Group scan source, 特定于单个组的。

– Background scan source,可以请求所有组的所有通道。

每个请求源最多可以触发三种转换模式：

– Fixed Channel Conversion -- 固定通道转换

– Channel Sequence Conversion -- 通道序列转换

– Auto Scan Conversion -自动扫描转换

4.GTM ATOM可用于产生一个PWM信号，仅有驱动一个LED的强度。

- 通用定时器模块（GTM）是一个模块化计时器单元设计，以适应许多计时器应用程序
- 它有一个内置的高级路由器单元（ARU），可以用来在子模块之间交换特定的数据，而不需要进行CPU交互
- ARU-connected 定时器输出模块（ATOM）是GTM的一部分，能够产生复杂的输出信号
- 时钟管理单元 Clock Management Unit（CMU）负责GTM的时钟生成。可配置的时钟生成子单元 Configurable Clock Generation Subunit（CFGU）为GTM子模块提供了8个时钟源： TIM、TBU、MON和ATOM

5.GPT12

- 通用定时器单元The General Purpose Timer Uni（GPT12）由两个GPT块（GPT1和GPT2）组成
- 每个块都有一个多功能计时器结构，其中包含几个16位计时器› Block GPT1 contains three 块GPT1包含三个计时器：核心计时器T3和两个辅助计时器T2和T4
- GPT1模块的所有计时器都可以在以下四种模式中之一运行：定时器模式、门控定时器模式、计数器模式或增量接口模式
- 在本项目中，计时器T3在计时器模式下被使用。计数方向配置为“计数”。在计时器T3的下流事件中，计时器T2的值被转换为计时器T3

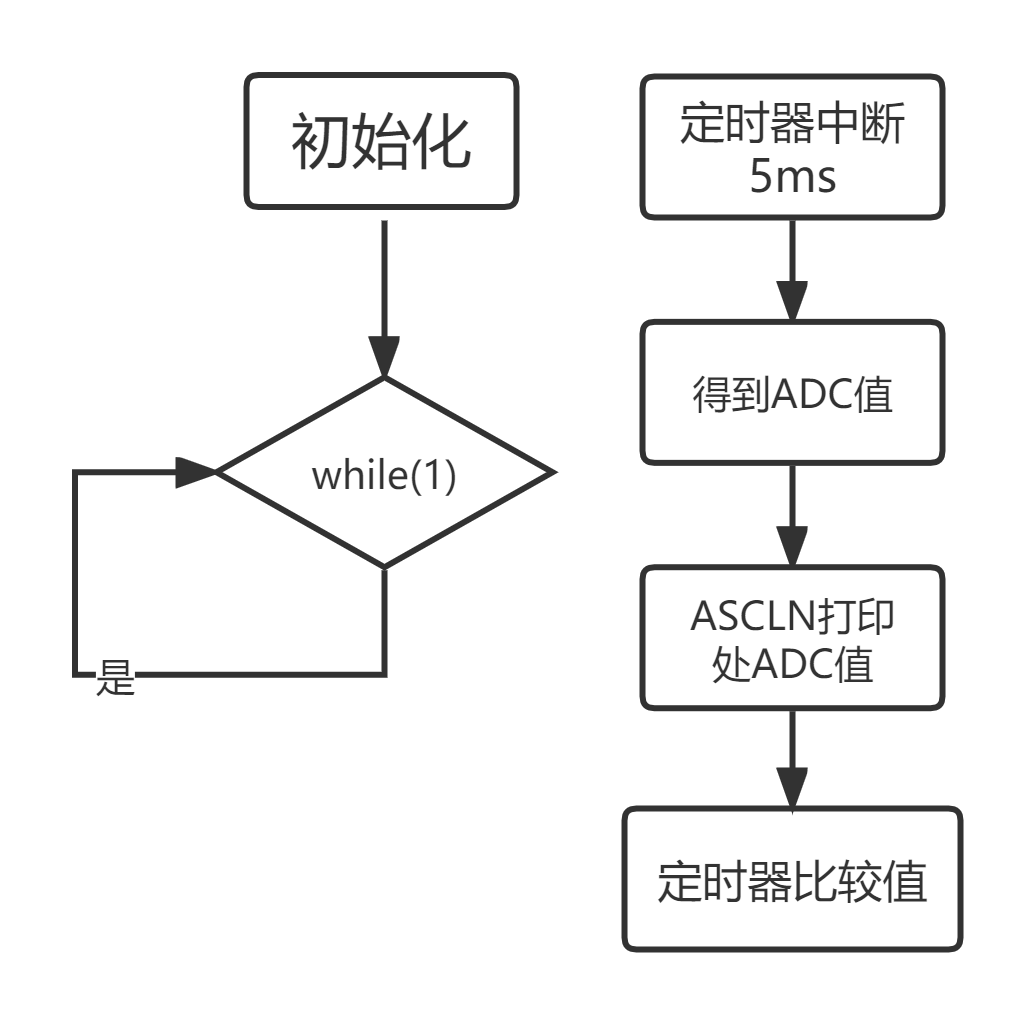

6.流程图：

Fkw9BgwmRYbwK8ZQf5EEbdq9UHUM

主要代码：

定时器中断

#include "Ifx_Types.h"
#include "IfxGpt12.h"
#include "IfxPort.h"
#include "TIMER.h"
#include "ASC.h"
#include "PWM_Generation.h"
#include "ADC.h"

#define ISR_PRIORITY_GPT12_TIMER    6                       /* Define the GPT12 Timer interrupt priority            */
#define ISR_PROVIDER_GPT12_TIMER    IfxSrc_Tos_cpu0         /* Interrupt provider                                   */
#define RELOAD_VALUE                975u                  /* Reload value to have an interrupt each 500ms         */
#define LED                         &MODULE_P00, 5          /* LED which toggles in the Interrupt Service Routine   */

IFX_INTERRUPT(interruptGpt12, 0, ISR_PRIORITY_GPT12_TIMER);

void initGpt12Timer(void)
{
    /* Initialize the GPT12 module */
    IfxGpt12_enableModule(&MODULE_GPT120);                                          /* Enable the GPT12 module      */
    IfxGpt12_setGpt1BlockPrescaler(&MODULE_GPT120, IfxGpt12_Gpt1BlockPrescaler_16); /* Set GPT1 block prescaler     */

    /* Initialize the Timer T3 */
    IfxGpt12_T3_setMode(&MODULE_GPT120, IfxGpt12_Mode_timer);                       /* Set T3 to timer mode         */
    IfxGpt12_T3_setTimerDirection(&MODULE_GPT120, IfxGpt12_TimerDirection_down);    /* Set T3 count direction       */
    IfxGpt12_T3_setTimerPrescaler(&MODULE_GPT120, IfxGpt12_TimerInputPrescaler_64); /* Set T3 input prescaler       */
    IfxGpt12_T3_setTimerValue(&MODULE_GPT120, RELOAD_VALUE);                        /* Set T3 start value           */

    /* Initialize the Timer T2 */
    IfxGpt12_T2_setMode(&MODULE_GPT120, IfxGpt12_Mode_reload);                      /* Set T2 to reload mode        */
    IfxGpt12_T2_setReloadInputMode(&MODULE_GPT120, IfxGpt12_ReloadInputMode_bothEdgesTxOTL); /* Set reload trigger  */
    IfxGpt12_T2_setTimerValue(&MODULE_GPT120, RELOAD_VALUE);                        /* Set T2 reload value          */

    /* Initialize the interrupt */
    volatile Ifx_SRC_SRCR *src = IfxGpt12_T3_getSrc(&MODULE_GPT120);                /* Get the interrupt address    */
    IfxSrc_init(src, ISR_PROVIDER_GPT12_TIMER, ISR_PRIORITY_GPT12_TIMER);           /* Initialize service request   */
    IfxSrc_enable(src);                                                             /* Enable GPT12 interrupt       */

    /* Initialize the LED */
    IfxPort_setPinModeOutput(LED, IfxPort_OutputMode_pushPull, IfxPort_OutputIdx_general);

    IfxGpt12_T3_run(&MODULE_GPT120, IfxGpt12_TimerRun_start);                       /* Start the timer              */
}

/* Interrupt Service Routine of the GPT12 */
char p_data[50];
uint16 Led_PWM = 0;
void interruptGpt12(void)
{
    SetLED((uint16)run_vadc());
}

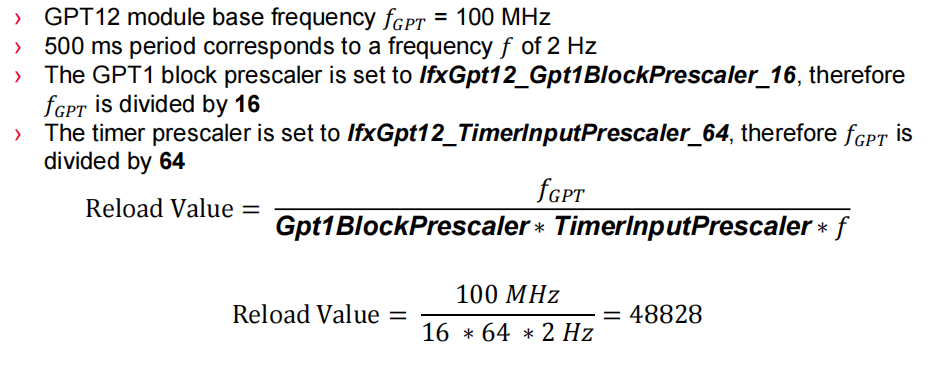

定时器周期的计算

FkZ2jliXIRzYCMO7Je47JDj2wDhY

Atom模块

#include "PWM_Generation.h"
#include "Ifx_Types.h"
#include "IfxGtm_Atom_Pwm.h"

/*********************************************************************************************************************/
/*------------------------------------------------------Macros-------------------------------------------------------*/
/*********************************************************************************************************************/
#define ISR_PRIORITY_ATOM  20                                   /* Interrupt priority number                        */
#define LED                IfxGtm_ATOM1_4_TOUT14_P00_5_OUT      /* LED which will be driven by the PWM              */
#define PWM_PERIOD         4095                                 /* PWM period for the ATOM                          */
#define FADE_STEP          PWM_PERIOD / 100                     /* PWM duty cycle for the ATOM                      */
#define CLK_FREQ           1000000.0f                           /* CMU clock frequency, in Hertz                    */

/*********************************************************************************************************************/
/*-------------------------------------------------Global variables--------------------------------------------------*/
/*********************************************************************************************************************/
IfxGtm_Atom_Pwm_Config g_atomConfig;                            /* Timer configuration structure                    */
IfxGtm_Atom_Pwm_Driver g_atomDriver;                            /* Timer Driver structure                           */
uint32 g_fadeValue = 0;                                         /* Initialization of the fade value                 */
sint8 g_fadeDir = 1;                                            /* Initialization of the fade direction variable    */

/*********************************************************************************************************************/
/*-----------------------------------------------Function Prototypes-------------------------------------------------*/
/*********************************************************************************************************************/
void setDutyCycle(uint32 dutyCycle);

/*********************************************************************************************************************/
/*--------------------------------------------Function Implementations-----------------------------------------------*/
/*********************************************************************************************************************/
/* This function initializes the ATOM */
void initGtmATomPwm(void)
{
    IfxGtm_enable(&MODULE_GTM); /* Enable GTM */

    IfxGtm_Cmu_setClkFrequency(&MODULE_GTM, IfxGtm_Cmu_Clk_0, CLK_FREQ);        /* Set the CMU clock 0 frequency    */
    IfxGtm_Cmu_enableClocks(&MODULE_GTM, IFXGTM_CMU_CLKEN_CLK0);                /* Enable the CMU clock 0           */

    IfxGtm_Atom_Pwm_initConfig(&g_atomConfig, &MODULE_GTM);                     /* Initialize default parameters    */

    g_atomConfig.atom = LED.atom;                                       /* Select the ATOM depending on the LED     */
    g_atomConfig.atomChannel = LED.channel;                             /* Select the channel depending on the LED  */
    g_atomConfig.period = PWM_PERIOD;                                   /* Set timer period                         */
    g_atomConfig.pin.outputPin = &LED;                                  /* Set LED as output                        */
    g_atomConfig.synchronousUpdateEnabled = TRUE;                       /* Enable synchronous update                */

    IfxGtm_Atom_Pwm_init(&g_atomDriver, &g_atomConfig);                 /* Initialize the PWM                       */
    IfxGtm_Atom_Pwm_start(&g_atomDriver, TRUE);                         /* Start the PWM                            */
}

/* This function is creating the fade effect for the LED */
void SetLED(uint16_t PWM)
{
    setDutyCycle((uint32)PWM); /* Call the function which is setting the duty cycle of the PWM */
}

/* This function sets the duty cycle of the PWM */
void setDutyCycle(uint32 dutyCycle)
{
    g_atomConfig.dutyCycle = dutyCycle;                 /* Set duty cycle        */
    IfxGtm_Atom_Pwm_init(&g_atomDriver, &g_atomConfig); /* Re-initialize the PWM */
}

Vadc模块

#include "ADC.h"
#include "ASC.h"
#include <stdio.h>
/*********************************************************************************************************************/
/*------------------------------------------------------Macros-------------------------------------------------------*/
/*********************************************************************************************************************/
#define N_CHANNELS                  1           /* Number of ADC channels that will be used                         */
#define ASCII_SHIFT                 48          /* Shift in the ASCII table: '0', '1', '2'[...], start at value 48  */


/*********************************************************************************************************************/
/*-------------------------------------------------Global variables--------------------------------------------------*/
/*********************************************************************************************************************/
IfxAsclin_Asc g_asc;                            /* Handle for the ASC communication module registers                */
IfxVadc_Adc g_vadc;                             /* Handle for VADC registers                                        */
IfxVadc_Adc_Group g_adcGroup;                   /* Handle for the VADC group registers                              */
IfxVadc_Adc_Channel g_adcChannel[N_CHANNELS];   /* Handle for the VADC channel registers                            */
/* Define the used channels */
IfxVadc_ChannelId g_vadcChannelIDs[] = {IfxVadc_ChannelId_0};

void init_vadc(void)
{
    /* Create and initialize the module configuration */
    IfxVadc_Adc_Config adcConf;                             /* Define a configuration structure for the VADC module */
    IfxVadc_Adc_initModuleConfig(&adcConf, &MODULE_VADC);   /* Fill it with default values                          */

    IfxVadc_Adc_initModule(&g_vadc, &adcConf);              /* Apply the configuration to the module                */

    /* Create and initialize the group configuration */
    IfxVadc_Adc_GroupConfig adcGroupConf;                   /* Define a configuration structure for the VADC group  */
    IfxVadc_Adc_initGroupConfig(&adcGroupConf, &g_vadc);    /* Fill it with default values                          */

    /* Configuration of the group */
    adcGroupConf.groupId = IfxVadc_GroupId_0;               /* 选择组0                                   */
    adcGroupConf.master = adcGroupConf.groupId;             /* Select the master group                              */

    adcGroupConf.arbiter.requestSlotScanEnabled = TRUE;     /* Enable scan source                                   */
    adcGroupConf.scanRequest.autoscanEnabled = TRUE;        /* Enable auto scan mode                                */

    /* Enable all gates in "always" mode (no edge detection) */
    adcGroupConf.scanRequest.triggerConfig.gatingMode = IfxVadc_GatingMode_always;

    IfxVadc_Adc_initGroup(&g_adcGroup, &adcGroupConf);      /* Apply the configuration to the group                 */

    /* Create and initialize the channels configuration */
    uint32 chnIx;

    /* Create channel configuration */
    IfxVadc_Adc_ChannelConfig adcChannelConf[N_CHANNELS]; /* Define a configuration structure for the VADC channels */

    for(chnIx = 0; chnIx < N_CHANNELS; ++chnIx)
    {
        IfxVadc_Adc_initChannelConfig(&adcChannelConf[chnIx], &g_adcGroup);     /* Fill it with default values      */

        adcChannelConf[chnIx].channelId = g_vadcChannelIDs[chnIx];              /* Select the channel ID            */
        adcChannelConf[chnIx].resultRegister = (IfxVadc_ChannelResult)(chnIx);  /* Use dedicated result register    */

        /* Initialize the channel */
        IfxVadc_Adc_initChannel(&g_adcChannel[chnIx], &adcChannelConf[chnIx]);

        /* Add the channel to the scan sequence */
        uint32 enableChnBit = (1 << adcChannelConf[chnIx].channelId);   /* Set the the corresponding input channel  */
        uint32 mask = enableChnBit;                                     /* of the respective group to take part in  */
        IfxVadc_Adc_setScan(&g_adcGroup, enableChnBit, mask);           /* the background scan sequence.            */
    }

    /* Start the scan */
    IfxVadc_Adc_startScan(&g_adcGroup);
}

 int run_vadc(void)
{
    uint32 chnIx;
    char Vadc_data[50];
    /* Get the VADC conversions */
    for(chnIx = 0; chnIx < N_CHANNELS; ++chnIx)
    {
        Ifx_VADC_RES conversionResult;

        /* Wait for a new valid result */
        do
        {
            conversionResult = IfxVadc_Adc_getResult(&g_adcChannel[chnIx]);
        } while(!conversionResult.B.VF); /* B for Bitfield access, VF for Valid Flag */

        sprintf(Vadc_data,"AN0:%d\n",conversionResult.B.RESULT);
        UART_Write(Vadc_data,20);

         int a = (int)conversionResult.B.RESULT;
         return  a;

    }
}

ASCLI-UART模块

#include "IfxAsclin_Asc.h"
#include "IfxCpu_Irq.h"
#include <stdio.h>
/*********************************************************************************************************************/
/*------------------------------------------------------Macros-------------------------------------------------------*/
/*********************************************************************************************************************/
#define UART_BAUDRATE           115200                                  /* UART baud rate in bit/s                  */

#define UART_PIN_RX             IfxAsclin0_RXA_P14_1_IN                 /* UART receive port pin                    */
#define UART_PIN_TX             IfxAsclin0_TX_P14_0_OUT                 /* UART transmit port pin                   */

/* Definition of the interrupt priorities */
#define INTPRIO_ASCLIN0_RX      18
#define INTPRIO_ASCLIN0_TX      19

#define UART_RX_BUFFER_SIZE     64                                      /* Definition of the receive buffer size    */
#define UART_TX_BUFFER_SIZE     64                                      /* Definition of the transmit buffer size   */
#define SIZE                    13                                      /* Size of the string                       */

/*********************************************************************************************************************/
/*-------------------------------------------------Global variables--------------------------------------------------*/
/*********************************************************************************************************************/
/* Declaration of the ASC handle */
static IfxAsclin_Asc g_ascHandle;

/* Declaration of the FIFOs parameters */
static uint8 g_ascTxBuffer[UART_TX_BUFFER_SIZE + sizeof(Ifx_Fifo) + 8];
static uint8 g_ascRxBuffer[UART_RX_BUFFER_SIZE + sizeof(Ifx_Fifo) + 8];

/* Definition of txData and rxData */
uint8 g_txData[] = "Hello World!";
uint8 g_rxData[SIZE] = {''};

/* Size of the message */
Ifx_SizeT g_count = sizeof(g_txData);

/*********************************************************************************************************************/
/*---------------------------------------------Function Implementations----------------------------------------------*/
/*********************************************************************************************************************/
/* Adding of the interrupt service routines */
IFX_INTERRUPT(asclin0TxISR, 0, INTPRIO_ASCLIN0_TX);
void asclin0TxISR(void)
{
    IfxAsclin_Asc_isrTransmit(&g_ascHandle);
}

IFX_INTERRUPT(asclin0RxISR, 0, INTPRIO_ASCLIN0_RX);
void asclin0RxISR(void)
{
    IfxAsclin_Asc_isrReceive(&g_ascHandle);
}

/* This function initializes the ASCLIN UART module */
void init_ASCLIN_UART(void)
{
    /* Initialize an instance of IfxAsclin_Asc_Config with default values */
    IfxAsclin_Asc_Config ascConfig;
    IfxAsclin_Asc_initModuleConfig(&ascConfig, &MODULE_ASCLIN0);

    /* Set the desired baud rate */
    ascConfig.baudrate.baudrate = UART_BAUDRATE;

    /* ISR priorities and interrupt target */
    ascConfig.interrupt.txPriority = INTPRIO_ASCLIN0_TX;
    ascConfig.interrupt.rxPriority = INTPRIO_ASCLIN0_RX;
    ascConfig.interrupt.typeOfService = IfxCpu_Irq_getTos(IfxCpu_getCoreIndex());

    /* FIFO configuration */
    ascConfig.txBuffer = &g_ascTxBuffer;
    ascConfig.txBufferSize = UART_TX_BUFFER_SIZE;
    ascConfig.rxBuffer = &g_ascRxBuffer;
    ascConfig.rxBufferSize = UART_RX_BUFFER_SIZE;

    /* Pin configuration */
    const IfxAsclin_Asc_Pins pins =
    {
        NULL_PTR,       IfxPort_InputMode_pullUp,     /* CTS pin not used */
        &UART_PIN_RX,   IfxPort_InputMode_pullUp,     /* RX pin           */
        NULL_PTR,       IfxPort_OutputMode_pushPull,  /* RTS pin not used */
        &UART_PIN_TX,   IfxPort_OutputMode_pushPull,  /* TX pin           */
        IfxPort_PadDriver_cmosAutomotiveSpeed1
    };
    ascConfig.pins = &pins;

    IfxAsclin_Asc_initModule(&g_ascHandle, &ascConfig); /* Initialize module with above parameters */
}

/* This function sends and receives the string "Hello World!" */
void send_receive_ASCLIN_UART_message(void)
{
    IfxAsclin_Asc_write(&g_ascHandle, g_txData, &g_count, TIME_INFINITE);   /* Transmit data via TX */
    IfxAsclin_Asc_read(&g_ascHandle, g_rxData, &g_count, TIME_INFINITE);    /* Receive data via RX  */
}
void UART_WriteByte(uint8 data)
{
    IfxAsclin_Asc_blockingWrite(&g_ascHandle, data);
}
void UART_Write(uint8 *p_data, Ifx_SizeT count)
{
    uint8 *p_send = p_data;
    if(count > 0)
        IfxAsclin_Asc_write(&g_ascHandle, p_data, &count, TIME_INFINITE);
    else
    {
        while(*p_send != (uint8)'\0')
            UART_WriteByte(*p_send++);
    }
}

心得体会：

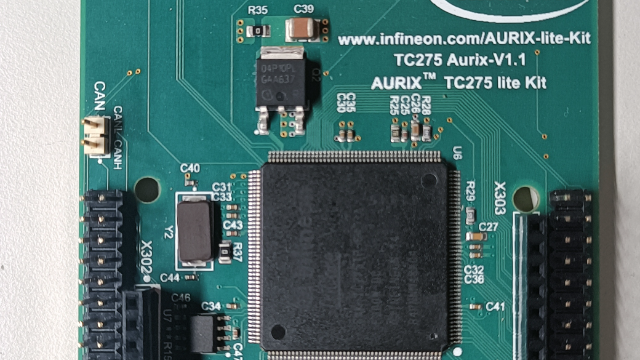

本次活动任务相当简单，在快速入门TC275的时候，这让我想起21年电赛A题，当时没有准备TI的开发板，就有了快速入门TI - MSP432的经历，一样的流程如今在来一番有特别的感受，相较而言英飞凌的文档和教程做的相当完善，官方历程每一条都有注释，非常非常的友好，而当时ti就比较困难，我们是参考第三方教程，根据唯一的一份数据手册去完成ADC+DMA的1M采样率和DSP库的添加。同样，我也感到经过这一年来自己的读文档能力有了不小的提升。这是我第一次接触英飞凌的单片机，这颗TCP275的多核还没有用到，这块板子上还有CAN接口，可以在今后继续学习和使用！同时非常感谢硬禾学堂老师们的付出！
