AntMicro上的开源PCB项目
KiCad设计的开发平台
HDMI connector
microSD card connector
USB 2.0 host controller implemented with Maxim MAX3421EEHJ
Analog audio output implemented with Cirrus Logic CS4344 D/A converter
Analog (line) audio input implemented with Cirrus Logic CS5343 A/D converter
GPIO expander with LED indicators
KiCad设计

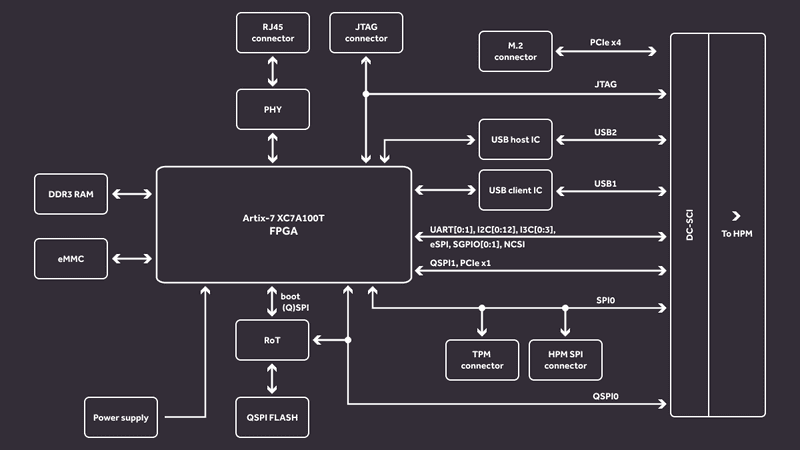

Artix-7 FPGA - XC7A100T-FGG484
DC-SCI standard 168-pin 4C+ edge connector
On-board DDR3 DRAM (AS4C256M16D3) and eMMC (MTFC16GAPALNA-AIT)
4x SPI FLASH memory
Gigabit Ethernet over KSZ9031RNXCA PHY
JTAG connector
Host and client USB (over USB3300-EZK-TR PHY)
M.2 NVMe interface
13x I2C buses, 4x I3C buses
2x UART
SPI connector
RoT module connector
TPM SPI connector

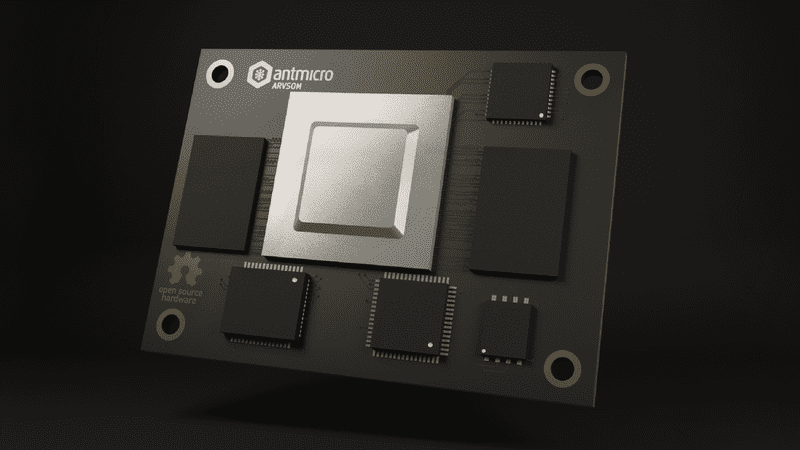

StarFive 71x0 SoC (7100 in the current revision until 7110 becomes available)
2x DF40 board-to-board connectors for baseboard integration
HDMI
Gigabit Ethernet
USB 3.0
2x MIPI CSI-2 (2 lanes each)
I2C
MIPI DSI (4 lanes)
SD/SDIO/eMMC
26 GPIOs
32MB QSPI NOR Flash memory
8GB LPDDR4 (2x 4GB)

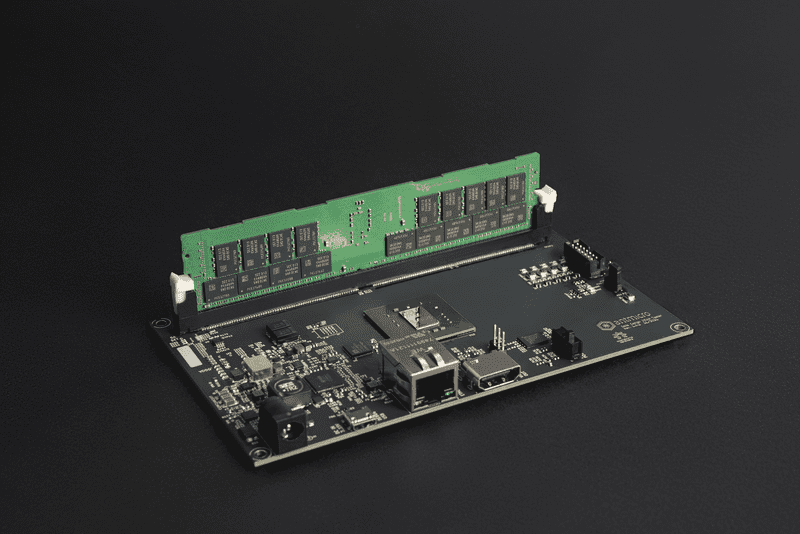

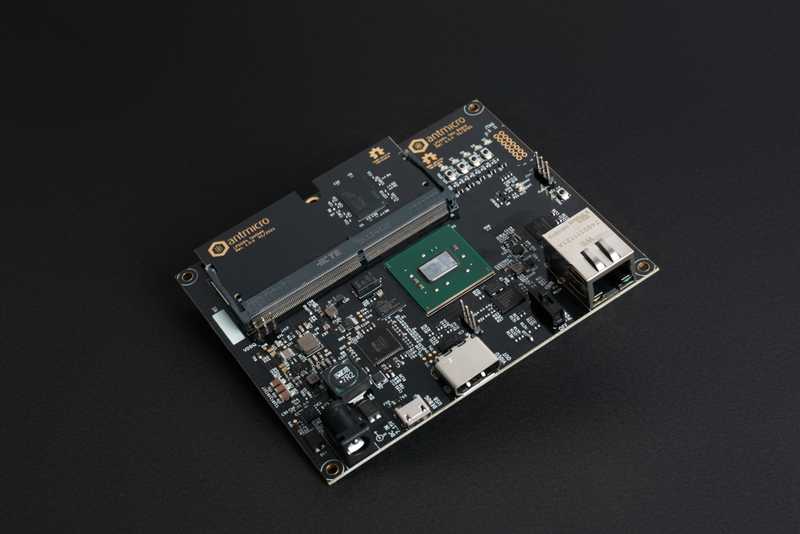

Kintex-7 FPGA - XC7K100T-FBG686
DDR4 RDIMM connector
HDMI output connector
Ethernet RJ45 connector with 1GbE transciever
Micro USB debug connector with FT4232HQ FTDI USB controller
JTAG
microSD card slot
16Mbytes S25FL128S QSPI FLASH memory
S27KL0641 HyperRAM
External 7-12V power input
5 user LEDs
4 user buttons

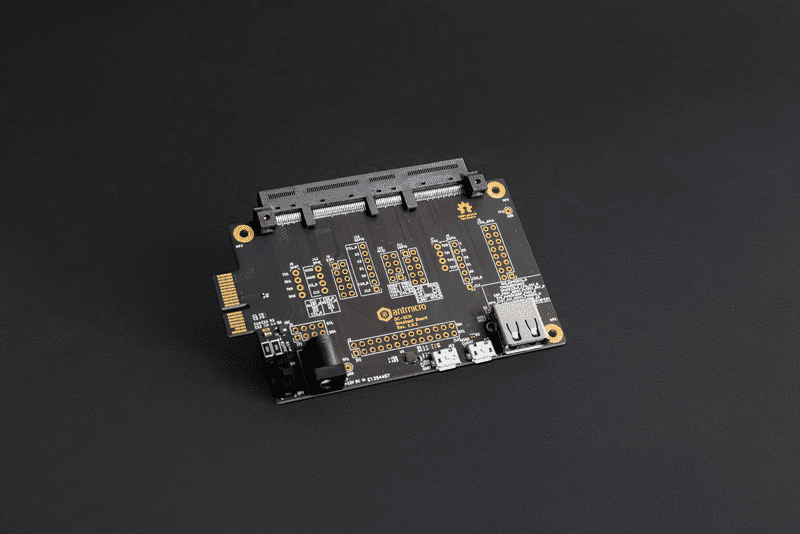

Expansion connector compatible with 168-pin DC-SCM horizontal cards
USB 2.0 (type-A) connector for testing USB host controllers
Micro USB 2.0 connector for testing USB client controllers
Micro USB 2.0 connector with serial console break-routed from one of the DC-SCM UART ports
PCIe x1 edge connector
DC barrel jack
Pin headers exposing low speed IO interfaces offered by DC-SCM modules (I2C, UART, SPI, QSPI etc.)

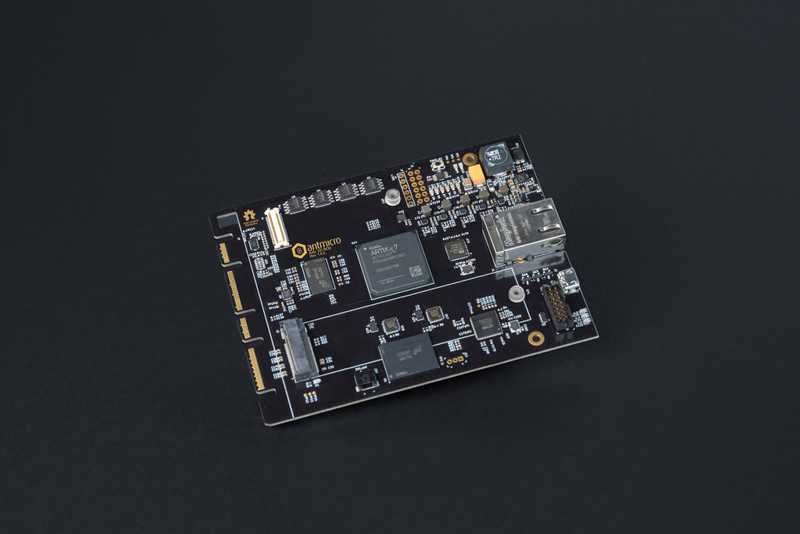

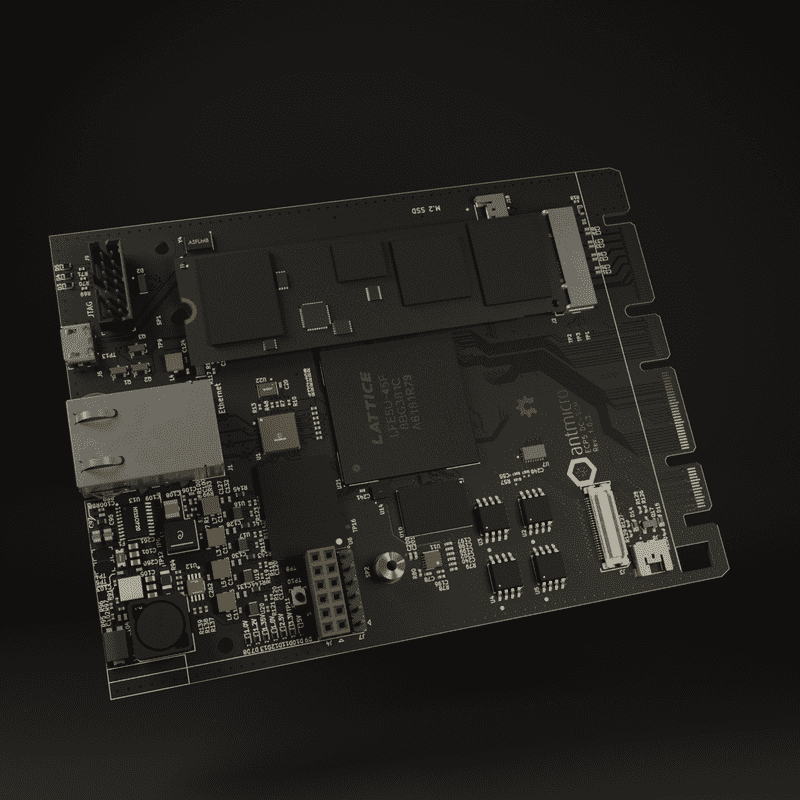

ECP5 FPGA - LFE5UM5G-85F-8BG756C
DC-SCI standard 168-pin 4C+ edge connector
On-board DDR3 DRAM and eMMC
QSPI FLASH memory
Gigabit Ethernet interface with KSZ9031RNXCA transciever
JTAG connector
M.2 (key M) connector with PCIe x4 interface
13 I2C buses, 4 I3C buses
dual UART
2x USB 2.0 host/device PHY (USB3300)
SPI connector
RoT module connector
TPM SPI connector
optional external 12V power input

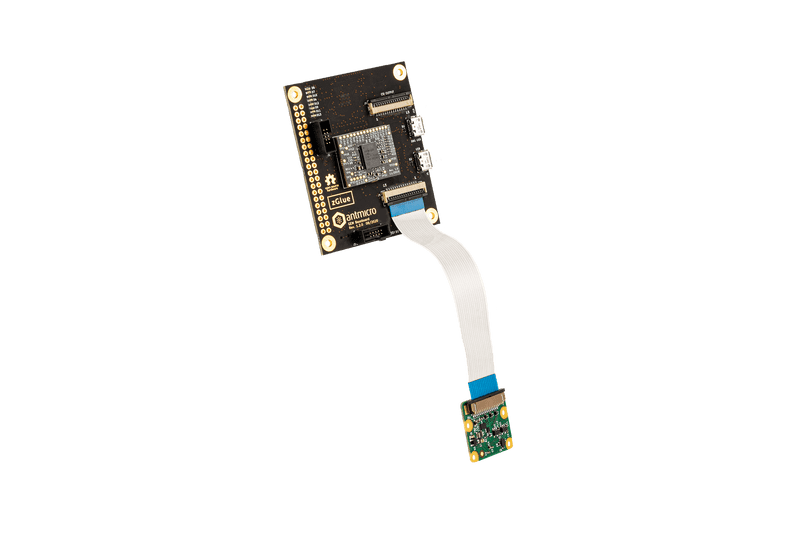

2x Lattice ICE40UP5K-UWG30ITR FPGAs used for processing and system control
32Mbit SPI FLASH memory
10-channel DPDT MIPI switch allowing to connect a 2-lane MIPI CSI-2 interface either to the processing FPGA or to external output (pass-through mode)
12MHz system clock generator
Internal LDOs and power management unit providing 1V2, 1V8, 2V5, 3V3 voltages

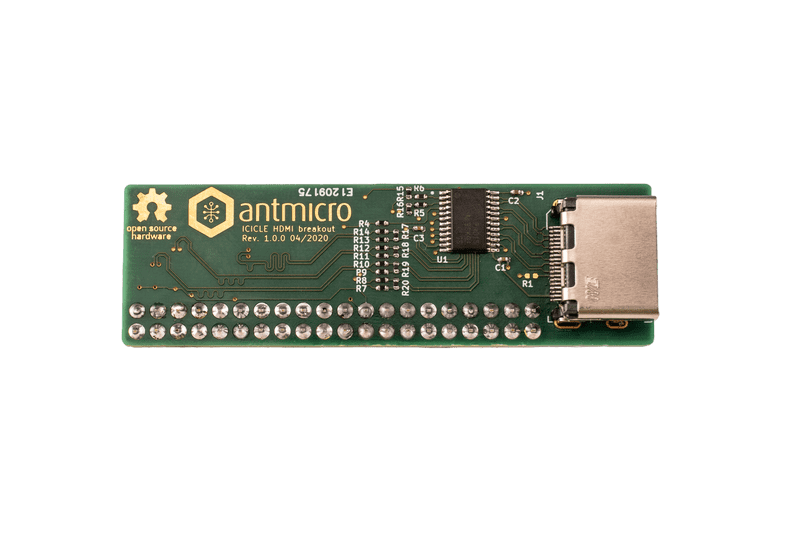

This repository contains open hardware design files for Antmicro's expansion board compatible with the PolarFire SoC FPGA Icicle Evaluation Kit from Microchip.. The design files were created in KiCad. The expansion board breaks out an HDMI interface on a regular HDMI connector. The TMDS data going out of this connector are connected to the FPGA fabric in MPFS250T-FCVG484EES PolarFire SoC. The expansion board should be connected to the J26 expansion connector on the Icicle board. For more information regarding the electrical connections please refer to the schematic sheets and compare them against the offcial documentation of the PolarFire Icicle kit.
Kintex-7 FPGA - XC7K70T-FBG484
Modular design with custom DDR4 SO-DIMM connector
HDMI output connector
Ethernet RJ45 connector with 1GbE transciever
Micro USB debug connector with FT4232HQ FTDI USB controller
JTAG
microSD card slot
16Mbytes S25FL128S QSPI FLASH memory
S27KL0641 HyperRAM
External 7-12V power input
5 user LEDs
4 user buttons

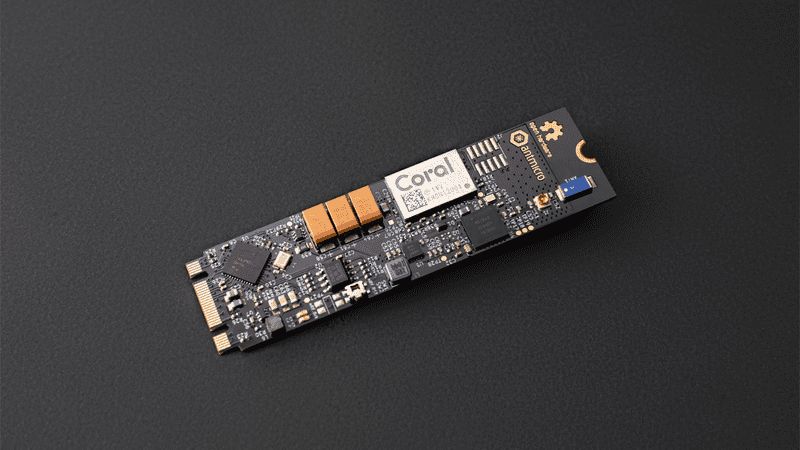

M.2 key B+M form factor
on-board PCIe-USB bridge
Nordic Semiconductor nRF52840 Radio SoC
Google Coral Edge TPU Accelerator Module

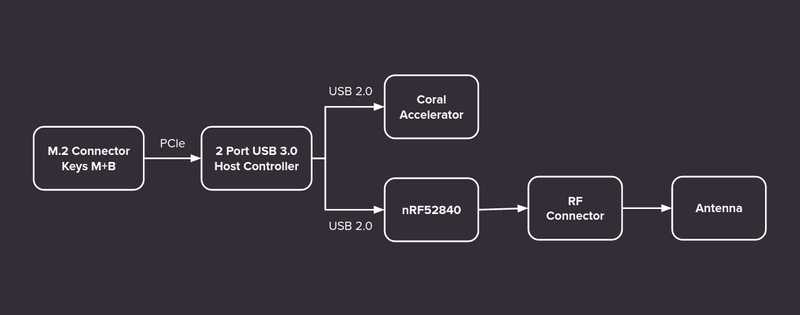

框图

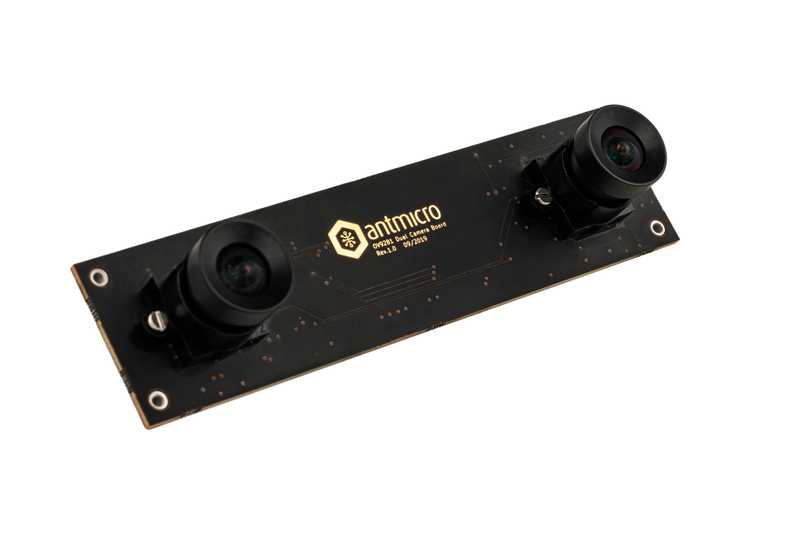

Image sensor(s): 2 x monochrome global shutter OV9281
Pixel size: 3μm x 3 μm
Active array size: 1280 x 800
Optical size: 1/4 inch
Lens mount: M-12 (S-Mount)
Output interface: 50-pin FFC connector
Output formats: 8/10-bit BW RAW
Maximum image transfer rate: 1280 x 800 @60 fps

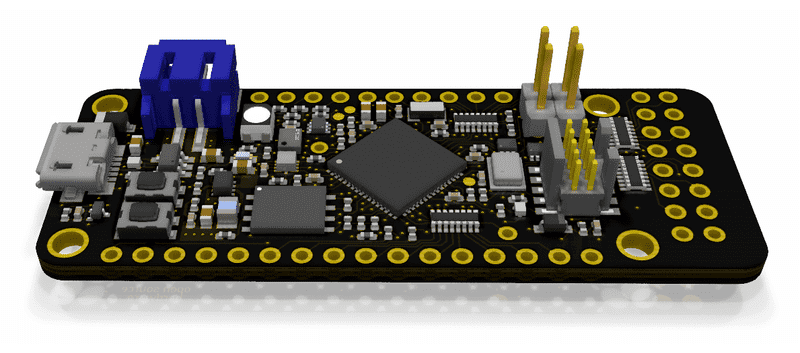

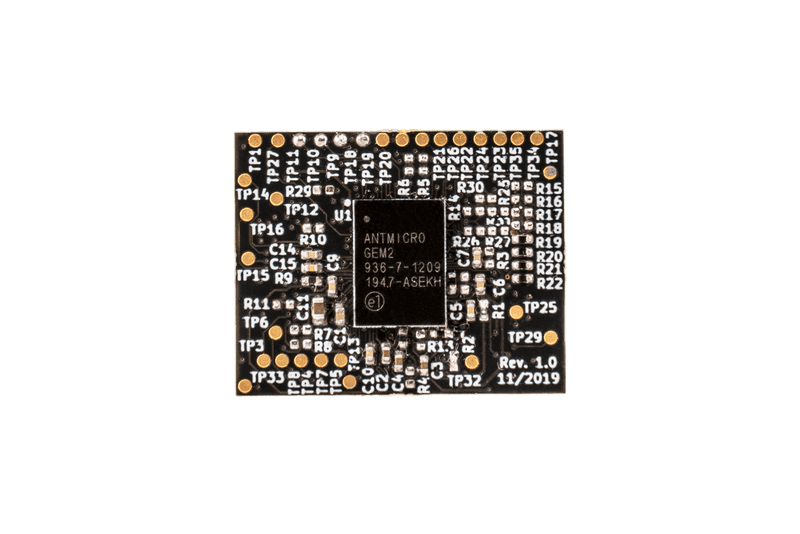

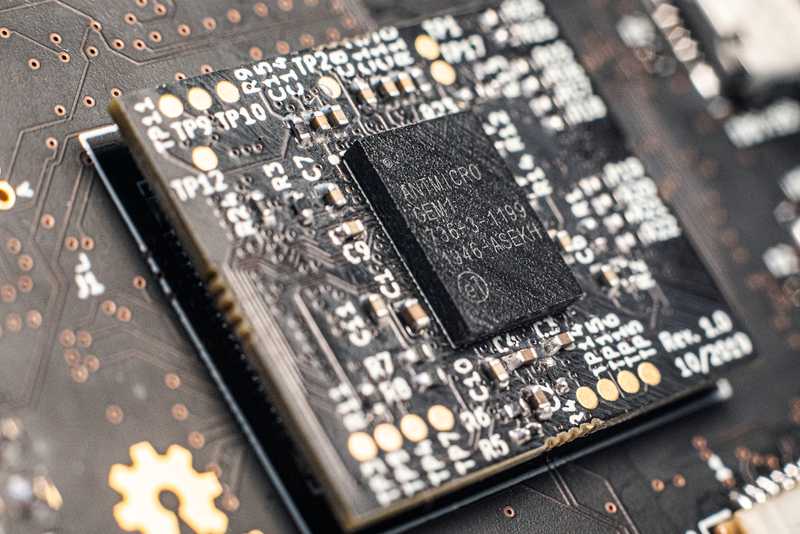

QuickLogic EOS S3 Processing Platform
mCube MC3635 accelerometer
Infineon DPS310 pressure sensor
Infineon IM69D130 MEMS microphone
16Mbit of on-board flash memory
User button and RGB LED
Powered from USB or a single Li-Po battery
Integrated battery charger
USB data signals tied to programmable logic
IO signals break-routed into general purpose pinheads
Compatible with standard 0.1" breadboards

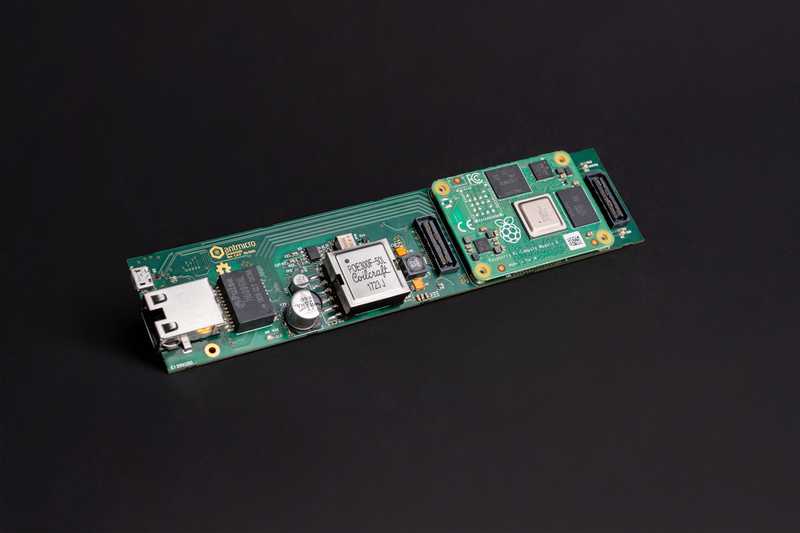

Supports Raspberry Pi CM4
Gigabit Ethernet with integrated PoE circuitry
On-board M.2 (key-M) slot supporting NVMe SSDs
Slim PCB outline for 1U chassis
Expansion connector for peripherals connected over USB
Expansion connector for HDMI adapters

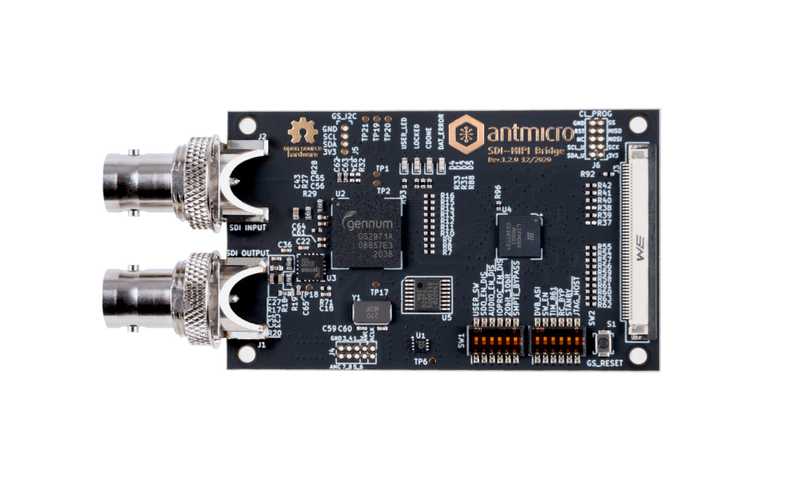

Implements Single Link (3G-SDI) video conversion
Supports SMPTE ST 425 (Level A and Level B), SMPTE ST 424, SMPTE ST 292, SMPTE ST 259-C and DVB-ASI as defined by the Semtec GS2971A specification
Integrated loopback BNC connector for easy daisy-chaining with multiple SDI video accessories
Audio de-embedder for 8 channels of 48kHz audio exposed on I2S 10 pin header
Two 4-lane MIPI CSI-2 interfaces with up to 6 Gbps, each exposed on the 50 pin FFC connector.
I2C configuration interface to handle CrossLink FPGA and SDI deserializer
SPI interface for CrossLink configuration
12x DIP switches to initially configure the deserializer
2 LED indicators for user purposes

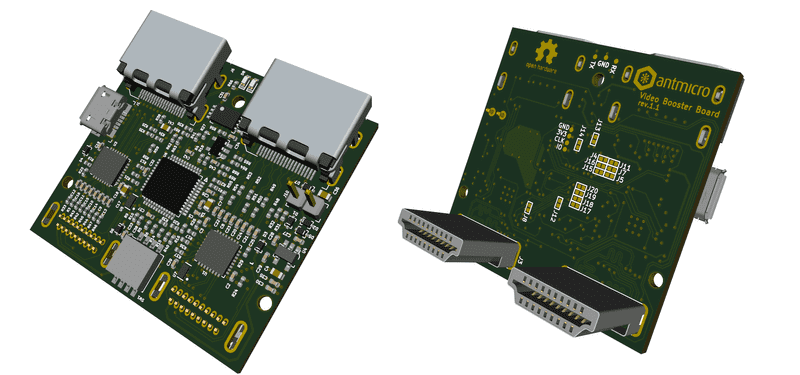

HDMI signal preconditioning with a pair of PTN3363 HDMI level shifters.
Signal equalization controlled with on-board DIP-Switch
On-board SiLabs EFM32HG322F64 MCU for interactive control and board monitoring
Supports different EDID connection scenarios
Altium Designer设计的PCB

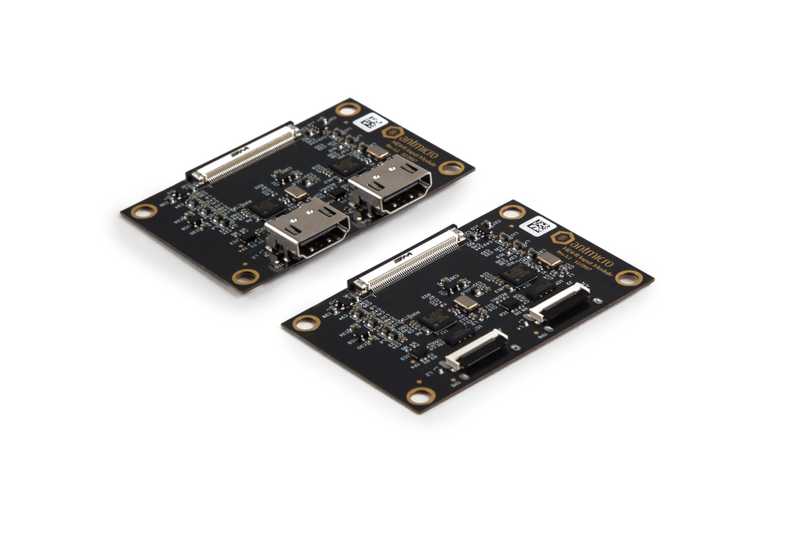

This repository contains the open hardware design files for Antmicro's HDMI-MIPI Bridge, which is a video accessory converting HDMI video stream into MIPI CSI-2 counterpart. The conversion is performed using Toshiba TC358743XBG HDMI interface bridge. The board includes two independent conversion channels supporting up to two HDMI streams.

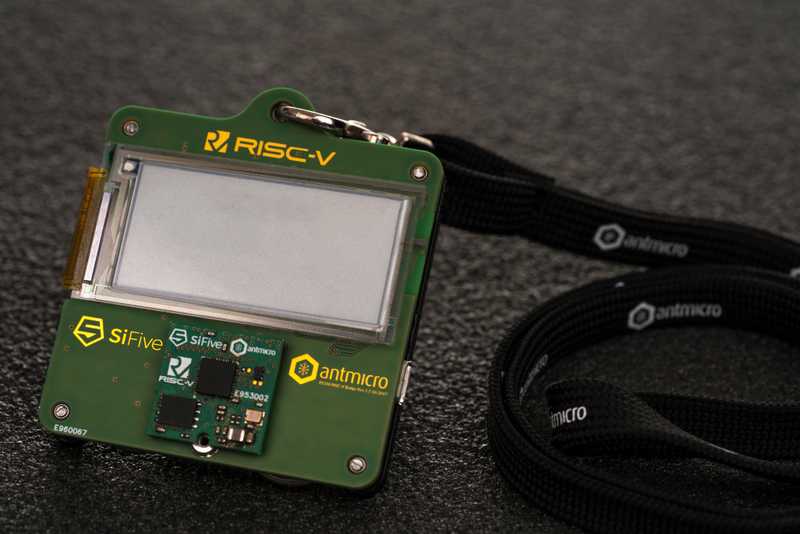

32-bit RISC-V based SiFive FE310 microcontroller placed on a tiny PCB module that can be re-used with a custom baseboard
EG020BS011 2" e-Paper display
NFC/RFID tag with 64Kbit EEPROM
debug USB-JTAG/UART interface (FT4232H) allows the board to be used as an evaluation board
battery powered (2x CR2032) / 5V over microUSB
SiLabs EFR32-based ARTIK-030-AV1R IoT module with Bluetooth support (optional)

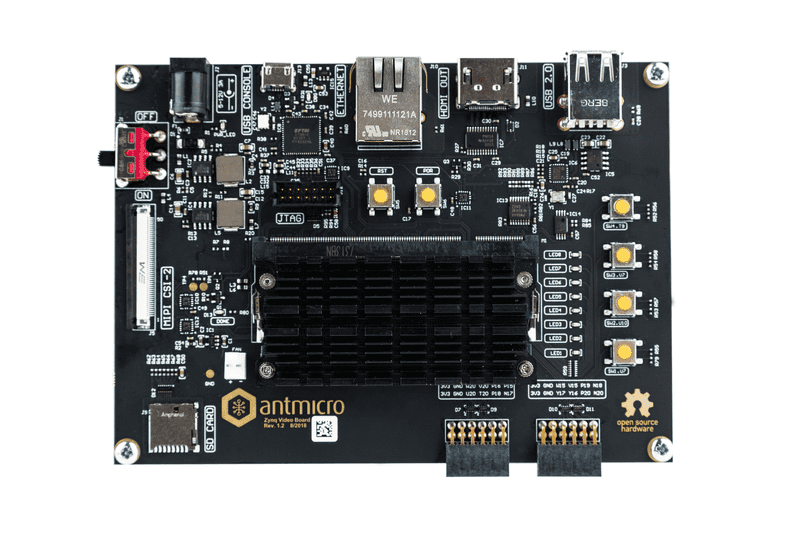

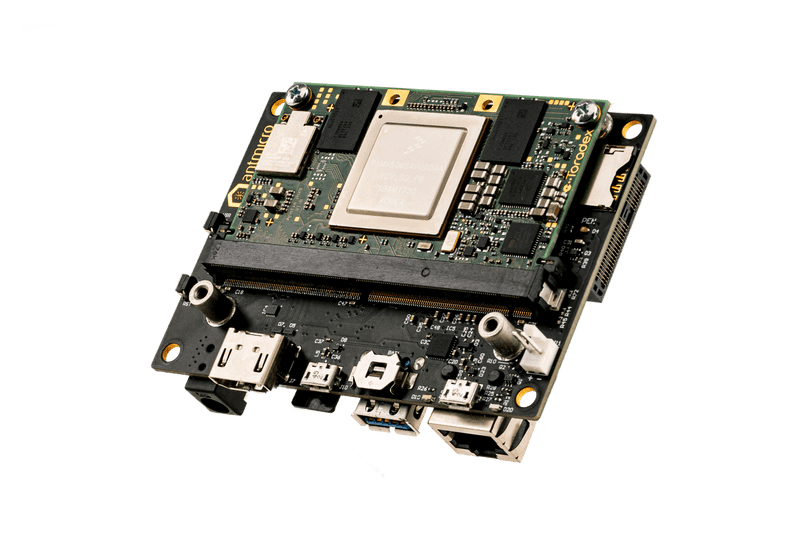

SO-DIMM connector supporting Enclustra Mars family
Gigabit Ethernet RJ45 connector
Micro SD connector
USB 2.0 hub with two downstream ports exposed
HDMI output interface
Debug micro USB connector (supporting serial console and JTAG)
JTAG connector supporting Xiling Platform Cable
2x MIPI CSI-2 camera interfaces (2 lanes) exposed on FPC connector
onboard D-PHY receiver circuitry connected to the FPGA fabric
2x Digilent Pmod (TM) connectors for external accessories

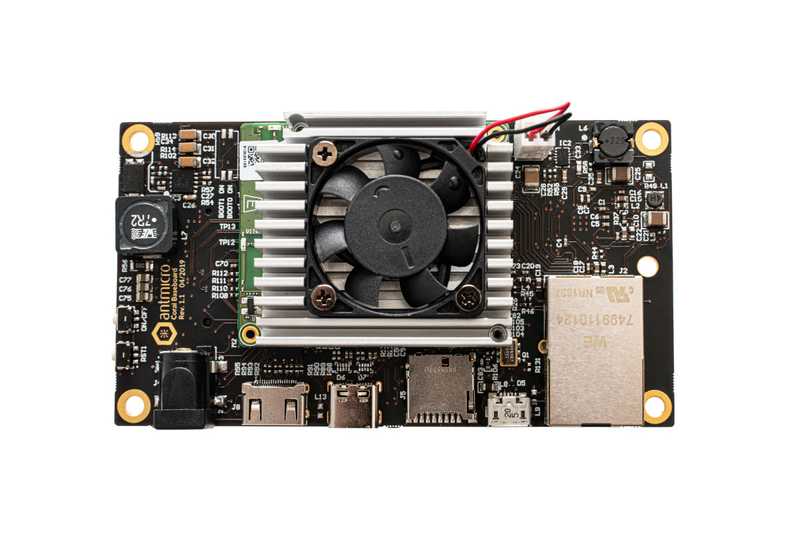

Interface connectors for the Coral Edge TPU module
Gigabit Ethernet RJ45 connector
Micro USB serial debug connector
Micro SD card interface
50-pin FFC connectors exposing MIPI CSI-2 camera interfaces
USB-C DFP (Host) port
Mini HDMI video output interface
Integrated DC/DC power supply accepting 6-36VDC of input voltage

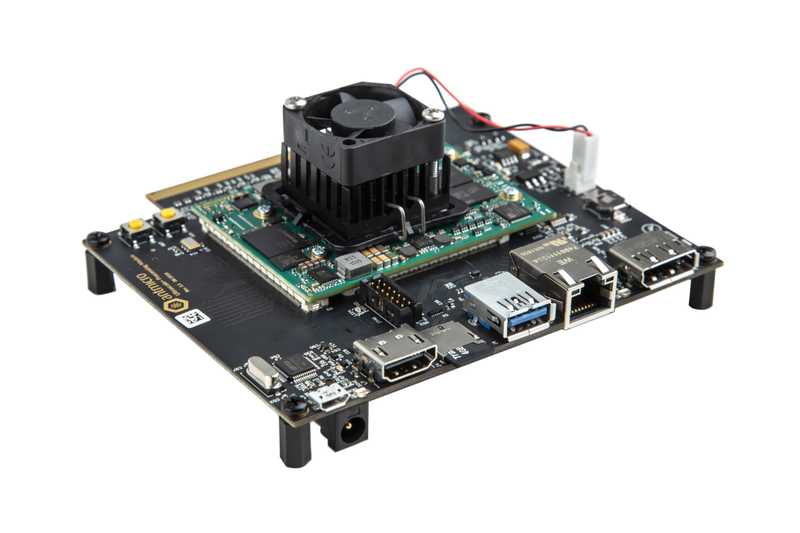

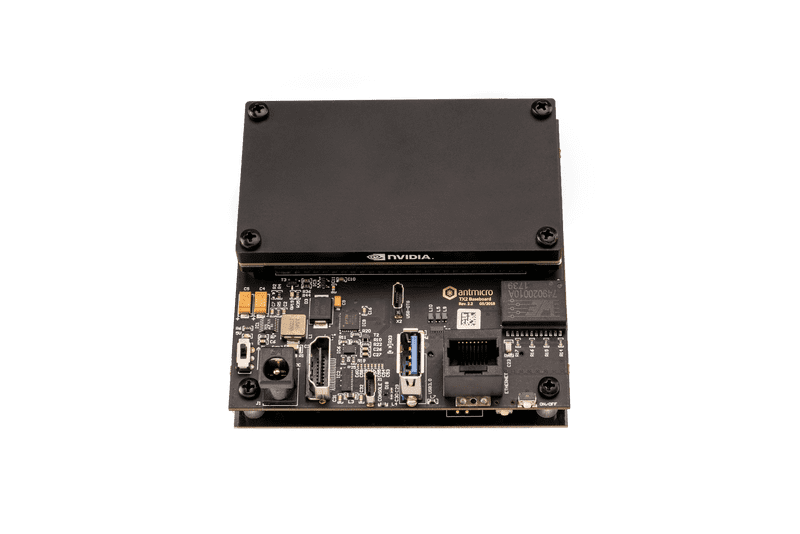

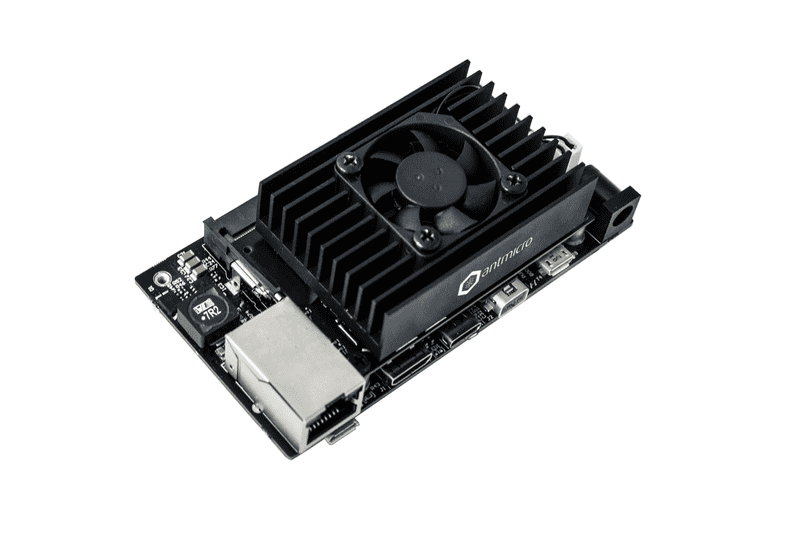

Jetson Nano / Xavier NX / TX2 NX SO-DIMM connector
Gigabit Ethernet RJ45 connector
Micro USB debug connector
USB-C DFP (Host) port
Mini HDMI video output interface
Mini DisplayPort video output interface
2x 50-pin FFC connectors exposing up to 4 MIPI CSI-2 camera interfaces
M.2 (key M) connector exposing PCIe x4 interface
RTC battery backup
EEPROM for storing board ID/SN

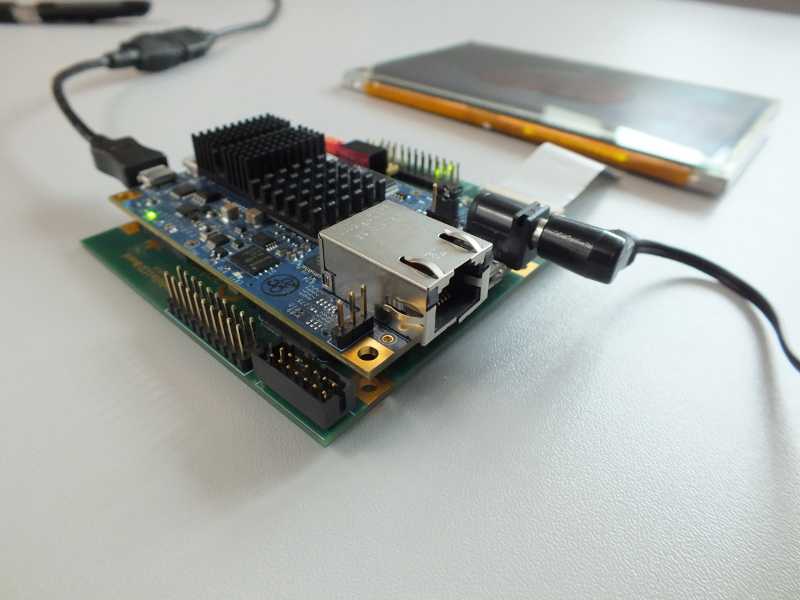

Toradex Apalis SoM edge connector
FFC interface exposing up to 2 x 4-lane MIPI CSI-2, depending on the Apalis SoM used
mSATA connector
miniPCIe connector
USB 3.0 host interface
HDMI output interface
2 x Micro USB (debug and OTG)
Gigabit Ethernet RJ45 connector
Micro SIM slot
RTC battery backup
9-24V DC power supply voltage
Enclustra Mercury+ module connector
28 differential pairs available on the edge backplane connector
48 differential pairs available on the board-to-board Samtec QSE expansion connector
DisplayPort as the default video output from the system
FPGA-driven HDMI output display interface
MicroSD card slot
USB 3.0 host interface
Gigabit Ethernet
DisplayPort output video interface
14-pin JTAG interface
USB 3.0 host interface
HDMI output
Micro USB OTG connector
Serial debug console over micro USB
Configurable mPCIe/mSATA card holder
Gigabit Ethernet RJ45 connector
3x 50-pin FFC camera connectors exposing up to 6 MIPI CSI-2 camera interfaces
Autostart circuitry
RTC battery backup
EEPROM for storing board ID/SN
CAN interface (optional, not populated by default)
12-19V DC supply voltage
90 x 90 mm dimensions
