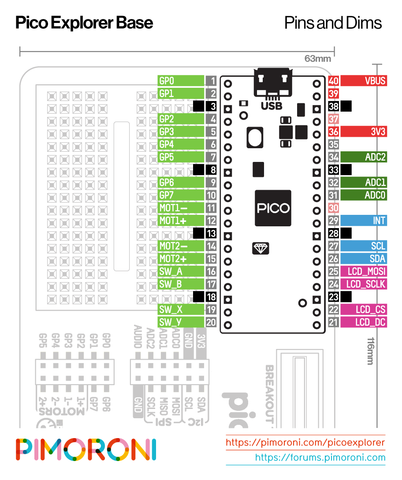

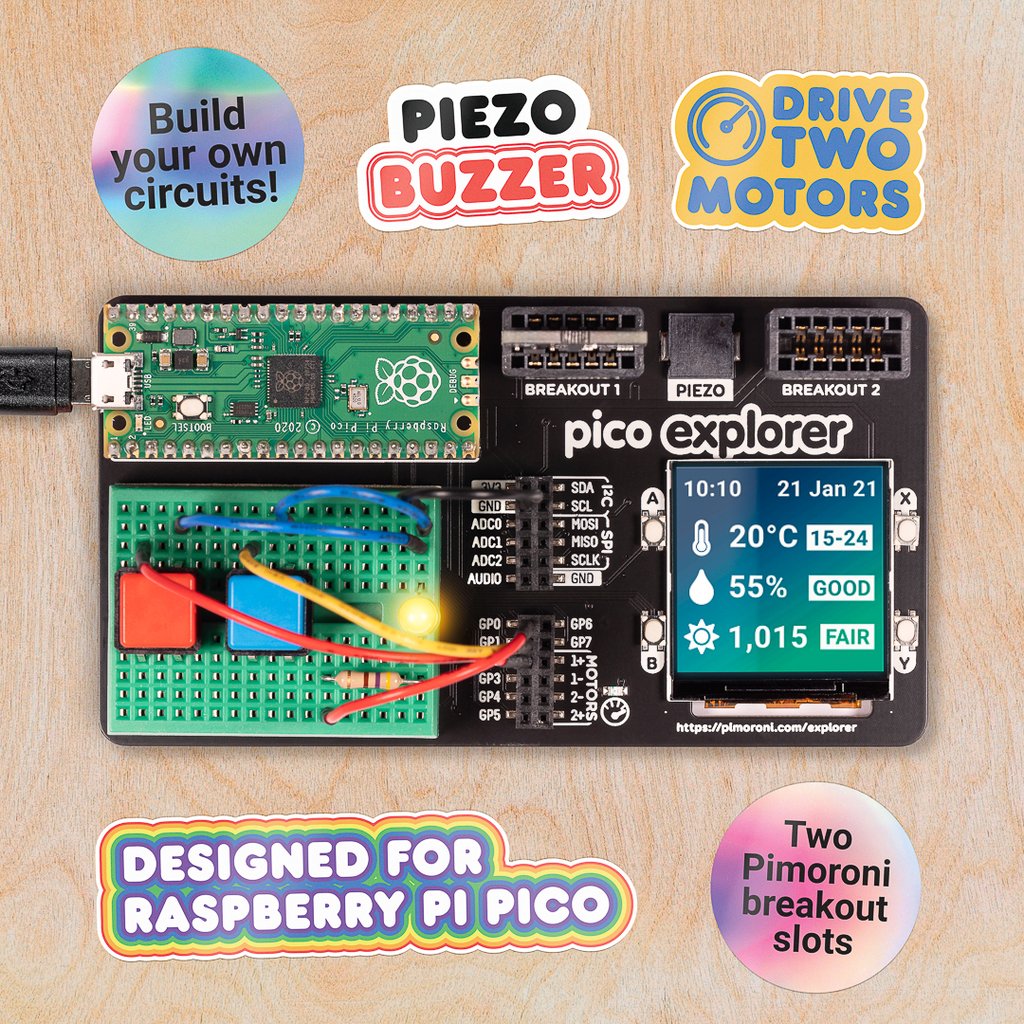

Pico Explorer Base

Piezo speaker

1.54" IPS LCD screen (240 x 240)

Four user-controllable switches

Two Half-Bridge motor drivers (with over current indicator LED)

Easy access GPIO and ADC pin Headers

Two Breakout Garden I2C sockets

Mini breadboard

Rubber feet

Compatible with Raspberry Pi Pico.

No soldering required (as long as your Pico has header pins attached).

Dimensions: approx 117mm x 63mm x 20mm (L x W x H, assembled)

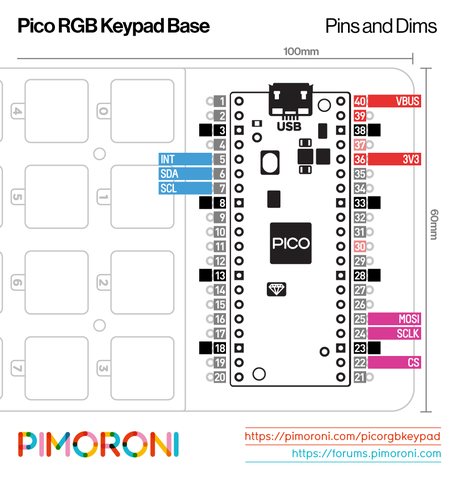

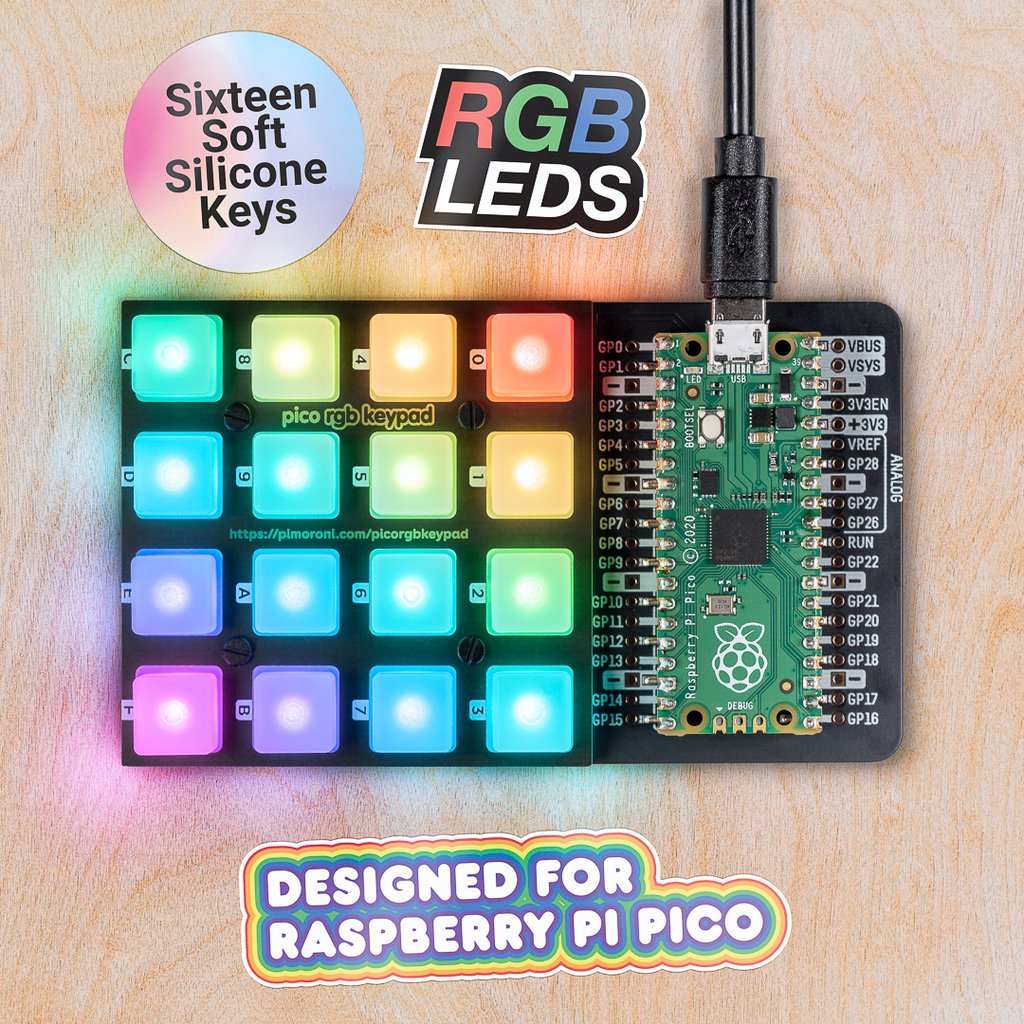

4x4 silicone keypad with conductive buttons

16 x APA102 addressable RGB LEDs (datasheet)

Keypad buttons are connected via a TCA9555 IO expander (I2C address: 0x20).

Labelled landing area with female headers for attaching your Pico, with broken out pins.

Compatible with Raspberry Pi Pico.

Some assembly required!

No soldering required (as long as your Pico has header pins attached).

Dimensions: approx 60mm x 101mm x 16mm (L x W x H, assembled)

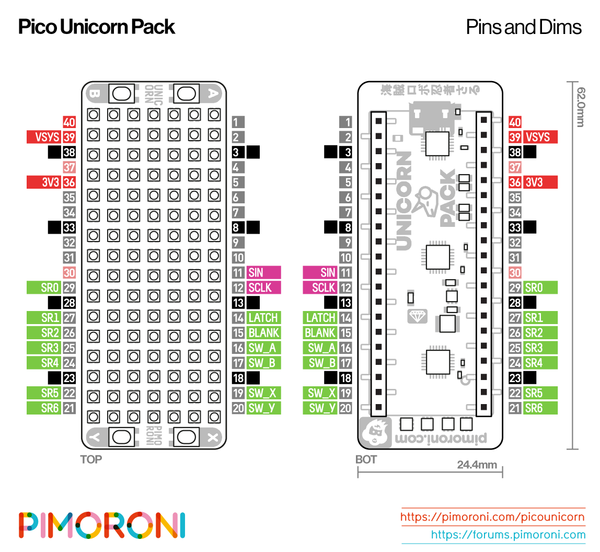

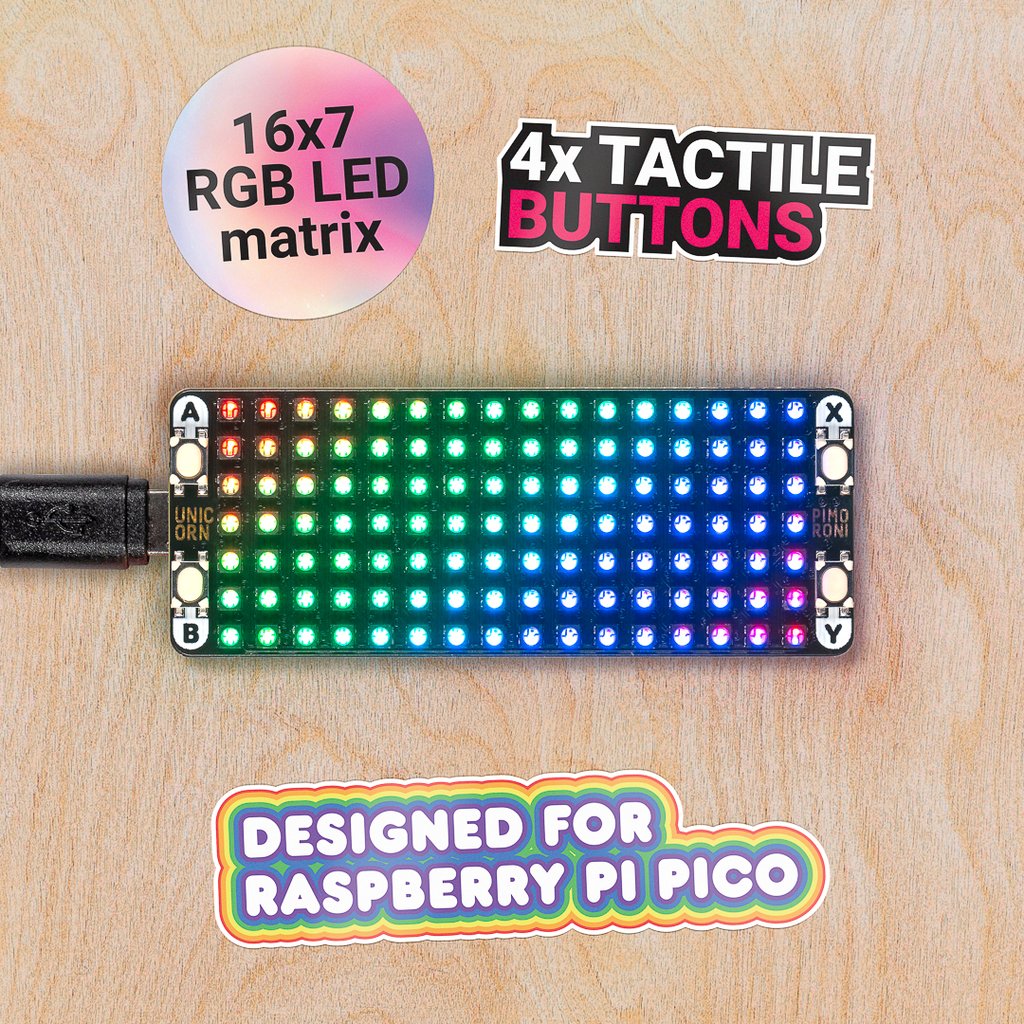

16x7 matrix of RGB LEDs (112 total)

Individual colour/brightness control of each LED

4 x tactile buttons

Pre-soldered female headers for attaching to Pico

Compatible with Raspberry Pi Pico.

Fully assembled

No soldering required (as long as your Pico has header pins attached).

Dimensions: approx 62mm x 25mm x 10mm (L x W x H, including headers and buttons)

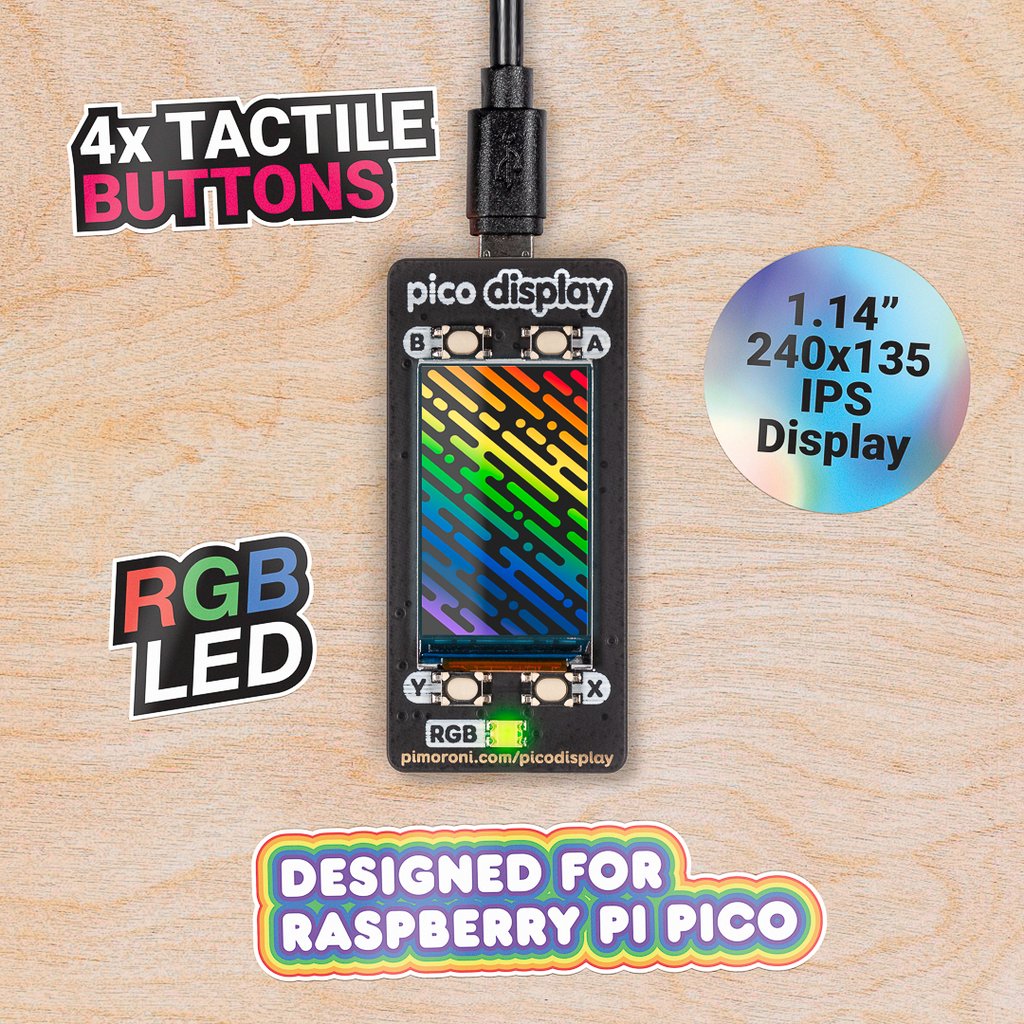

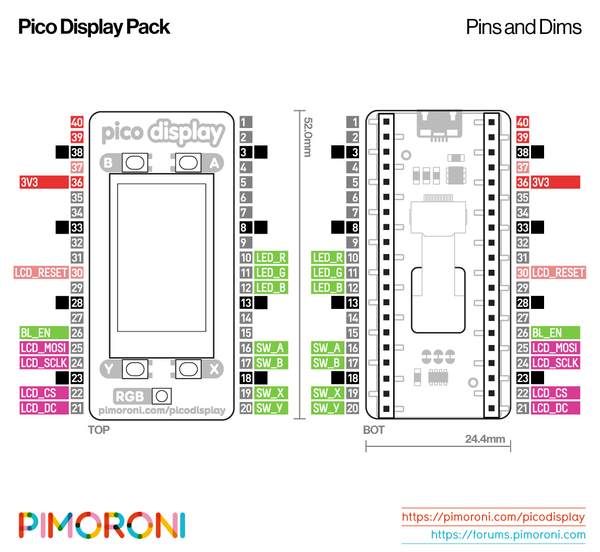

1.14” 240x135 pixel IPS LCD screen

4 x tactile buttons

RGB LED

Pre-soldered female headers for attaching to Pico

Compatible with Raspberry Pi Pico.

Fully assembled

No soldering required (as long as your Pico has header pins attached).

Dimensions: approx 53mm x 25mm x 9mm (L x W x H)

Screen usable area: approx 25mm x 15mm (L x W)

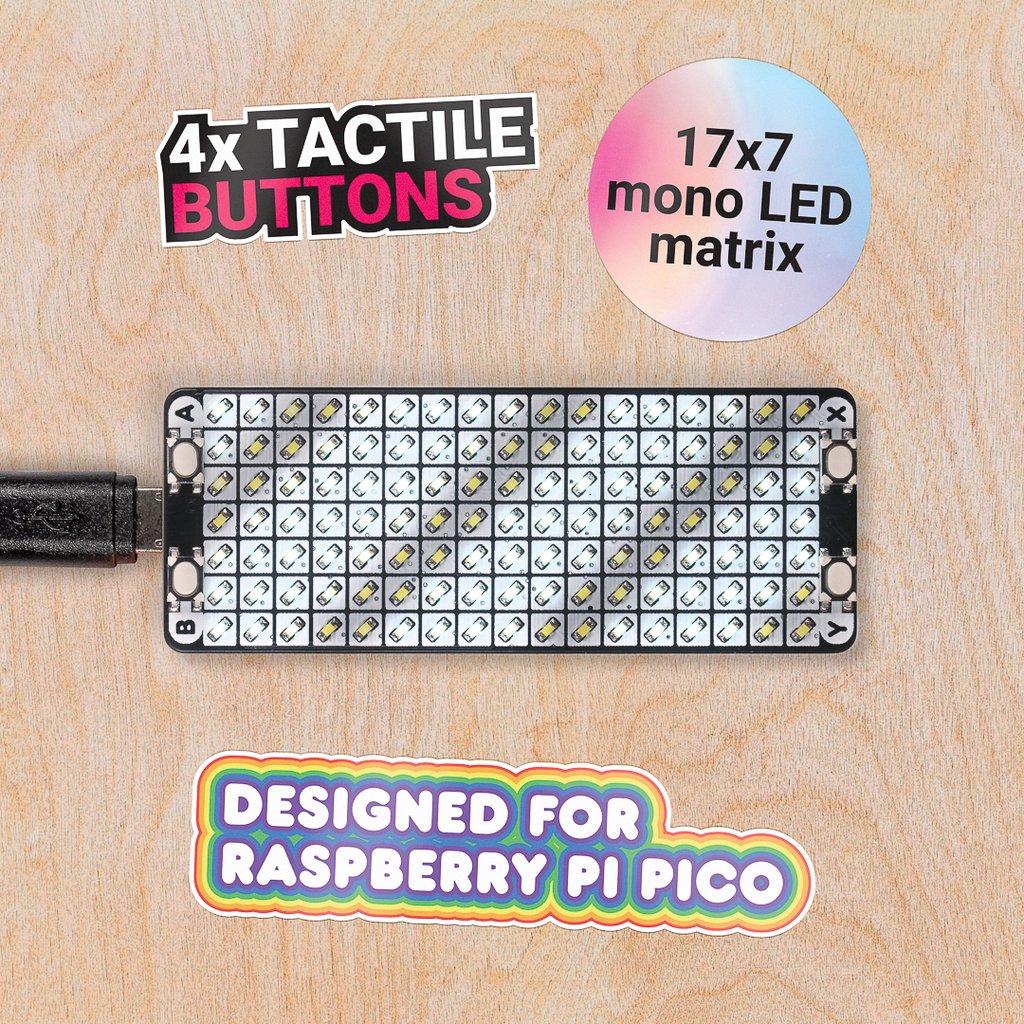

17x7 matrix of white LEDs (119 total)

Individual PWM brightness control of each LED

IS31FL3731 LED matrix driver chip, I2C address: 0x74

4x tactile buttons

Pre-soldered female headers for attaching to Pico

Compatible with Raspberry Pi Pico.

Fully assembled

No soldering required (as long as your Pico has header pins attached).

Dimensions: approx 65mm x 25mm x 10mm (L x W x H, including headers and buttons)

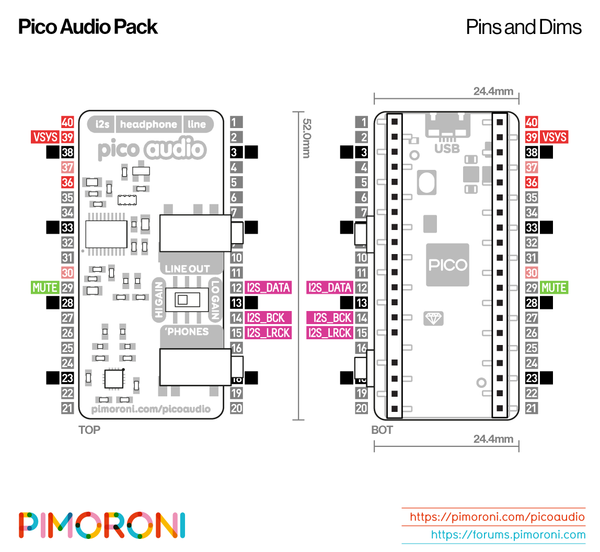

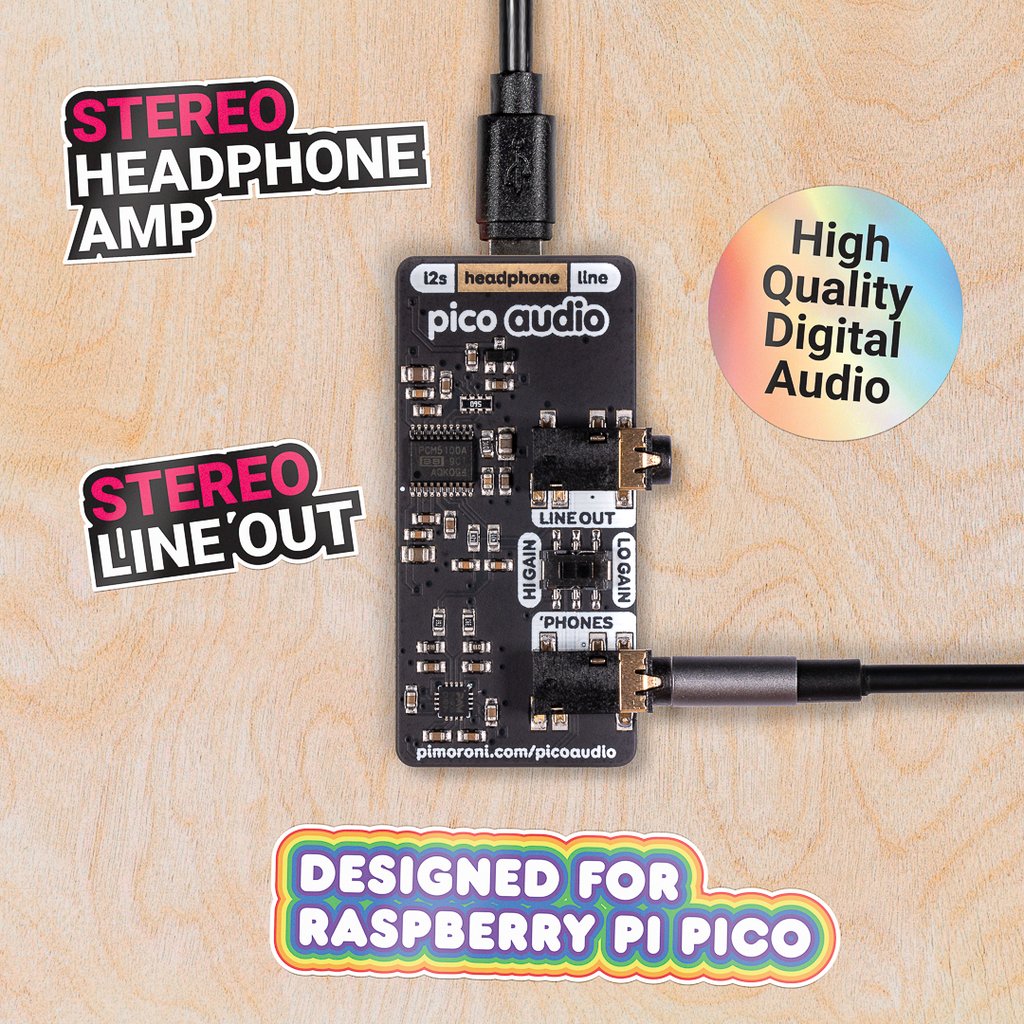

PCM5100A stereo DAC (datasheet)

PAM8908JER stereo headphone amp (datasheet)

3.5mm stereo headphone jack connector

3.5mm stereo line out jack connector

Switch to adjust headphone amp gain (low / high)

Pre-soldered female headers for attaching to Pico

Compatible with Raspberry Pi Pico

Fully assembled

No soldering required (as long as your Pico has header pins attached).

Dimensions: approx 53mm x 29mm x 11mm (L x W x H, including headers and audio jacks)

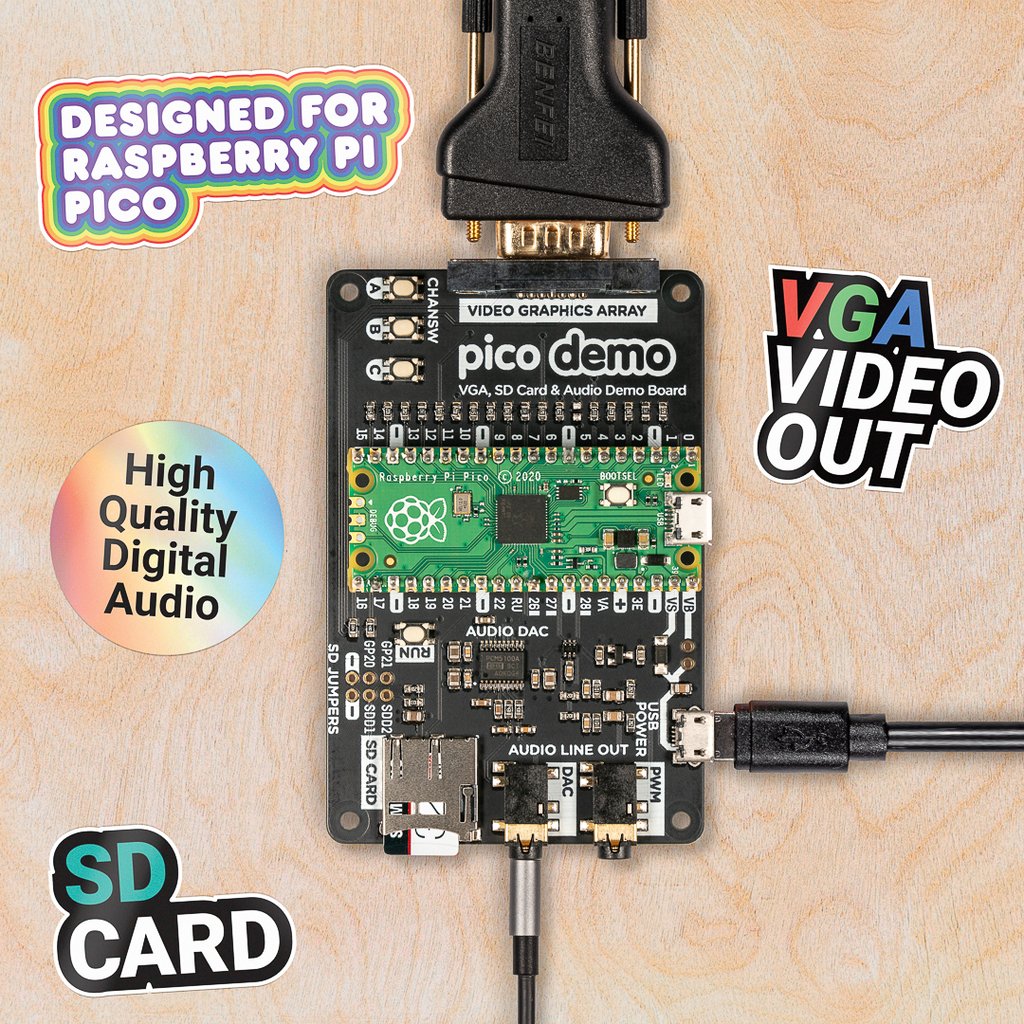

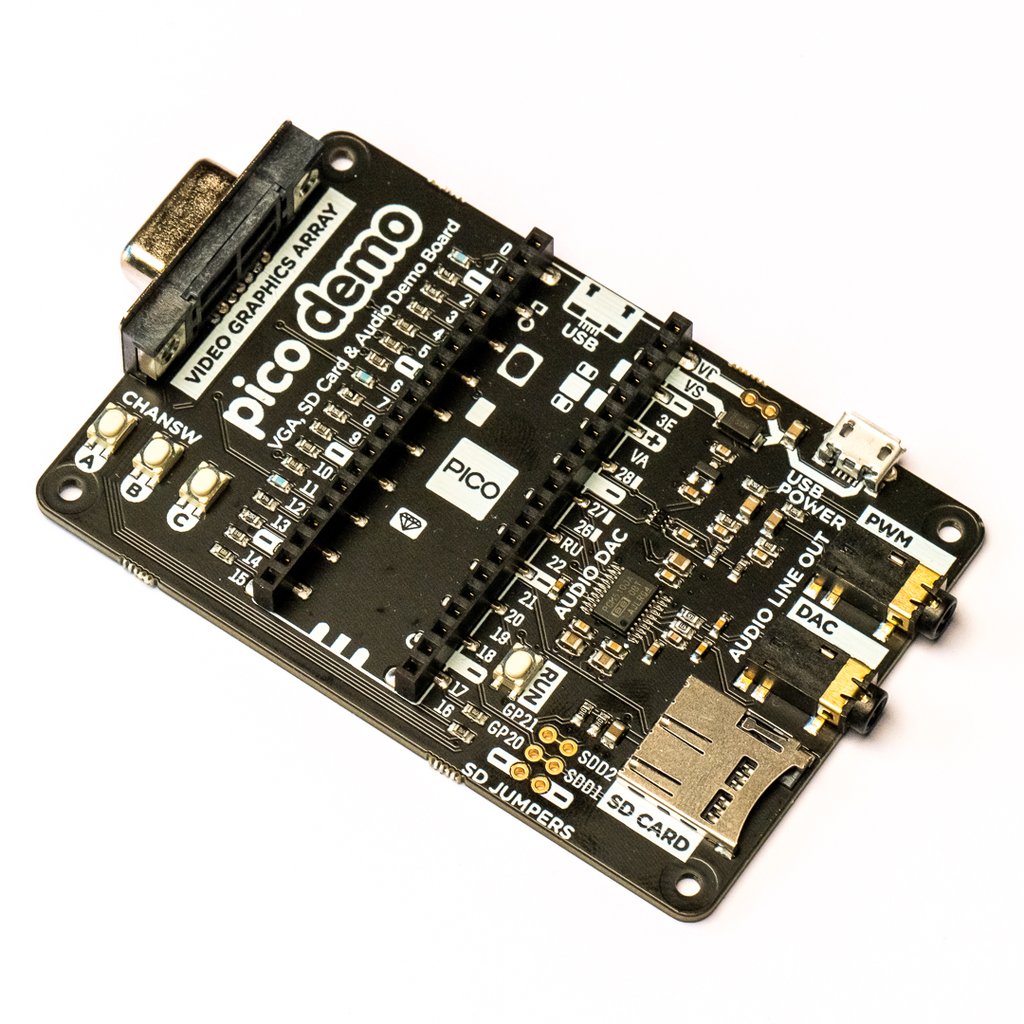

15-pin VGA connector

PCM5100A DAC for line out audio over I2S (datasheet)

PWM audio output

SD card slot

Reset button

Female headers to install your Raspberry Pi Pico

Three user-controllable switches

Rubber feet

Compatible with Raspberry Pi Pico

No soldering required (as long as your Pico has header pins attached)

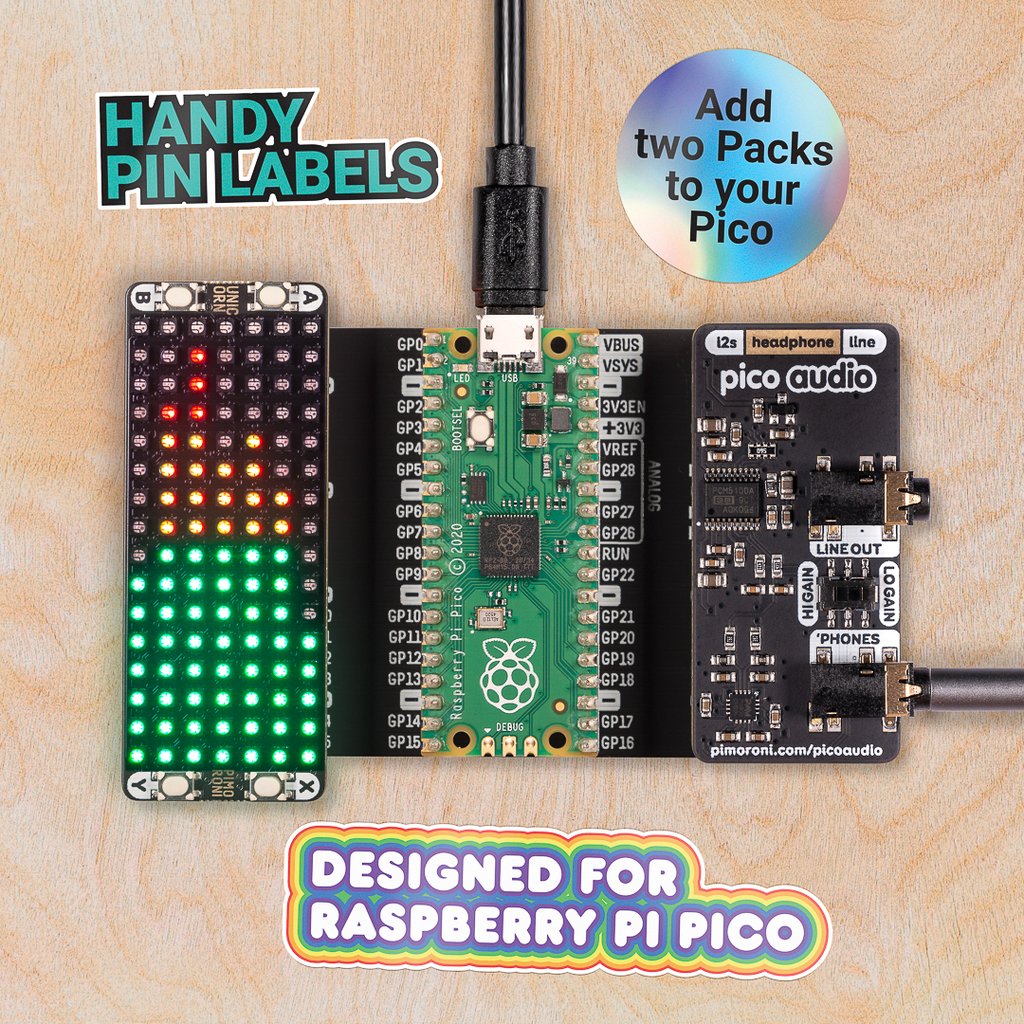

One landing area with labelled female headers for attaching to your Pico.

Two landing areas with labelled (mirrored) male headers for attaching add-ons.

4x rubber feet

Compatible with Raspberry Pi Pico.

99% assembled - just need to stick on the feet!

Fully assembled.

No soldering required.

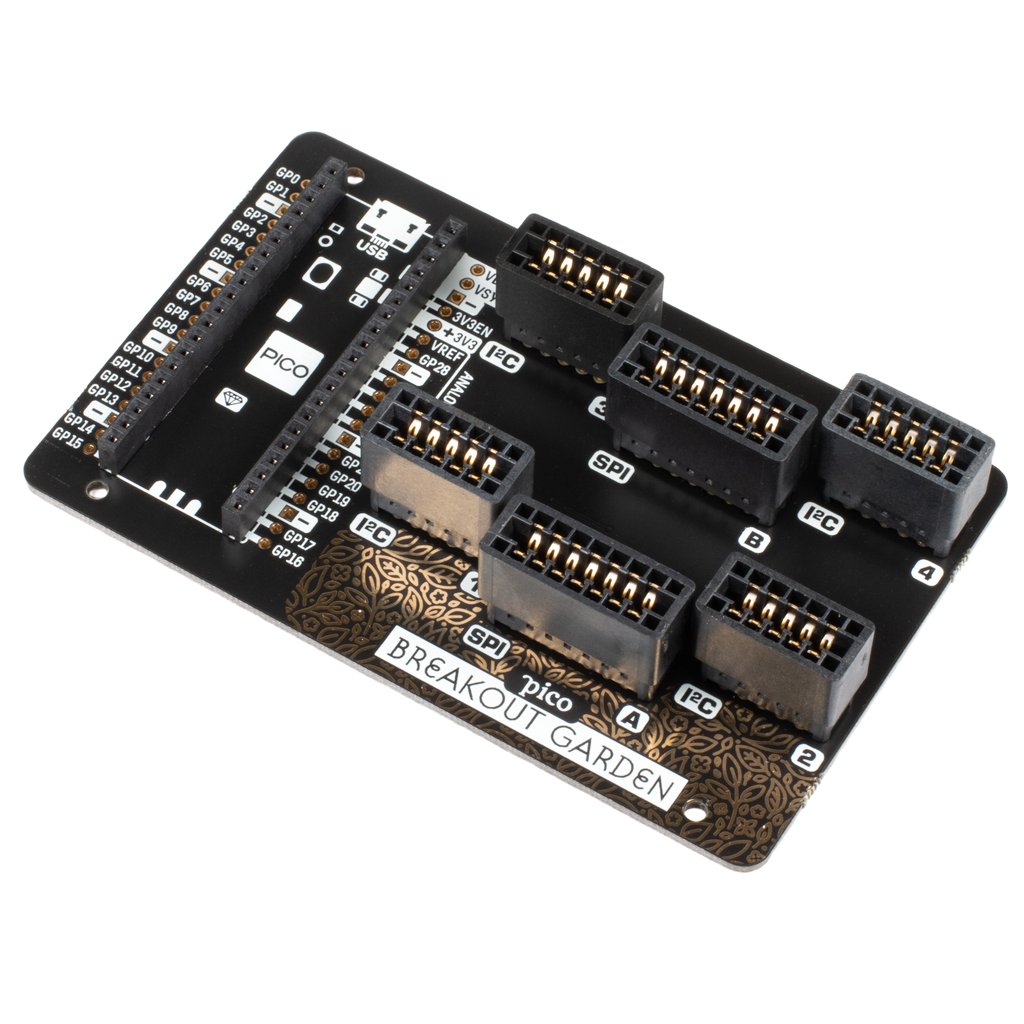

Six sturdy edge-connector slots for Pimoroni breakouts

4x I2C slots (5 pins)

2x SPI slot (7 pins)

Landing area with female headers for Raspberry Pi Pico

0.1” pitch, 5 or 7 pin connectors

Broken-out pins

Reverse polarity protection (built into breakouts)

99% assembled - just need to stick on the feet!

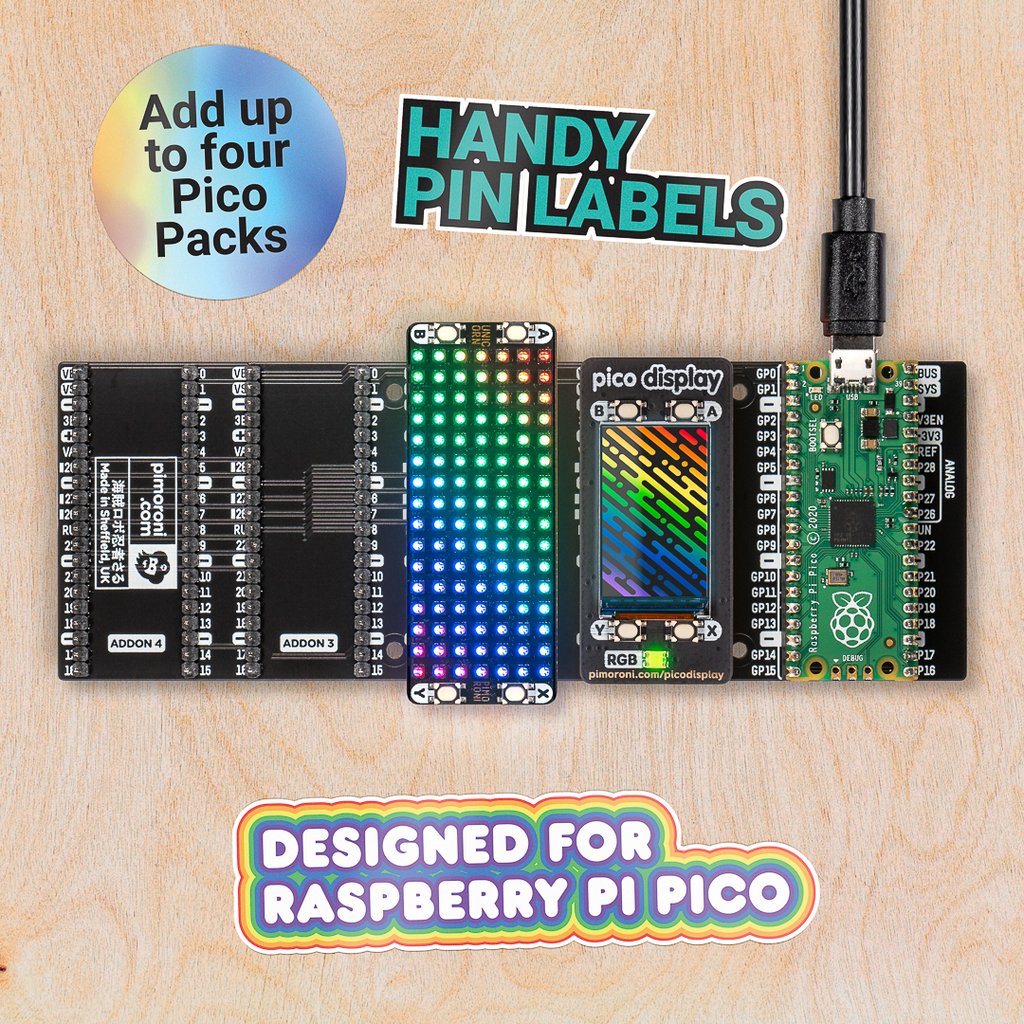

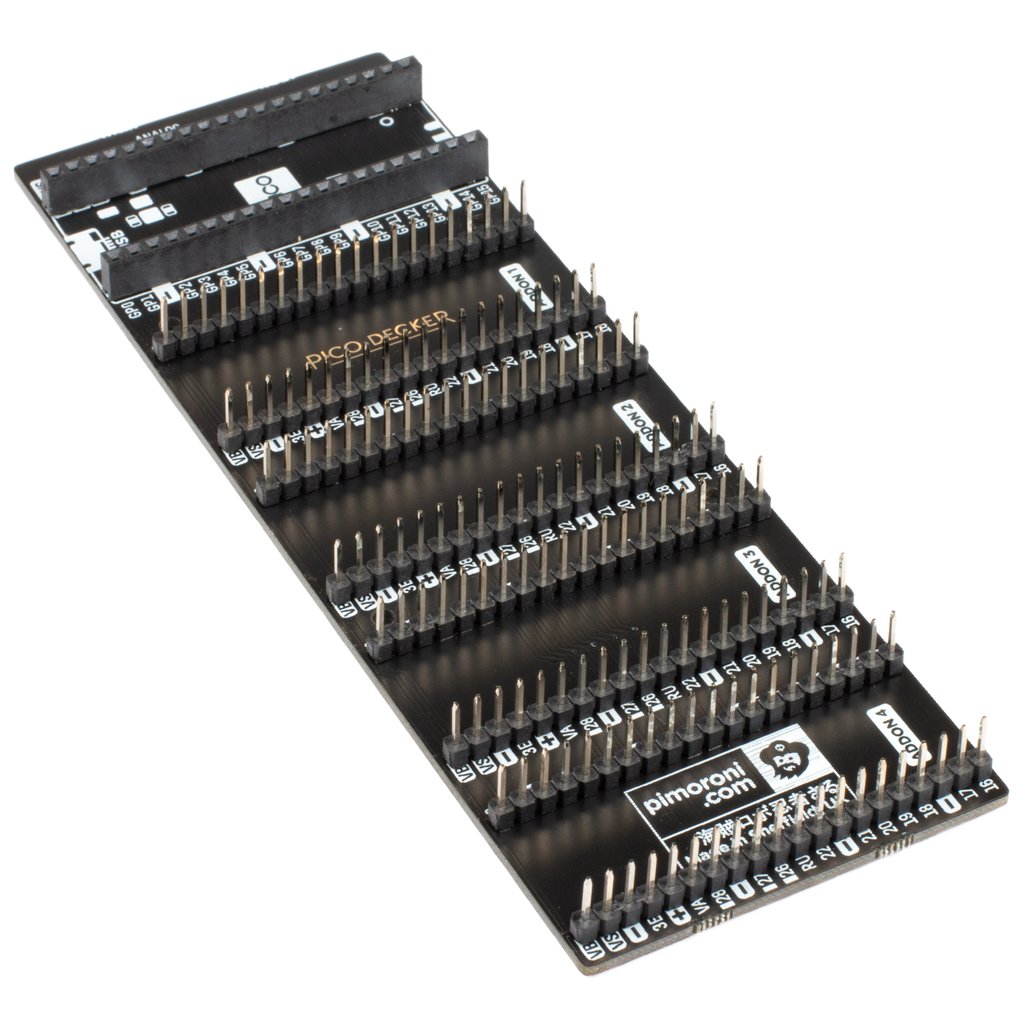

One landing area with labelled female headers for attaching to your Pico.

Four landing areas with labelled (mirrored) male headers for attaching add-ons.

4x M2.5 mounting holes.

4x rubber feet

Compatible with Raspberry Pi Pico.

99% assembled - just need to stick on the feet!

No soldering required.
