Linux powered STMicro STM32MP1 Solder-down QFN-Style SoM Measures 27x27mm

STMicro STM32MP1 Cortex A7/M4 processor was launched last year with support for Linux and Android. Since then we’ve seen a few STM32MP1 SBC‘s, development kit and modules, with some of the latter really compact with DHCOR STM32MP157 SoM found on Avenger96 board measuring just 29x29mm.

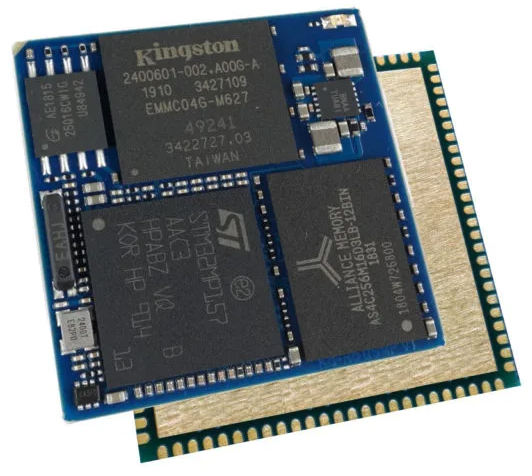

Direct Insight has now unveiled QFN-style solder-down QSMP systems-on-module based on STM32MP1 that measure just 27 x 27 x 2.3mm and manufactured in Germany by Ka-Ro Electronics.

规格

SoC

QSMP-1510 module – STMicro STM32MP151A single-core Cortex-A7 processor up to 650 Mhz, plus Arm Cortex-M4 real-time core up to 200 MHz

QSMP-1530 module – STMicro STM32MP153A dual-core Cortex -A7 processor up to 650 MHz, plus Arm Cortex-M4 real-time core up to 200 MHz

QSMP-1570 module – STM32MP157C dual-core Cortex -A7 processor up to 650 MHz, plus Arm Cortex-M4 real-time core up to 200 MHz and Vivante 3D GPU with OpenGL ES 2.0 support

System memory & Storage

QSMP-1510 – 256MB RAM and 128MB SLC NAND flash

QSMP-1530 – 256MB and 4GB eMMC flash

QSMP-1570 – 512MB RAM and 4GB eMMC flash

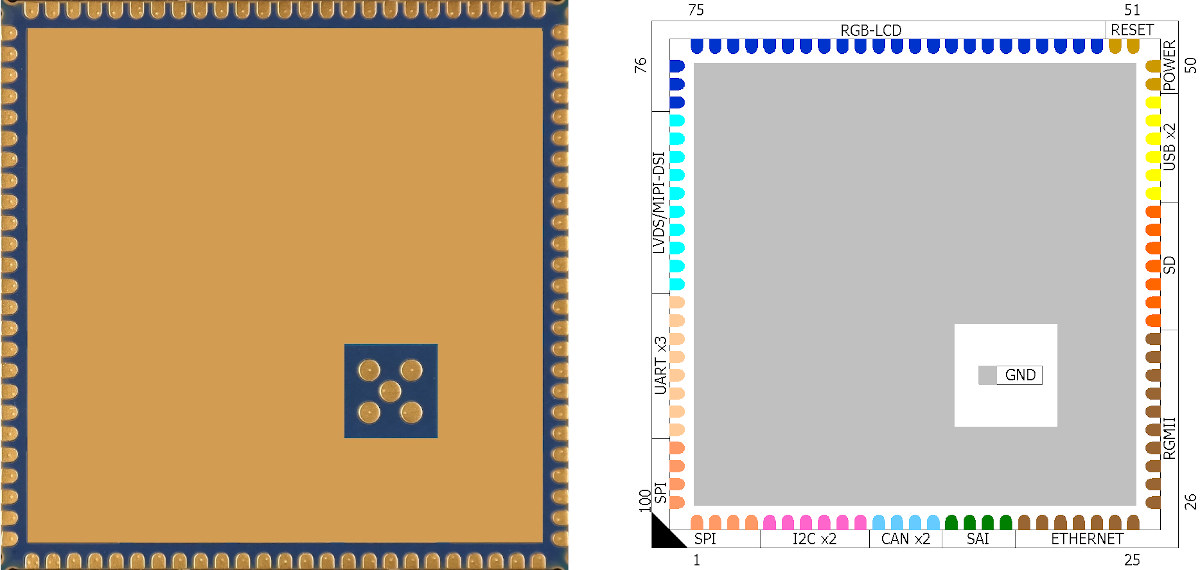

100 pads around the module with 1mm pitch:

Display Interface – 24-bit RGB; QSMP-1570 adds 2-lane MIPI-DSI

Gigabit Ethernet

USB 2.0

GPIO, UART, I2C, SPI, PWM, SAI

QSMP-1530/-1570 – 2x FD-CAN 2x FD-CAN

Security -Trustzone, SHA-256, MD5, HMAC, etc.. QSMP-1570 only: Secure Boot and HW cryptography for AES-256 and TDES

Supply Voltage – 3.3V

Dimensions – 27 x 27 x 2.3 mm

Temperature Range

SQMP-1510 (NAND): -40°C to 85°C

SQMP-1530-1570 (eMMC): -25°C to 85°C

数据手册

背面照片

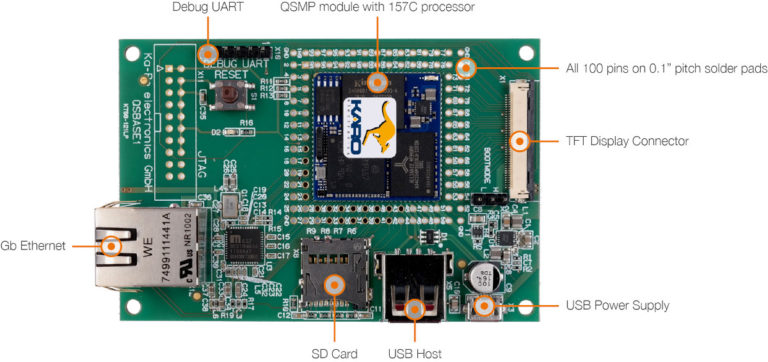

评估板
