TL97x - 输出为轨到轨超低噪声的运算放大器

脑图

厂商

Texas Instruments

官网链接

数据手册

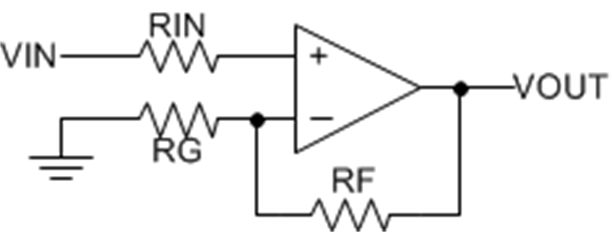

功能框图

概述

The TL97x family of single, dual, and quad operational amplifiers operates at voltages as low as ±1.35 V and features output rail-to-rail signal swing. The TL97x boast characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion characteristics make them ideal for audio preamplification.

The TL971 is housed in the space-saving 5-pin SOT-23 package, which simplifies board design because of the ability to be placed anywhere (outside dimensions are 2.8 mm × 2.9 mm).

特性

Rail-to-Rail Output Voltage Swing:

±2.4 V at VCC = ±2.5 V

Very Low Noise Level: 4 nV/√Hz

Ultra-Low Distortion: 0.003%

High Dynamic Features: 12 MHz, 5 V/µs

Operating Range: 2.7 V to 12 V

Latch-Up Performance Exceeds 100 mA

Per JESD 78, Class II

ESD Performance Tested Per JESD 22

2000-V Human-Body Model

1500-V Charged-Device Model
